Highlights

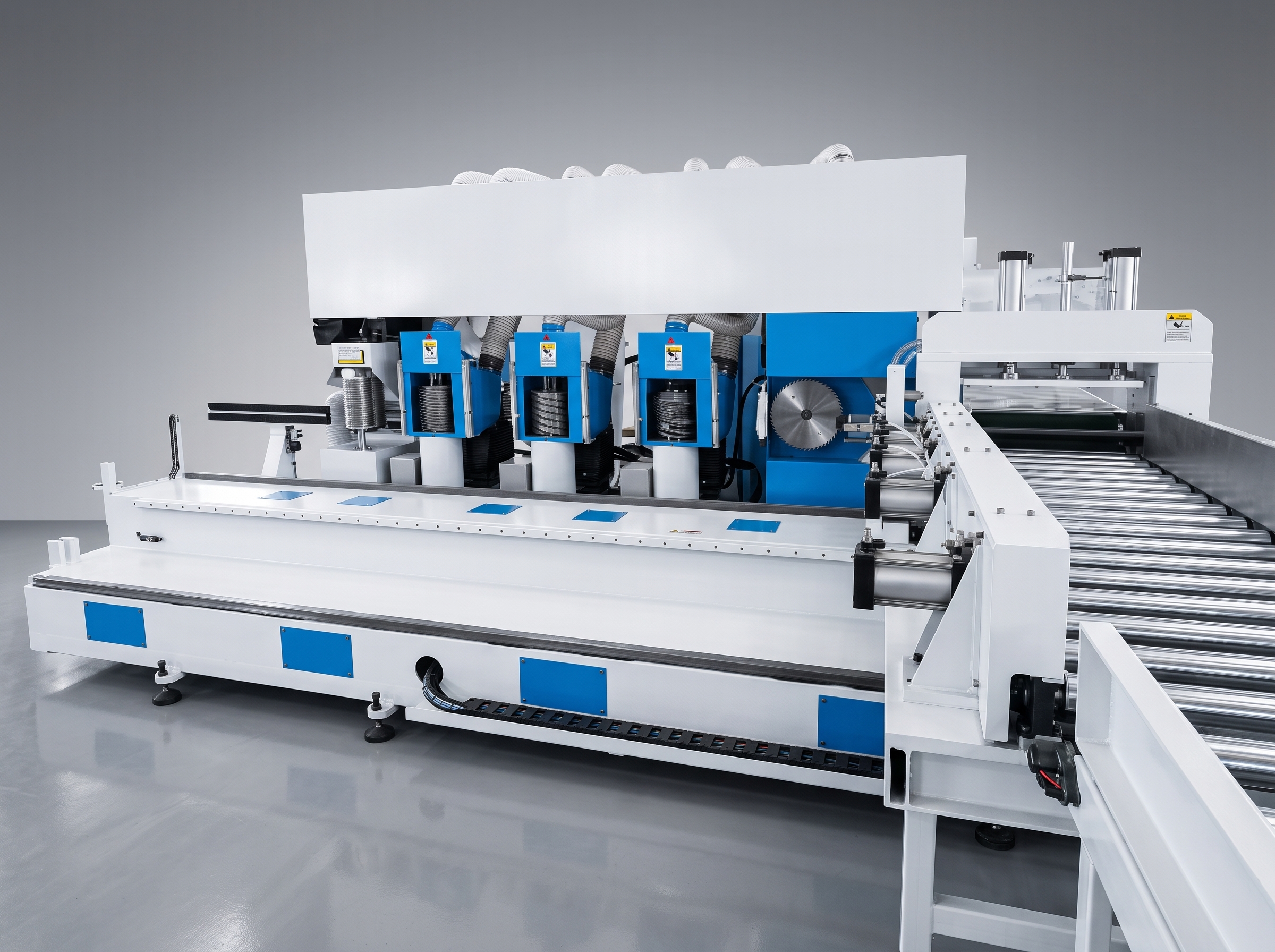

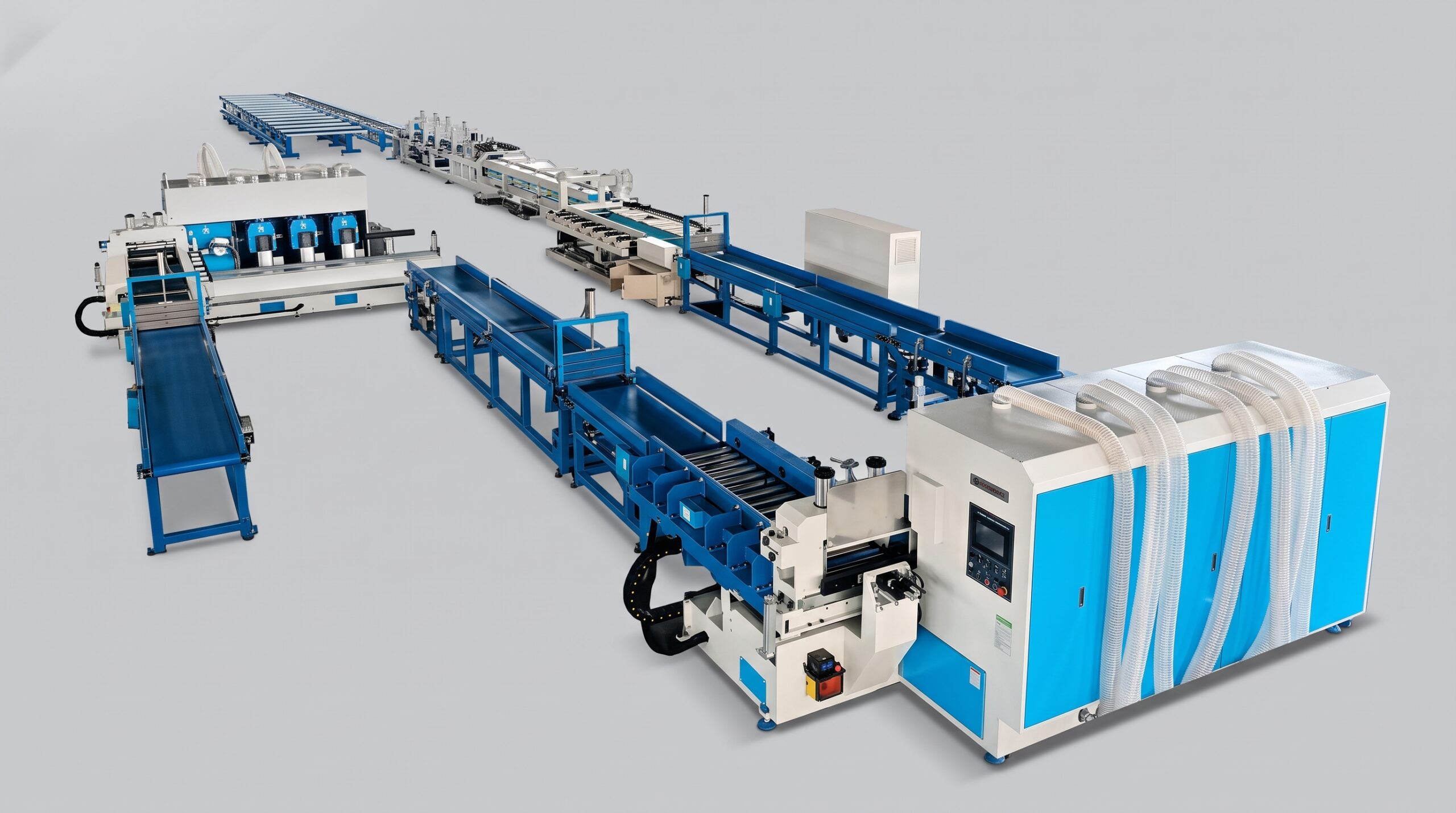

The Heavy-Duty CNC Fully Automatic Continuous Finger Jointing Line is designed for joining individual solid wood components into long, continuous finger-jointed timber. The complete system integrates dual-end finger shaping, automatic glue application, automatic turning, chain pre-assembly, continuous hydraulic pressing, cut-off and roller outfeed into one production flow. Two finger-shaping machines process opposite timber ends, with the HD-600S4 providing automatic glue application before the material is turned and transferred to a 7 m double-row chain pre-assembly conveyor. The pre-assembled timber then enters the H-6075CSP continuous press for end joining and continuous-length output. The line is designed for heavy-duty solid wood production where automation, consistent finger depth, reduced intermediate handling and high throughput are required.
- Input timber length: 500–4000 mm
- Finger shaper processing width: 600 mm
- Finger shaper processing height: 100–300 mm
- Finger cutter spindles: 3 per shaper
- Finger cutter spindle speed: 6750 rpm
- Maximum pressing length per cycle: 6000 mm
- Line output rate: 35–50 m/min
Images
Features
- Complete automatic production flow integrates finger shaping, glue application, turning, pre-assembly, continuous pressing and roller outfeed.

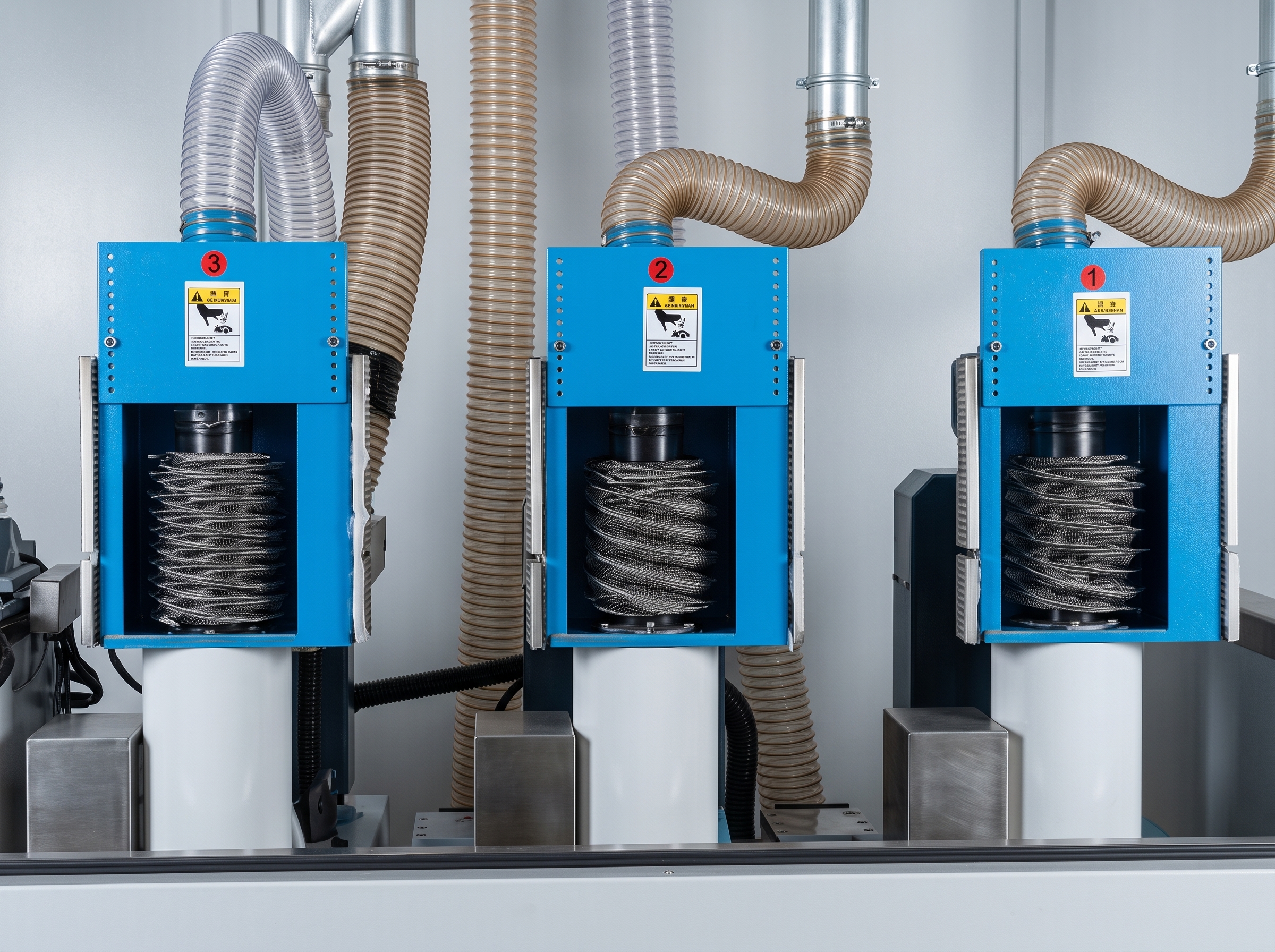

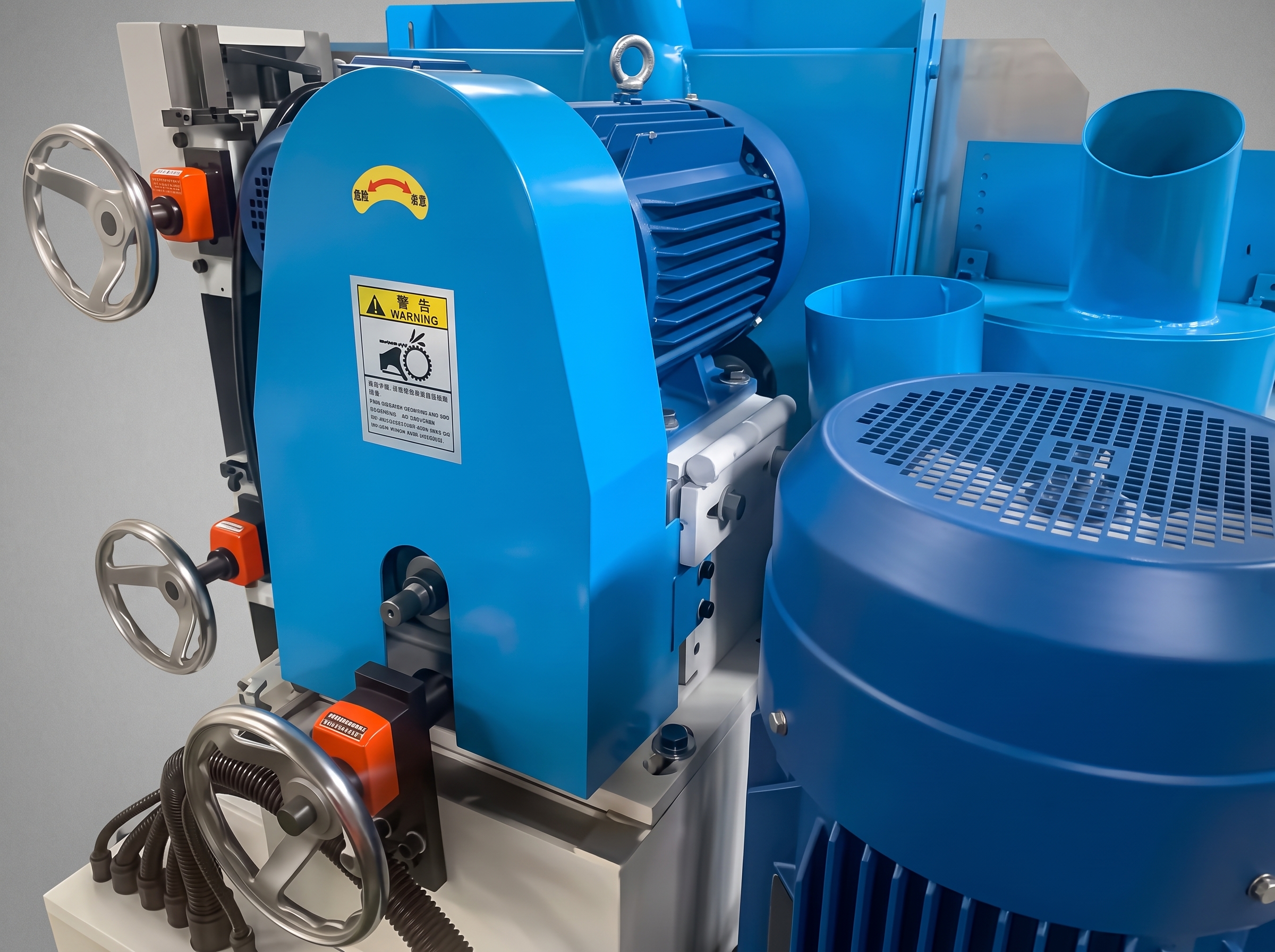

- Three-stage finger shaping uses three cutter spindles to improve processing speed while maintaining consistent finger depth.
- CNC size adjustment and HMI control reduce manual setup and provide access to machine positions, cutter settings, parameters and alarm records.

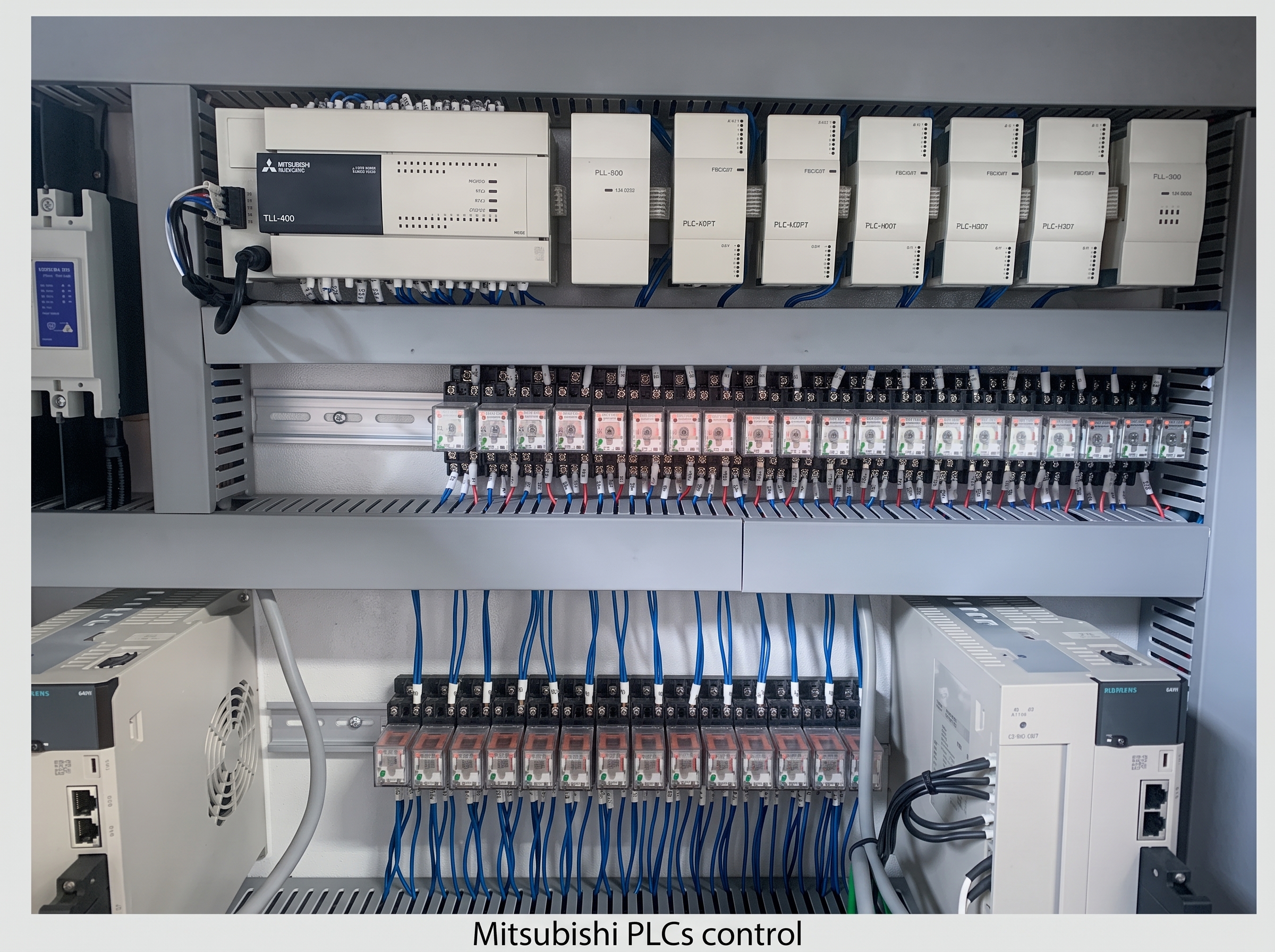

- Mitsubishi PLC control coordinates the main machines across the production line for stable automated operation.

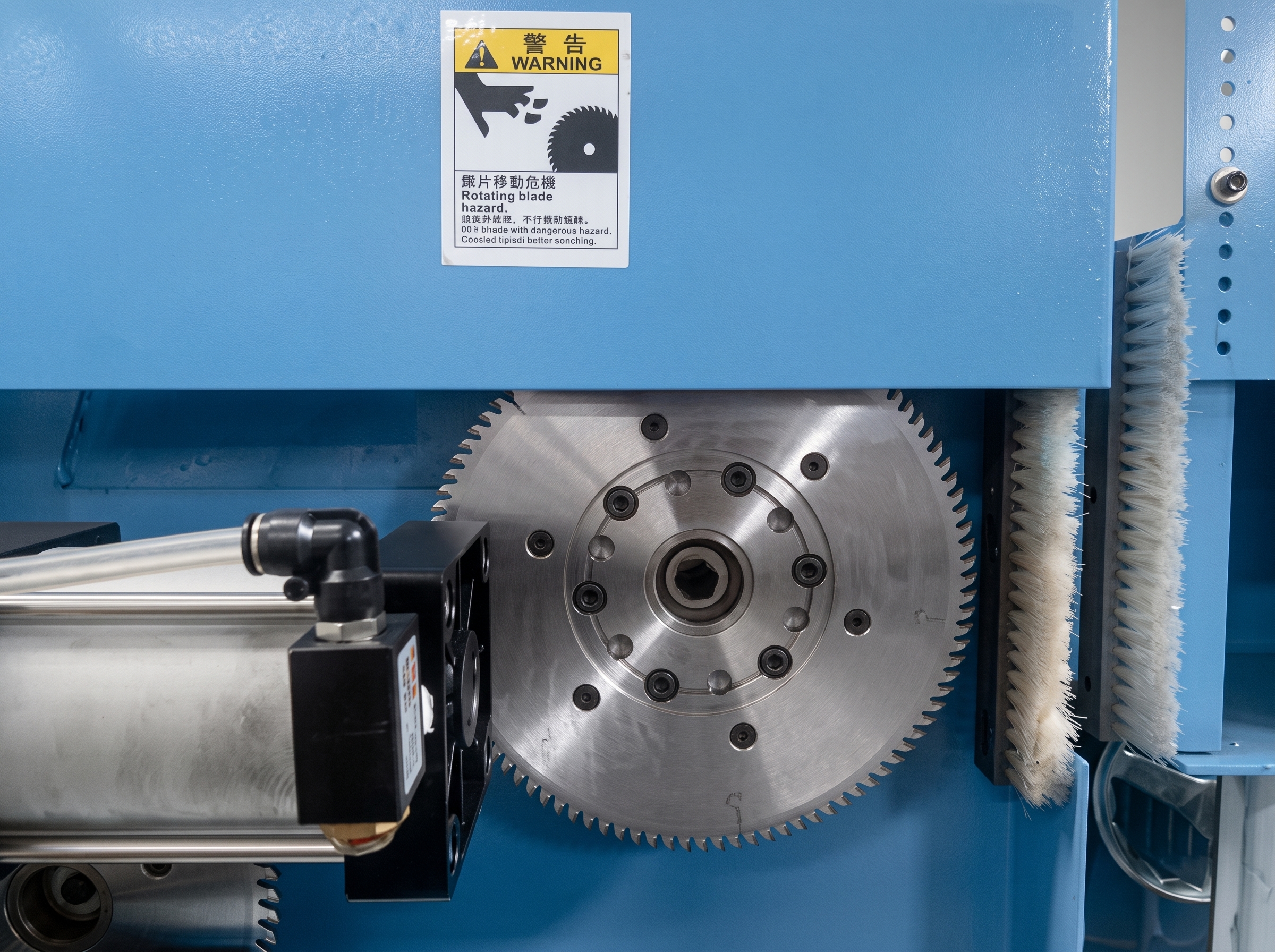

- Precision-welded heavy-gauge steel frames, Taiwan Eagle cutting tools and reinforced cut-off units support stable production and clean cutting.
Technical data
Finger shaping machines
| Specifications | Unit | HD-600S3 | HD-600S4 |
|---|---|---|---|
| Automatic glue application | — | Not specified | Included |
| Processing width | mm | 600 | 600 |
| Processing height | mm | 100–300 | 100–300 |
| Processing length | mm | 500–4000 | 500–4000 |
| Servo drive motor | kW | 3.9 | 3.9 |
| Scoring saw motor | HP | 2 | 2 |
| Scoring saw speed | rpm | 4580 | 4580 |
| Finger cutter spindle diameter | mm | Ø70 | Ø70 |
| Finger cutter spindle motors | HP | 30 × 3 | 30 × 3 |
| Finger cutter spindle speed | rpm | 6750 | 6750 |
| Cut-off saw motor | HP | 20 | 20 |
| Cut-off saw speed | rpm | 4800 | 4800 |
| Dust extraction | mm | Ø100 × 4 + Ø125 × 2 | Ø100 × 4 + Ø125 × 2 |
Automatic turning & pre-assembly
| Specifications | Unit | Value |
|---|---|---|
| Turning table feed dimensions | mm | 3600 × 600 × 250 |
| Turning table feed motors | HP | 2 × 2 |
| Double-row chain table dimensions | mm | 1150 × 7000 |
| Chain conveyor feed motors | HP | 3 × 2 |
| Chain specification | — | 12A-2 |
Continuous finger jointing press
| Specifications | Unit | H-6075CSP |
|---|---|---|
| Output length | — | Continuous |
| Maximum pressing length per cycle | mm | 6000 |
| Processing width | mm | 100–300 |
| Processing thickness | mm | 75 |
| Cut-off saw motor | HP | 15 |
| Cut-off saw speed | rpm | 2920 |
| Cut-off saw blade | mm | 600 × 4.5 × 30.3 |
| Hydraulic motor | HP | 15, 4-pole |
| Hydraulic equipment | — | High-pressure pump + 3 HP oil cooler |
