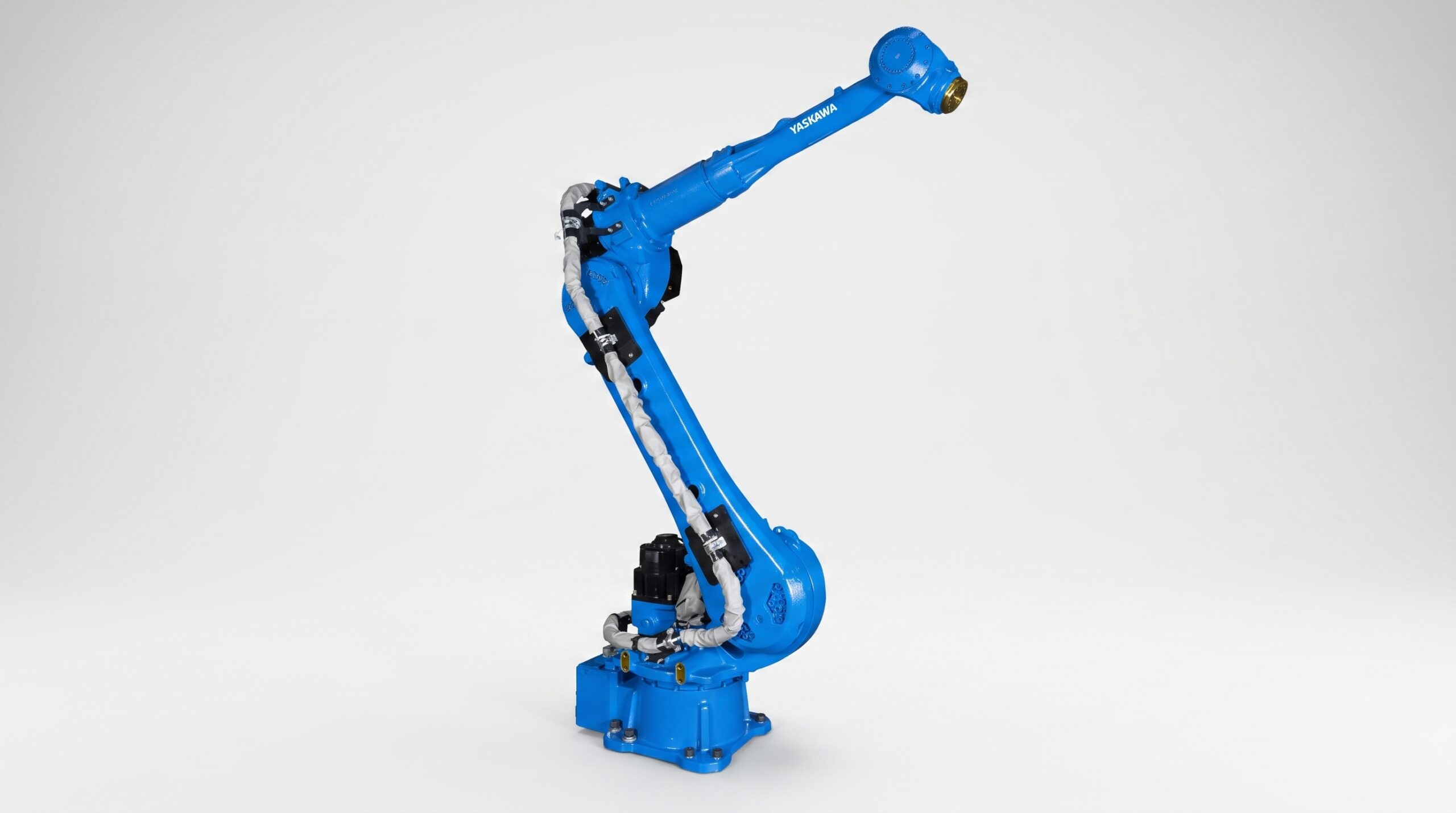

Yaskawa Motoman GP70L

Highlights

The Yaskawa Motoman GP70L is a long-reach 6-axis industrial robot designed for high-speed material handling, machine tending, part transfer, palletizing and depalletizing. With a 70 kg payload and 2732 mm horizontal reach, the GP70L provides a significantly larger working envelope for handling long or medium-heavy components. Yaskawa specifically identifies CNC machine loading and unloading as a suitable application, while the reduced-interference arm design allows easier access around machines and fixtures. In HC WoodTech automation cells, the GP70L is well suited for CNC loading, panel handling, solid wood transfer, long timber handling and multi-machine tending.

• Maximum payload: 70 kg
• Horizontal reach: 2732 mm
• Vertical reach: 4715 mm
• Number of axes: 6
• Repeatability: ±0.05 mm
• Mechanical weight: 650 kg
• Controller: Yaskawa YRC1000

Images

Features

• 70 kg payload with 2732 mm reach provides extended coverage for long workpieces, larger fixtures and machine-tending cells.
• Yaskawa specifically recommends the GP70L for loading and unloading CNC machines, as well as material handling, part transfer, palletizing and depalletizing.
• The long-reach, reduced-interference arm design improves access into machines and tight work areas while allowing robots to be positioned closer together in high-density automation cells.
• Fast axis speeds and acceleration help shorten repetitive handling cycles and increase production throughput.
• The robot provides IP54 protection on the main axes and IP67 wrist protection, supporting operation in demanding industrial production environments.
