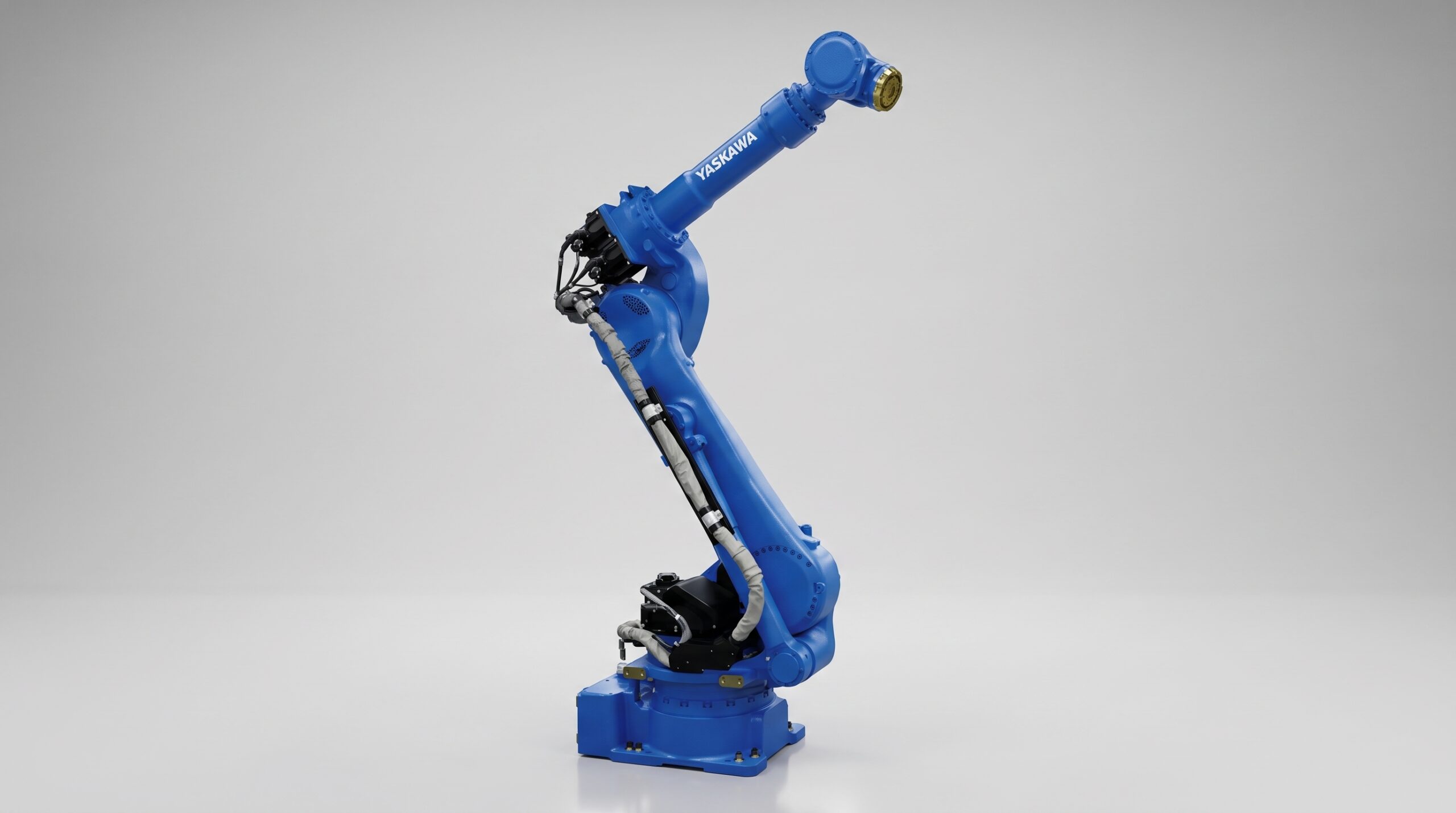

Yaskawa Motoman GP180

Highlights

The Yaskawa Motoman GP180 is a heavy-payload 6-axis industrial robot designed for high-speed material handling, machine tending, press tending and cutting or trimming applications. It combines a 180 kg payload with 2702 mm horizontal reach and 3393 mm vertical reach, giving it the capacity and working envelope needed for larger workpieces and heavier end-of-arm tooling. Yaskawa emphasizes its streamlined upper arm, wide wrist motion range, fast axis speeds and high wrist moment and inertia ratings for efficient handling of larger payloads. In HC WoodTech automation cells, the GP180 can be integrated for heavy solid wood handling, large panel transfer, timber beam handling, CNC loading and unloading, and other demanding woodworking automation applications.

• Maximum payload: 180 kg
• Horizontal reach: 2702 mm
• Vertical reach: 3393 mm
• Number of axes: 6
• Repeatability: ±0.05 mm
• Mechanical weight: 1020 kg
• Controller: YRC1000

Images

Features

• 180 kg payload capacity supports heavier workpieces, large vacuum grippers and demanding material-handling applications.
• The 2702 mm horizontal reach provides a wide working envelope for machine loading, panel transfer and multi-station automation cells.
• A streamlined upper-arm and reduced-interference design improve access to workpieces and allow robots to be installed closer to surrounding equipment.
• High wrist moment and inertia ratings help the robot handle larger end-of-arm tooling and heavier payloads with stable performance.
• Yaskawa offers a high-protection version with IP65/67 protection for harsh industrial environments where additional dust and liquid resistance is required.
