Highlights

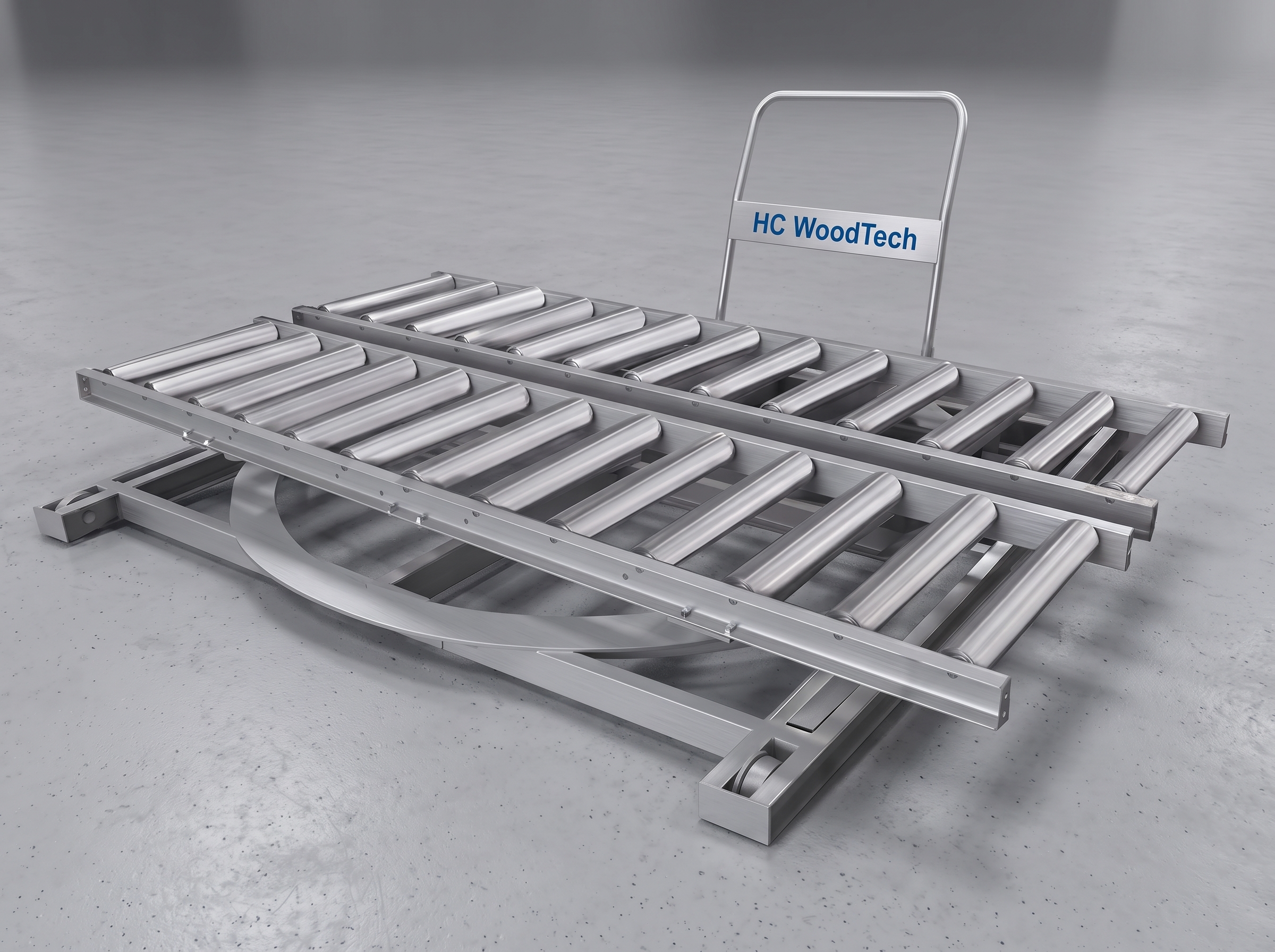

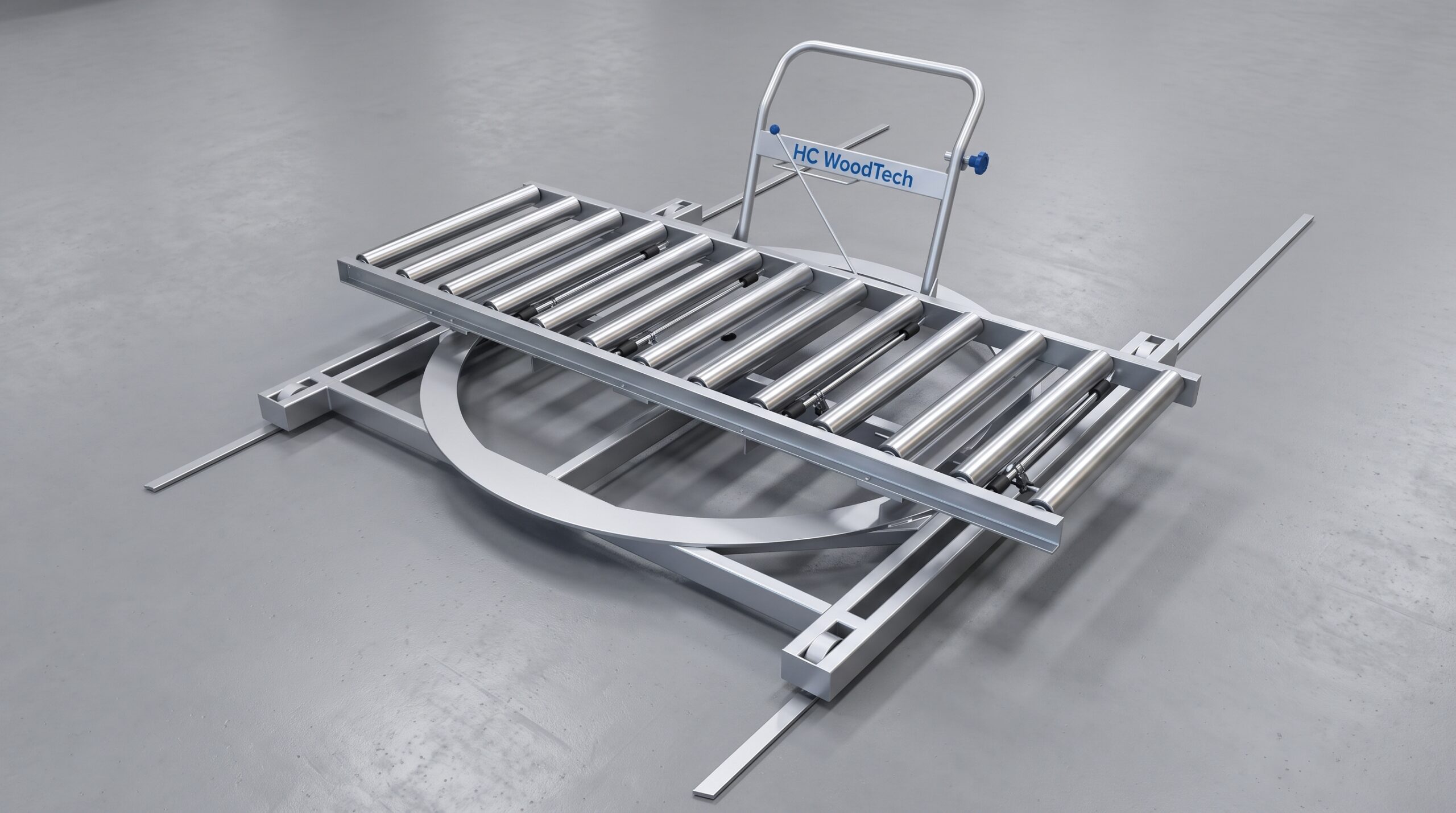

The Unpowered Rotary Roller Rail Trolley is designed for flexible transfer and direction-changing of panels between conveyor lines, packing stations and production areas. Mounted on floor rails, the trolley can be manually moved and rotated through 360°, allowing workpieces to be redirected without powered drives or complex transfer equipment. Single-row and double-row configurations are available for different panel widths and production layouts, while the heavy-duty steel structure and galvanized rollers provide stable support for industrial panel handling.
- Rotation: 360° manual rotation
- Configuration: Single-row / Double-row
- Single-row size: 2400 × 600 × 300 mm
- Double-row size: 2400 × 1200 × 300 mm
- Roller pitch: 200 mm
- Dynamic load: 600 kg/m
- Static load: 800 kg/m
Images
Features
- 360° rotary design allows panels to change conveying direction between different production lines and workstations.
- Rail-mounted trolley construction supports flexible movement between multiple conveyor positions.
- Available in single-row and double-row configurations to suit different panel widths and handling layouts.
- Hot-dip galvanized rollers provide good corrosion resistance and durability for industrial environments.
- Heavy-duty steel frame and solid steel wheels provide stable support for repeated panel transfer operations.
Technical data
| Specifications | Unit | Single-Row | Double-Row |
|---|---|---|---|
| Machine type | — | Single-Row Rotary Rail Trolley | Double-Row Rotary Rail Trolley |
| Overall length | mm | 2400 | 2400 |
| Overall width | mm | 600 | 1200 |
| Overall height | mm | 300 | 300 |
| Roller length | mm | 500 | 500 |
| Roller center distance | mm | 200 | 200 |
| Roller size | mm | Ø76 × 1.5 | Ø76 × 1.5 |
| Roller bearing | mm | Ø15 | Ø15 |
| Main beam | mm | 80 × 40 × 2.0 | 80 × 40 × 2.0 |
| Dynamic loading capacity | kg/m | 600 | 600 |
| Static loading capacity | kg/m | 800 | 800 |
| Rotation | — | 360° Manual | 360° Manual |
| Drive system | — | Manual / Unpowered | Manual / Unpowered |
| Rail movement | — | Yes | Yes |
