Highlights

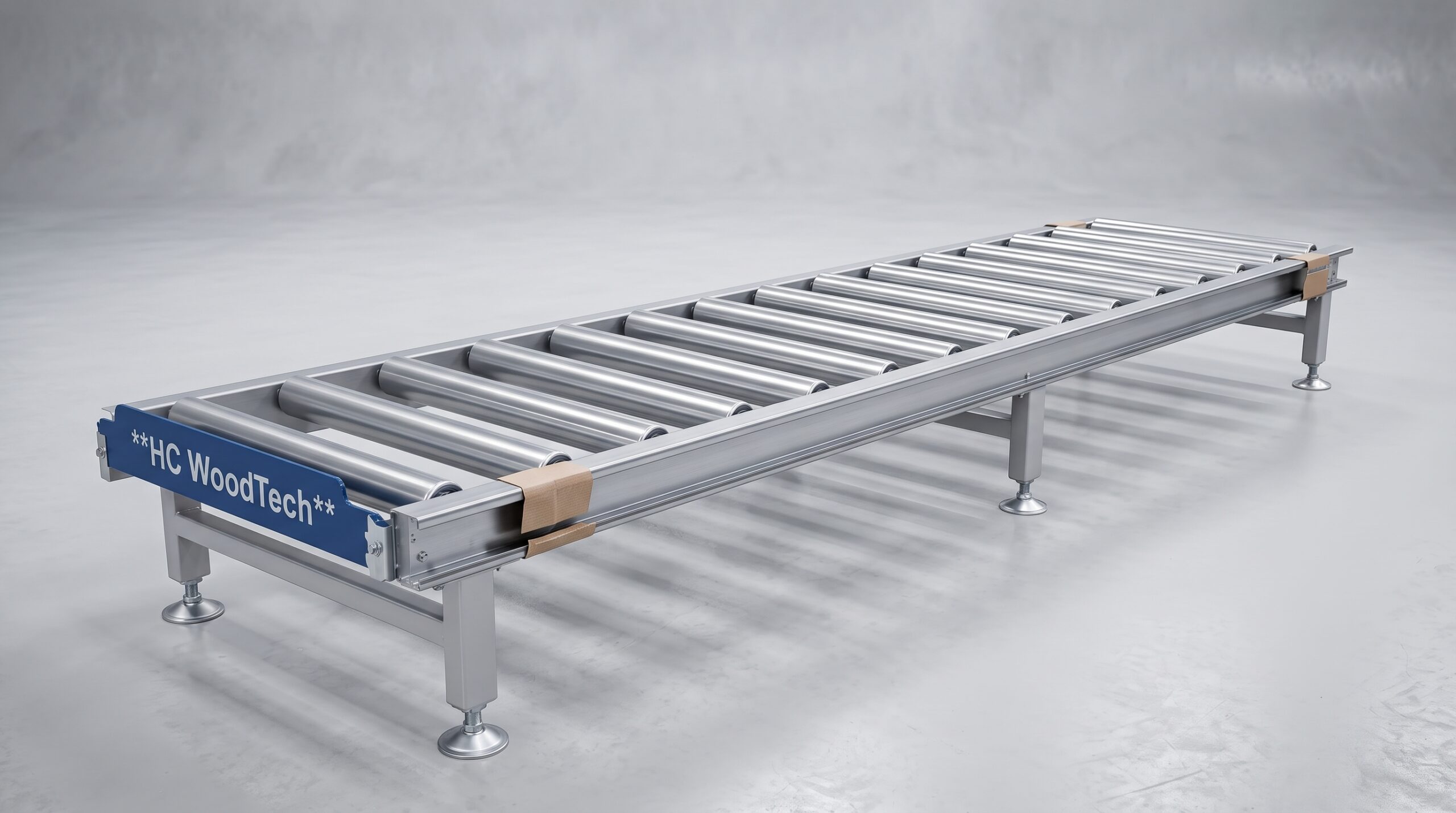

The Unpowered Roller Conveyor Line is designed for manual or gravity-assisted transfer of panels, boards and other flat workpieces between woodworking machines and production stations. Its heavy-duty frame and galvanized roller construction provide stable support for continuous material handling, while adjustable support legs allow the conveyor height to be adapted to uneven floors and different machine layouts. With a rated loading capacity of 600 kg per meter, the system can be used as an infeed, outfeed, buffer or transfer conveyor in woodworking and panel-processing lines.
- Model: WC/20-6016/12W6
- Conveyor dimensions: 2500 × 600 × 300 mm
- Roller length: 500 mm
- Roller center distance: 167 mm
- Roller diameter: Ø60 mm
- Loading capacity: 600 kg/m
- Drive type: Unpowered
Images
Features
- Suitable for conveying panels, boards and other flat workpieces between machines and production stations.
- Galvanized steel rollers provide good corrosion resistance and durability for industrial use.
- Heavy-duty frame construction supports loads up to 600 kg per meter.
- Adjustable support legs allow the conveyor height to be leveled according to floor and production-line conditions.
- Optional side or end stops can be added to help prevent workpieces from moving beyond the conveyor area.
Technical data
| Specifications | Unit | WC/20-6016/12W6 |
|---|---|---|
| Machine type | — | Unpowered Roller Conveyor |
| Overall length | mm | 2500 |
| Overall width | mm | 600 |
| Overall height | mm | 300 |
| Roller length | mm | 500 |
| Roller center distance | mm | 167 |
| Roller size | mm | Ø60 × 1.5 |
| Main beam | mm | 80 × 40 × 2.0 |
| Leg section | mm | 50 × 30 × 1.2 |
| Loading capacity | kg/m | 600 |
| Roller material | — | Galvanized Steel |
| Drive system | — | Unpowered |
