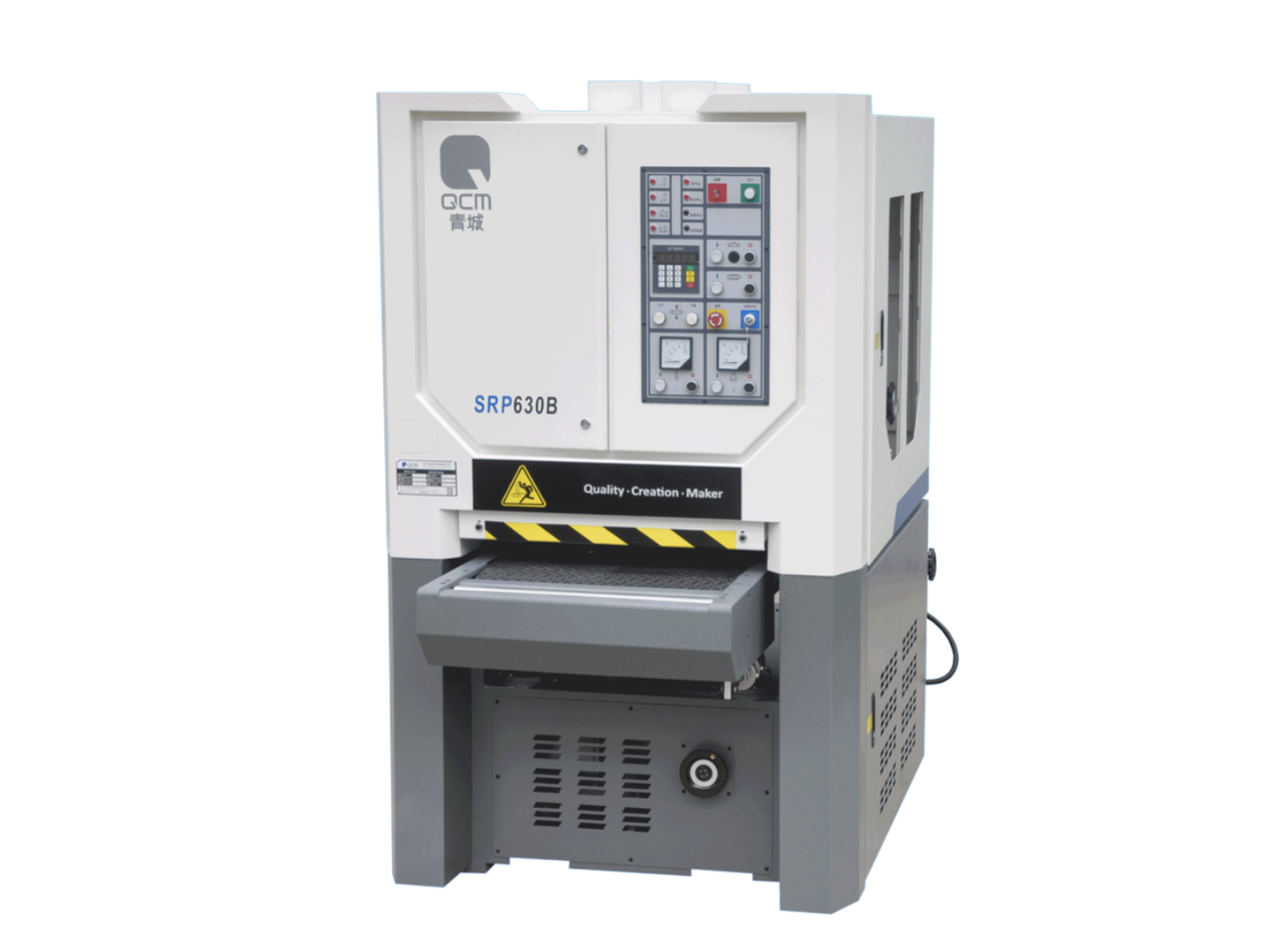

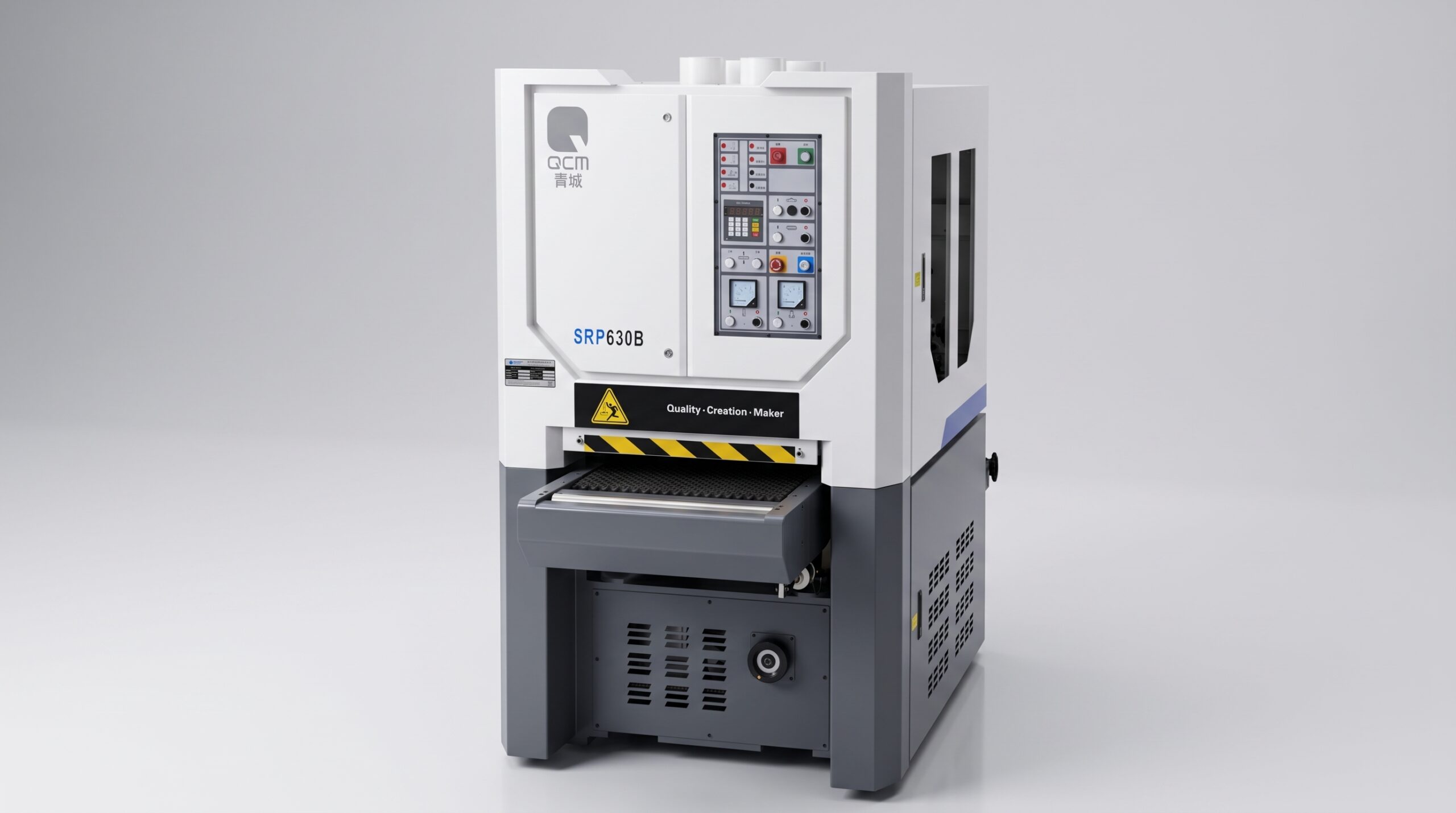

SRP630B / SRP630B Double Sanding Unit – Compact Wide Belt Sanders
Overview
The SRP630B Series is a compact and efficient wide belt sanding machine designed for fine surface calibration and finishing of solid wood, MDF, veneer, and composite panels.
Available in single sanding head (SRP630B) and double sanding head (SRP630B-D) configurations, this series combines stability, power, and precision in a compact footprint — perfect for small to medium-scale woodworking production.
Key Features
-
Two Configurations:
-
SRP630B (Single Head): Ideal for basic surface sanding and calibration.
-

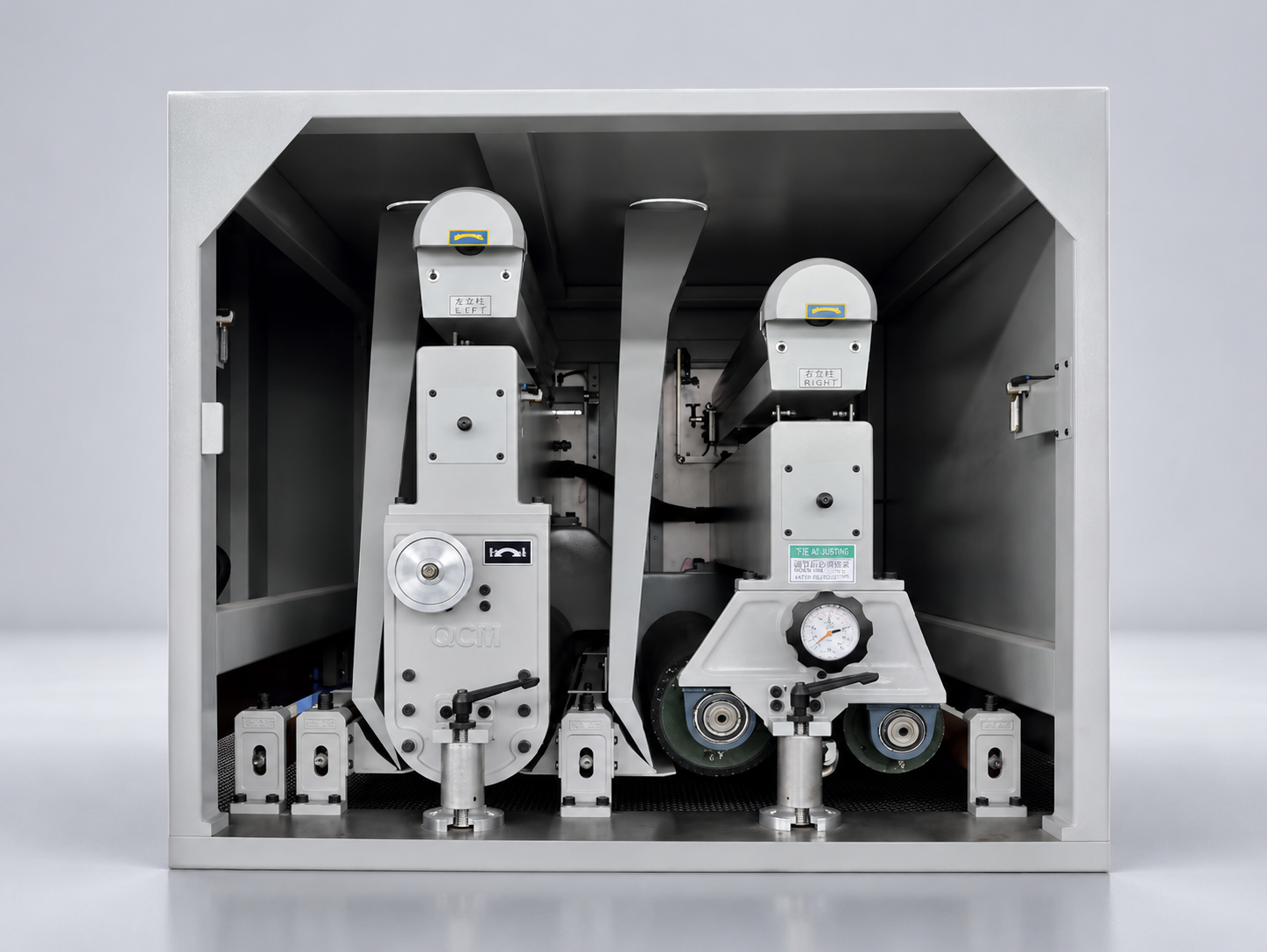

SRP630B-D (Double Head): Equipped with dual sanding units for one-pass fine and coarse sanding, improving productivity and finish quality.
-
-
High Efficiency in a Compact Design:
Space-saving structure with strong power output up to 20.7 kW. -

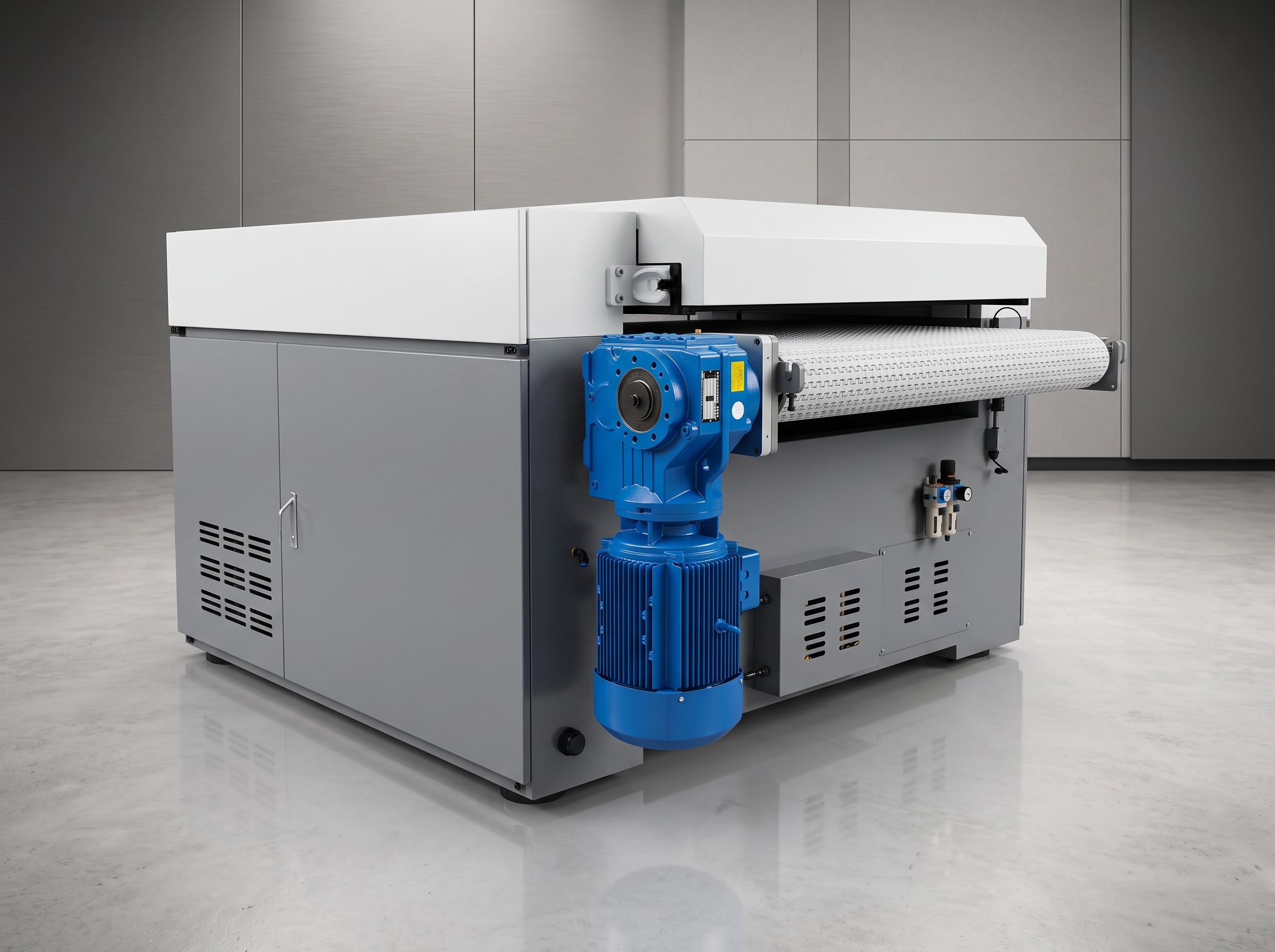

Precision Feeding System:
Adjustable feed speed from 5–27 m/min, ensuring stable and smooth operation for various materials. -

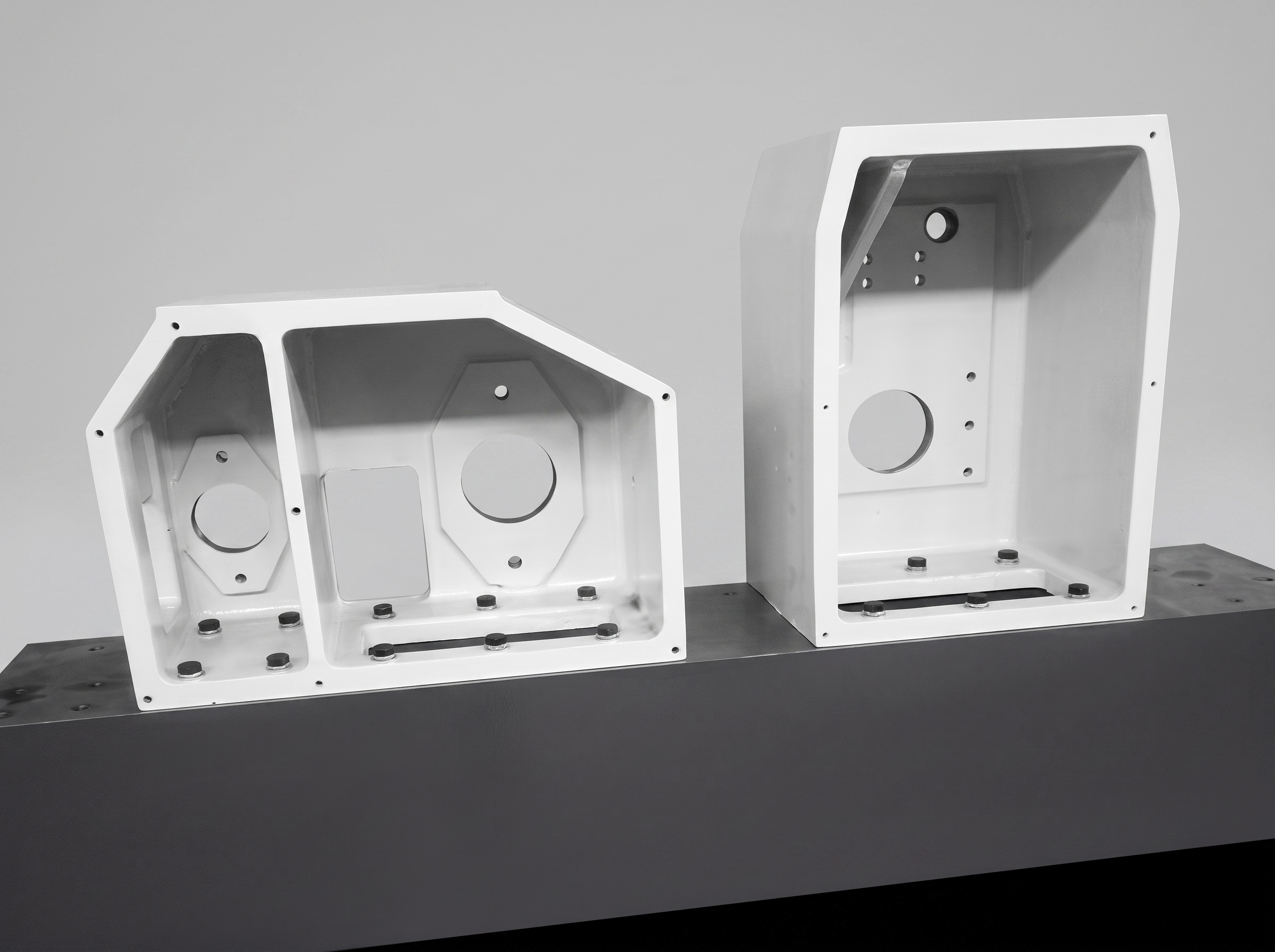

Durable Construction:
Heavy-duty steel frame and industrial-grade components for long service life and low vibration. -
User-Friendly Interface:
Intuitive control panel for easy operation and sanding pressure adjustment. -
Reliable Dust Extraction:
Equipped with 5 dust ports (φ150 mm) and suction capacity of 4500 m³/h for a clean working environment.
| Parameter | SRP630B / SRP630B-D |
|---|---|
| Working width | 40–630 mm |
| Working thickness | 3–160 mm |
| Min. working length | 520 mm |
| First belt speed | 19 m/s |
| Second belt speed | 16 m/s |
| Feed speed | 5–27 m/min |
| Sanding belt size | 650 × 2100 mm |
| Total motor power | 20.7 kW |
| Dust port diameter | φ150 × 5 |
| Air pressure | 0.6 MPa |
| Air consumption | 0.1 m³/min |
| Required suction volume | 4500 m³/h |
| Machine dimensions | 212 × 128 × 205 cm |
| Weight | 1950 kg |
Applications
-
Suitable for panel calibration, fine sanding, and lacquer surface preparation
-
Ideal for furniture, cabinetry, flooring, and small woodworking workshops
-
Handles solid wood, MDF, plywood, veneer, and composite boards
