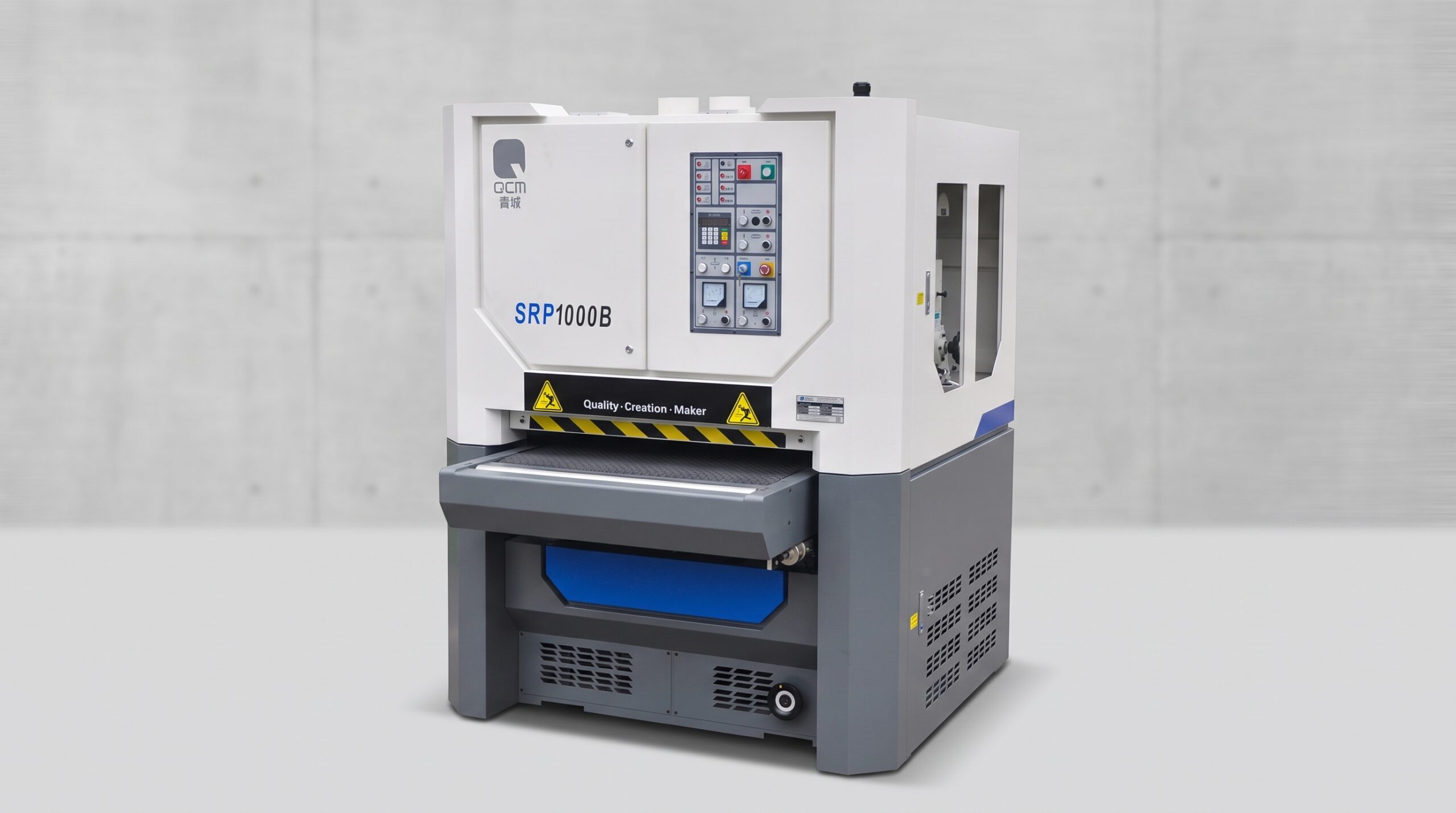

SRP1000B Wide Belt Sanding Machine

Highlights

The SRP1000B Wide Belt Sanding Machine is designed for high-precision calibration and surface finishing of solid wood panels, finger-jointed boards, plywood, fiberboard, door core panels and other wood-based materials up to 1000 mm wide. Its dual sanding configuration combines a front heavy-duty steel calibration roller with a rear fine sanding unit and polishing pad, allowing coarse thickness sanding and fine surface finishing in one continuous process. A rigid welded frame, variable-frequency feeding and photoelectric sanding-belt control provide stable performance for continuous industrial production.

• Maximum sanding width: 1000 mm
• Sanding thickness: 3–160 mm
• Minimum sanding length: 580 mm
• Feeding speed: 6–30 m/min
• First sanding belt speed: 19 m/s
• Second sanding belt speed: 18 m/s
• Total motor power: 40.3 kW

Images

Features

• Dual sanding units combine coarse calibration sanding and fine surface sanding, allowing thickness sizing and finishing in one continuous process.
• The front sanding unit uses a large-diameter thick-wall steel roller for strong and consistent calibration sanding, while the rear sanding unit uses a fine sanding roller and polishing pad for smooth surface finishing.
• The heavy-duty welded frame, reinforced worktable and cast sanding-unit supports provide high rigidity and help maintain stable sanding accuracy during continuous operation.
• A hard-tooth gear reducer and inverter provide strong, adjustable 6–30 m/min feeding for different wood panels and production requirements.
• Photoelectric belt control and an improved belt oscillation system help maintain correct sanding-belt tracking and reduce machine stoppages.
