Highlights

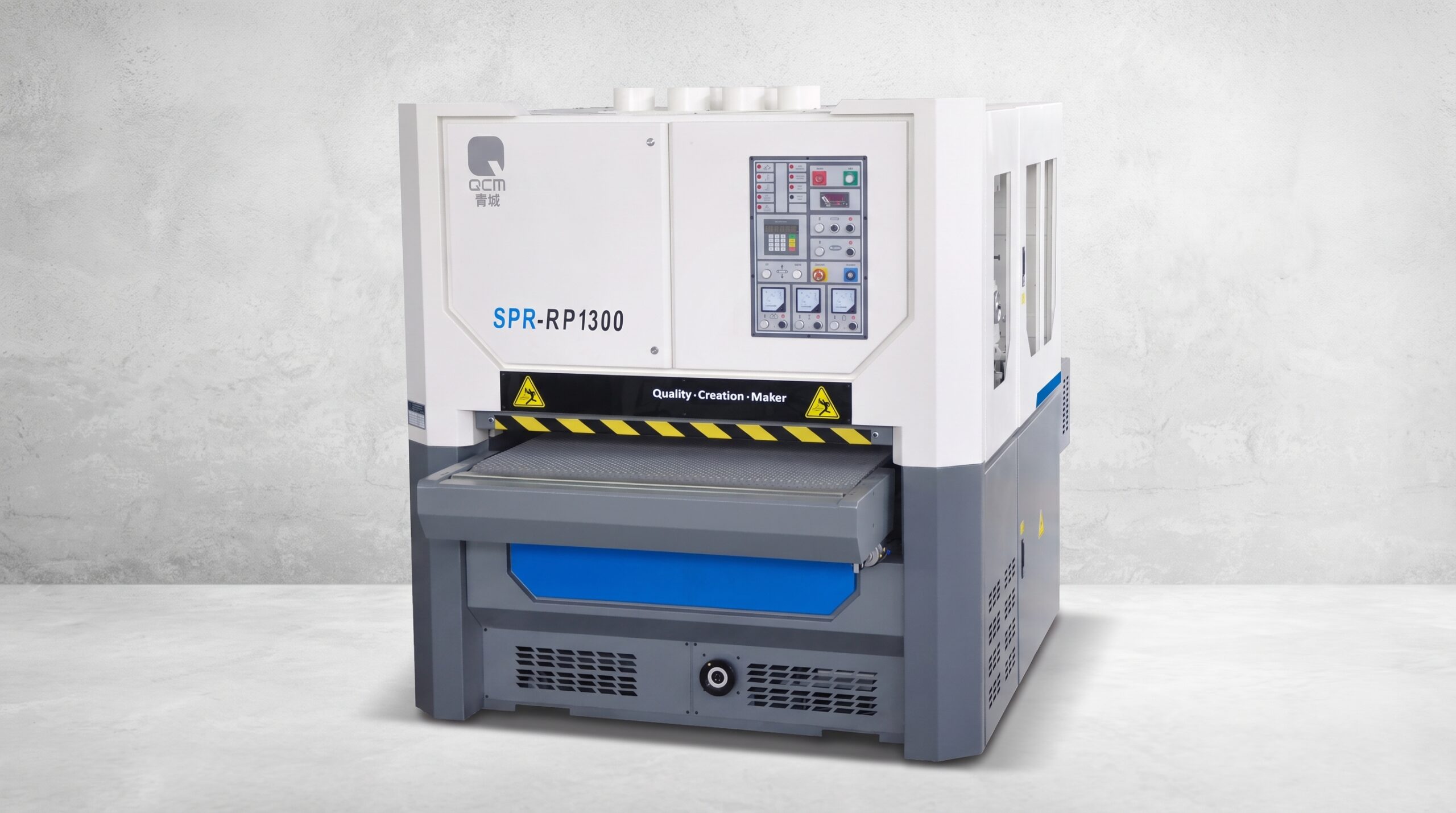

The SPR-RP1300 Planer Sander integrates spiral planing, semi-fine sanding and finish sanding into one continuous process for solid wood panel calibration and surface finishing. A heavy-duty 180 mm spiral planer performs initial thickness removal before two sanding units complete intermediate and fine surface finishing, helping reduce sanding-belt consumption and power usage. With a 1300 mm working width, rigid welded structure and variable-frequency feeding, the machine is designed for efficient processing of wide solid wood panels and other demanding industrial sanding applications.
- Maximum working width: 1300 mm
- Working thickness: 3–120 mm
- Minimum workpiece length: 520 mm
- Feeding speed: 6–30 m/min
- Planer speed: 36 m/s
- Sanding belt speeds: 19 / 18.5 m/s
- Total motor power: 77.1 kW
Images
Features
- Integrates spiral planing, semi-fine sanding and finish sanding in one machine for continuous thickness calibration and surface finishing.
- The front 180 mm spiral planer removes excess material before sanding, helping reduce sanding-belt consumption and overall production costs.

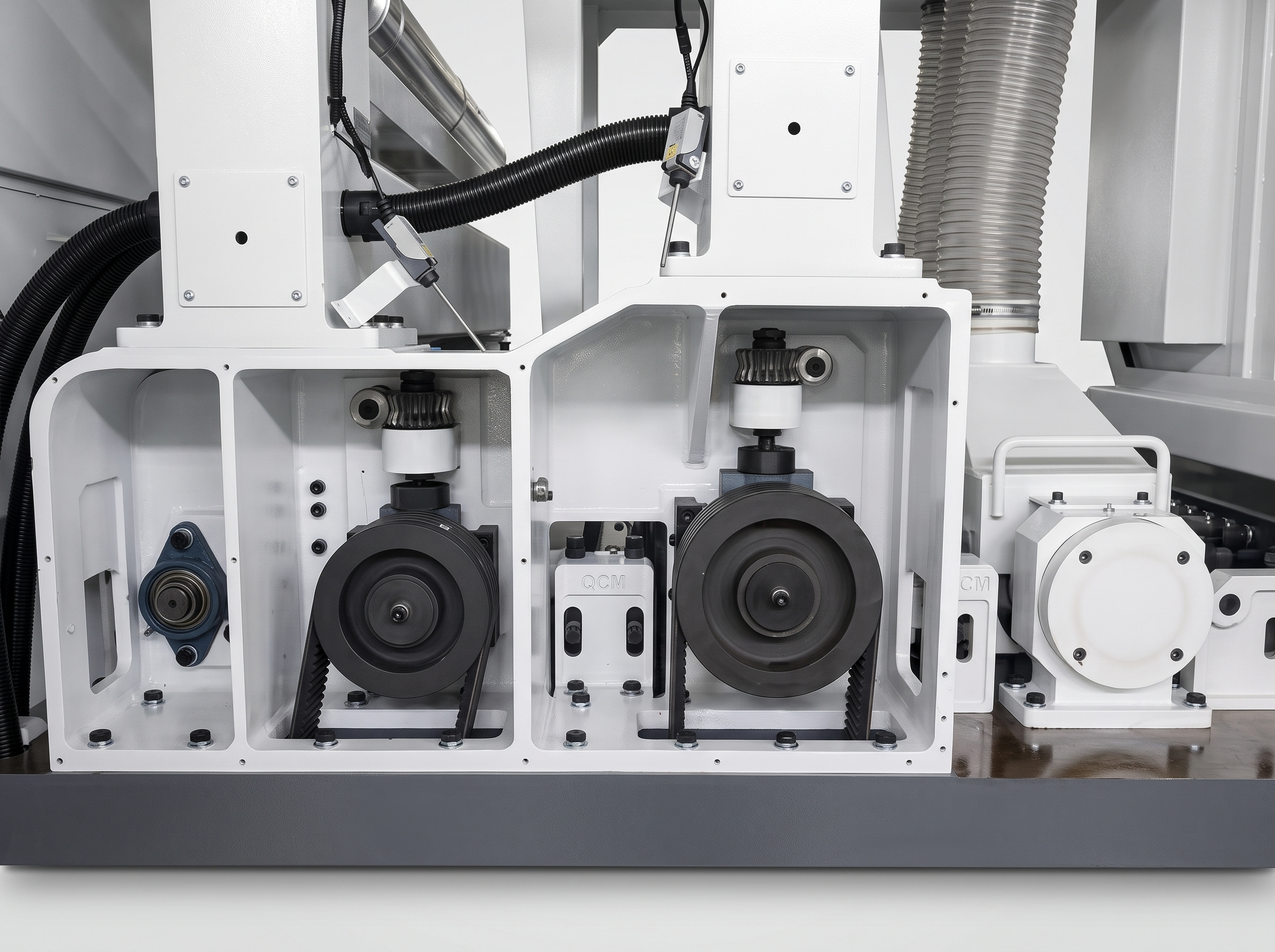

- Heavy welded steel construction, reinforced worktable and cast sanding-unit supports provide high rigidity and stable machining performance.
- Large-diameter sanding rollers and a finishing sanding unit with polishing pad provide strong calibration and smooth, consistent surface quality.
- Variable-frequency feeding and photoelectric sanding-belt control support stable material transport, reliable belt tracking and continuous industrial operation.
Technical data
| Specifications | Unit | SPR-RP1300 |
|---|---|---|
| Working width | mm | 40–1300 |
| Working thickness | mm | 3–120 |
| Minimum workpiece length | mm | ≥520 |
| Planer speed | m/s | 36 |
| First sanding belt speed | m/s | 19 |
| Second sanding belt speed | m/s | 18.5 |
| Feeding speed | m/min | 6–30 |
| Sanding belt size | mm | 1330 × 2200 |
| Conveyor belt size | mm | 1330 × 5000 |

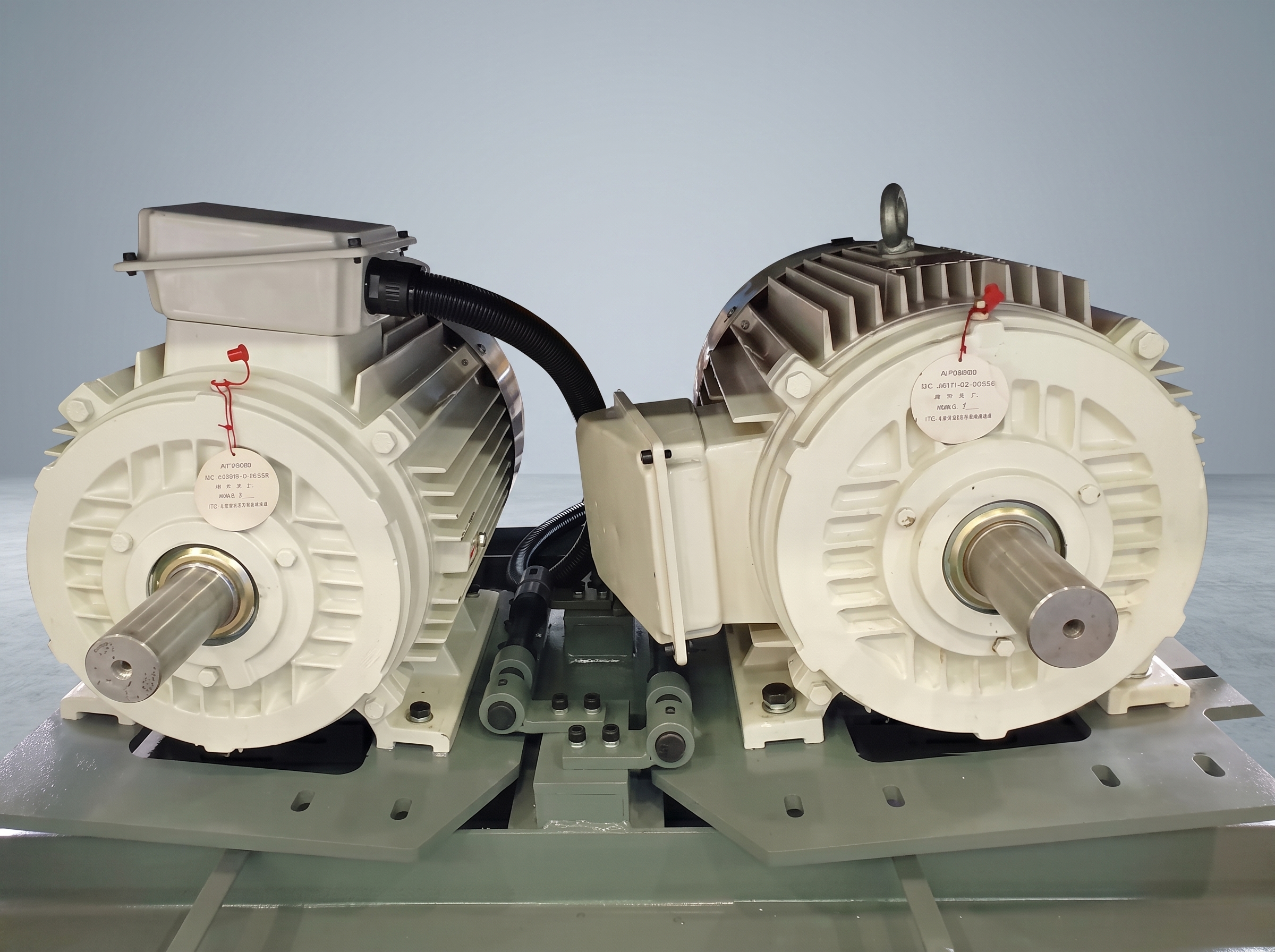

| Total motor power | kW | 77.1 |
| Planer shaft motor | kW | 22 |
| First sanding belt motor | kW | 30 |
| Second sanding belt motor | kW | 18.5 |
| Conveyor motor | kW | 5.5 |
| Worktable lifting motor | kW | 0.75 |
| Dust-removing motor | kW | 0.37 |
| Working pressure | MPa | 0.6 |
| Dust outlets | mm | 9 × Ø150 |
| Required air volume | m³/h | 17,000 |
| Overall dimensions | cm | 285 × 205 × 220 |
| Machine weight | kg | 5,150 |
