Highlights

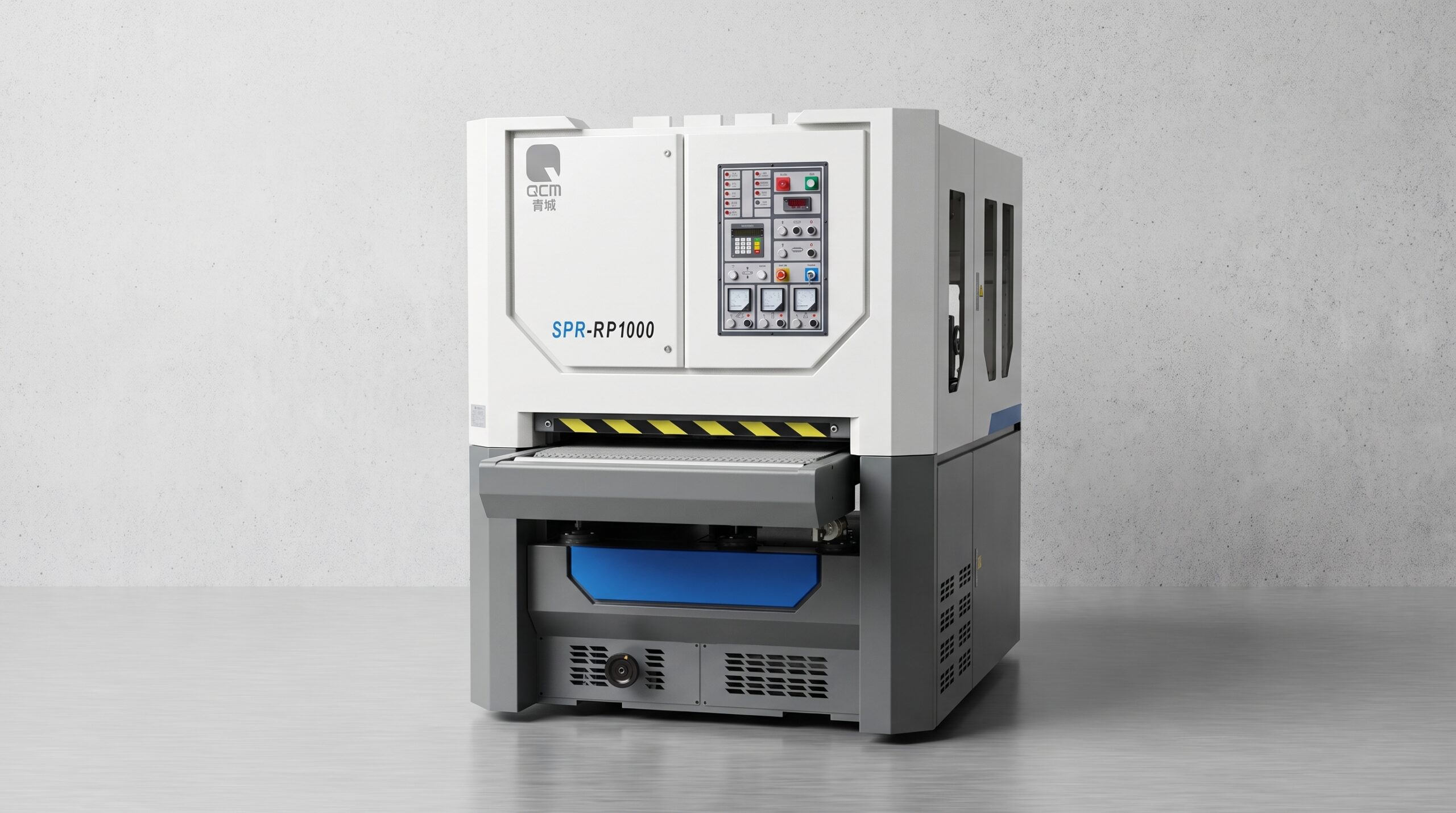

The SPR-RP1000 Planer Sander integrates spiral planing, semi-fine sanding and finish sanding into one continuous process for solid wood panel calibration and surface finishing. A 180 mm spiral planer performs the initial thickness removal before two sanding units complete intermediate and fine finishing, helping reduce sanding-belt consumption and power usage. With a 1000 mm working width, heavy-duty welded structure and variable-frequency feeding, it is suitable for edge-glued panels, solid wood boards and other high-capacity woodworking applications.
- Maximum working width: 1000 mm
- Working thickness: 3–160 mm
- Minimum workpiece length: 520 mm
- Feeding speed: 6–30 m/min
- Planer speed: 36 m/s
- Sanding belt speeds: 18 / 16 m/s
- Total motor power: 60.6 kW
Images
Features
- Integrates spiral planing, semi-fine sanding and finish sanding in one machine, completing thickness calibration and surface finishing in a continuous process.
- The front 180 mm spiral planer removes excess material before sanding, helping reduce sanding-belt consumption and overall power usage.
- Heavy welded steel construction and reinforced worktable provide high rigidity and stable machining performance during continuous production.
- Large-diameter sanding rollers and a finishing sanding unit with polishing pad provide accurate calibration and a smooth, consistent finished surface.
- Variable-frequency feeding and photoelectric sanding-belt control provide stable material transport and reliable belt tracking.
Technical data
| Specifications | Unit | SPR-RP1000 |
|---|---|---|
| Working width | mm | 40–1000 |
| Working thickness | mm | 3–160 |
| Minimum workpiece length | mm | ≥520 |
| Planer speed | m/s | 36 |
| First sanding belt speed | m/s | 18 |
| Second sanding belt speed | m/s | 16 |
| Feeding speed | m/min | 6–30 |
| Sanding belt size | mm | 1030 × 2200 |
| Conveyor belt size | mm | 1000 × 4890 × 9 |
| Total motor power | kW | 60.6 |
| Planer shaft motor | kW | 18.5 |
| First sanding belt motor | kW | 22 |
| Second sanding belt motor | kW | 15 |
| Conveyor motor | kW | 4 |
| Worktable lifting motor | kW | 0.75 |
| Dust-removing motor | kW | 0.37 |
| Working pressure | MPa | 0.6 |
| Dust outlets | mm | 9 × Ø150 |
| Required air volume | m³/h | 17,000 |
| Overall dimensions | cm | 277 × 177 × 217 |
| Machine weight | kg | 4,250 |
