Highlights

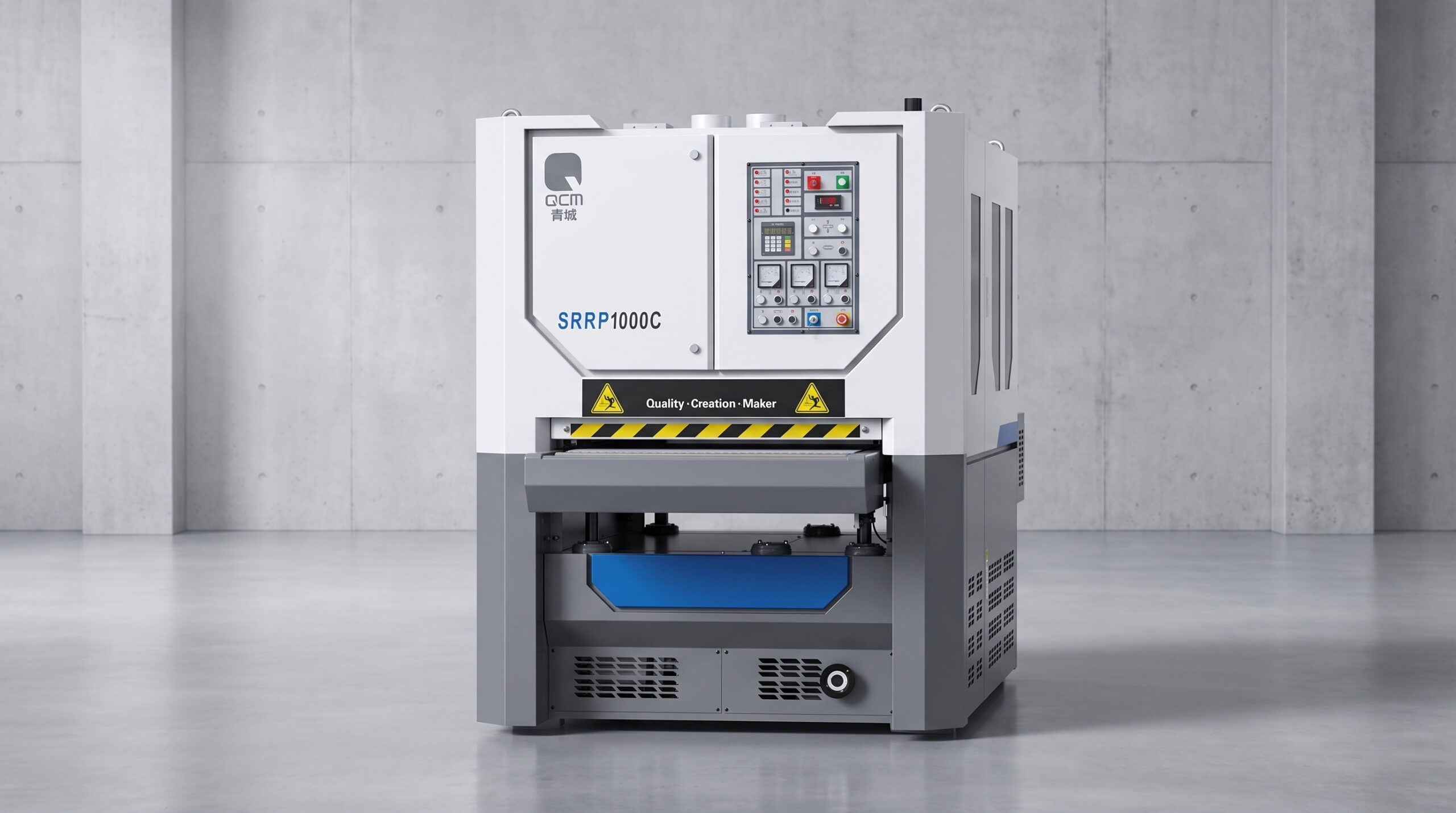

The SPR-RP1000 Planer Sander integrates spiral planing, intermediate sanding and finish sanding into one continuous solid wood processing machine. A heavy-duty 180 mm spiral planer unit performs initial thickness calibration before two sanding units complete coarse and fine surface finishing, helping reduce sanding belt consumption, lower production costs and improve processing efficiency. With a 1000 mm sanding width, variable-frequency feeding and a rigid welded frame, the machine is designed for edge-glued panels, solid wood boards and other high-capacity panel finishing applications.
- Maximum sanding width: 1000 mm
- Sanding thickness: 3–160 mm
- Minimum workpiece length: 520 mm
- Feeding speed: 6–30 m/min
- Spiral planer speed: 36 m/s
- Sanding belt speeds: 18 / 16 m/s
- Total motor power: 60.6 kW
Images
Features
- Integrates spiral planing, coarse sanding and finish sanding in one machine, completing thickness calibration and surface finishing in a continuous process.
- The front 180 mm spiral planer removes excess material before sanding, reducing sanding belt wear and power consumption while improving production efficiency.

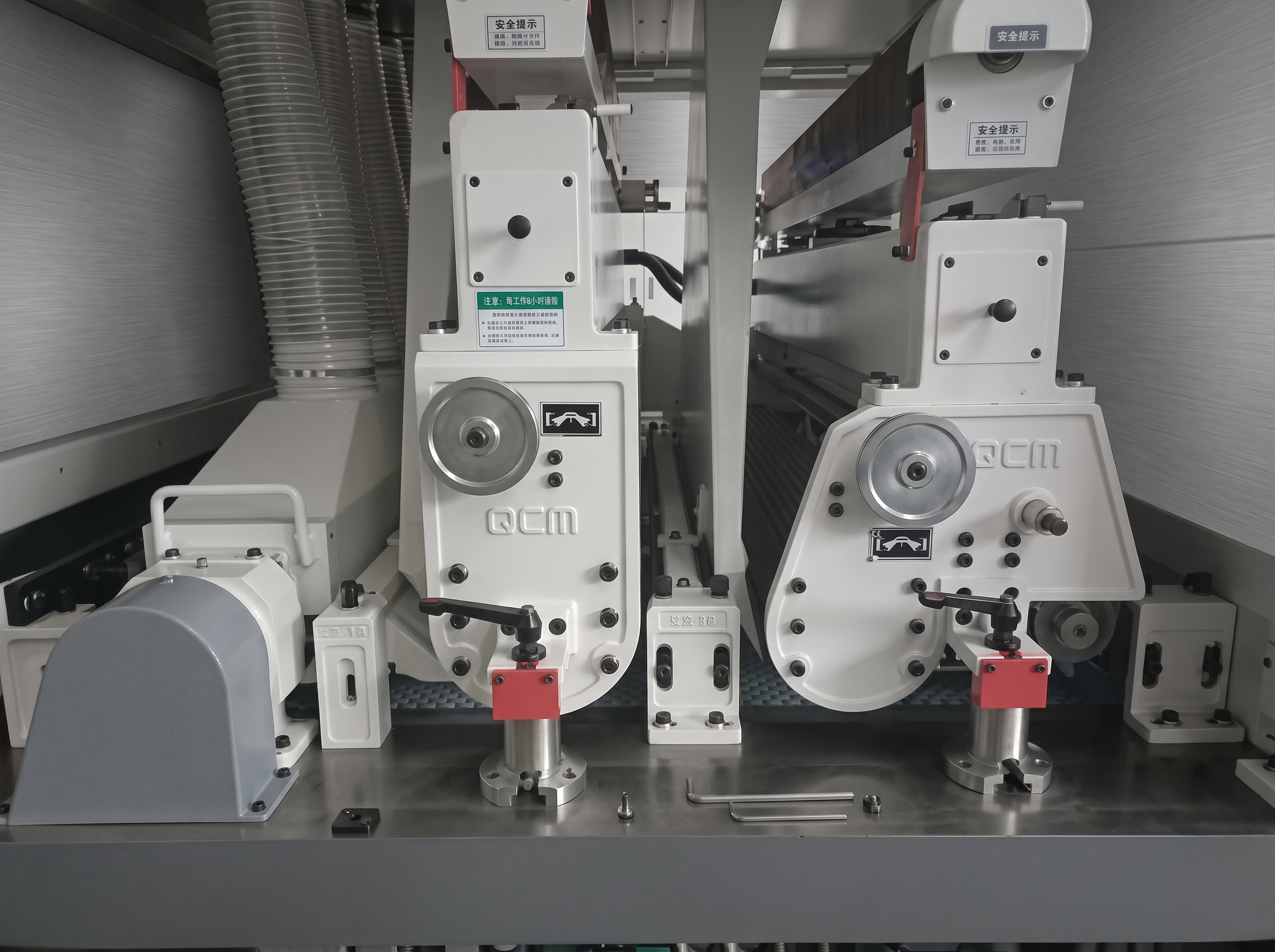

- A large-diameter heavy steel sanding roller provides strong calibration sanding, while the finishing sanding unit with polishing pad delivers a smooth and consistent finished surface.
- The heavy welded steel frame and reinforced worktable provide high rigidity and help maintain stable machining accuracy during continuous industrial operation.
- Variable-frequency feeding, photoelectric sanding-belt monitoring and automatic belt deviation protection provide stable material transport and reliable machine operation.
Technical data
| Specifications | Unit | SPR-RP1000 |
|---|---|---|
| Sanding width | mm | 40–1000 |
| Sanding thickness | mm | 3–160 |
| Minimum sanding length | mm | ≥520 |
| Planer speed | m/s | 36 |
| First sanding belt speed | m/s | 18 |
| Second sanding belt speed | m/s | 16 |
| Feeding speed | m/min | 6–30 |
| Sanding belt size | mm | 1030 × 2200 |
| Conveyor belt size | mm | 1000 × 4890 × 9 |
| Total motor power | kW | 60.6 |
| Planer shaft motor | kW | 18.5 |
| First sanding belt motor | kW | 22 |
| Second sanding belt motor | kW | 15 |
| Conveyor motor | kW | 4 |
| Worktable lifting motor | kW | 0.75 |
| Dust-removing motor | kW | 0.37 |
| Working pressure | MPa | 0.6 |
| Dust outlets | mm | 9 × Ø150 |
| Required air volume | m³/h | 17,000 |
| Overall dimensions | cm | 277 × 177 × 217 |
| Machine weight | kg | 4,250 |
