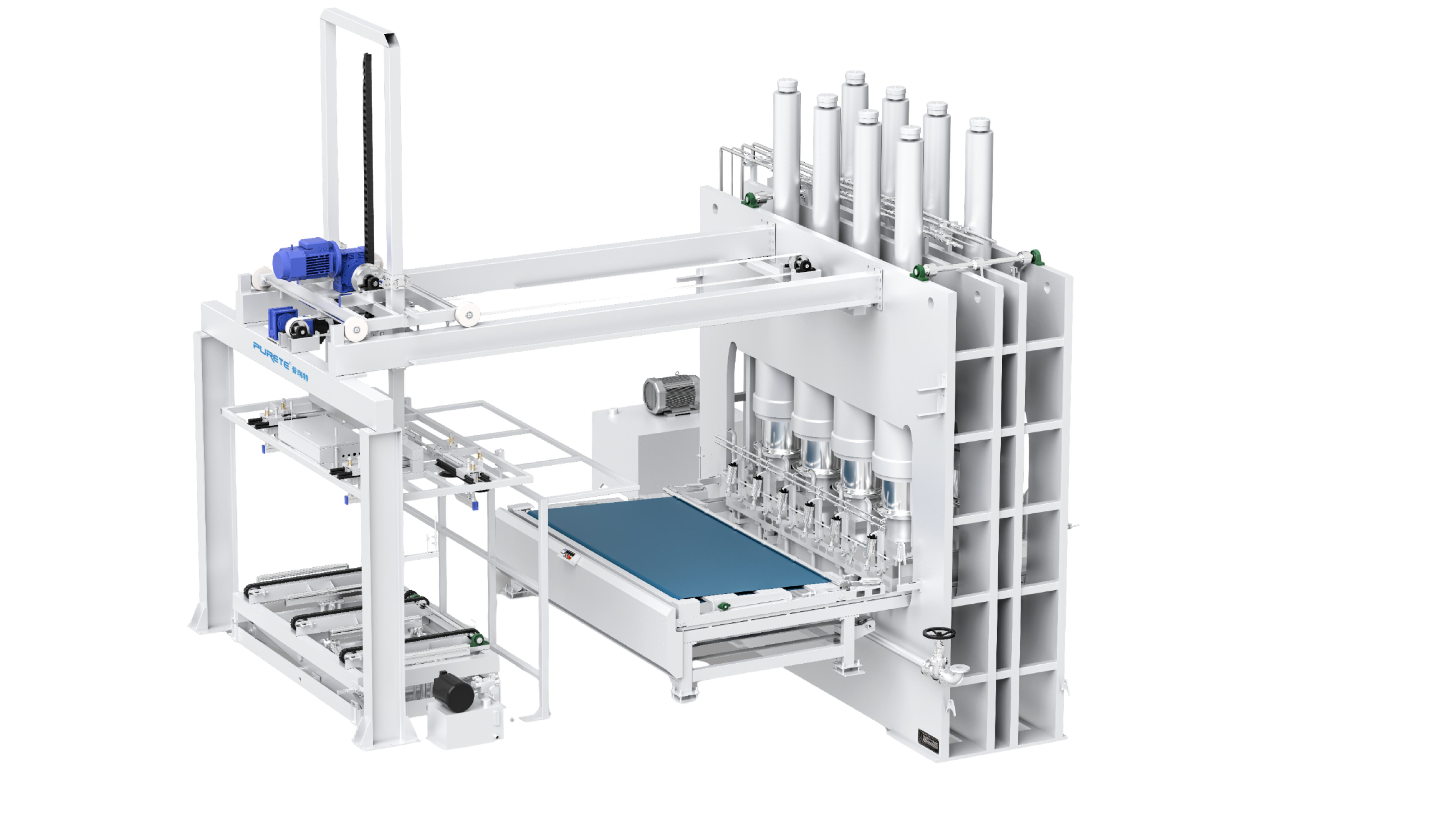

SCP1 Short-cycle Lamination Line
The SCP1 short-cycle lamination line is designed for the production of melamine-faced panels, furniture boards, laminated flooring, decorative materials, door panels, and fireproof boards.
It offers flexible configuration and can be adjusted according to customer needs and market demand, ensuring efficient production of various specifications and performance requirements
| Item | Specification |
|---|---|
| Total Power | 67 kW |
| Feeding Type | Gantry loading |
| Press Type | Short-cycle hot press |
| Board Thickness | 3–40 mm |
| Press Range | Single / Double side |
| Production Capacity (4×9 ft) | 1200–1300 pcs / 12h |
| Panel Cost | 6–10 RMB / sheet |
| Labor | 4 people |
| Line Length | 7 m |
Applicable Materials
-
Melamine-impregnated decorative paper
-
MDF, particleboard, plywood, and other furniture panels
Key Features
-
Compact structure with stable performance
-
Adjustable pressing temperature and cycle time
-
Suitable for multiple decorative surfaces and board types
-
Cost-effective solution for high-efficiency lamination production
