Highlights

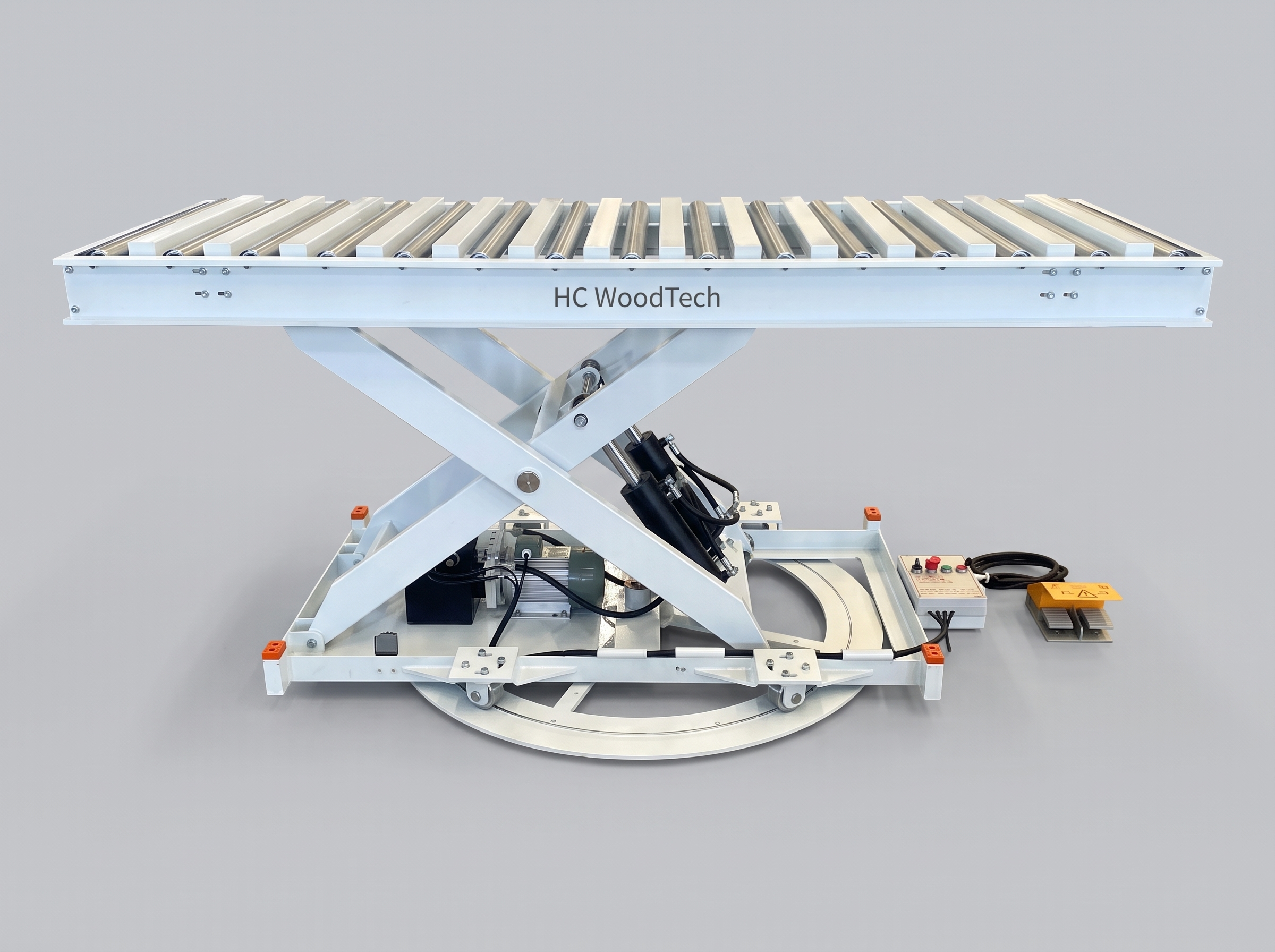

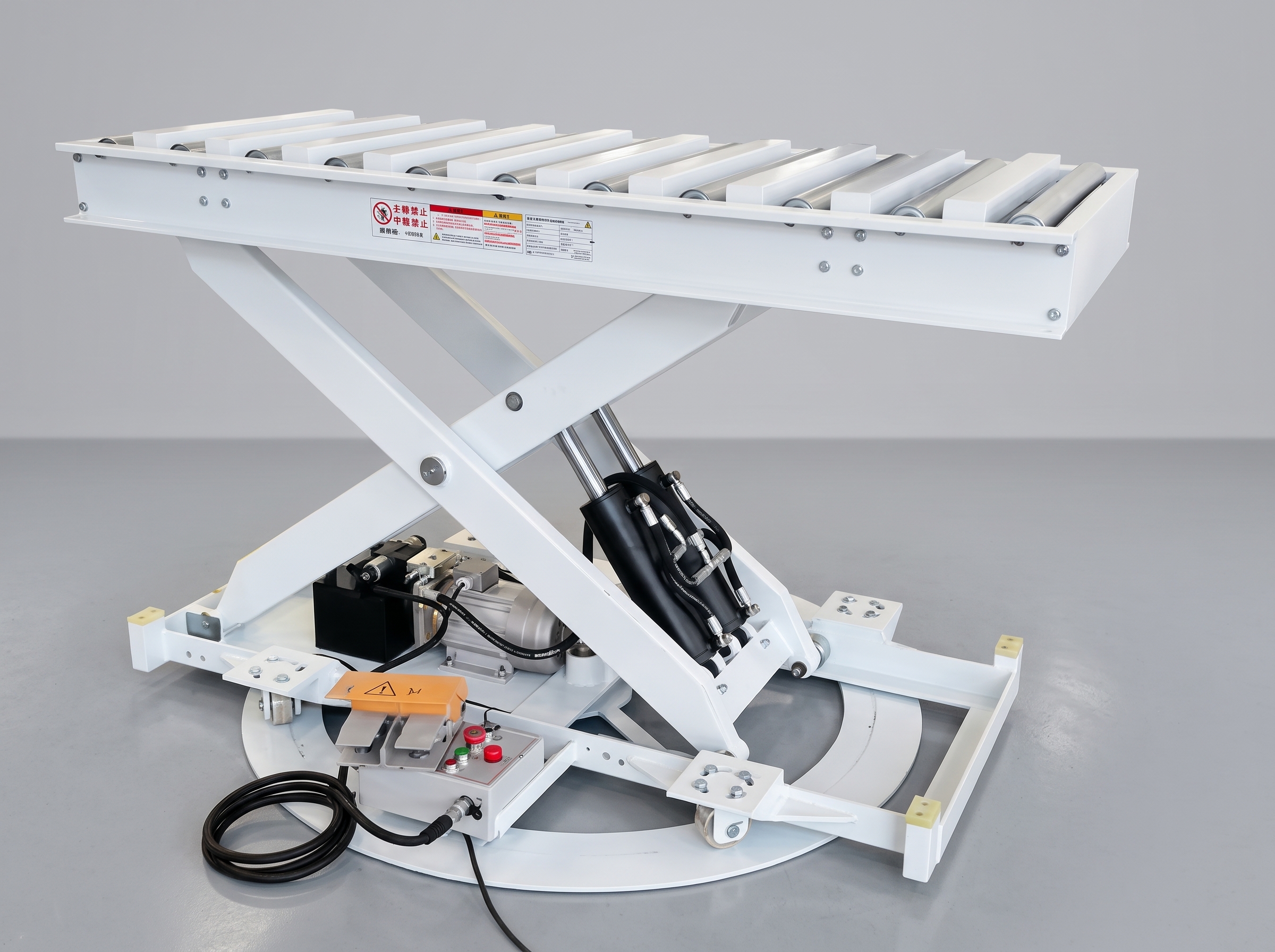

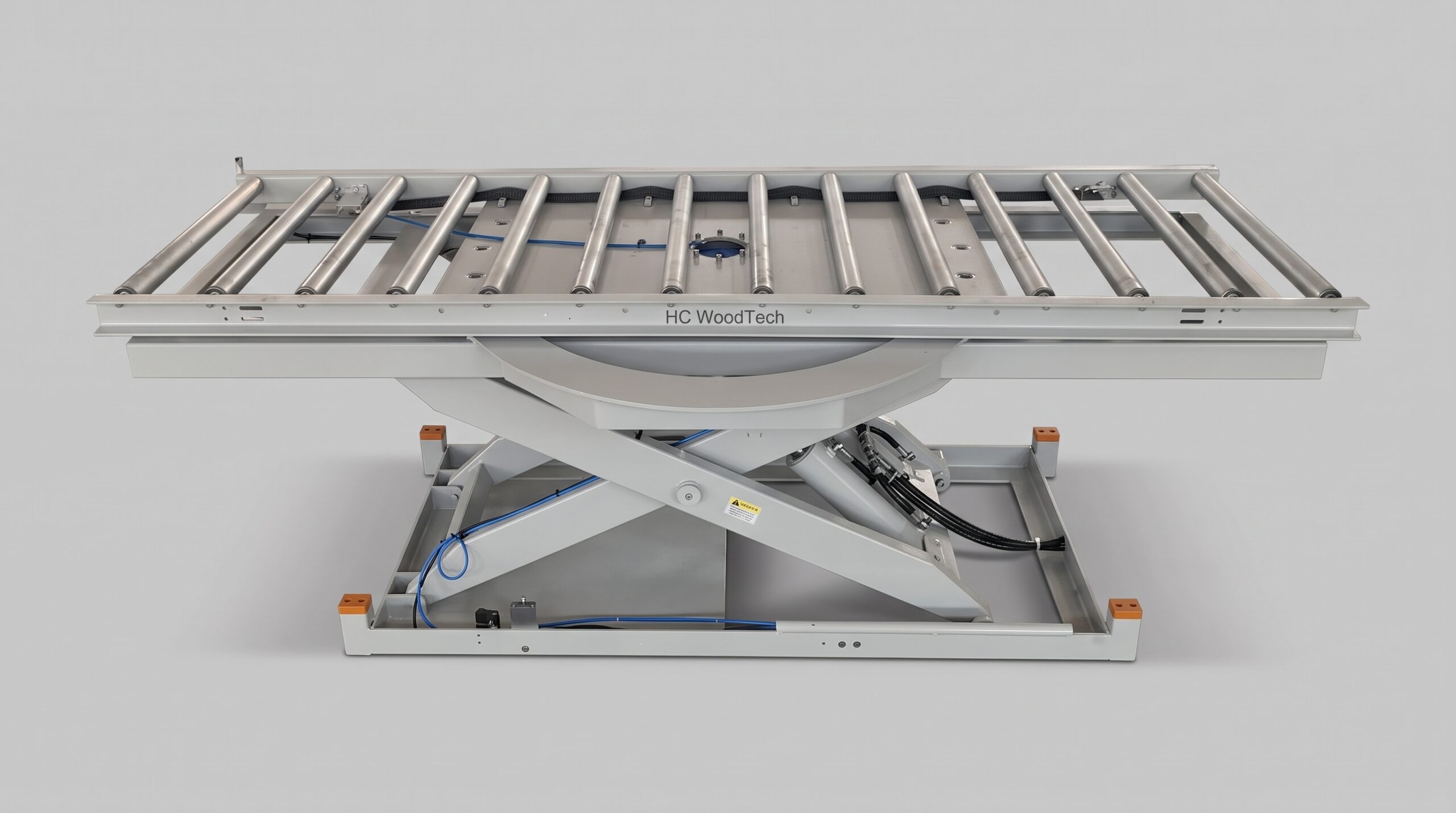

The Rotary Hydraulic Scissor Lift Table combines vertical lifting and rotary positioning in a single material-handling platform. It is designed for manual workstations, packaging, sorting, assembly and conveyor-transfer applications where operators need to adjust both workpiece height and orientation. The standard configuration provides a 300–1100 mm lifting range, supports loads up to 1000 kg, and offers selectable 90°, 180° or 360° rotation. Platform dimensions, lifting stroke, rotation angle and load capacity can be customized according to production-line and workstation requirements.
- Standard platform size: 2500 × 730 mm
- Lifting range: 300–1100 mm
- Load capacity: Up to 1000 kg
- Rotation angle: 90° / 180° / 360°
- Hydraulic power: 1.5 kW
- Power supply: 380 V / 50 Hz
- Dimensions / stroke / capacity: Customizable
Images
Features
- Integrated lifting and rotary functions allow operators to adjust both working height and material orientation at one station.
- Selectable 90°, 180° or 360° rotation supports different workstation and material-flow layouts.
- Stable scissor structure is designed for repeated industrial lifting and ergonomic material handling.
- Foot-pedal operation provides convenient height adjustment during manual production tasks.
- Platform length, width, minimum and maximum height, rotation angle and load capacity can be customized according to project requirements.
Technical data
| Specifications | Unit | Standard Configuration |
|---|---|---|
| Machine type | — | Rotary Hydraulic Scissor Lift Table |
| Platform length | mm | 2500 |
| Platform width | mm | 730 |
| Minimum height | mm | 300 |
| Maximum height | mm | 1100 |
| Load capacity | kg | 1000 |
| Rotation angle | ° | 90 / 180 / 360 |
| Hydraulic power | kW | 1.5 |
| Power supply | — | 380 V / 50 Hz |
| Scissor arm | mm | 1650 × 120 |
| Hydraulic cylinder | — | 80 × 80 × 6 |
| Control | — | Foot Pedal |
| Platform dimensions | — | Customizable |
| Lifting stroke | — | Customizable |
| Load capacity | — | Customizable |
| Rotation angle | — | Customizable |
