Highlights

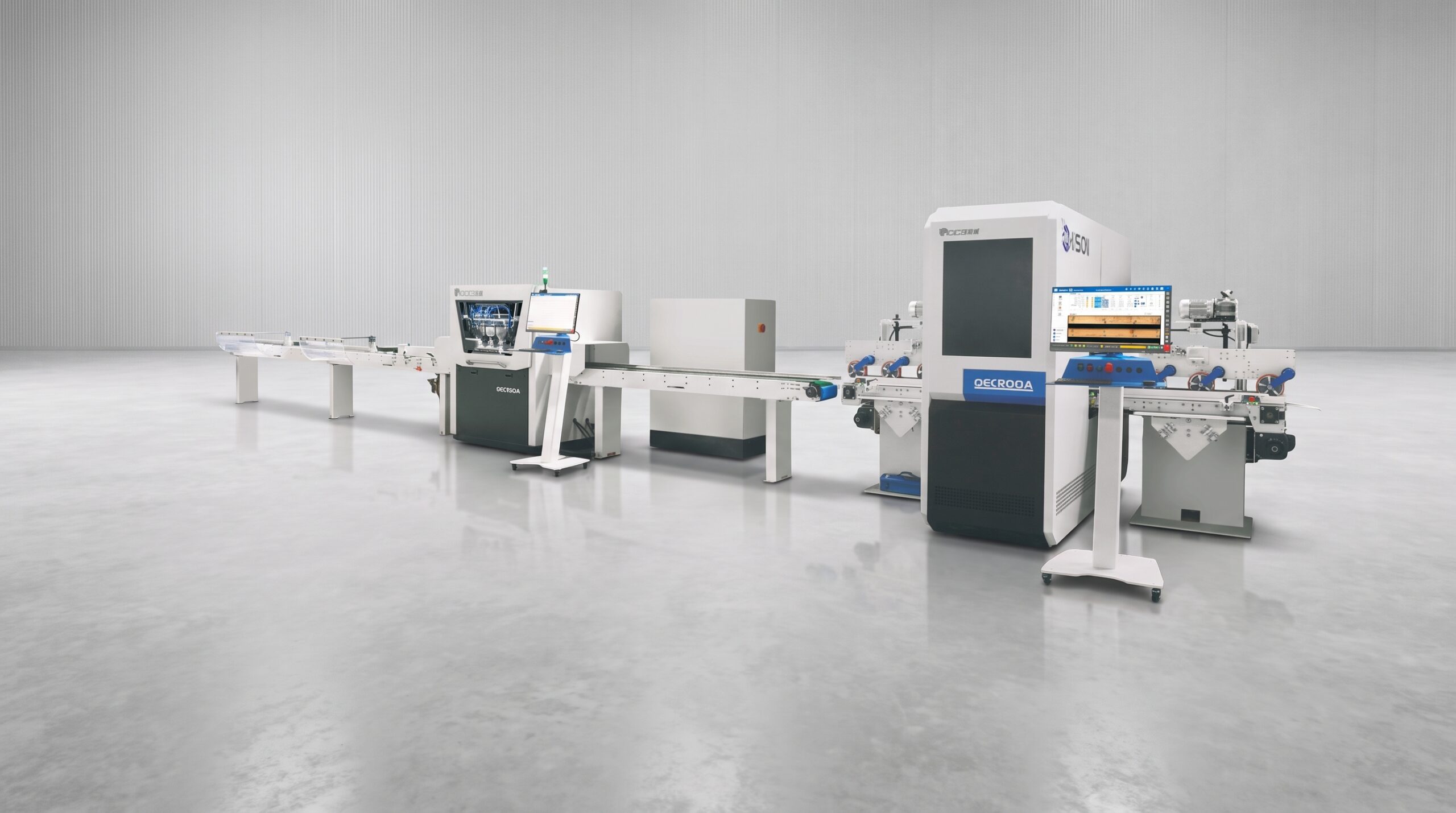

The QOC550A Fully Automated AI Optimizing Cross-Cut Saw Line, combined with the QEC500A scanning system, is designed for intelligent transverse cutting, defect removal and length optimization of solid wood.
The complete line integrates AI vision defect detection, automatic board measurement, optimization software, high-speed cross-cutting and automatic sorting. It identifies knots, wormholes, cracks, stains, end defects and other visible defects without requiring manual marking.
Based on board dimensions, defect positions, cutting requirements, quantities and value priorities, the software calculates the best transverse cutting solution to improve lumber recovery, reduce waste and produce consistent finished components.
- Processing direction: Transverse cross-cutting
- Infeed width: 30–220 mm
- Infeed thickness: 10–100 mm
- Maximum feeding speed: 180 m/min
- Cutting cycle time: 0.15–0.3 seconds
- Saw blade diameter: Ø500 mm
- Programmable cut sizes: 1–199
- Total installed power: 20 kW
Video
Features
- The AI vision scanning system automatically detects knots, wormholes, cracks, stains, end defects and other visible wood defects without manual marking.
- Optimization software calculates the best transverse cutting solution according to board dimensions, defect positions, required cut lengths, quantities and value priorities.
- The QOC550A saw operates at feeding speeds of up to 180 m/min, with a cutting cycle time of 0.15–0.3 seconds for high-volume solid wood production.
- Automatic measuring, defect removal, optimized cross-cutting and sorting help improve lumber recovery, reduce waste and lower dependence on manual labor.
- Flexible optimization modes support softwood and hardwood processing for furniture components, finger-joint materials, flooring, doors and other solid wood products.
Technical Data
| Specifications | Unit | QOC550A + QEC500A |
|---|---|---|
| Model | — | QOC550A Saw + QEC500A Scanning System |
| Infeed length | mm | Unlimited |
| Infeed width | mm | 30–220 |
| Infeed thickness | mm | 10–100 |
| Typical infeed sizes | mm | 220 × 35, 200 × 50, 180 × 65, 160 × 75, 150 × 80, 120 × 90, 100 × 100 |
| Infeed thickness tolerance | mm | ±3 |
| Maximum board bending | mm/m | 10 |
| Applicable wood species | — | Softwood or hardwood |
| Cutting tolerance below 1 m | mm | ±1 |
| Cutting tolerance from 1–2 m | mm | ±2 |
| Cutting tolerance above 2 m | — | ±1% |
| Saw blade diameter | mm | Ø500 |
| Saw spindle speed | r/min | 3,500 |
| Maximum feeding speed | m/min | 180 |
| Cutting cycle time | s | 0.15–0.3 |
| Working voltage | — | 3-phase AC 380 V / 50 Hz / Customizable |
| Total installed power | kW | 20 |
| Air pressure | MPa | 0.3–0.6 |
| Dust outlet diameter | mm | 3 × Ø120 |
| Dust extraction air requirement | m³/h | 3,600 |
| Working height | mm | 900 |
| Programmable cut sizes | pcs | 1–199 |
| Maximum machine dimensions | m | 19.4 × 1.5 × 1.8 |
| Machine weight | kg | 2,450 |
