Highlights

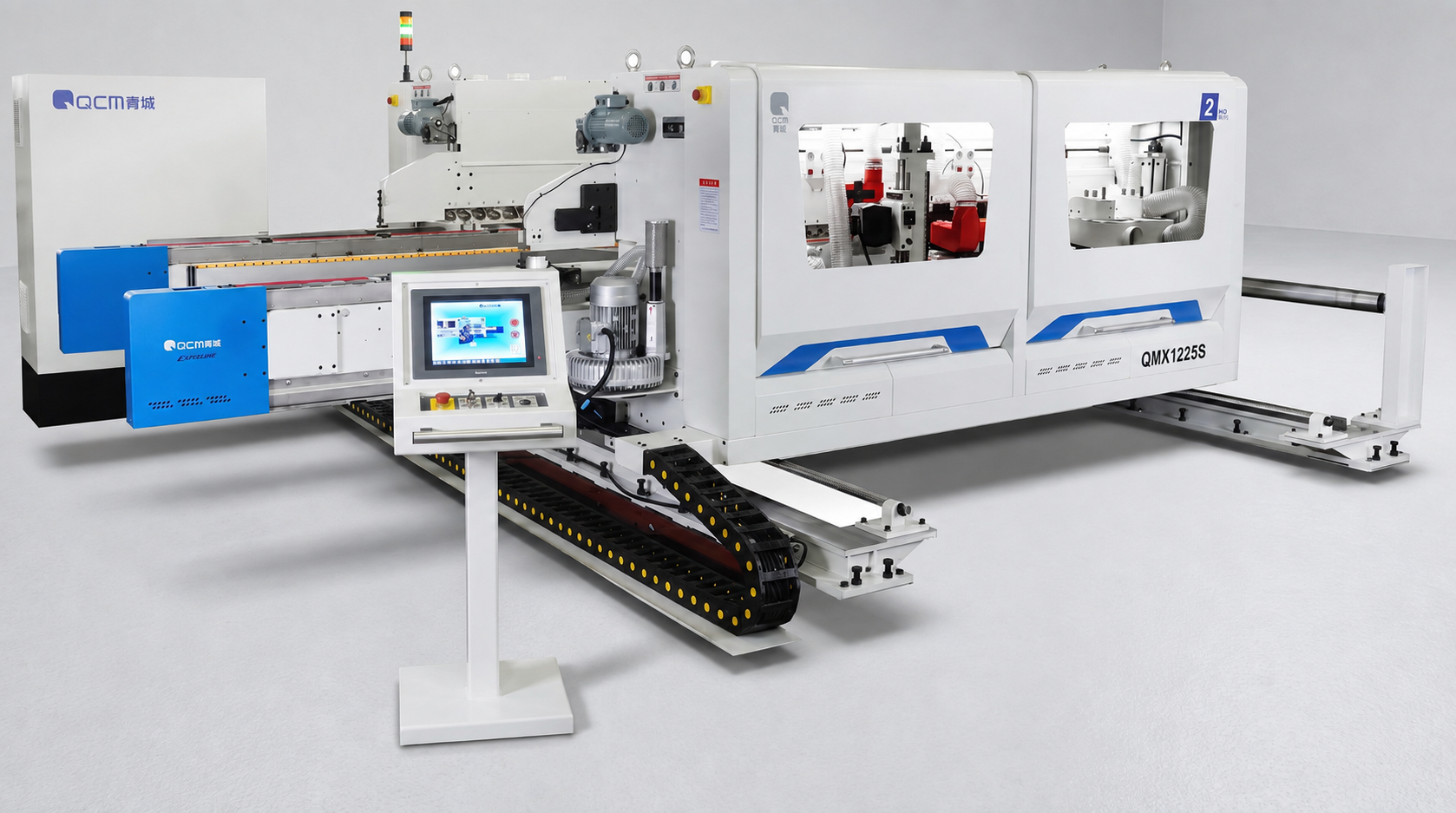

The QMXK1225S Double-End Sawing, Milling and Sanding Machine integrates double-end trimming, jump milling, profile milling, triangular sanding and multi-functional profile polishing in one complete production system. Its processing sequence includes lower saw scoring, upper cut-off sawing, jump-cut milling, profile milling, triangular sanding and multi-functional sanding. The integrated arrangement allows multiple edge-machining and finishing operations to be completed during one continuous pass. After double-end sawing, milling and sanding, workpieces can proceed directly to the next production process.
- Working width: 250–2500 mm
- Working thickness: 10–80 mm
- Feed block spacing: 600 mm
- Feed speed: 3–36 m/min
- Milling spindle speed: 6000–9000 r/min
- Sanding-belt speed: 8–13.5 m/s
- Multi-functional sanding-head speed: 0–1400 r/min
Images
Features
- The first station uses a lower scoring saw with jump cutting to prepare the workpiece edge.
- The second station uses an upper cut-off saw spindle for double-end edge trimming.
- The third station performs jump-cut milling, while the fourth station performs profile milling.
- The fifth station uses a triangular sanding assembly for flat edge sanding.
- The sixth station uses a multi-functional sanding head for profile polishing, allowing workpieces to proceed directly to the next production stage.
Technical data
| Specifications | Unit | QMXK1225S | QMXK1225JS |
|---|---|---|---|
| Working width | mm | 250–2500 | 250–2500 |
| Working thickness | mm | 10–80 | 10–80 |
| Feed block spacing | mm | 600 | 600 |
| Feed speed | m/min | 3–36 | 3–36 |
| Saw spindle speed | r/min | / | 3000–6000 |
| Milling spindle speed | r/min | 6000–9000 | 6000–9000 |
| Sanding-belt speed | m/s | 8–13.5 | 8–13.5 |
| Multi-functional sanding-head speed | r/min | 0–1400, variable-frequency | 0–1400, variable-frequency |
| Triangular sanding-frame width | mm | 180 | 180 |
| Saw blade size | mm | / | Ø160–300 × Ø40 |
| Milling cutter size | mm | Ø150–180 × Ø40 | Ø150–180 × Ø40 |
| Triangular sanding-belt size | mm | 1460 perimeter × 90 width | 1460 perimeter × 90 width |
| Maximum multi-functional sanding-head size | mm | Ø200 × Ø25.4 × 90 | Ø200 × Ø25.4 × 90 |
| Saw spindle motor power | kW | / | 5.5 × 4 |
| Jump-milling spindle motor power | kW | 5.5 × 2 | 5.5 × 2 |
| Milling spindle motor power | kW | 7.5 × 2 | 7.5 × 2 |
| Triangular sanding motor power | kW | 2.2 × 4 | 2.2 × 2 |
| Triangular sanding oscillation motor power | kW | 0.12 × 4 | 0.12 × 2 |
| Multi-functional sanding-head motor power | kW | 1.5 × 2 | 1.5 × 2 |
| Pressure-belt drive motor power | kW | 1.8 × 2 | 1.8 × 2 |
| Pressure-belt lifting motor power | kW | 0.37 × 2 | 0.37 × 2 |
| Feed motor power | kW | 7.5 | 7.5 |
| Width-setting motor power | kW | 1.0 | 1.0 |
| Operating voltage | V/Hz | AC 380 V, 50 Hz | AC 380 V, 50 Hz |
| Dust extraction ports | mm | Ø120 × 12 | Ø120 × 12 |
| Required extraction air velocity | m/s | 30–35 | 30–35 |
| Required extraction air volume | m³/min | 360 | 360 |
| Overall dimensions | cm | 550 × 432 × 180 | 550 × 432 × 180 |
| Machine weight | kg | 9500 | 9800 |
