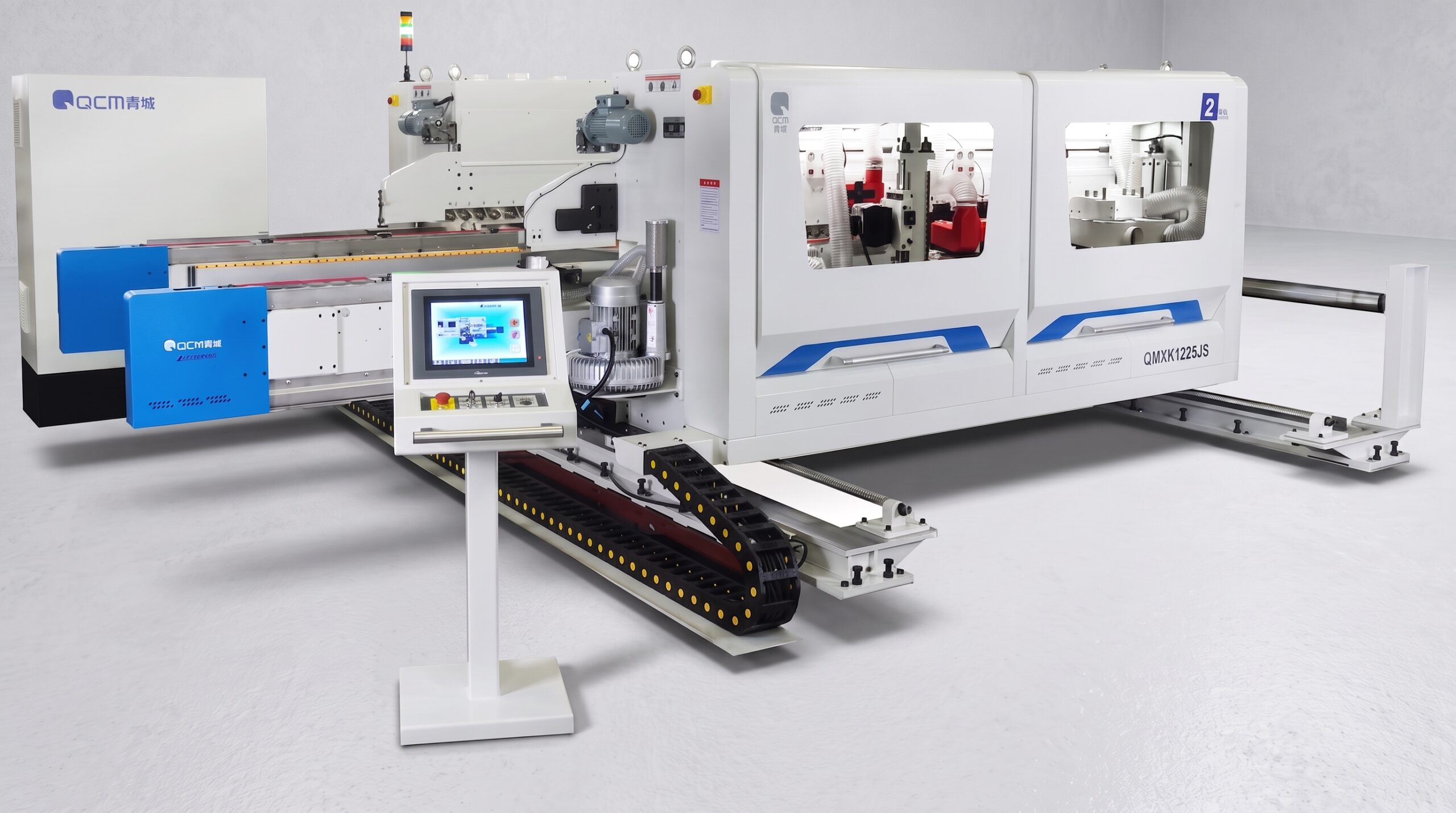

QMXK1225JS Double-End Sawing & Milling & Sanding Machine

Highlights

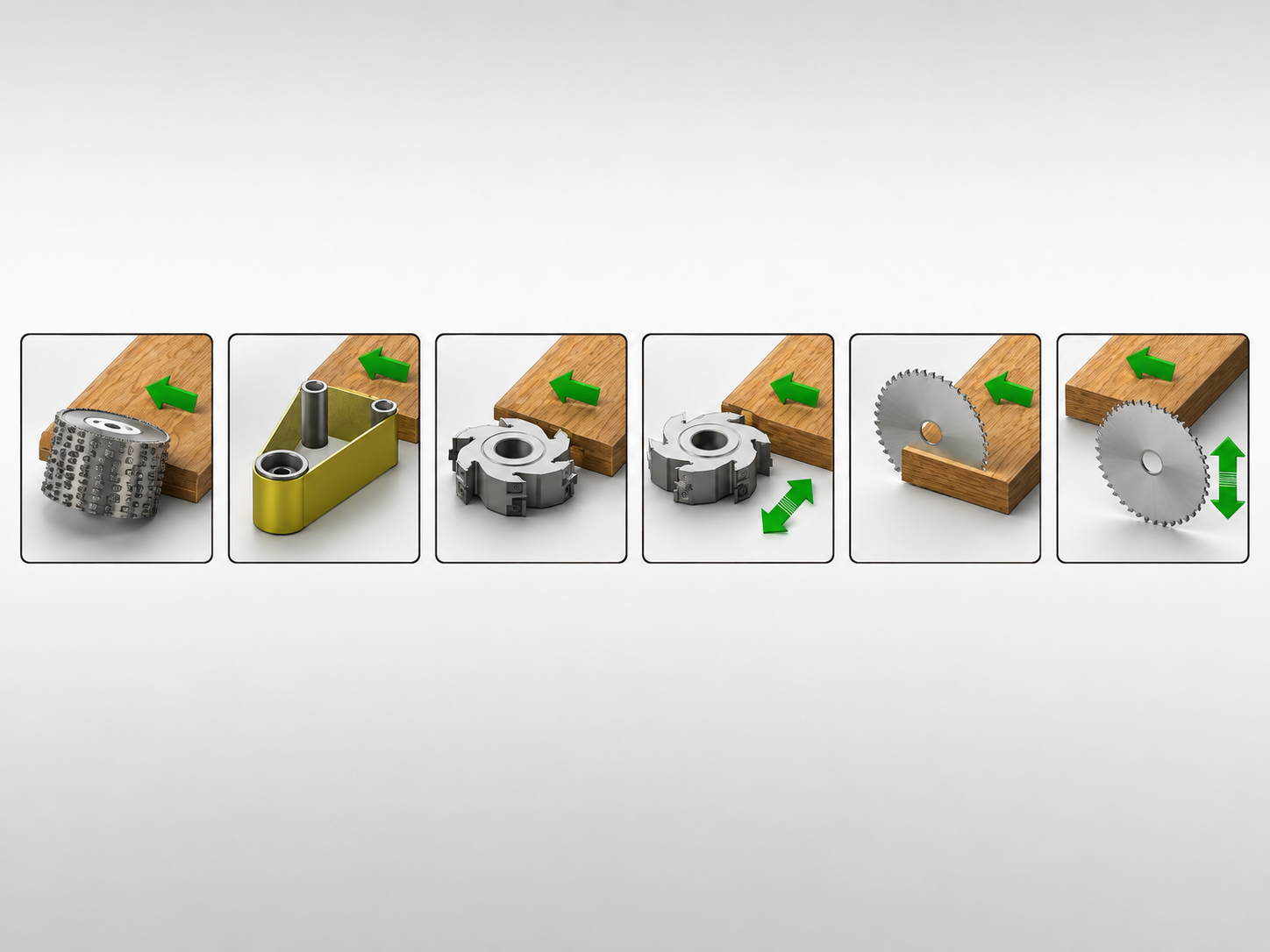

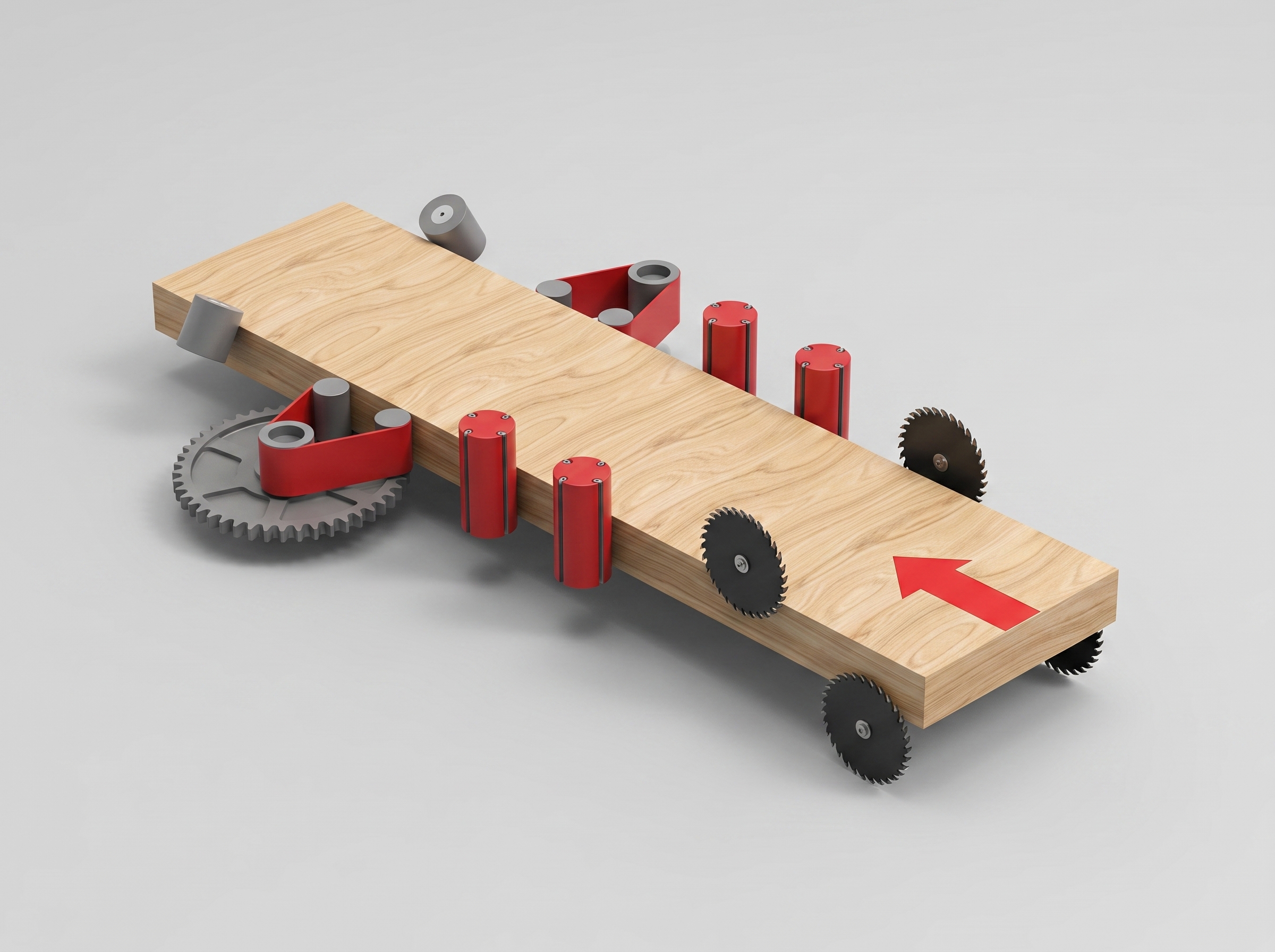

The QMXK1225JS Double-End Sawing, Milling and Sanding Machine integrates double-end trimming, milling, triangular sanding and profile sanding in one complete system. Its processing sequence includes lower saw scoring, upper cut-off sawing, jump-cut milling, profile milling, triangular sanding and multi-functional sanding. The machine is designed for solid wood cabinet doors, bathroom doors, American-style cabinet doors and solid wood furniture products. Pneumatic clamping helps reduce workpiece deformation during milling, while the servo-driven pressure system keeps the pressure belts synchronized with the conveyor chains. After sawing, milling and sanding, workpieces can proceed directly to the next production process.

• Working width: 250–2500 mm
• Working thickness: 10–80 mm
• Feed block spacing: 600 mm
• Feed speed: 3–36 m/min
• Saw spindle speed: 3000–6000 r/min
• Milling spindle speed: 6000–9000 r/min
• Sanding speed: 8–13.5 m/s belt speed; 0–1400 r/min sanding-head speed

Images

Features

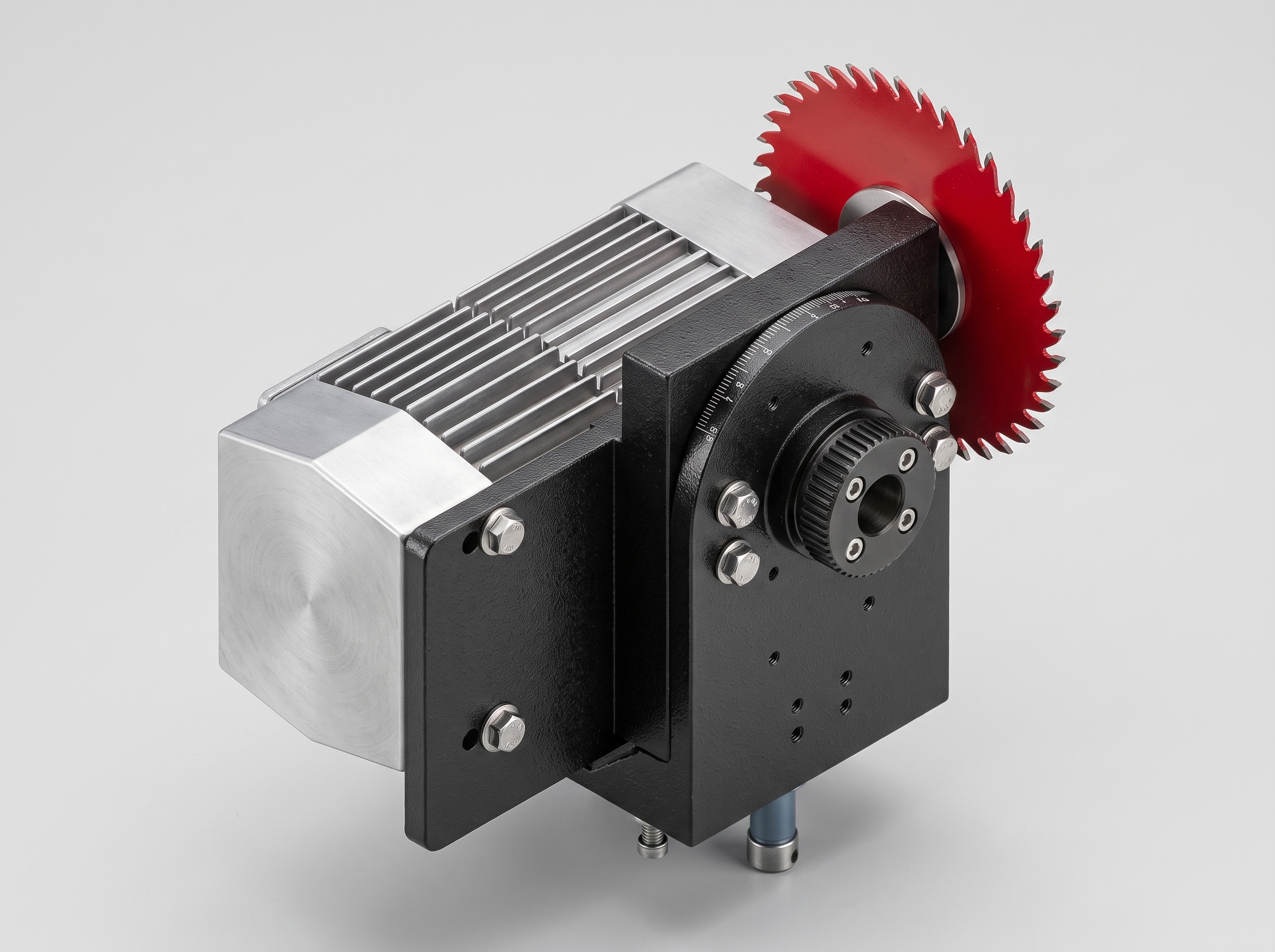

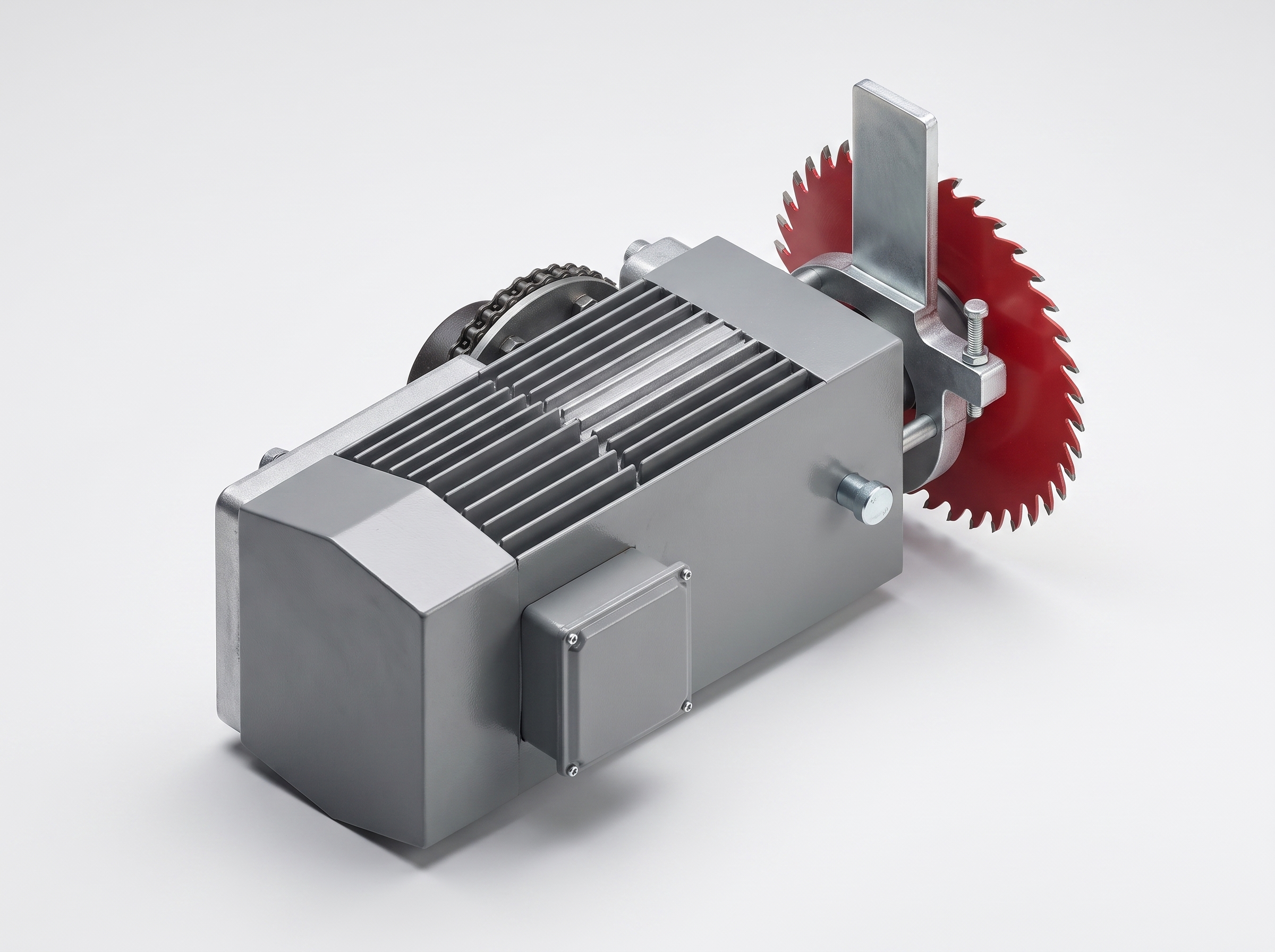

• The first station uses a lower scoring saw with jump cutting, and the second station uses an upper cut-off saw for edge trimming.
• The third station provides jump-cut milling, while the fourth station performs profile milling.
• The fifth station uses a triangular sanding assembly, and the sixth station uses a multi-functional sanding head for profile polishing.
• Pneumatic clamping devices at the jump-milling and profile-milling positions help prevent deformation of cabinet-door frames.
• The servo-driven pressure system synchronizes the pressure belts with the conveyor chains and provides electric lifting for precise height adjustment.
