Highlights

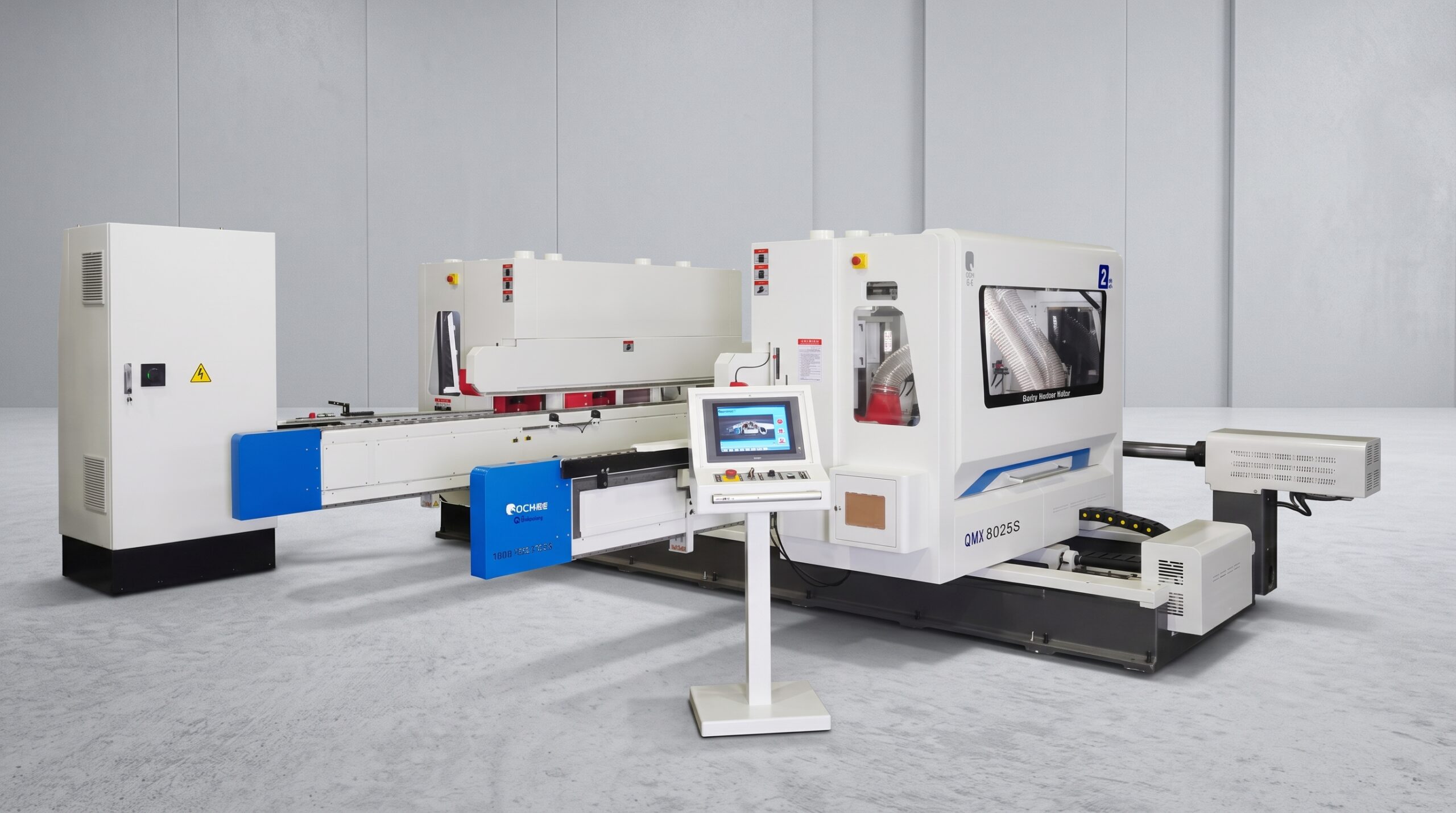

The QMX8025S Double-End Tenoner with Sanding is an integrated double-end machining solution for solid wood cabinet doors, bathroom doors, American-style cabinet doors and solid wood furniture components. It combines end milling, profiling, triangular belt sanding and profile sanding in one continuous process, allowing workpieces to proceed directly to the next production stage after machining. Pneumatic clamping on the milling stations helps prevent workpiece deformation, while adjustable feed speed and sanding speed provide flexibility for different solid wood profiles and finishing requirements.
- Working width: 300–2500 mm
- Working thickness: 10–80 mm
- Feeding speed: 3–36 m/min
- Milling spindle speed: 6,000–9,000 r/min
- Multi-function sanding head speed: 0–1,400 r/min
- Triangular sanding belt speed: 8–13.5 m/s
- Machine weight: 7,000 kg
Images
Features

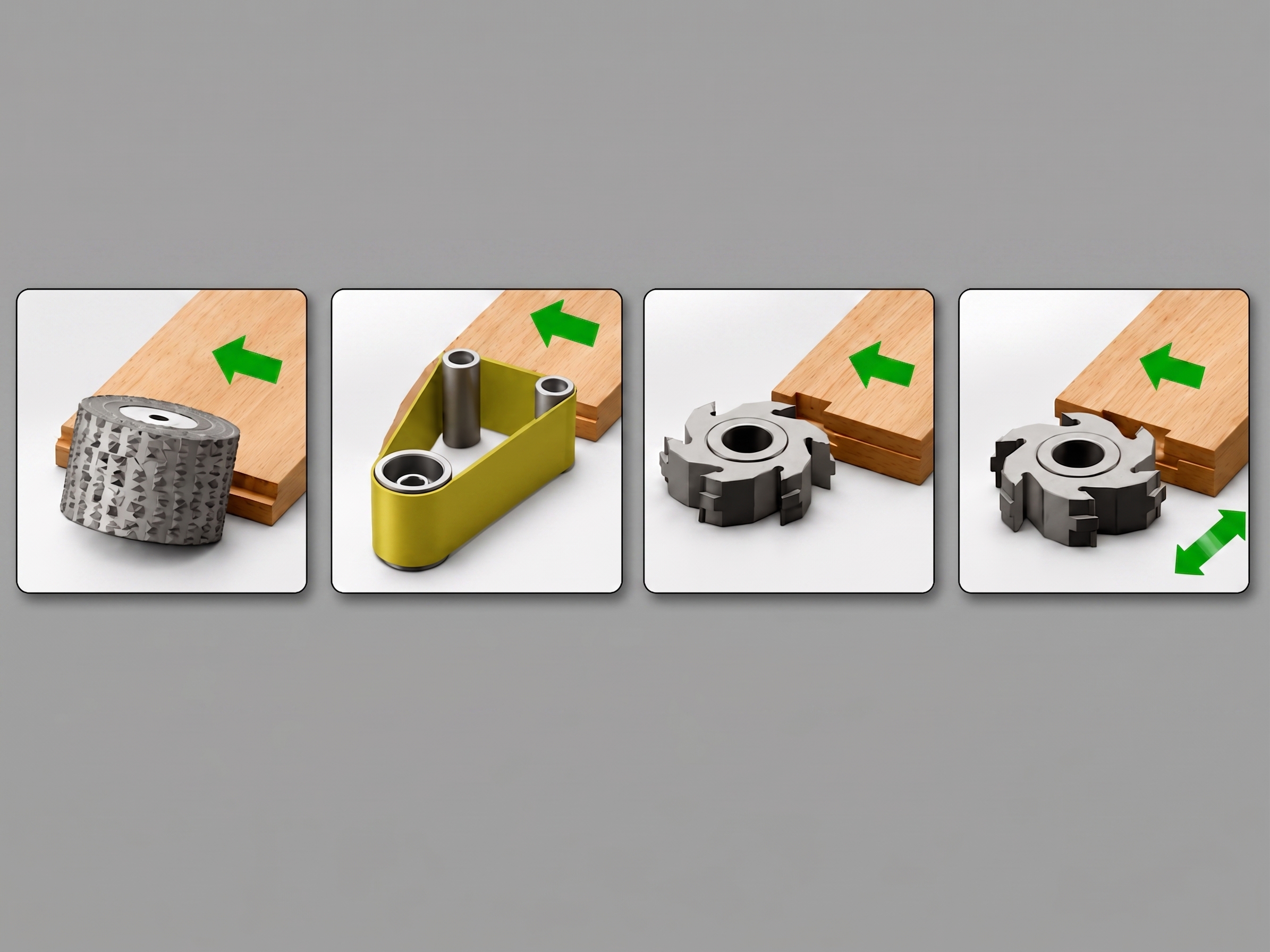

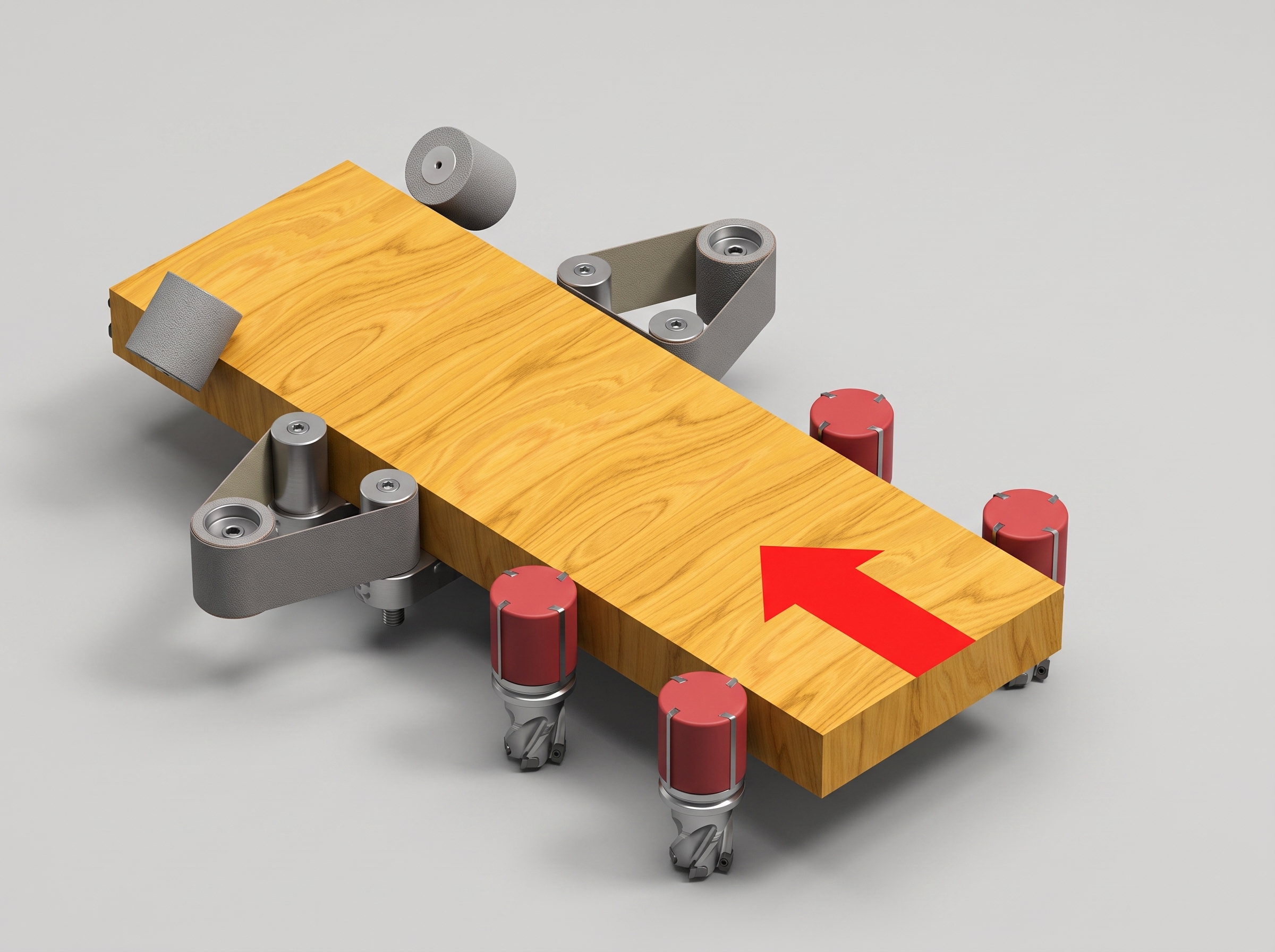

- Integrates double-end milling, profiling, triangular flat sanding and profile sanding into one complete production machine.

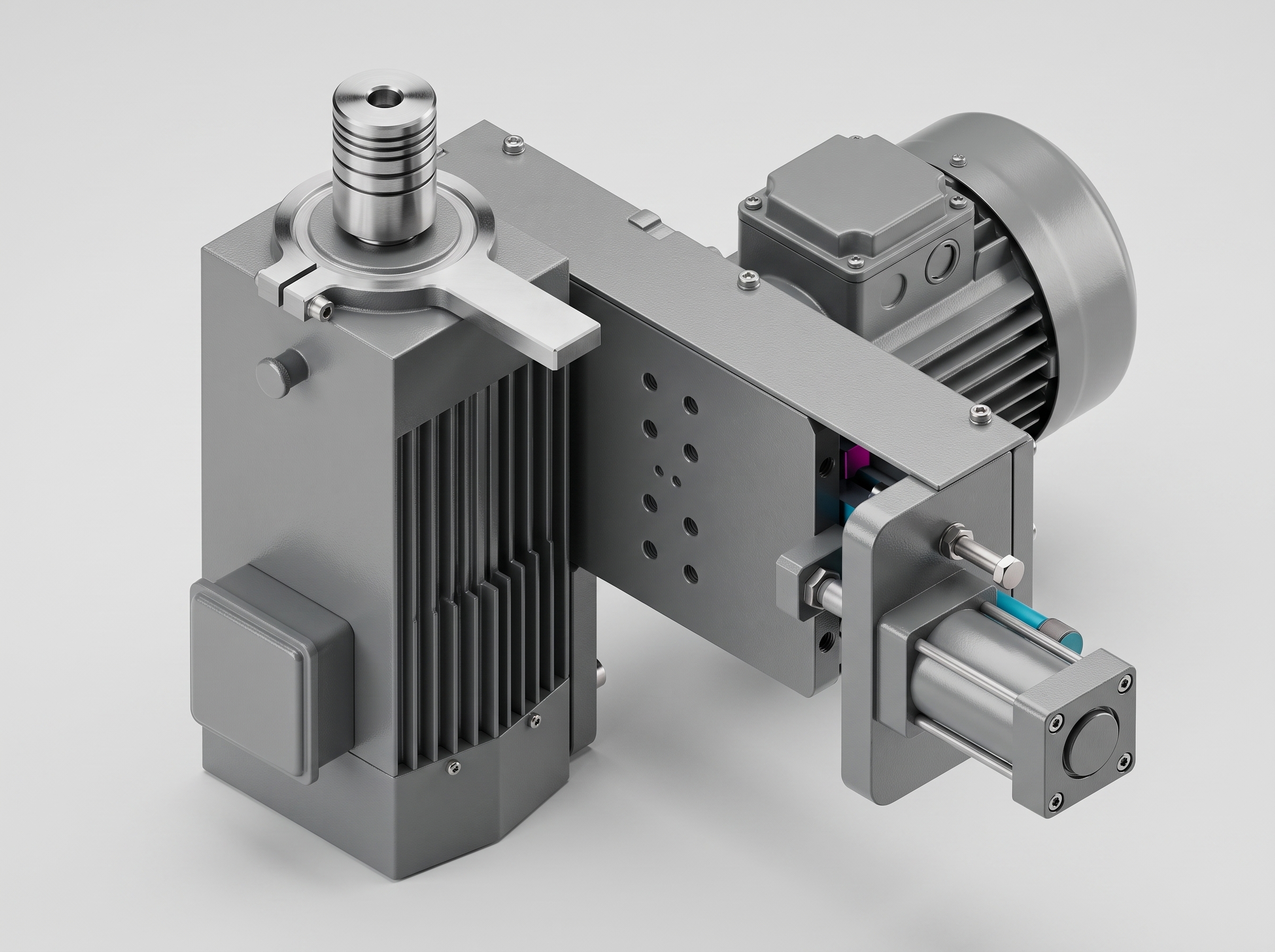

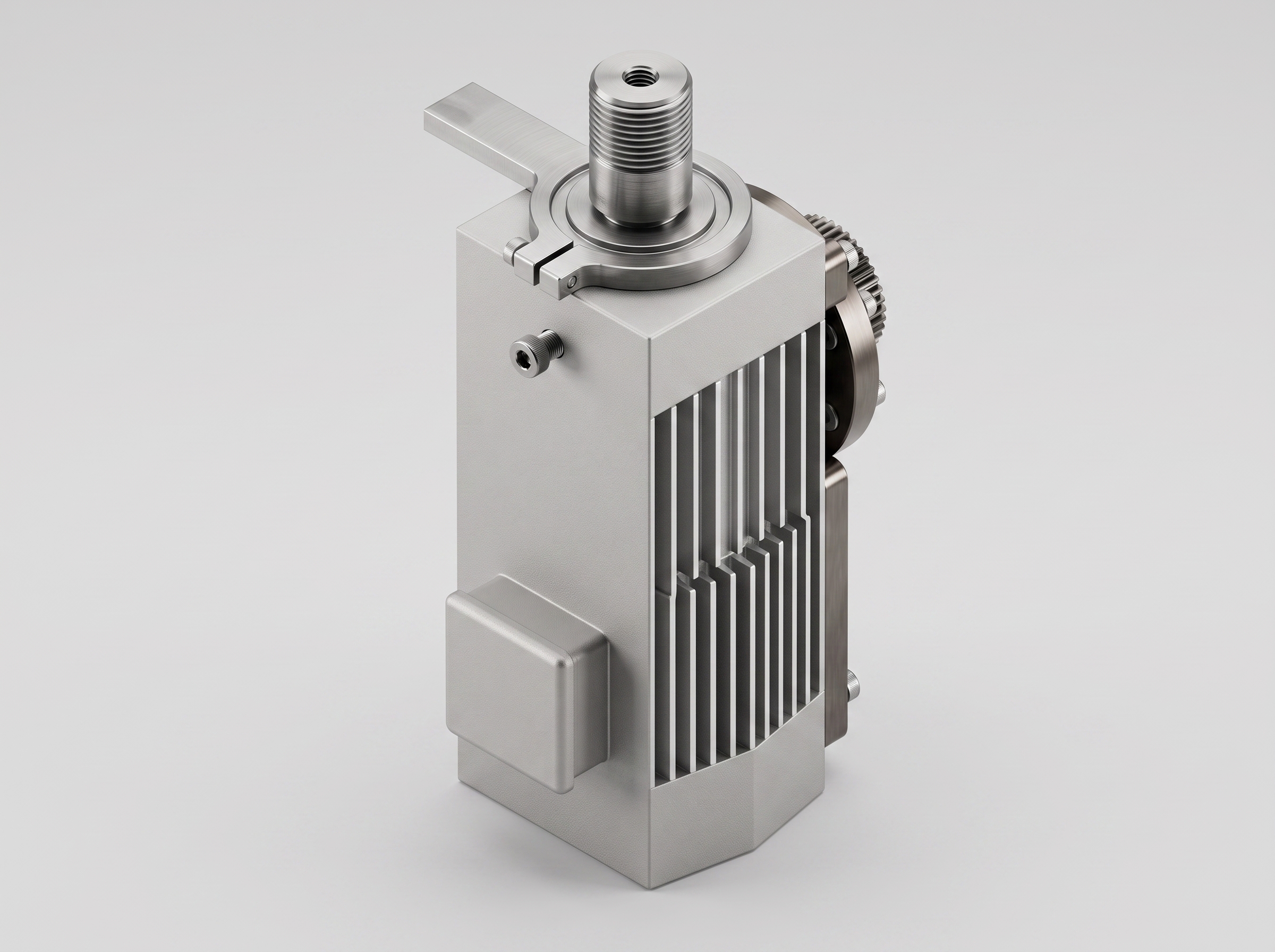

- The first station uses a milling spindle with jump cutter, while the second milling station performs accurate edge and profile machining.

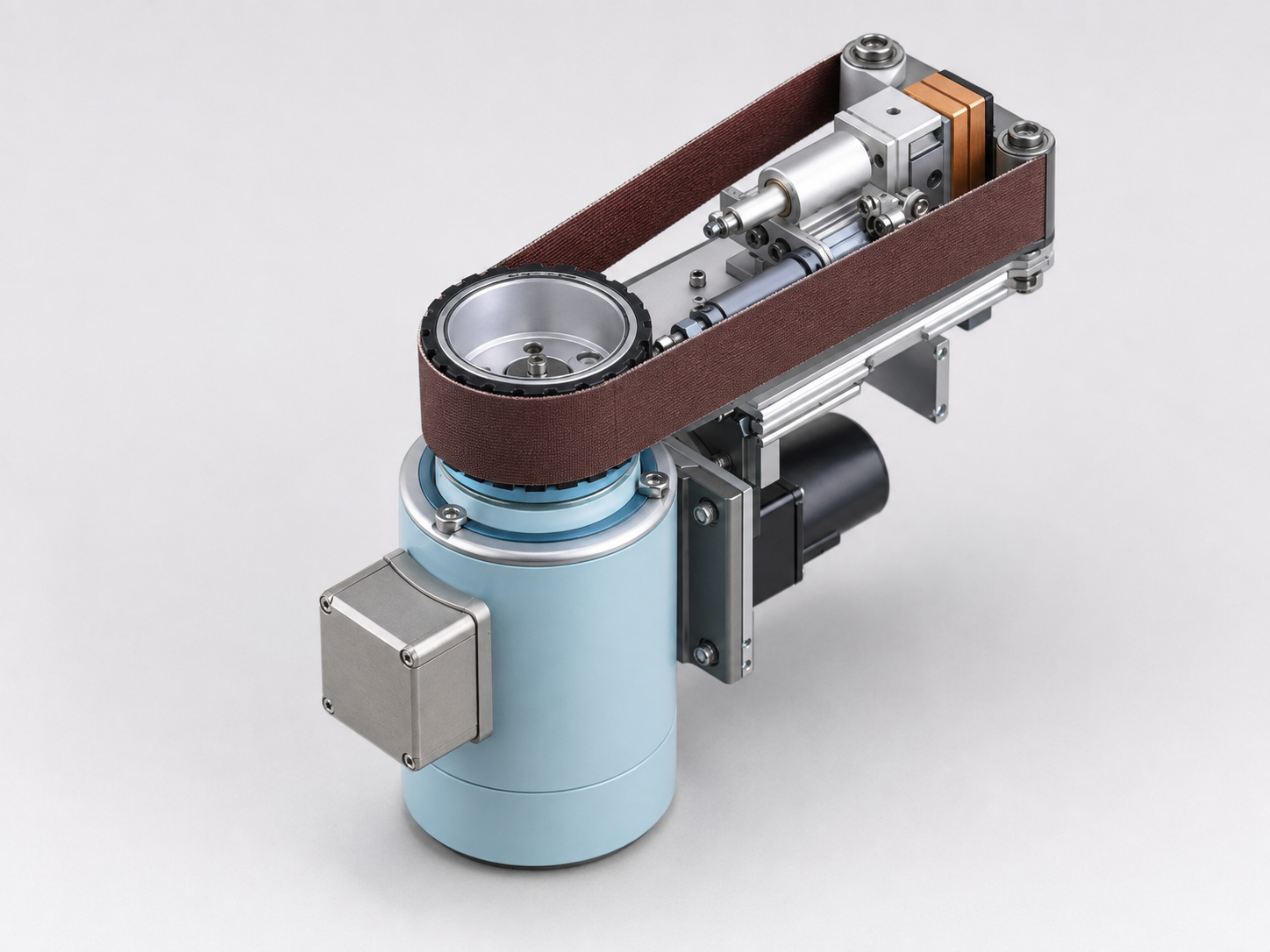

- Dual triangular sanding assemblies provide flat and edge sanding after milling, reducing the need for separate sanding equipment.
- Multi-function sanding heads provide profile polishing and finishing for shaped solid wood door and furniture components.

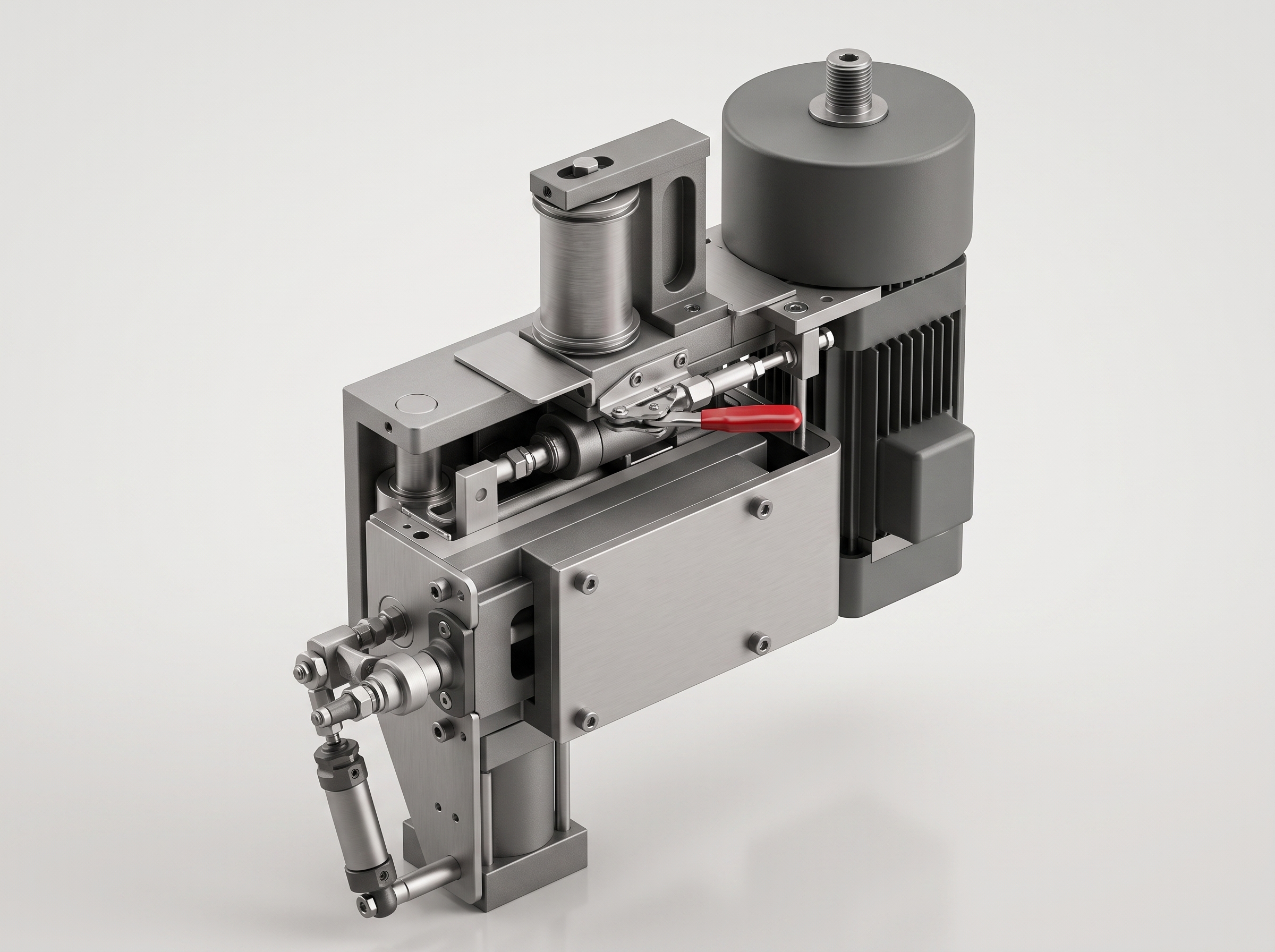

- Pneumatic clamping devices on the milling stations help control workpiece deformation and maintain stable machining during continuous production.
Technical data
| Specifications | Unit | QMX8025S |
|---|---|---|
| Working width | mm | 300–2500 |
| Working thickness | mm | 10–80 |
| Feed block spacing | mm | 500 / 1000 |
| Feeding speed | m/min | 3–36 |
| Milling spindle speed | r/min | 6000–9000 |
| Multi-function sanding head speed | r/min | 0–1400 |
| Triangular sanding belt speed | m/s | 8–13.5 |
| Triangular sanding frame width | mm | 180 |
| Milling spindle diameter | mm | Ø40 |
| Milling cutter specification | mm | Ø150–180 × Ø40 |
| Maximum milling cutter length | mm | 80 |
| Triangular sanding belt | mm | 1460 × 90 |
| Max. multi-function sanding head | mm | Ø200 × Ø25.4 × 90 |
| First jump milling spindle motor | kW | 5.5 × 2 |
| Second milling spindle motor | kW | 7.5 × 2 |
| Triangular sanding motor | kW | 2.2 × 2 |
| Sanding oscillation motor | kW | 0.12 × 2 |
| Multi-function sanding head motor | kW | 1.5 × 2 |
| Feeding motor | kW | 4.0 |
| Width adjustment motor | kW | 1.0 |
| Pressing belt lifting motor | kW | 0.37 × 2 |
| Working voltage | — | AC 380 V / 50 Hz |
| Dust outlets | mm | Ø120 × 8 |
| Dust extraction air speed | m/s | 30–35 |
| Dust extraction air requirement | m³/min | 240 |
| Overall dimensions | cm | 495 × 465 × 190 |
| Machine weight | kg | 7000 |
