Highlights

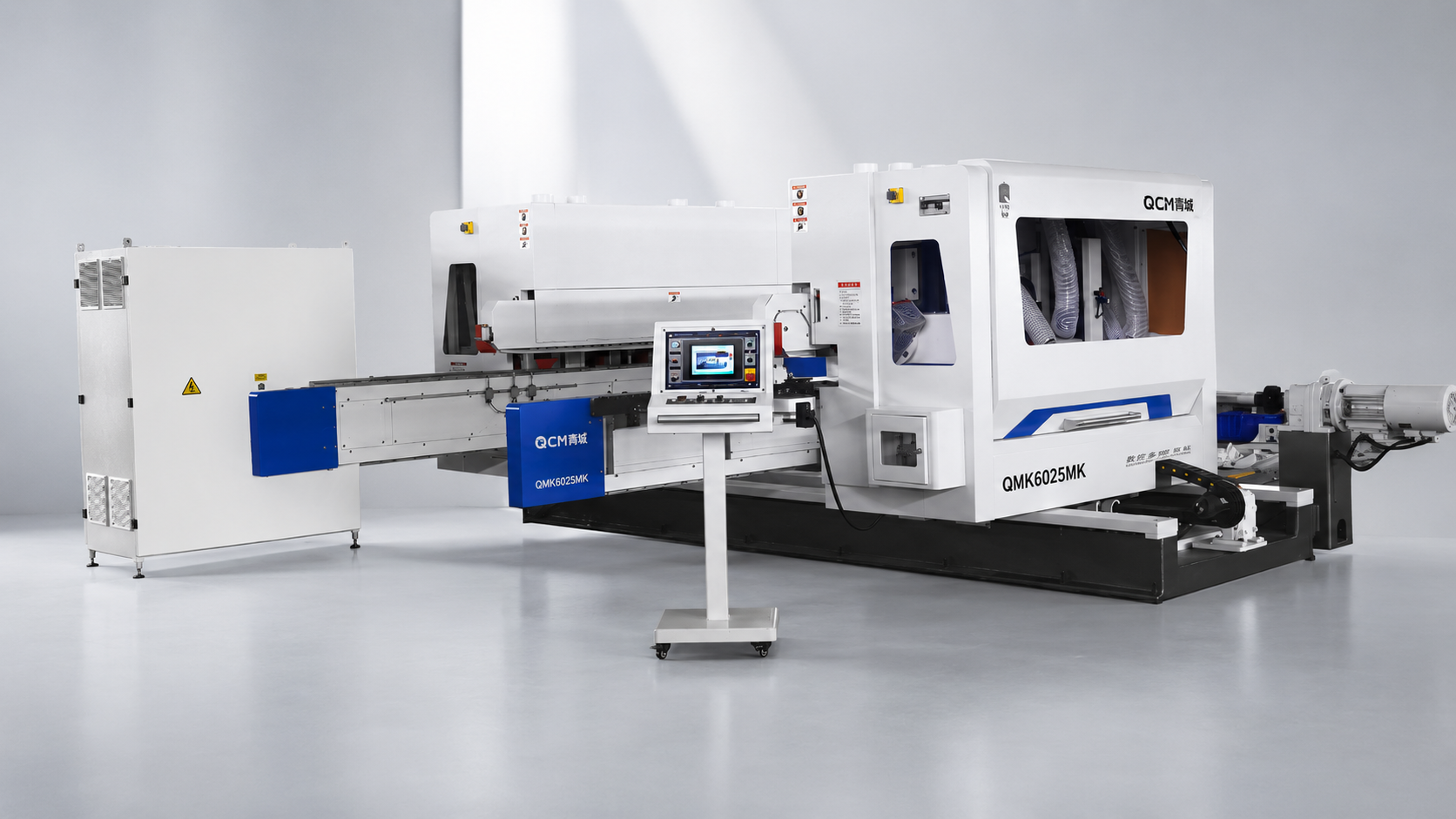

The QMX6025MK Double-End Mortise and Insert-Groove Machine is specialized equipment for two-step click-joint machining consisting of mortise milling and insert-groove milling. Variable-frequency feeding enables double-end processing to be completed during one continuous cycle. The machine is designed for Threespine click connections used in decorative moldings, blockboards, solid wood flooring and veneered panel furniture. A computer touchscreen and PLC integrated control system provide CNC thickness and width setting for the pressure beam and right movable table. Imported clamping belts, nylon pressure rollers and encoder-controlled jump cutting support stable and flexible production.
- Working width: 300–2400 mm
- Working thickness: 10–60 mm
- Feed block spacing: 1000 mm
- Feed speed: 3–36 m/min
- Grooving speed: 6000–9000 r/min
- Insert-grooving speed: 6000–9000 r/min
- Machine weight: 6300 kg
Images
Features
- The specialized two-step processing system completes mortise milling and insert-groove milling for click-joint production.
- Variable-frequency feeding supports different workpiece materials, while an encoder on the feeding drive shaft controls the jump cutter.
- A computer touchscreen and PLC integrated control system provides CNC thickness and width setting for the pressure beam and right movable table.
- Imported clamping belts and nylon pressure rollers hold the workpiece securely and allow convenient pressure-system adjustment.
- The machine produces Threespine click connections without drilling or additional hardware for moldings, blockboards, solid wood flooring and veneered furniture panels.
Technical data
| Specifications | Unit | QMX6025GK | QMX6025BK | QMX6025MK |
|---|---|---|---|---|
| Working width | mm | 300–2500 | 300–2500 | 300–2400 |
| Working thickness | mm | 10–60 | 3–15 | 10–60 |
| Feed block spacing | mm | 1000 | 1000 | 1000 |
| Feed speed | m/min | 3–36 | 3–36 | 3–36 |
| Pre-cutting speed | r/min | 6000–9000 | 6000–9000 | — |
| Milling and V-grooving speed | r/min | 4500–7500 | 4500–7500 | — |
| Grooving speed | r/min | — | — | 6000–9000 |
| Insert-grooving speed | r/min | — | — | 6000–9000 |
| Pre-cutting milling cutter size | mm | Ø90–125 × Ø30 | Ø90–125 × Ø30 | — |
| Milling and V-groove cutter size | mm | Ø180–250 × Ø40 | Ø180–250 × Ø40 | — |
| Grooving cutter size | mm | — | — | Ø100–125 × Ø30 |
| Insert-grooving cutter size | mm | — | — | Ø100–150 × Ø30 |
| Pre-cutting motor power | kW | 3.7 × 2 | 3.7 × 2 | — |
| Milling and V-grooving motor power | kW | 5.5 × 6 | 5.5 × 6 | — |
| Grooving motor power | kW | — | — | 3.7 × 4 |
| Insert-grooving motor power | kW | — | — | 3.7 × 2 |
| Feed motor power | kW | 4.0 | 4.0 | 4.0 |
| Width-setting motor power | kW | 1.0 | 1.0 | 1.0 |
| Pressure-belt lifting motor power | kW | 0.37 × 2 | 0.37 × 2 | 0.37 × 2 |
| Operating voltage | V/Hz | AC 380 V, 50 Hz | AC 380 V, 50 Hz | AC 380 V, 50 Hz |
| Dust extraction ports | mm | Ø120 × 8 | Ø120 × 8 | Ø120 × 6 |
| Required extraction air velocity | m/s | 30–35 | 30–35 | 30–35 |
| Required extraction air volume | m³/min | 240 | 240 | 240 |
| Overall dimensions | cm | 495 × 465 × 190 | 495 × 465 × 190 | 505 × 465 × 190 |
| Machine weight | kg | 6500 | 6500 | 6300 |
