Highlights

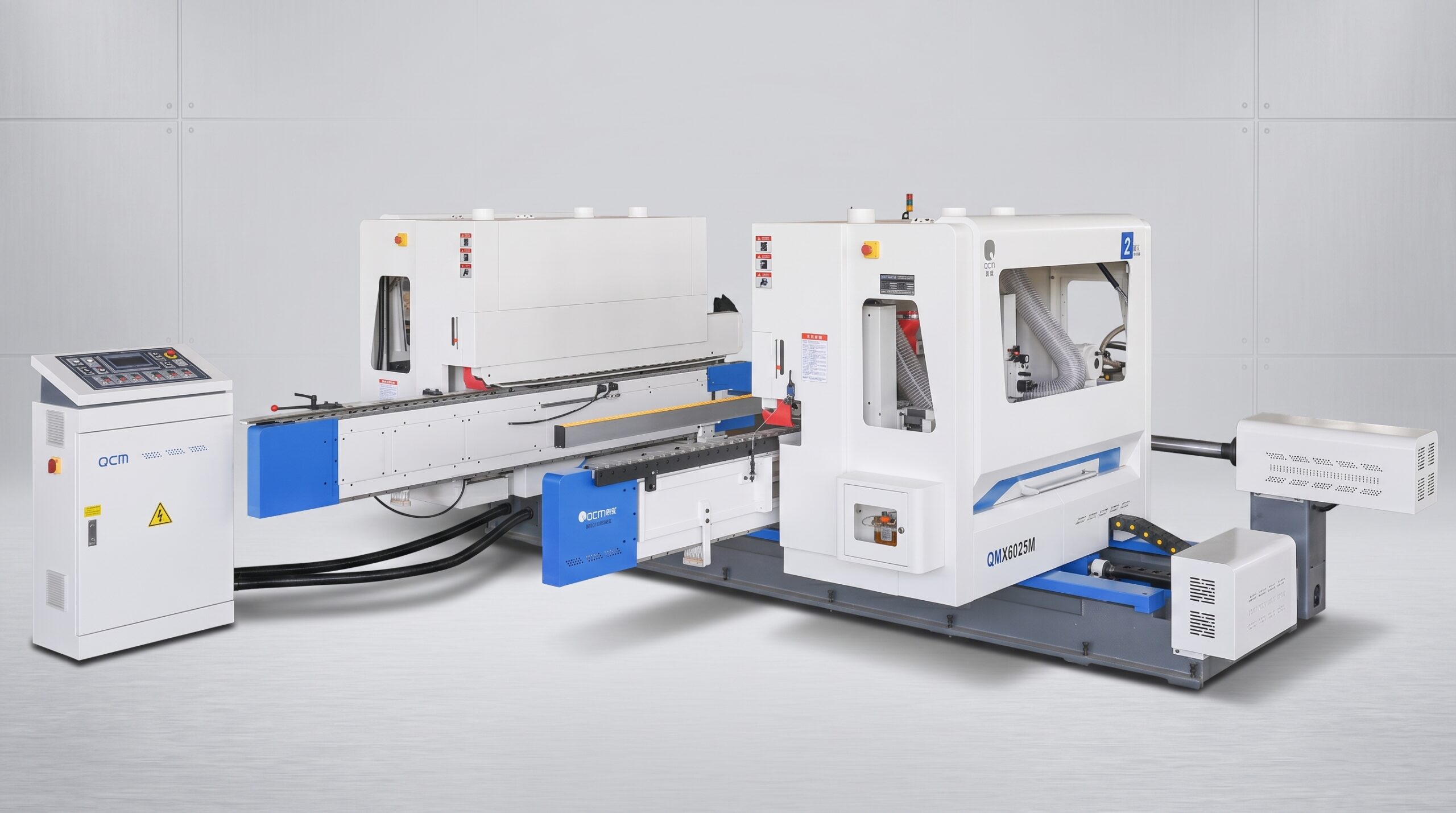

The QMX6025M Double-End Sizing and Tenoning Machine is a heavy-duty woodworking machine designed for cut-to-length sizing, squaring, edge trimming, grooving and tenoning of solid wood doors, cabinet components, panel furniture and other wood products. Cut-off saws bring both ends of the workpiece to the required final length and square the edges, while grooving saws and milling spindles complete grooving, profiling or tenoning in one continuous pass. Its rigid cast machine bed, synchronous chain feeding, stable pressure system, automatic jump-saw device, CNC width adjustment and touchscreen PLC control provide consistent dimensions, clean edges and reliable production.
- Working width: 300–2500 mm
- Working thickness: 10–120 mm
- Feed speed: 2.5–36 m/min
- Saw spindle speed: 3000 r/min
- Milling spindle speed: 7500 r/min
- Total motor power: 41.74 kW
- Feed block spacing: 500 mm
Images
Features
- The integrated processing system completes cut-to-length sizing, squaring, edge trimming, grooving and tenoning on both ends of the workpiece during one continuous pass.
- The machine bed is manufactured from high-quality integrated castings and precision machined to provide strong rigidity, long-term stability and reliable processing accuracy.
- The feeding system uses high-precision synchronous chains, aluminum-alloy chain plates and bearing-guided movement for smooth and accurate workpiece transportation.
- The first lower saw is equipped with an automatic jump-saw cutting device, helping reduce burrs, tear-out and edge chipping during double-end sizing and trimming.
- CNC width adjustment, synchronized pressure-beam lifting and touchscreen PLC control shorten setup time while maintaining stable pressing and accurate positioning.
Technical data
| Specifications | Unit | QMX6025M |
|---|---|---|
| Working width | mm | 300–2500 |
| Working thickness | mm | 10–120 |
| Feed block spacing | mm | 500 |
| Feed speed | m/min | 2.5–36 |
| Saw spindle speed | r/min | 3000 |
| Milling spindle speed | r/min | 7500 |
| Cut-off saw blade size | mm | Ø200–300 × Ø30 |
| Grooving saw blade size | mm | Ø160–200 × Ø30 |
| Milling cutter size | mm | Ø108–180 × Ø40 |
| Cut-off saw tilt range | degree | ±20° to ±45° |
| Milling spindle tilt range | degree | ±25° to ±45° |
| Cut-off saw motor power | kW | 7.5 × 2 |
| Grooving saw motor power | kW | 3.0 × 2 |
| Milling spindle motor power | kW | 7.5 × 2 |
| Feed motor power | kW | 4.0 |
| Width-setting motor power | kW | 1.0 |
| Pressure-belt lifting motor power | kW | 0.37 × 2 |
| Total motor power | kW | 41.74 |
| Dust extraction ports | mm | Ø120 × 6 |
| Required extraction air velocity | m/s | 30–35 |
| Required extraction air volume | m³/min | 200 |
| Overall dimensions | cm | 495 × 413 × 190 |
| Machine weight | kg | 6000 |
