Highlights

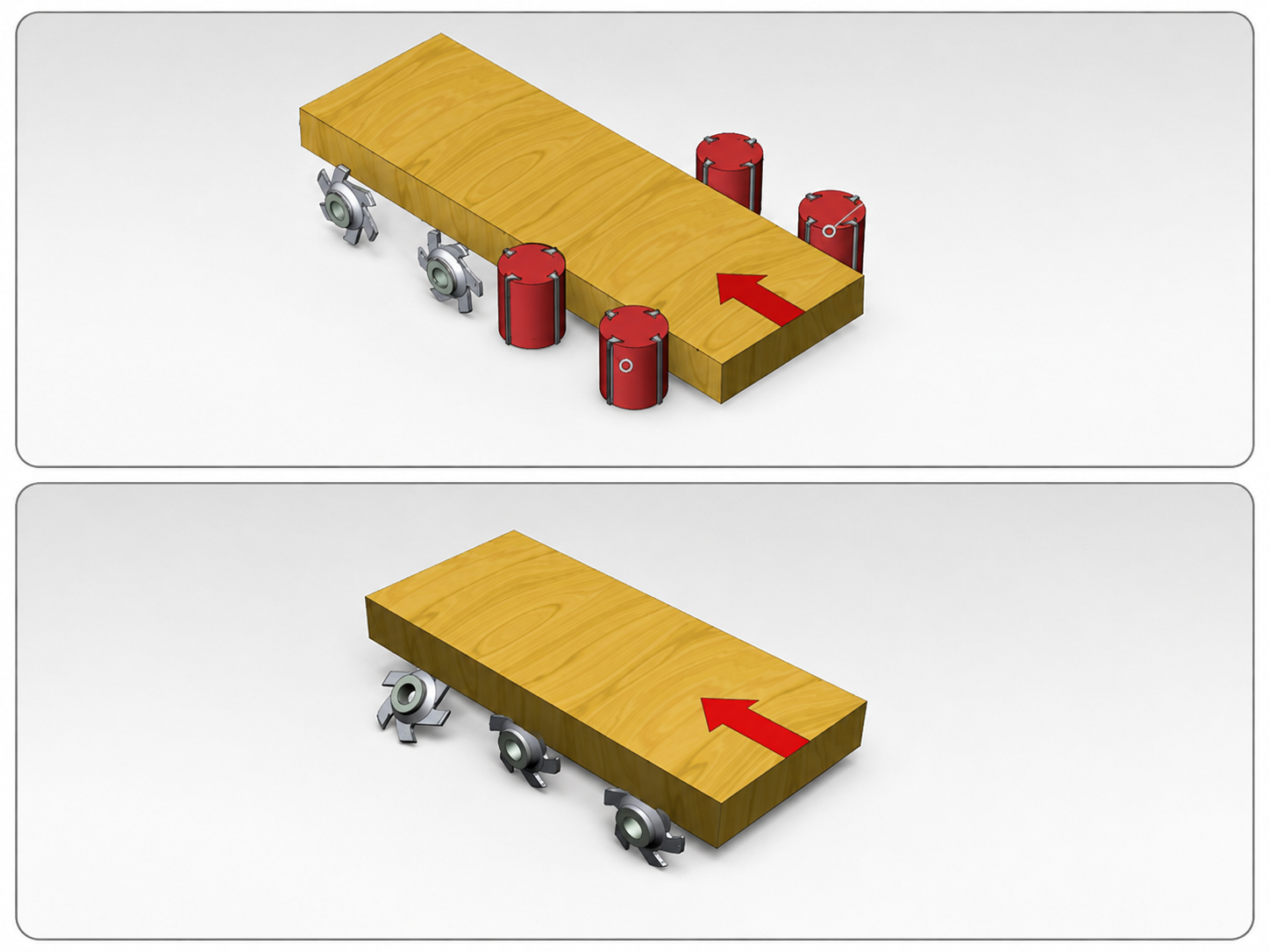

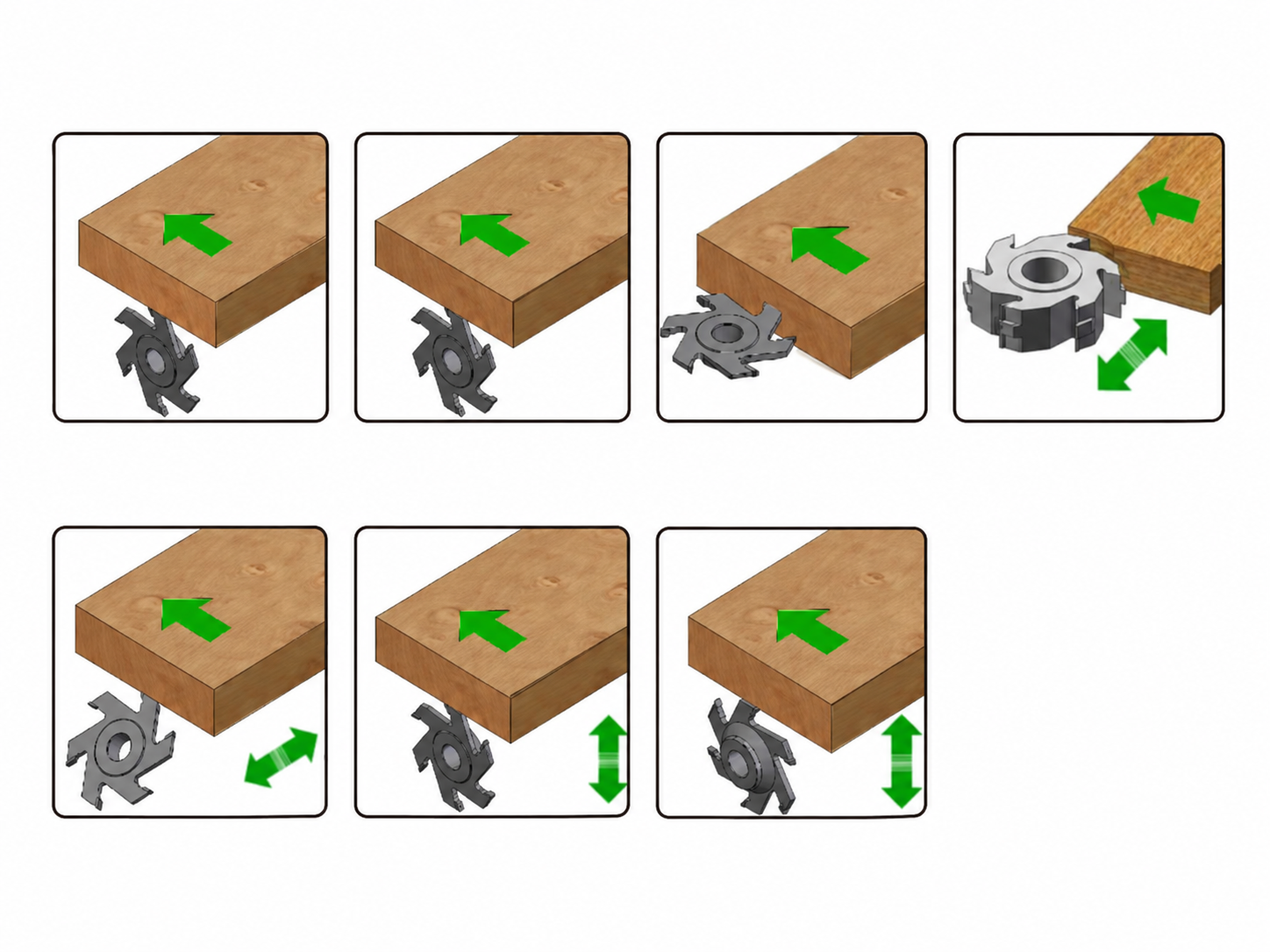

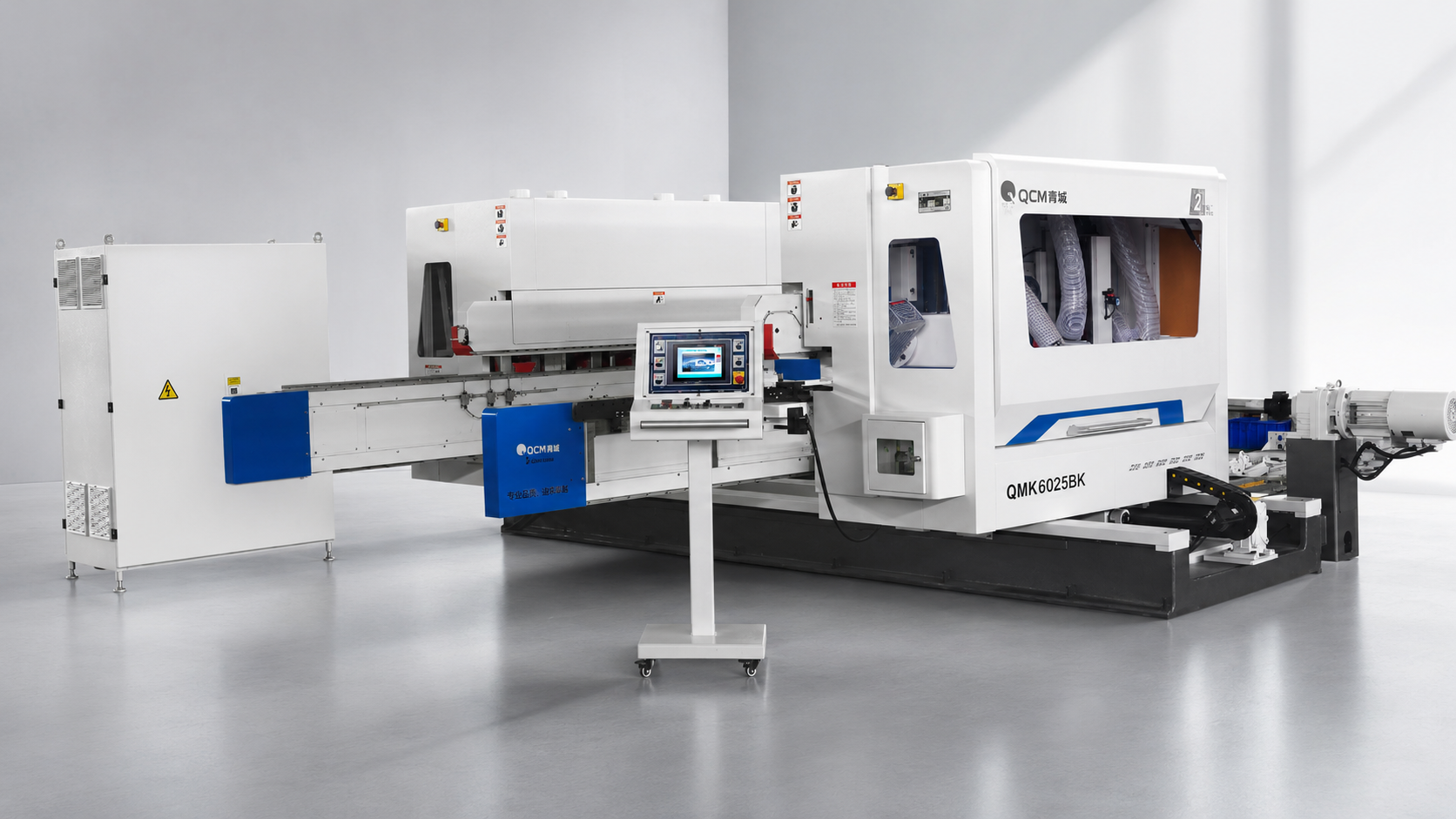

The QMX6025BK Thin-Panel Click-Joint Double-End Tenoner is specialized equipment for processing panels from 3 to 15 mm thick. Its variable-frequency feeding system completes double-end tenoning operations in one processing cycle, including pre-cutting, milling and grooving. The machine can form male or female tenons simultaneously on both ends of the workpiece and is designed for producing Threespine click connections in decorative moldings, blockboards, solid wood flooring and veneered panel furniture. A computer touchscreen and PLC integrated control system provide CNC thickness and width setting, while imported clamping belts, nylon pressure rollers and encoder-controlled jump cutting support stable thin-panel processing.
- Working width: 300–2500 mm
- Working thickness: 3–15 mm
- Feed block spacing: 1000 mm
- Feed speed: 3–36 m/min
- Pre-cutting speed: 6000–9000 r/min
- Milling and V-grooving speed: 4500–7500 r/min
- Machine weight: 6500 kg
Images
Features
- The QMX6025BK is specialized for thin-panel machining with a working thickness of 3–15 mm.

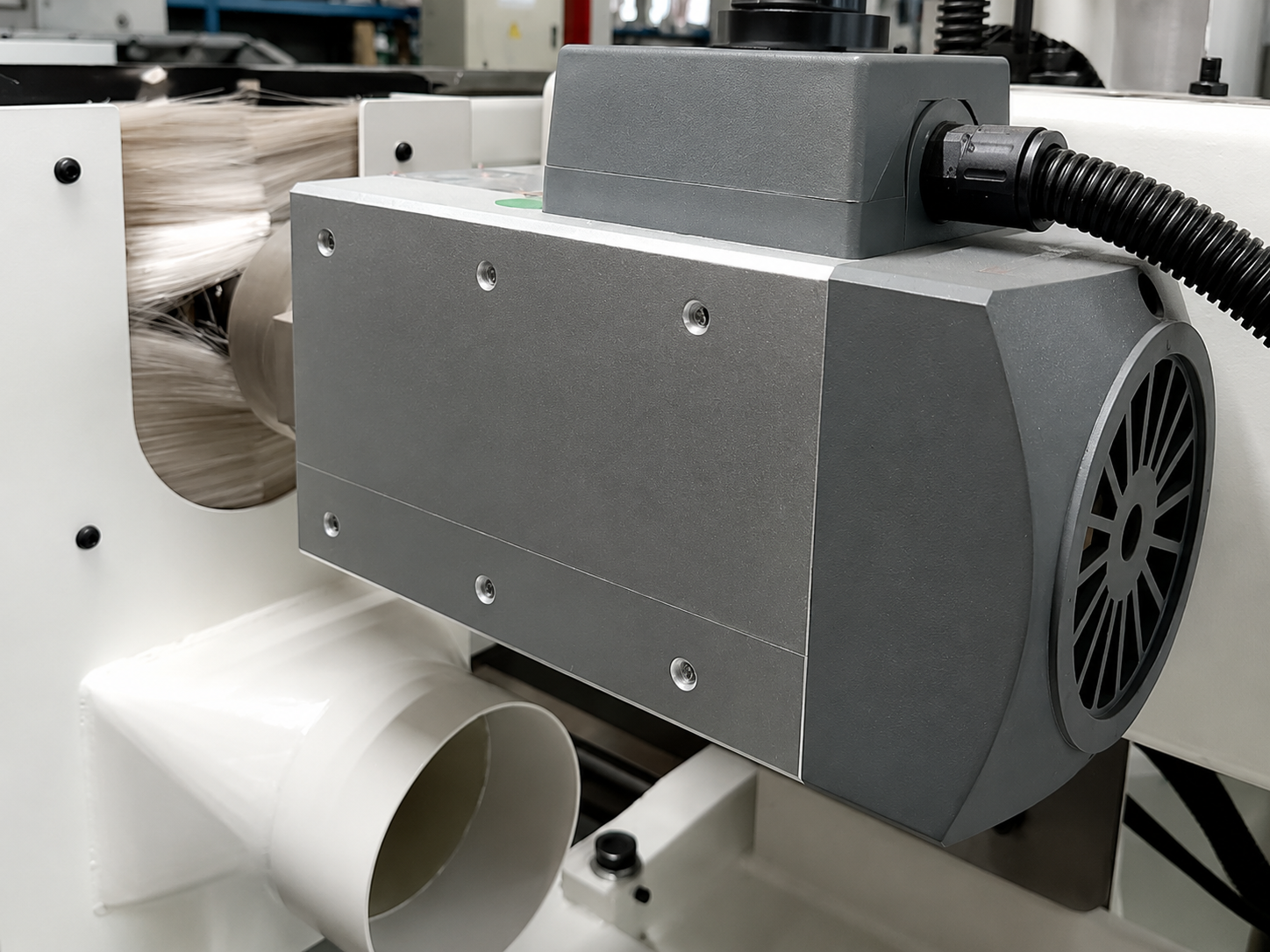

- Variable-frequency feeding enables pre-cutting, milling and grooving to be completed during one continuous processing cycle.

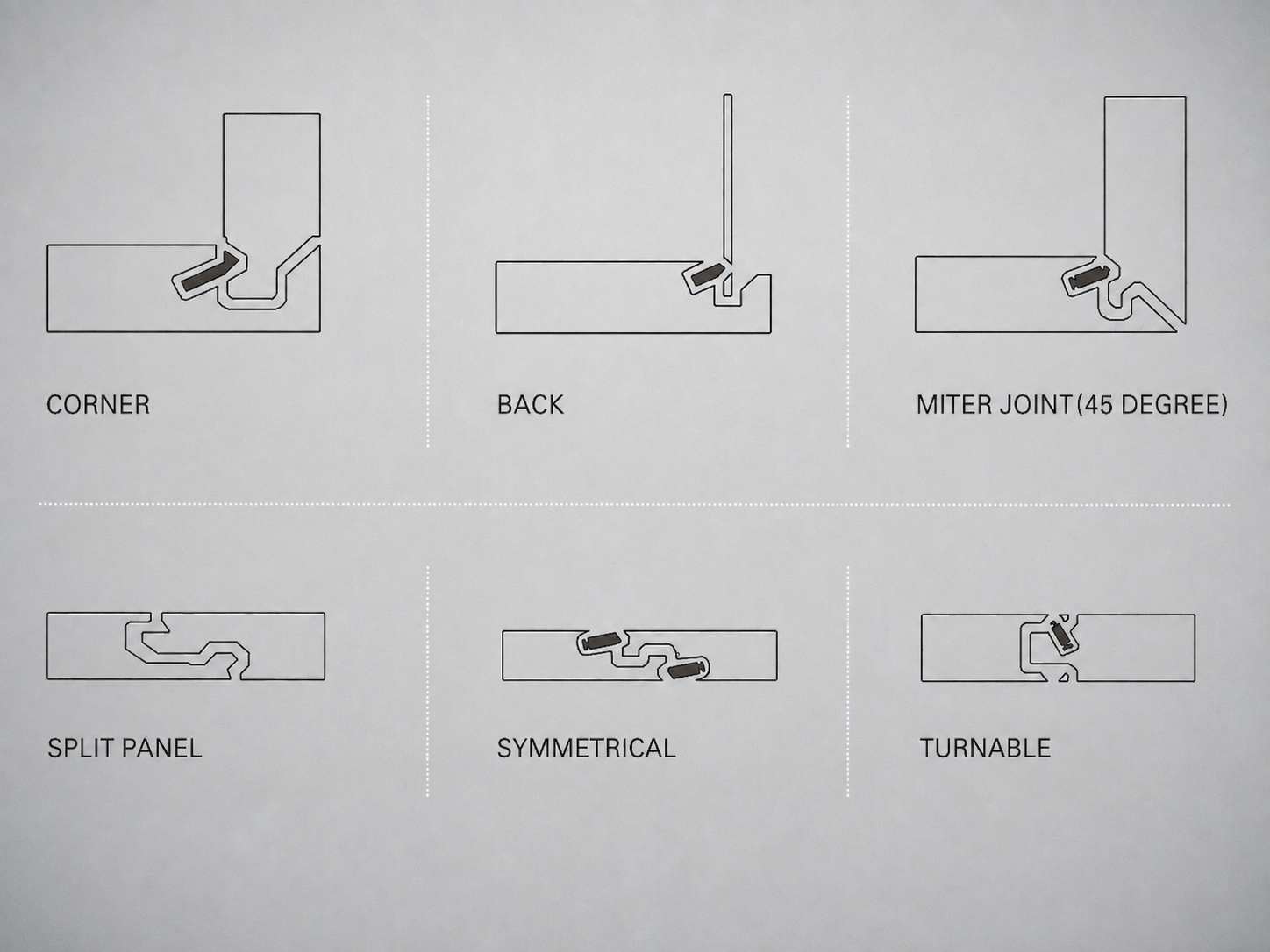

- The machine forms male or female tenons simultaneously on both ends for Threespine click-joint production.

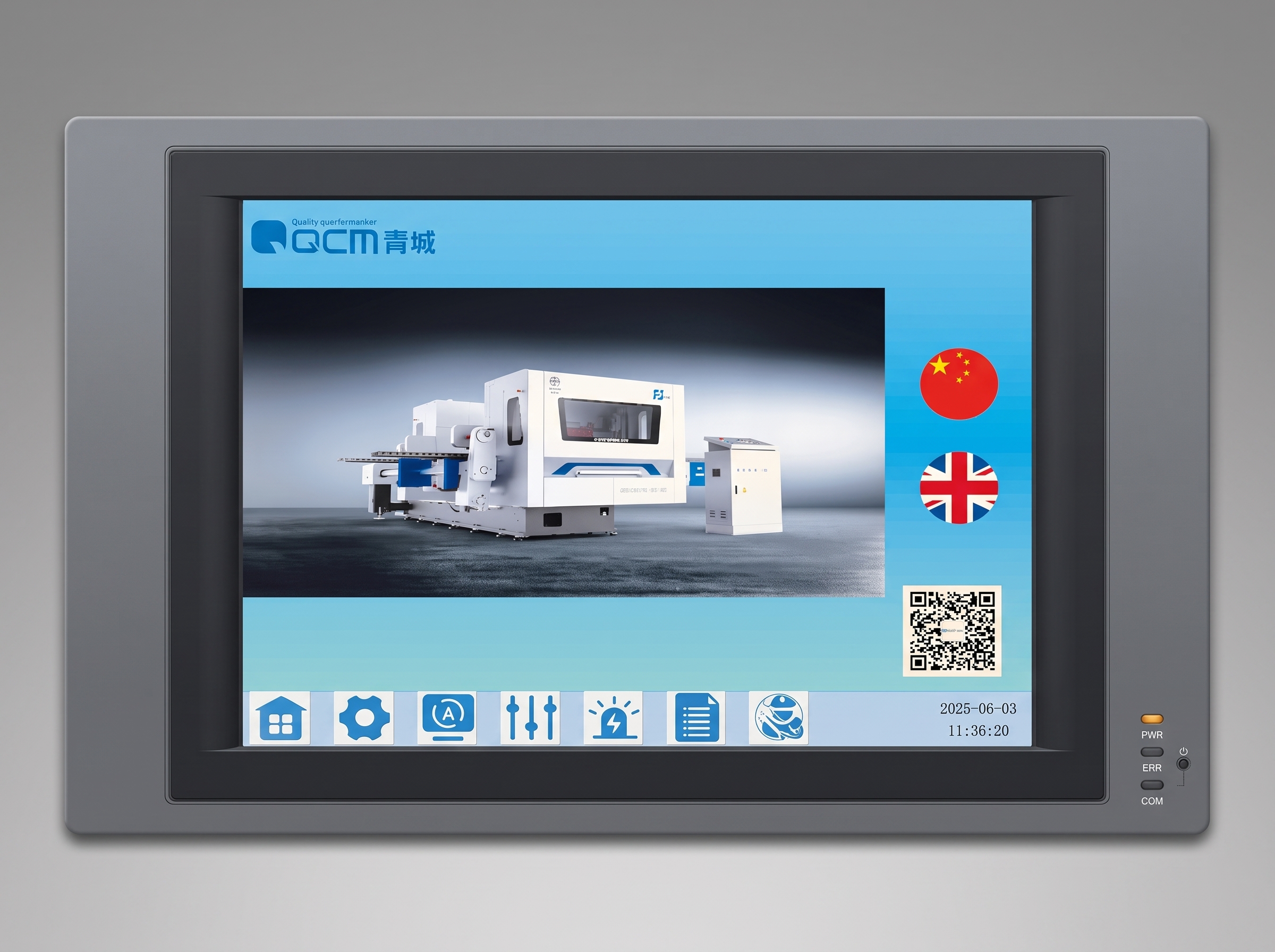

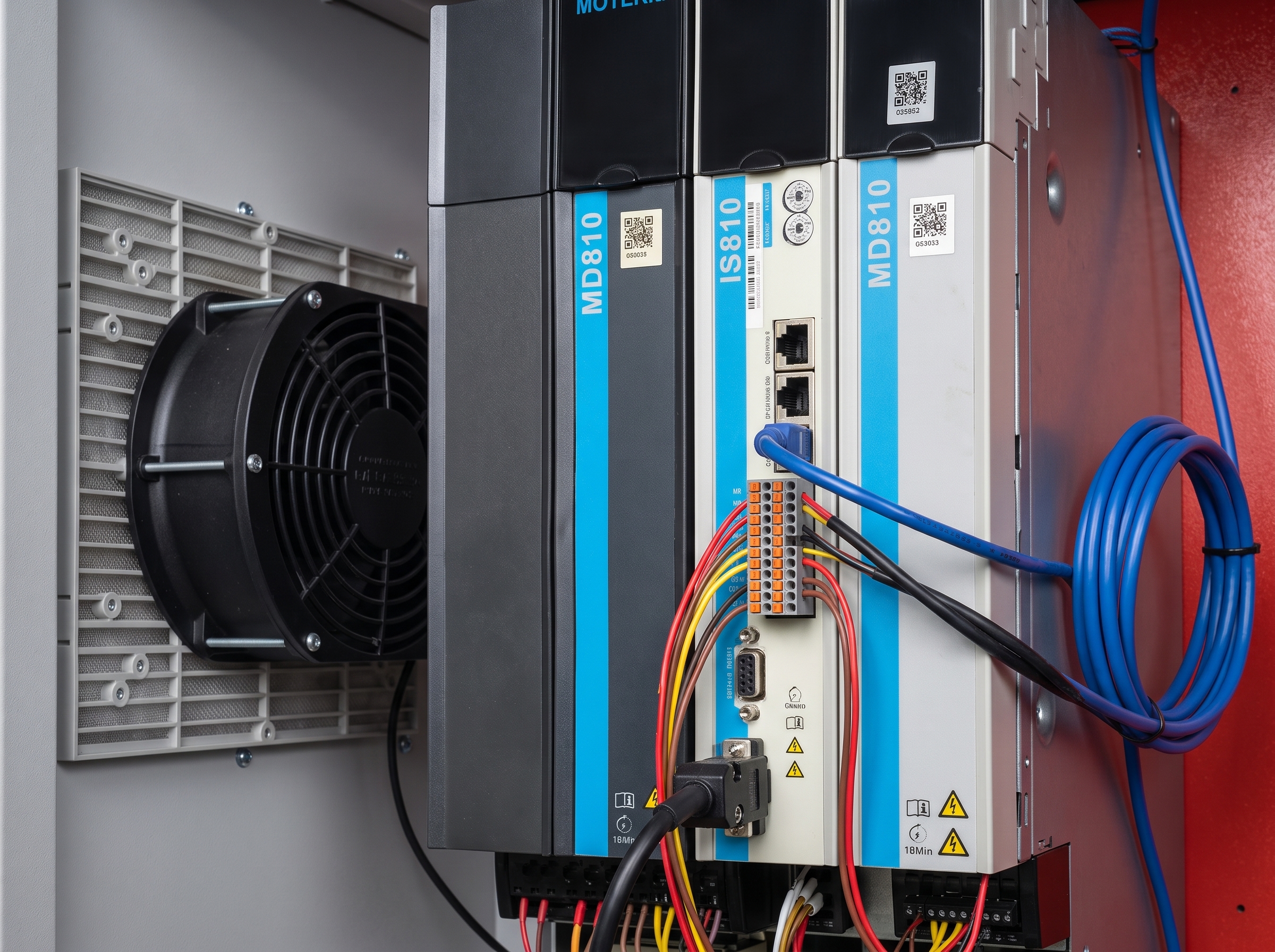

- A computer touchscreen and PLC integrated control system provides CNC thickness and width setting for the pressure beam and right movable table.

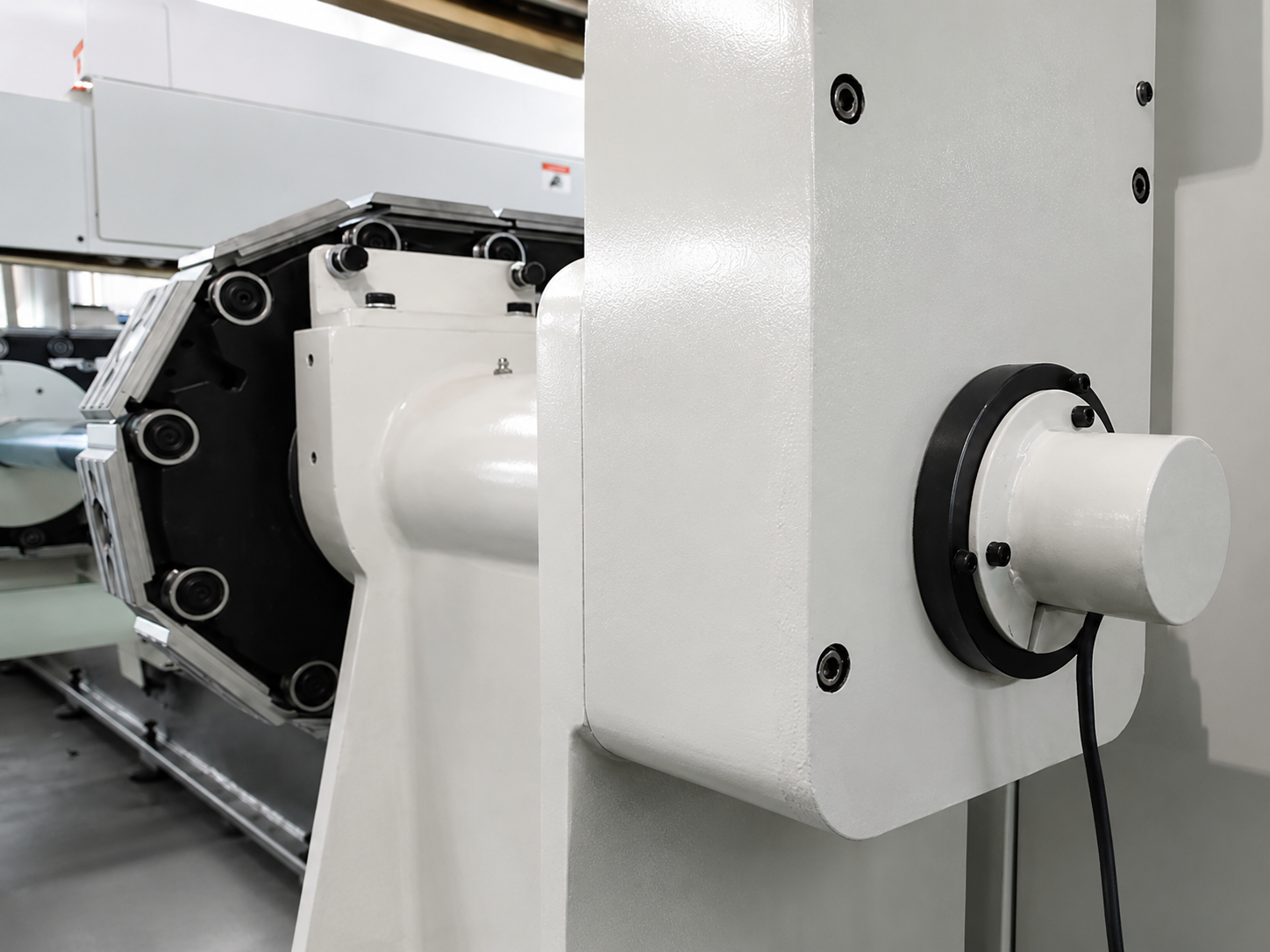

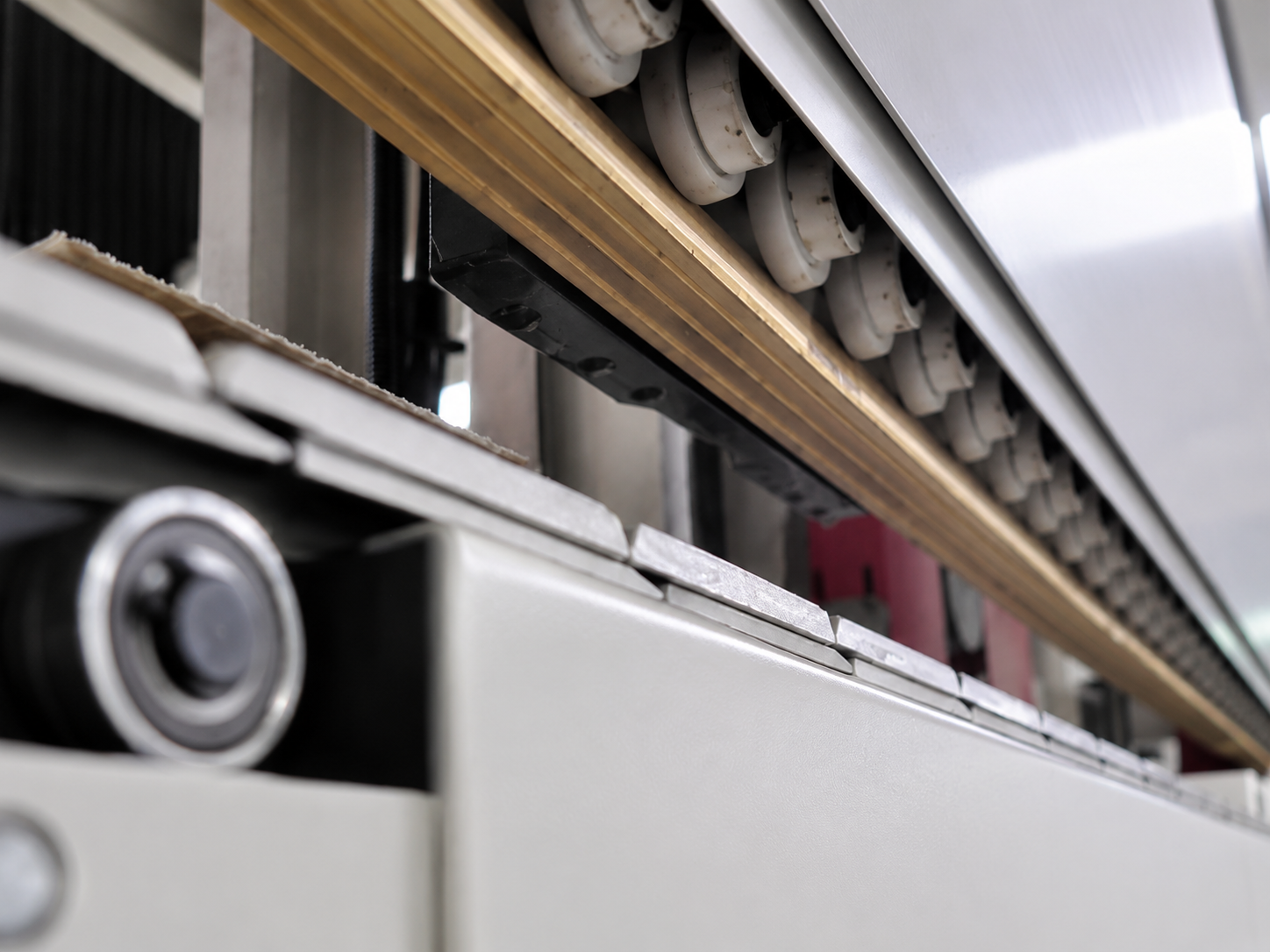

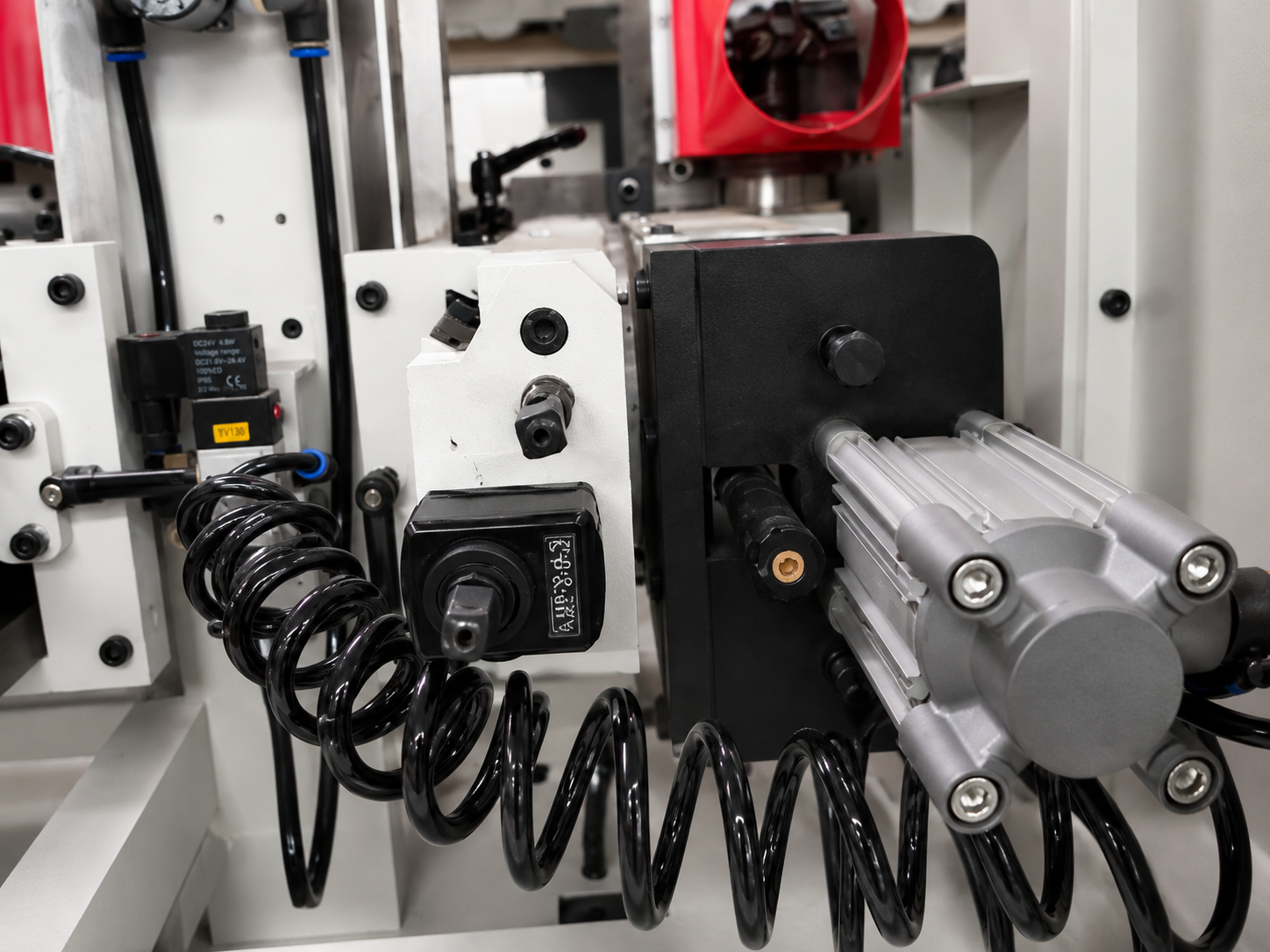

- Imported clamping belts and nylon pressure rollers hold thin workpieces securely, while an encoder on the feeding drive shaft controls the jump cutter.
Technical data
| Specifications | Unit | QMX6025GK | QMX6025BK | QMX6025MK |
|---|---|---|---|---|
| Working width | mm | 300–2500 | 300–2500 | 300–2400 |
| Working thickness | mm | 10–60 | 3–15 | 10–60 |
| Feed block spacing | mm | 1000 | 1000 | 1000 |
| Feed speed | m/min | 3–36 | 3–36 | 3–36 |
| Pre-cutting speed | r/min | 6000–9000 | 6000–9000 | — |
| Milling and V-grooving speed | r/min | 4500–7500 | 4500–7500 | — |
| Grooving speed | r/min | — | — | 6000–9000 |
| Insert-grooving speed | r/min | — | — | 6000–9000 |
| Pre-cutting milling cutter size | mm | Ø90–125 × Ø30 | Ø90–125 × Ø30 | — |
| Milling and V-groove cutter size | mm | Ø180–250 × Ø40 | Ø180–250 × Ø40 | — |
| Grooving cutter size | mm | — | — | Ø100–125 × Ø30 |
| Insert-grooving cutter size | mm | — | — | Ø100–150 × Ø30 |
| Pre-cutting motor power | kW | 3.7 × 2 | 3.7 × 2 | — |
| Milling and V-grooving motor power | kW | 5.5 × 6 | 5.5 × 6 | — |
| Grooving motor power | kW | — | — | 3.7 × 4 |
| Insert-grooving motor power | kW | — | — | 3.7 × 2 |
| Feed motor power | kW | 4.0 | 4.0 | 4.0 |
| Width-setting motor power | kW | 1.0 | 1.0 | 1.0 |
| Pressure-belt lifting motor power | kW | 0.37 × 2 | 0.37 × 2 | 0.37 × 2 |
| Operating voltage | V/Hz | AC 380 V, 50 Hz | AC 380 V, 50 Hz | AC 380 V, 50 Hz |
| Dust extraction ports | mm | Ø120 × 8 | Ø120 × 8 | Ø120 × 6 |
| Required extraction air velocity | m/s | 30–35 | 30–35 | 30–35 |
| Required extraction air volume | m³/min | 240 | 240 | 240 |
| Overall dimensions | cm | 495 × 465 × 190 | 495 × 465 × 190 | 505 × 465 × 190 |
| Machine weight | kg | 6500 | 6500 | 6300 |
