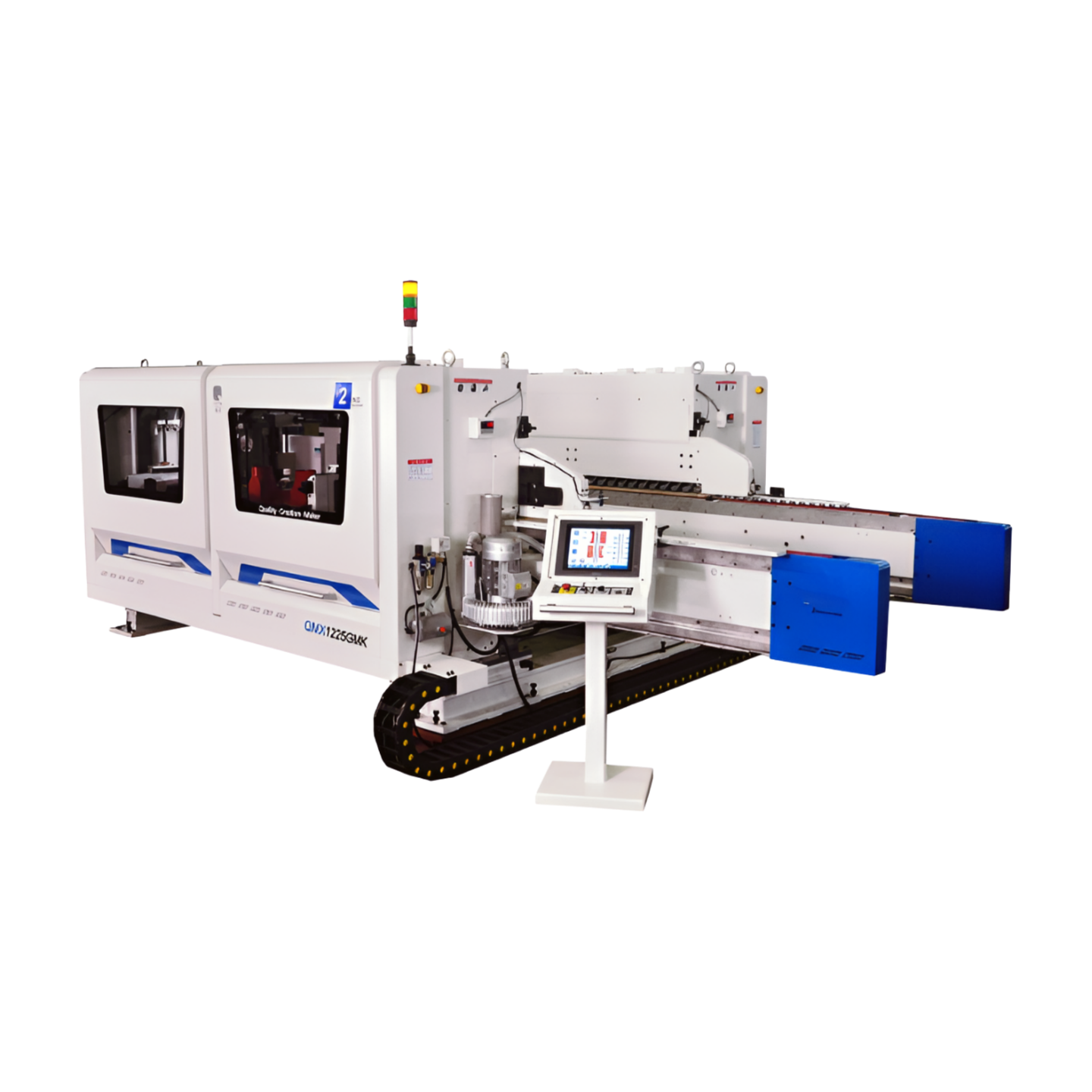

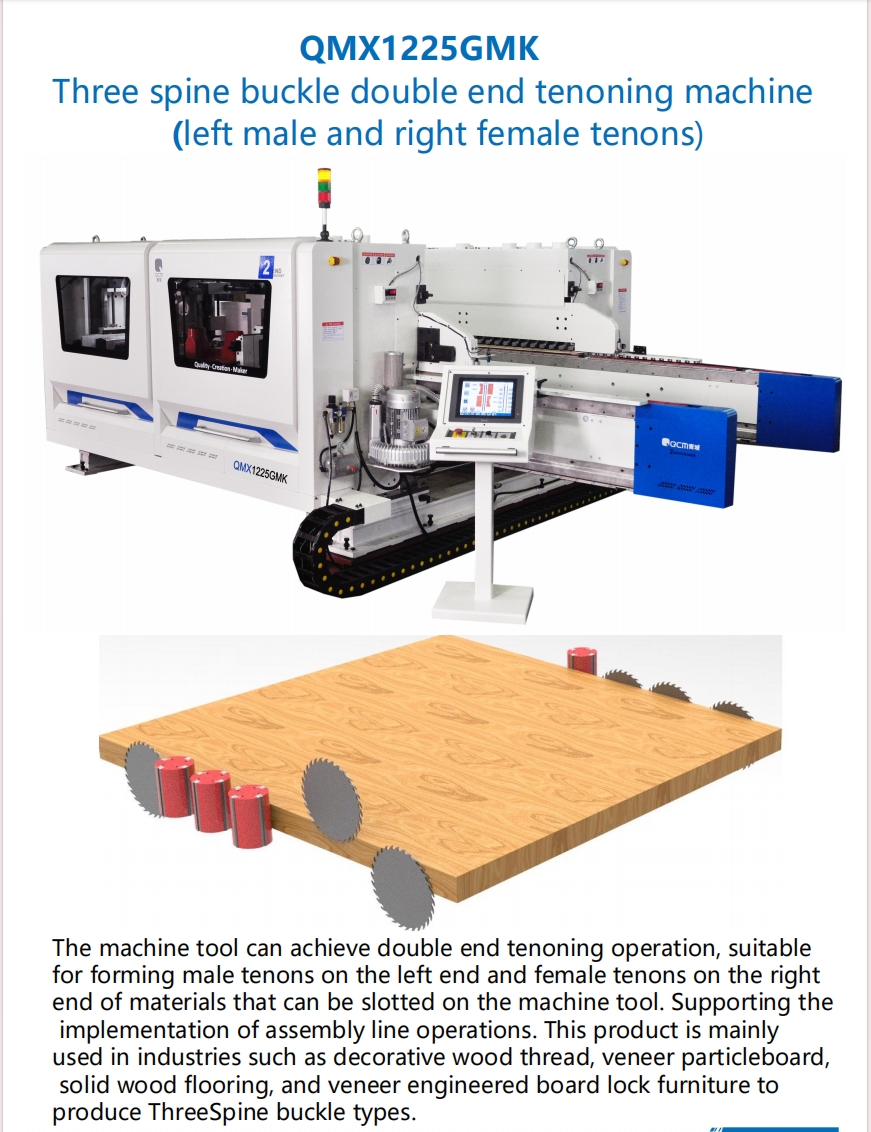

The QMX1225GMK is a specialized double-end tenoner designed for locking/click profile production. It machines a tongue (male profile) on the left end and a groove / insert slot (female profile) on the right end in one integrated setup. Built for continuous line operation, it delivers high accuracy, stable output, and consistent joint geometry for mass production.
This machine is ideal for manufacturers producing engineered flooring, decorative panels, laminated/veneered boards, and interlocking furniture panels, where reliable tongue-and-groove locking performance is required.
| Model | Joint Layout | Key Features | Best For |
|---|---|---|---|
| QMX1225GM | Symmetrical (same on both ends) | Standard double-end tenoning: identical joint/profile on left & right ends | General furniture parts, cabinet frames, standard panels |
| QMX1225GMK | Asymmetrical (Tongue left / Groove right) | Locking/click profile tenoning: tongue + groove/slot in one machine | Click/locking flooring, interlocking panel & furniture systems |
QMX1225GMK – What Makes It Different
-
Asymmetric joint machining: tongue on one end, groove/slot on the other
-
Designed for locking/click profile systems with consistent fit
-
Optimized for high-volume production with repeatable accuracy
-
Built for assembly-line workflows (stable feeding, reduced rework)
QMX1225GM – General-Purpose Model
-
Produces the same tenon/profile on both ends
-
Versatile for standard woodworking joints and frame components
-
Suitable for cabinet doors, furniture rails/stiles, and panel parts
