Highlights

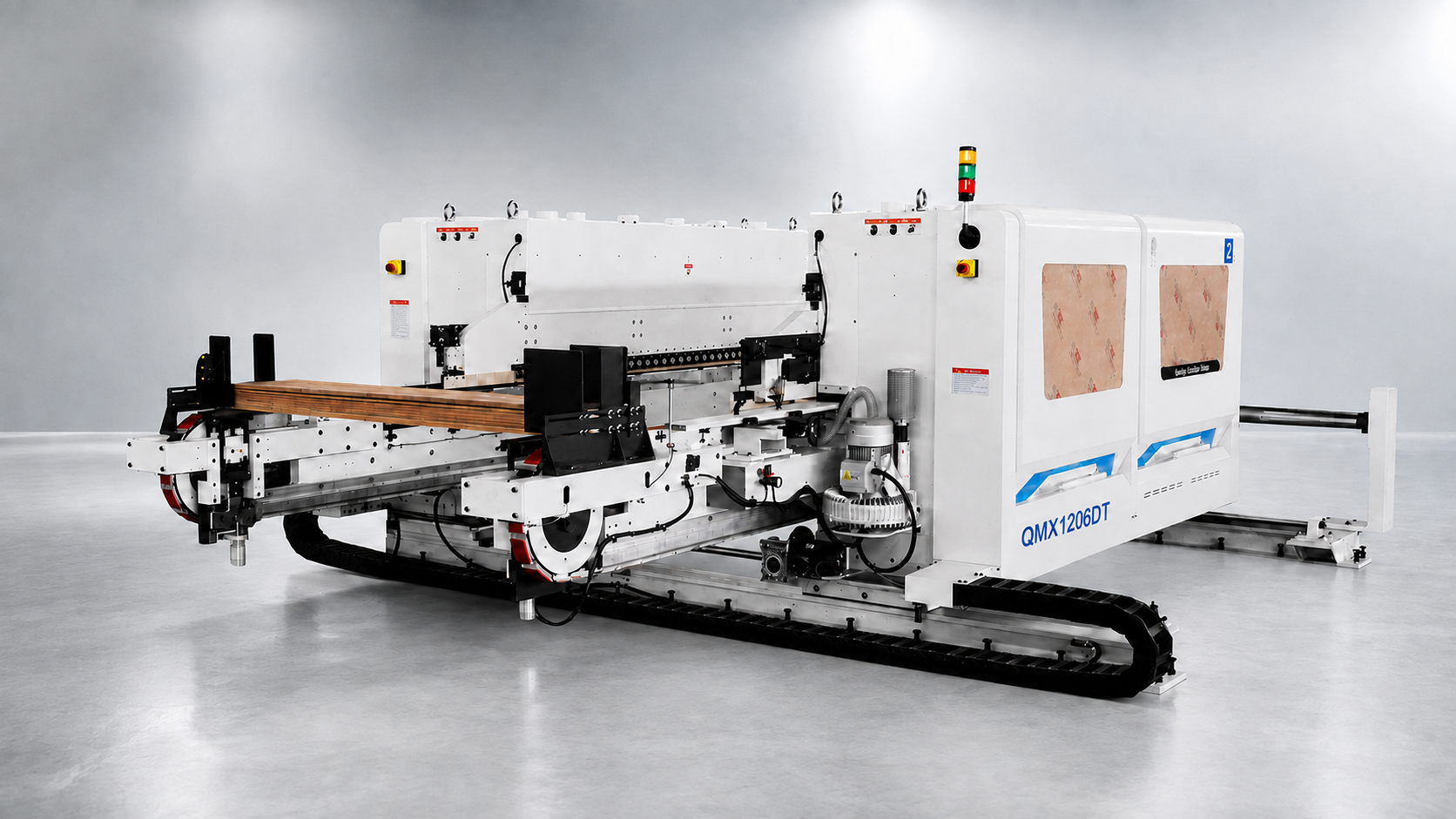

The QMX1206DT Vertical Double-End Tenoner is designed for fast and accurate machining of both ends of wood components. It processes workpieces from 125 to 600 mm wide and 8 to 25 mm thick, with an adjustable feed speed of up to 100 m/min. A high-precision conveyor chain and variable-frequency gear reducer provide smooth and reliable workpiece transportation. The left and right machine frames and chain-plate beams are precision machined to maintain dimensional and positional accuracy, while dual-cylinder upper pressing and reliable electrical components support stable continuous production.
- Processing width: 125–600 mm
- Processing thickness: 8–25 mm
- Feed speed: 10–100 m/min
- Milling spindle speed: 4500–6000 r/min
- Milling cutter size: Ø220–280 × Ø40 mm
- Total motor power: 90.9 kW
- Machine weight: 9500 kg
Images

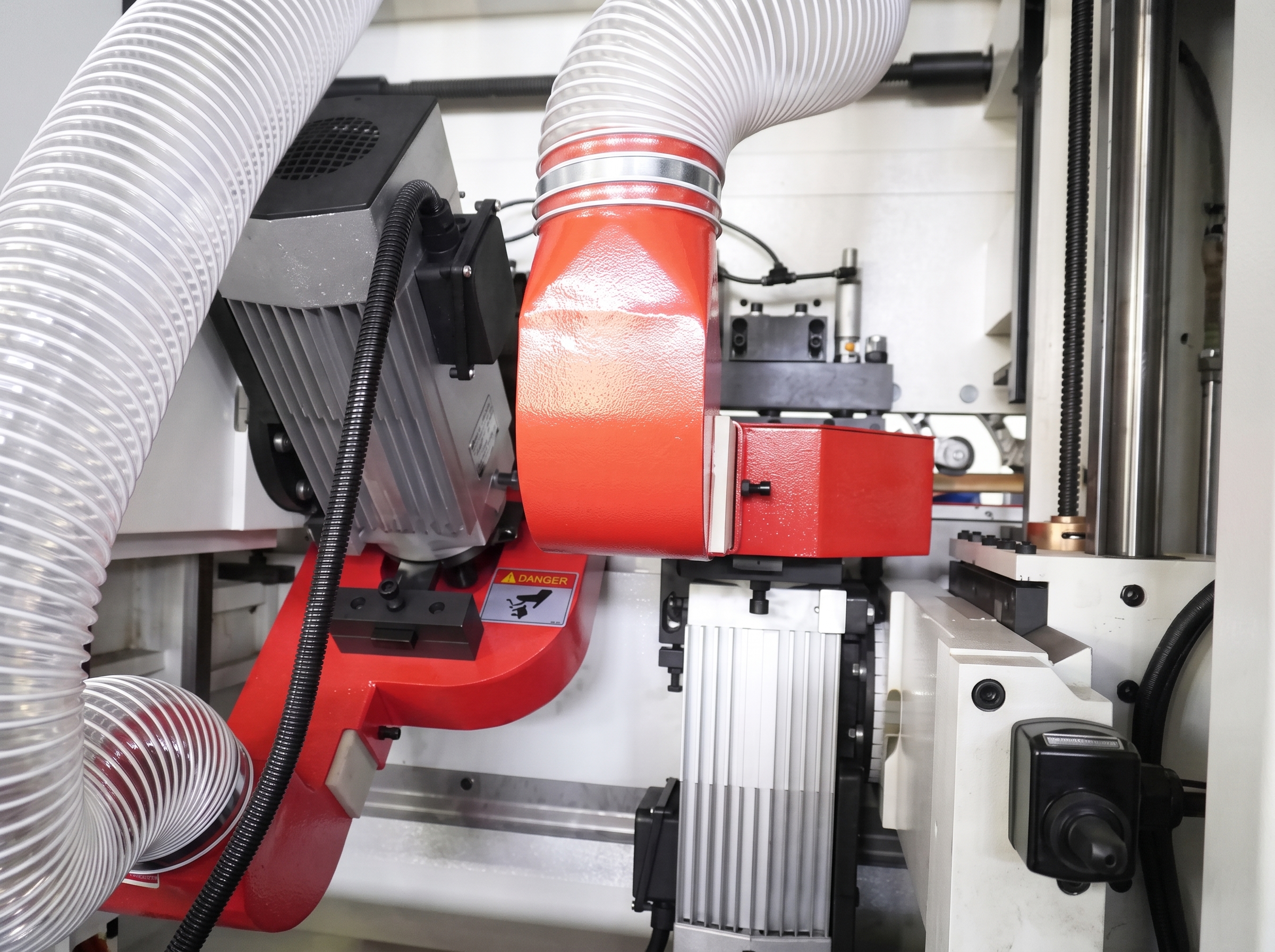

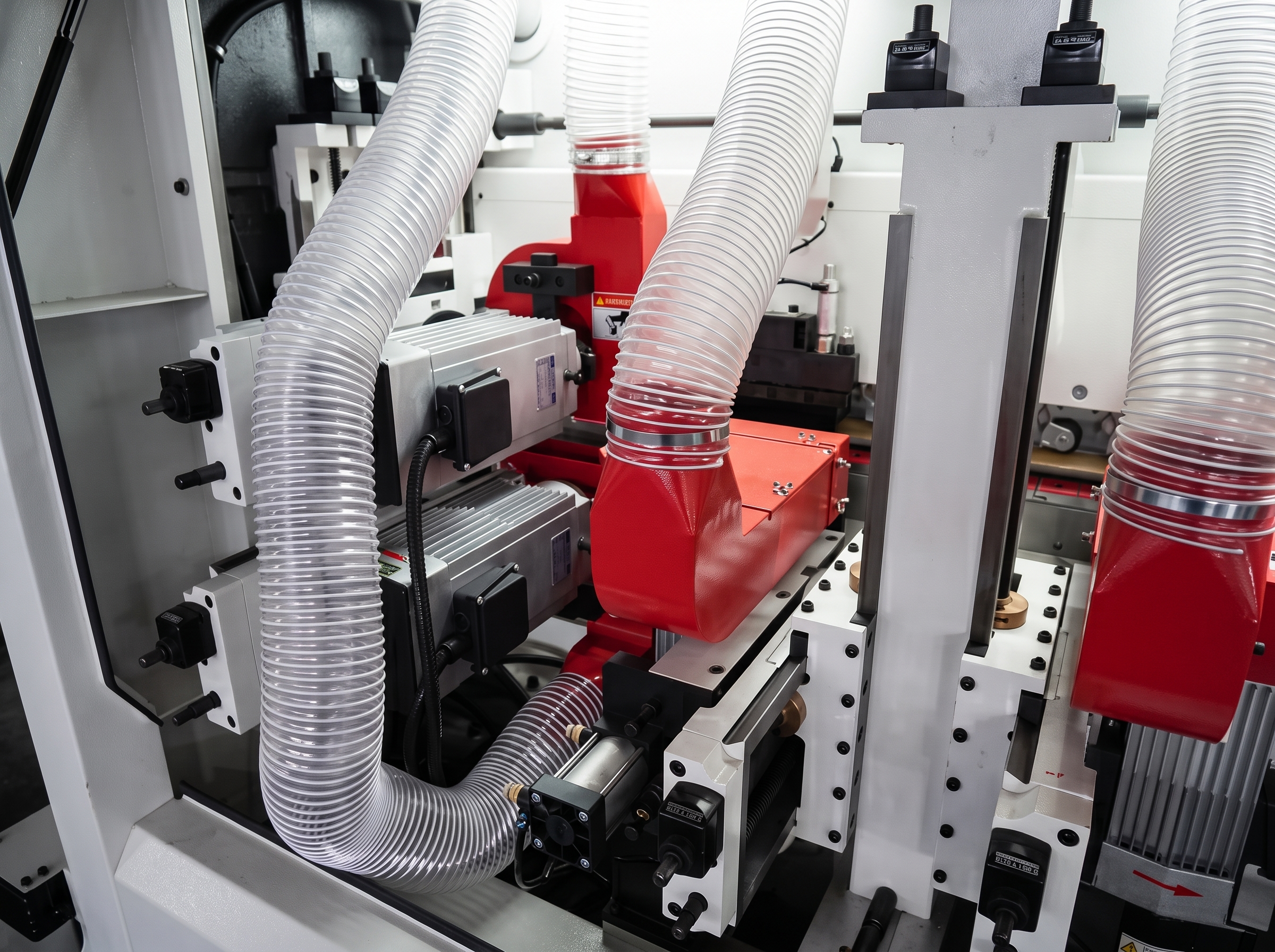

Features
- The high-precision conveyor chain provides stable workpiece transportation across a wide processing range.

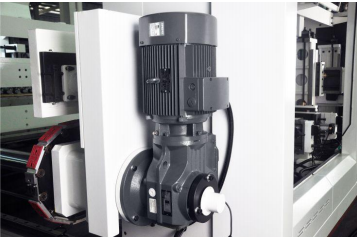

- A variable-frequency gear reducer delivers smooth and reliable transmission during high-speed production.

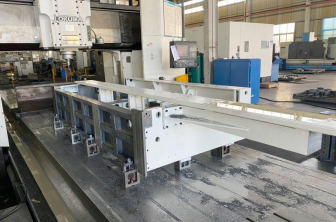

- The left and right frames and chain-plate beams are processed on an OKUMA five-face gantry machining center to maintain dimensional and positional accuracy.

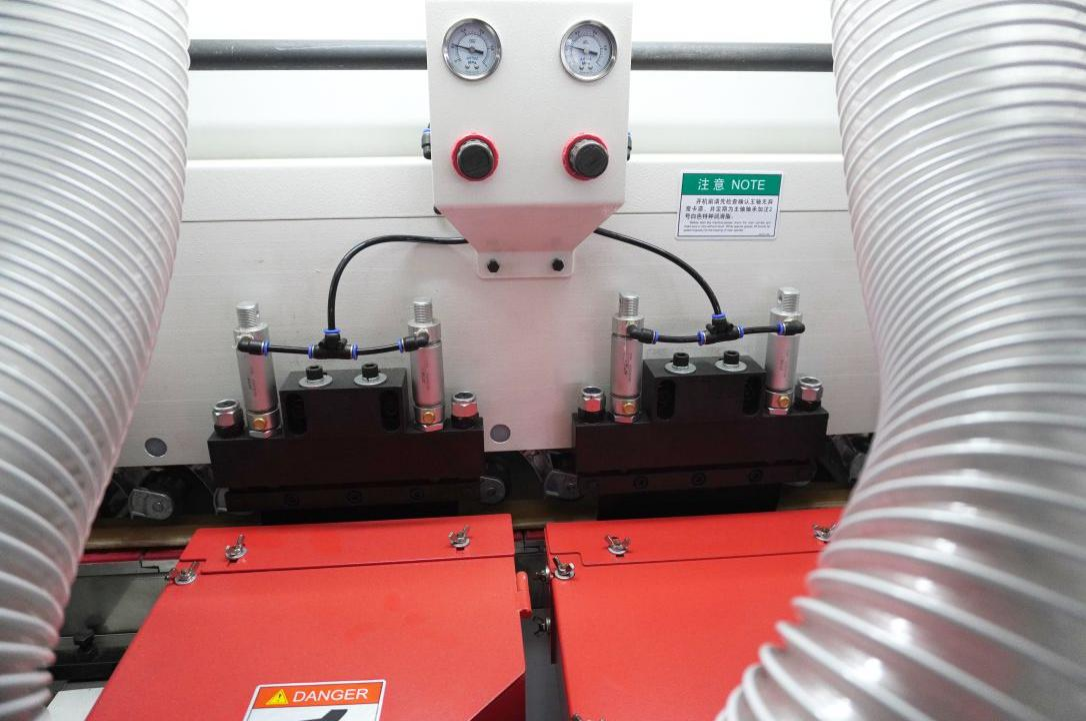

- The upper pressure plate uses dual-cylinder pressing to hold workpieces securely during machining.

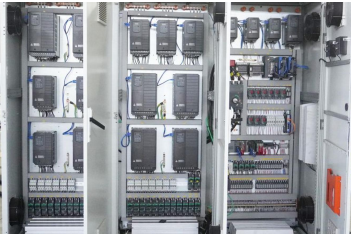

- Electrical components from internationally recognized brands provide stable performance and long-term durability.
Technical data
| Specifications | Unit | QMX1206DT |
|---|---|---|
| Processing width | mm | 125–600 |
| Processing thickness | mm | 8–25 |
| Feed speed | m/min | 10–100 |
| Milling spindle speed | r/min | 4500–6000 |
| Milling cutter size | mm | Ø220–280 × Ø40 |
| Worktable height | mm | 1100 |
| Motor power for stations 1, 2 and 6 | kW | 7.5 × 6 |
| Motor power for stations 3, 4 and 5 | kW | 5.5 × 6 |
| Feed motor power | kW | 7.5 |
| Width-adjustment motor power | kW | 1.0 |
| Vortex air-pump motor power | kW | 2.2 × 2 |
| Total motor power | kW | 90.9 |
| Operating voltage | V/Hz | AC 380 V, 50 Hz |
| Dust extraction ports | mm | Ø120 × 12 |
| Required extraction air velocity | m/s | 30–35 |
| Required extraction air volume | m³/min | 360 |
| Overall dimensions | cm | 540 × 270 × 190 |
| Machine weight | kg | 9500 |
