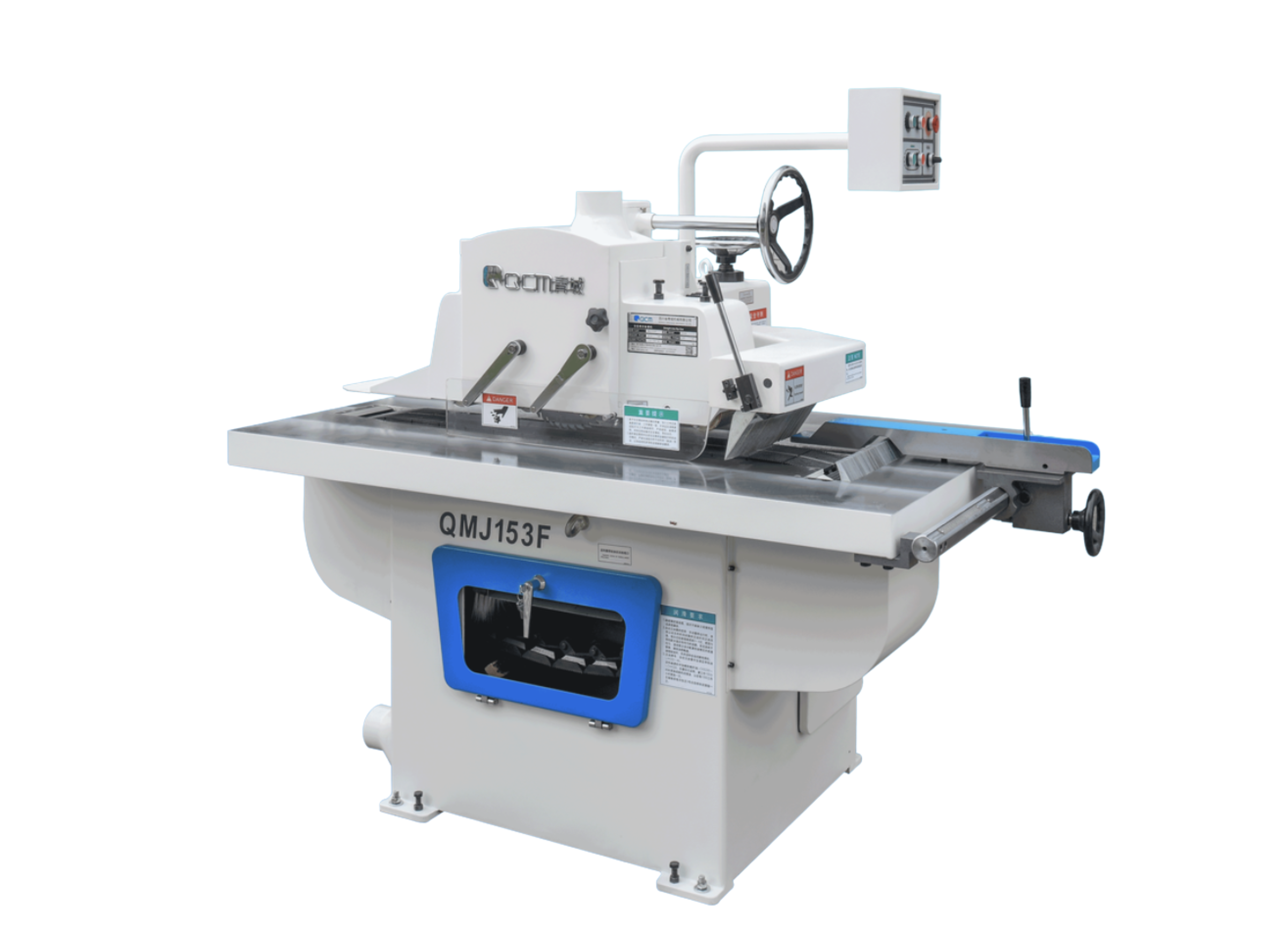

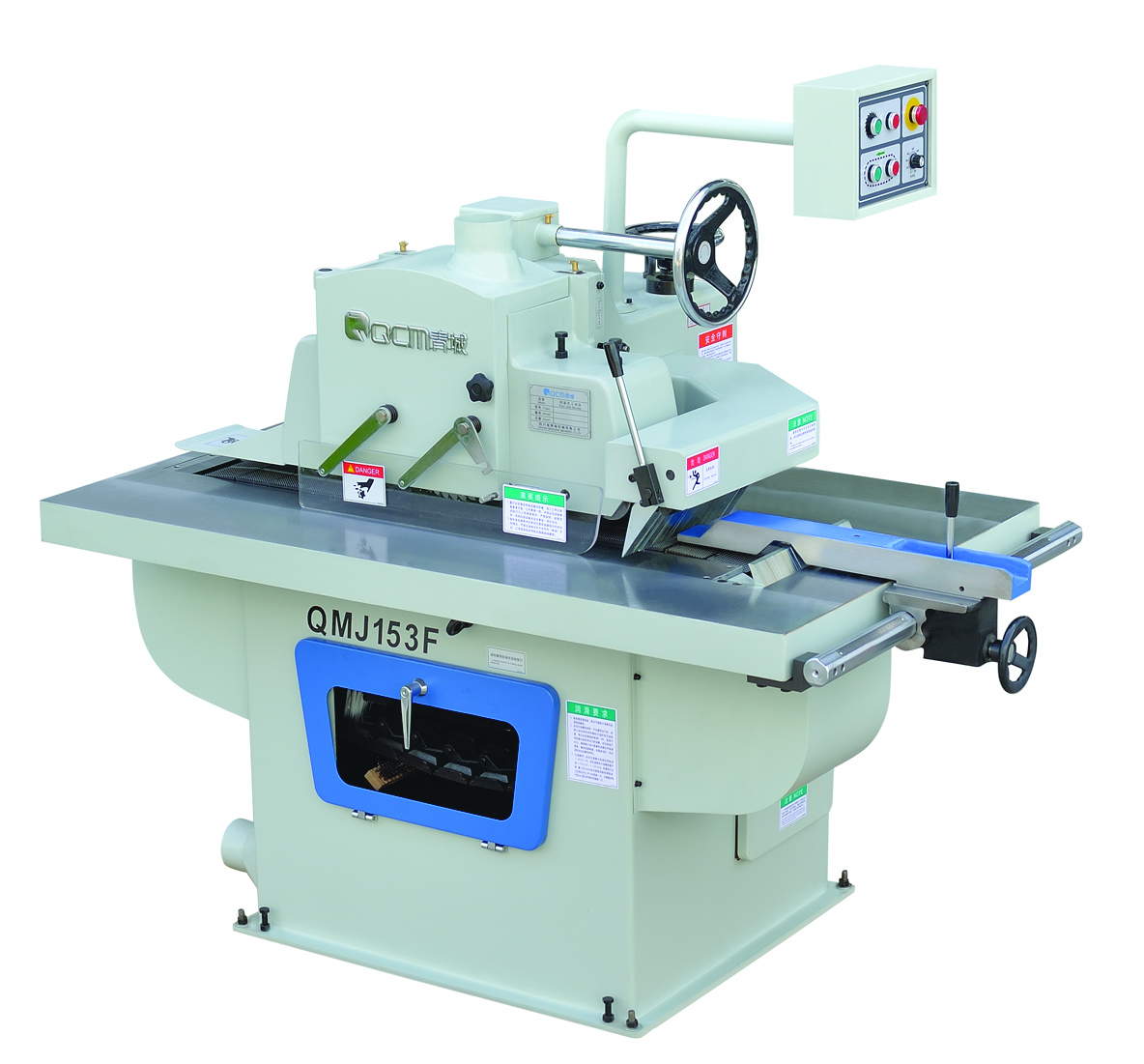

QMJ153D and QMJ153F are compact automatic single-blade rip saws for straight ripping of solid wood boards with stable feeding and consistent daily output. They are ideal for workshops and small-to-mid factories making strips, slats, and ripped boards.
-
QMJ153D (Standard type) uses fixed feed speeds, simple to operate and cost-effective for stable, repetitive production.
-
QMJ153F (VFD feed type) provides variable feeding speed, allowing better control when wood species, moisture, or thickness changes—helping optimize cut quality and productivity.
| Parameter | Unit | QMJ153D (Standard) | QMJ153F (Variable Feed) |
|---|---|---|---|
| Maximum Cutting Thickness | mm | 85 | 85 |
| Minimum Cutting Length | mm | 330 | 330 |
| Throat Depth | mm | 460 | 460 |
| Main Saw Speed | r/min | 4000 | 4000 |
| Feed Speed | m/min | 12 / 16 / 19 / 24 | 8–24 (variable) |
| Saw Shaft Diameter | mm | Φ25.4 | Φ25.4 |
| Saw Blade Diameter | mm | Φ205–305 | Φ205–305 |
| Total Power | kW | 8.25 | 8.25 |
| Main Motor Power | kW | 7.5 | 7.5 |
| Feed Motor Power | kW | 1.5 | 1.5 |
| Working Table Size | mm | 1510×890 | 1510×890 |
| Dust Outlet Diameter | mm | Φ100×2 | Φ100×2 |
| Overall Dimensions | cm | 170×110×158 | 170×110×158 |
| Packing Size | cm | 173×115×187 | 173×115×187 |
| Net Weight | kg | 950 | 950 |
