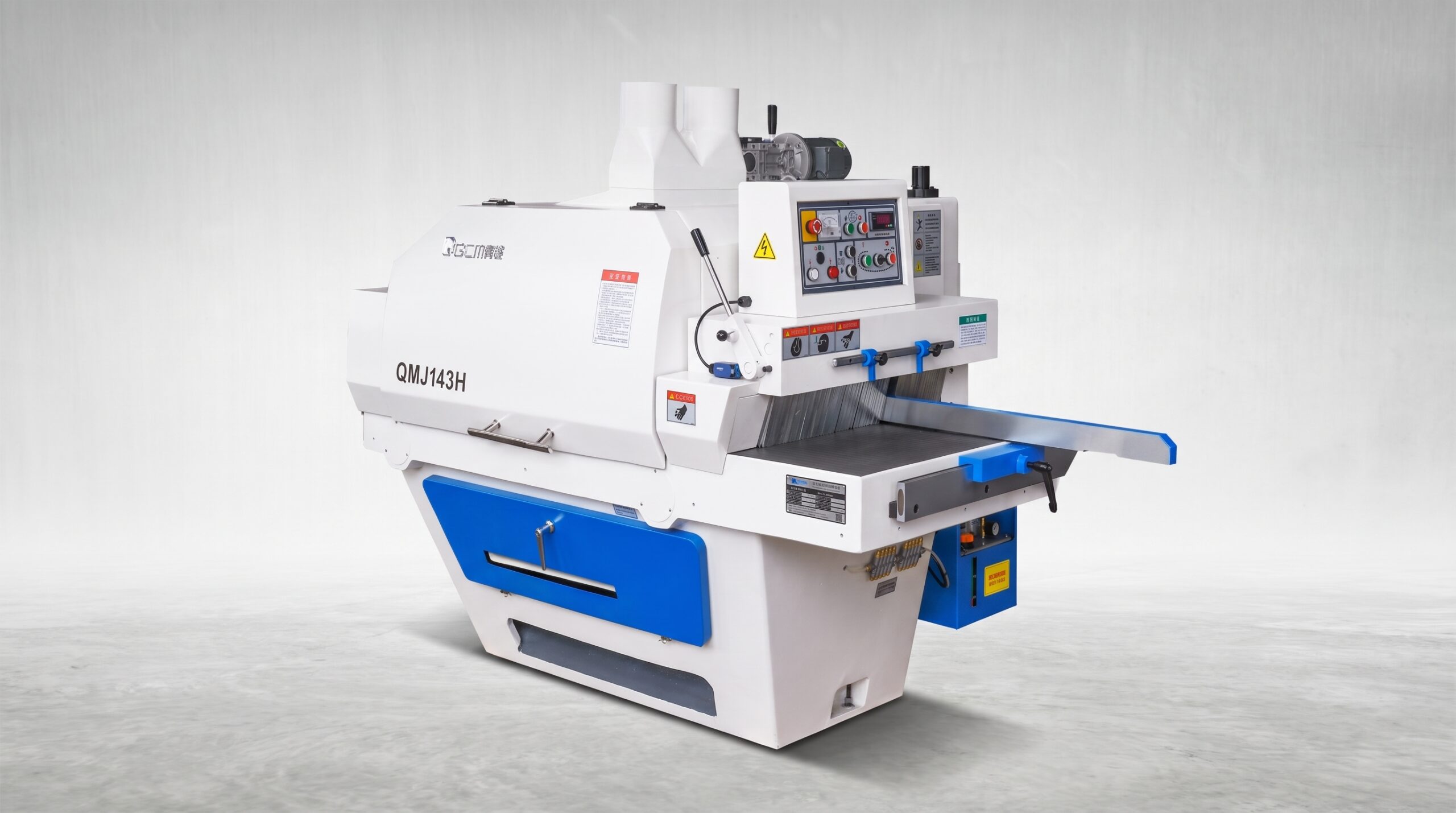

The QMJ143H automatic multi-blade rip saw is an upper-spindle woodworking machine designed for efficient longitudinal ripping and multi-strip cutting of wide solid wood boards. Its integrally cast machine body provides excellent rigidity and stable performance, while the precision spindle, crawler feeding system and pressure roller structure ensure smooth material movement and consistent cutting accuracy. It is suitable for furniture, flooring, door, finger-jointed board and other solid wood processing applications.
- Working thickness: 10–120 mm
- Maximum working width: 300 mm
- Minimum working length: 600 mm
- Minimum continuous working length: 300 mm
- Feeding speed: 4–30 m/min
- Spindle speed: 4,000 r/min
- Blade diameter: Φ205–Φ380 mm
- Saw spindle motor: 37 kW
Images
Features
-
- The integrally cast machine body and rear support structure provide excellent rigidity, reduced vibration and stable long-term cutting performance.
- The precision spindle assembly offers high strength and rotational stability for accurate multi-blade ripping of solid wood boards.
- The hardened reducer and variable-frequency feeding system provide smooth and powerful material movement with adjustable feeding speeds.
- The wear-resistant crawler feeding plates and V-shaped guide rails reduce long-term wear and maintain accurate workpiece guidance.
- Four pressure rollers, anti-kickback devices, safety limits and centralized lubrication improve feeding stability, operator safety and component service life.
Technical Data
| Specifications | Unit | QMJ143E | QMJ143F | QMJ143H |
|---|---|---|---|---|
| Working thickness | mm | 10–120 | 10–120 | 10–120 |
| Max. working width | mm | 300 | 300 | 300 |
| Min. working length | mm | 600 | 585 (H > 35) / 800 (H < 35) | 600 |
| Min. working length, continuous | mm | 300 | / | 300 |
| Saw spindle diameter | mm | Φ55 | Φ55 | Φ55 |
| Reducing sleeve diameter | mm | Φ70 | Φ70 | Φ70 |
| Spindle speed | r/min | 4,000 | 4,000 | 4,000 |
| Blade diameter | mm | Φ205–Φ380 | Φ205–Φ380 | Φ205–Φ380 |
| Feeding speed | m/min | 4–30 | 4–30 | 4–30 |
| Total power | kW | 39.6 | 39.6 | 39.6 |
| Feeding motor | kW | 2.2 | 2.2 | 2.2 |
| Saw spindle motor | kW | 37 | 37 | 37 |
| Press roller lifting motor | kW | 0.37 | 0.37 | 0.37 |
| Suction hood diameter | mm | 2 × Φ150 | 2 × Φ150 | 2 × Φ150 |
| Required suction volume | m³/h | 3,800 | 3,800 | 3,800 |
| Overall dimensions | cm | 220 × 150 × 158 | 446 × 157 × 160 | 446 × 177 × 160 |
| Weight | kg | 2,300 | 2,600 | 2,600 |
