Highlights

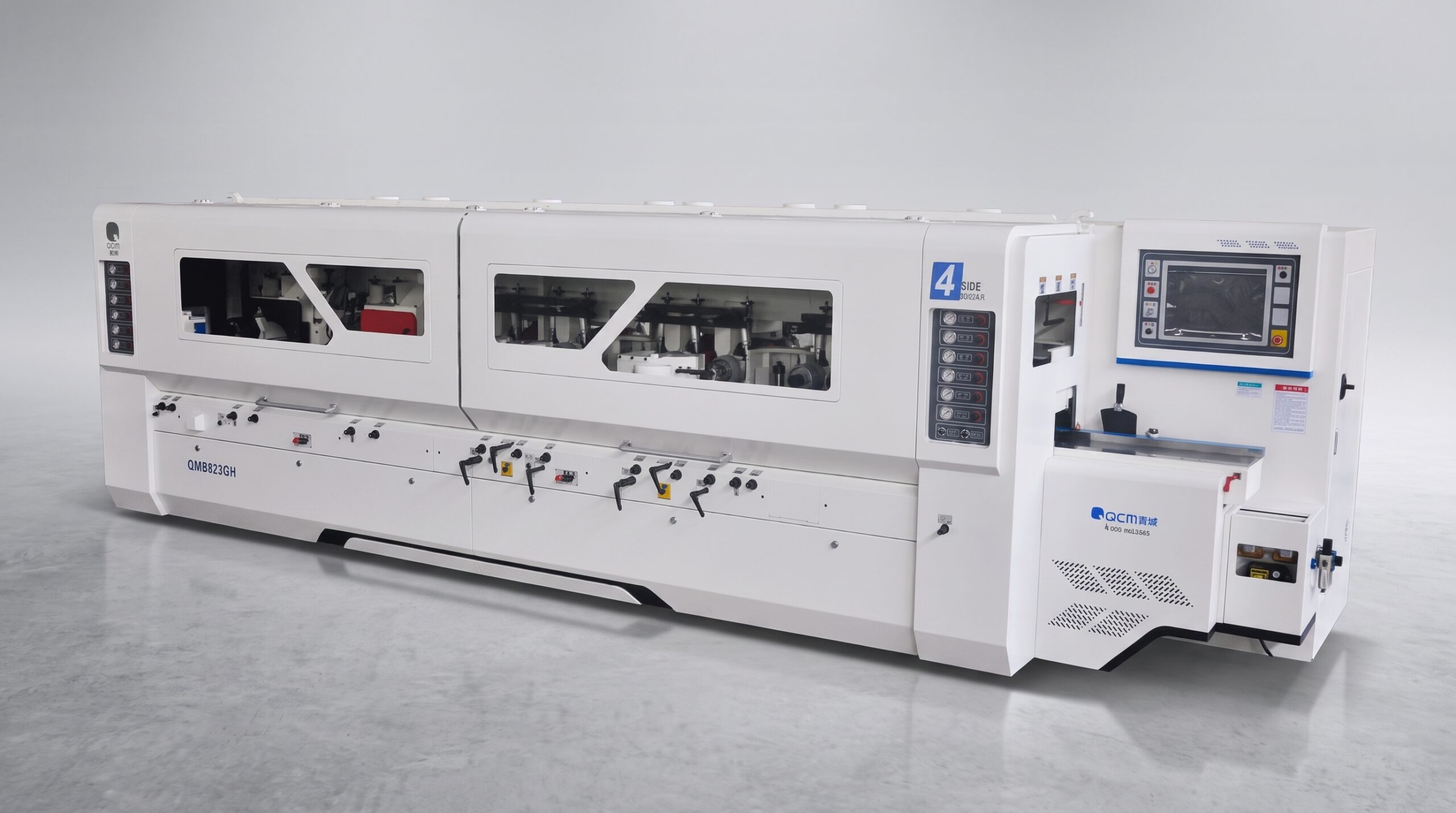

The QMB823GH Four-Side Moulder is an 8-spindle heavy-duty machine designed for efficient four-sided planing and profiling of solid wood. Its twin-cutter structure on each machining surface enables split cutting, while 22 active feed rollers, floating lower drive rollers, CNC touchscreen spindle adjustment and online tool sharpening provide stable feeding and consistent machining quality.
- Processing width: 20–230 mm
- Processing height: 10–160 mm
- Feeding speed: 10–60 m/min
- Spindle configuration: 8 spindles
- Spindle speed: 7,000 r/min
- Tool diameter: Ø140–Ø250 mm
- Machine weight: 10,100 kg
Images
Features

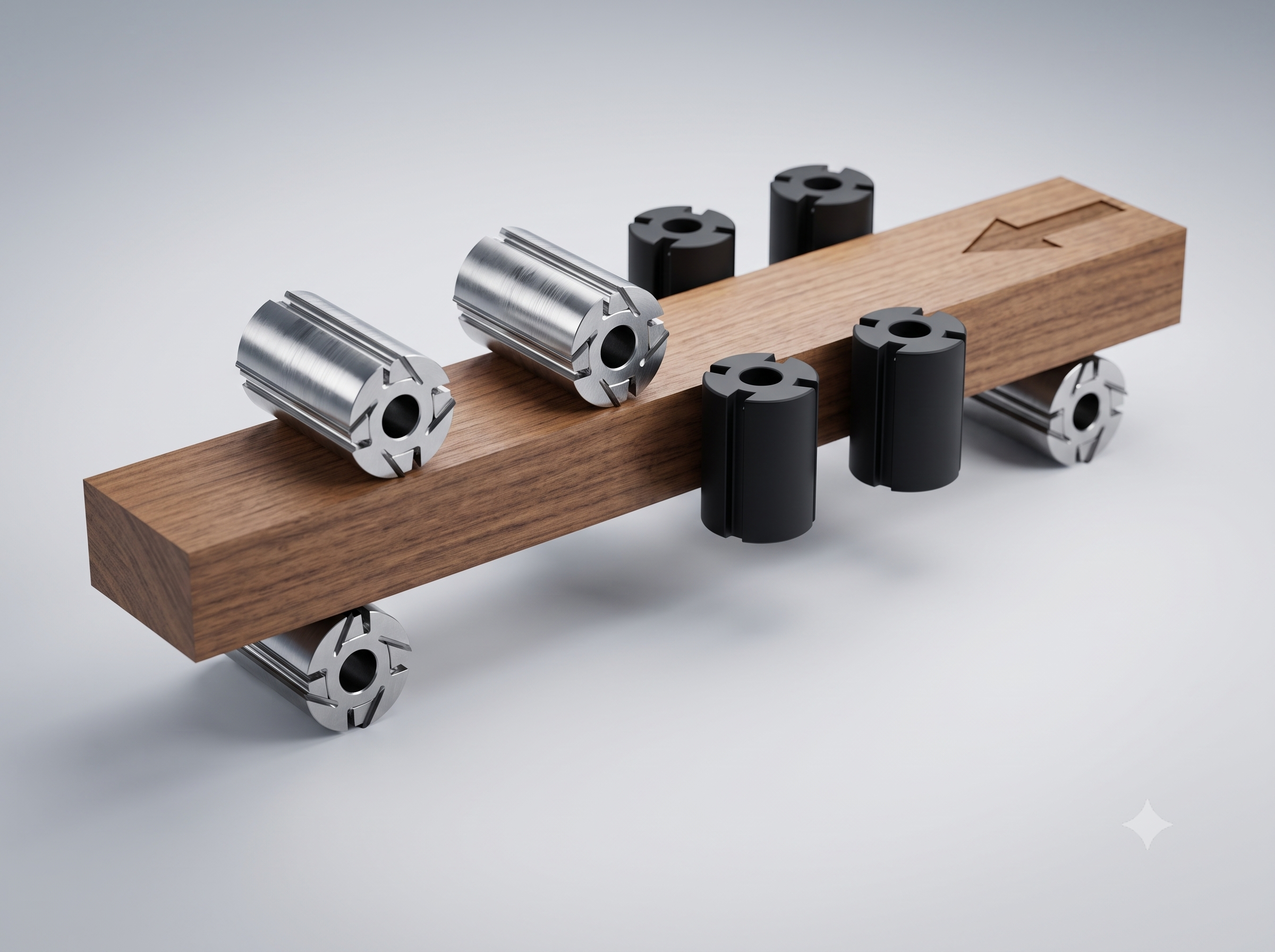

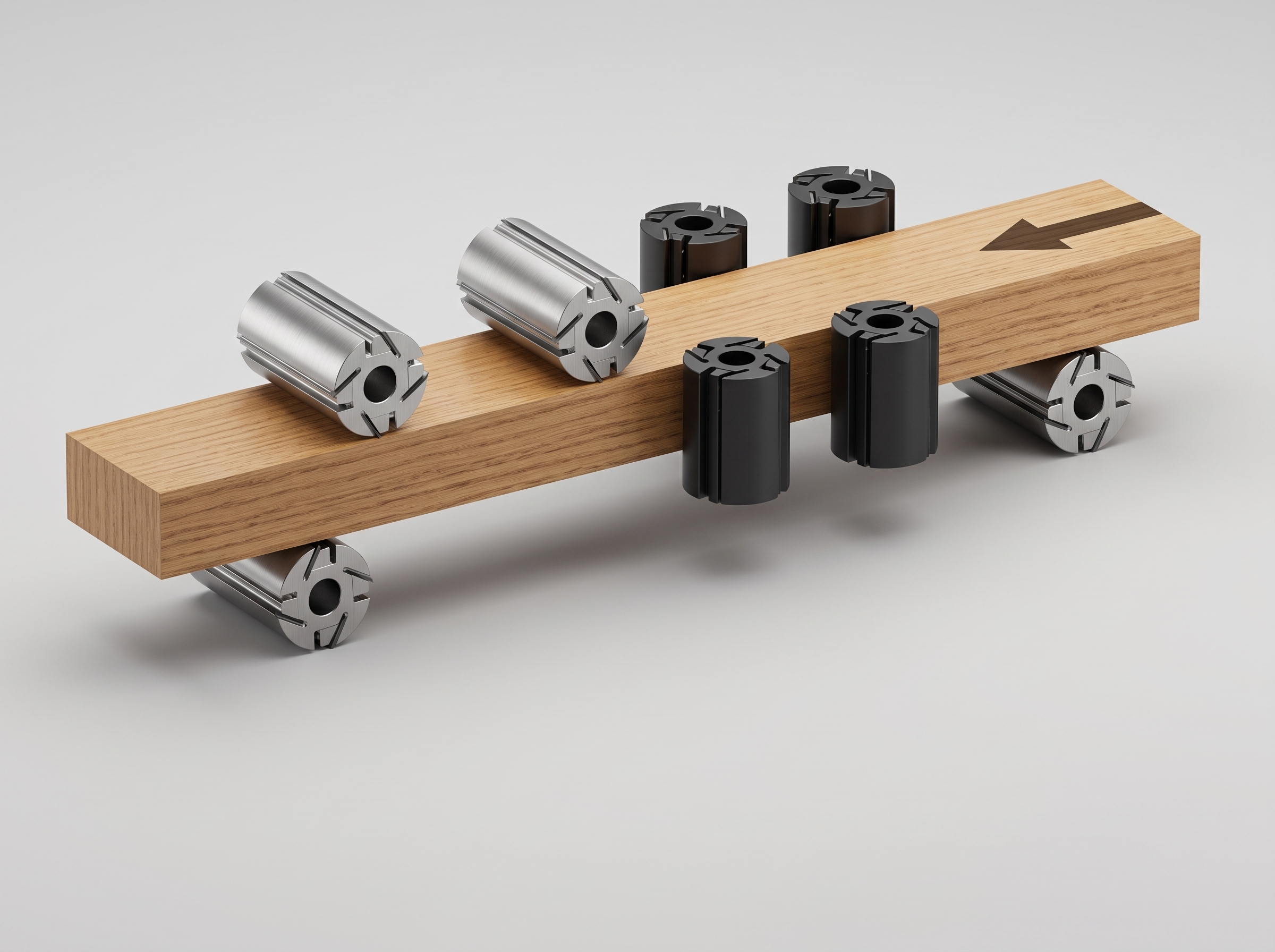

- The twin-cutter structure on each machining surface supports split cutting and improves machining stability for demanding solid wood production.

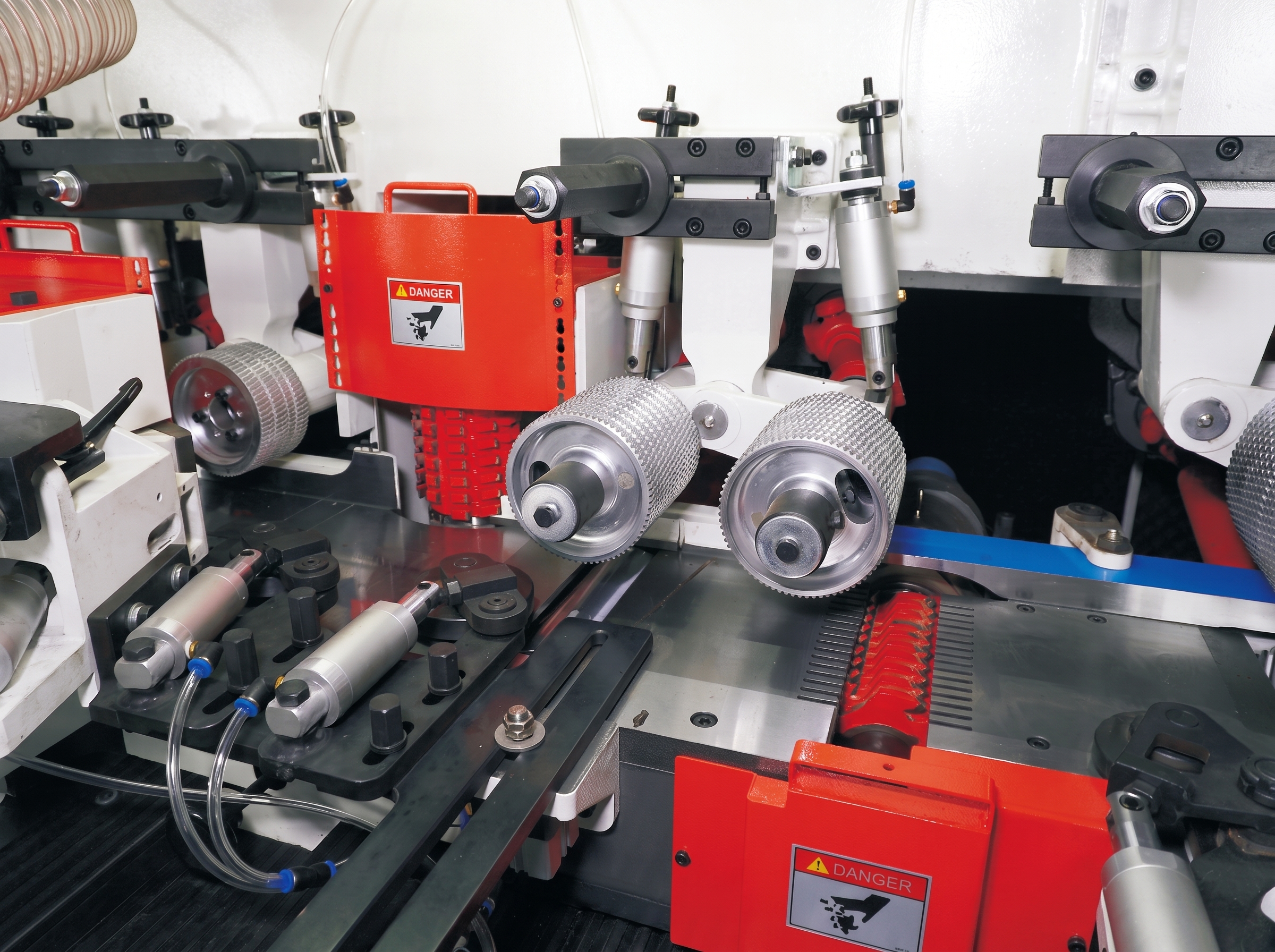

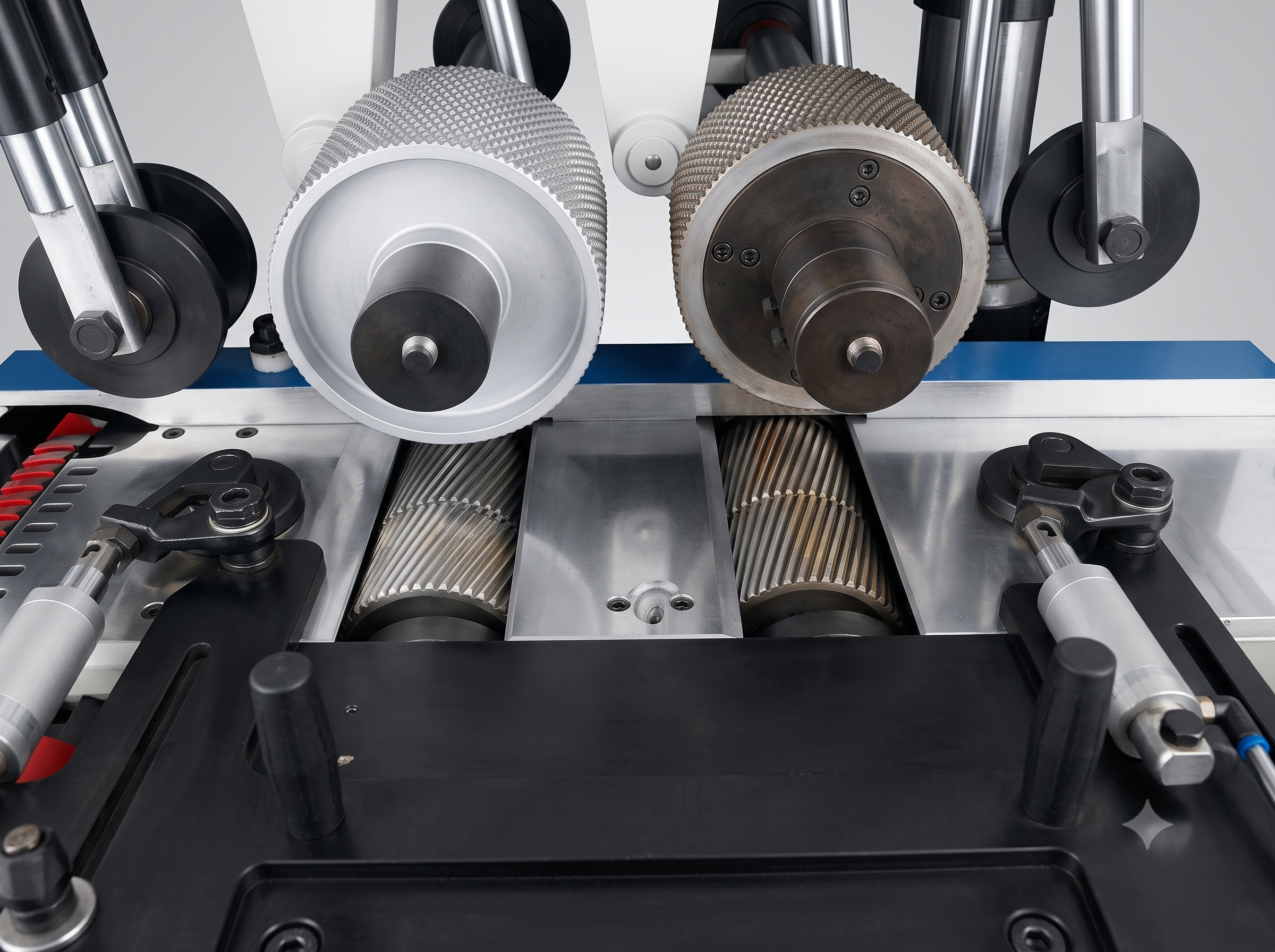

- The feeding system uses 22 active feed rollers, including 15 upper and 7 lower rollers, together with two floating lower drive rollers for smooth and powerful feeding.

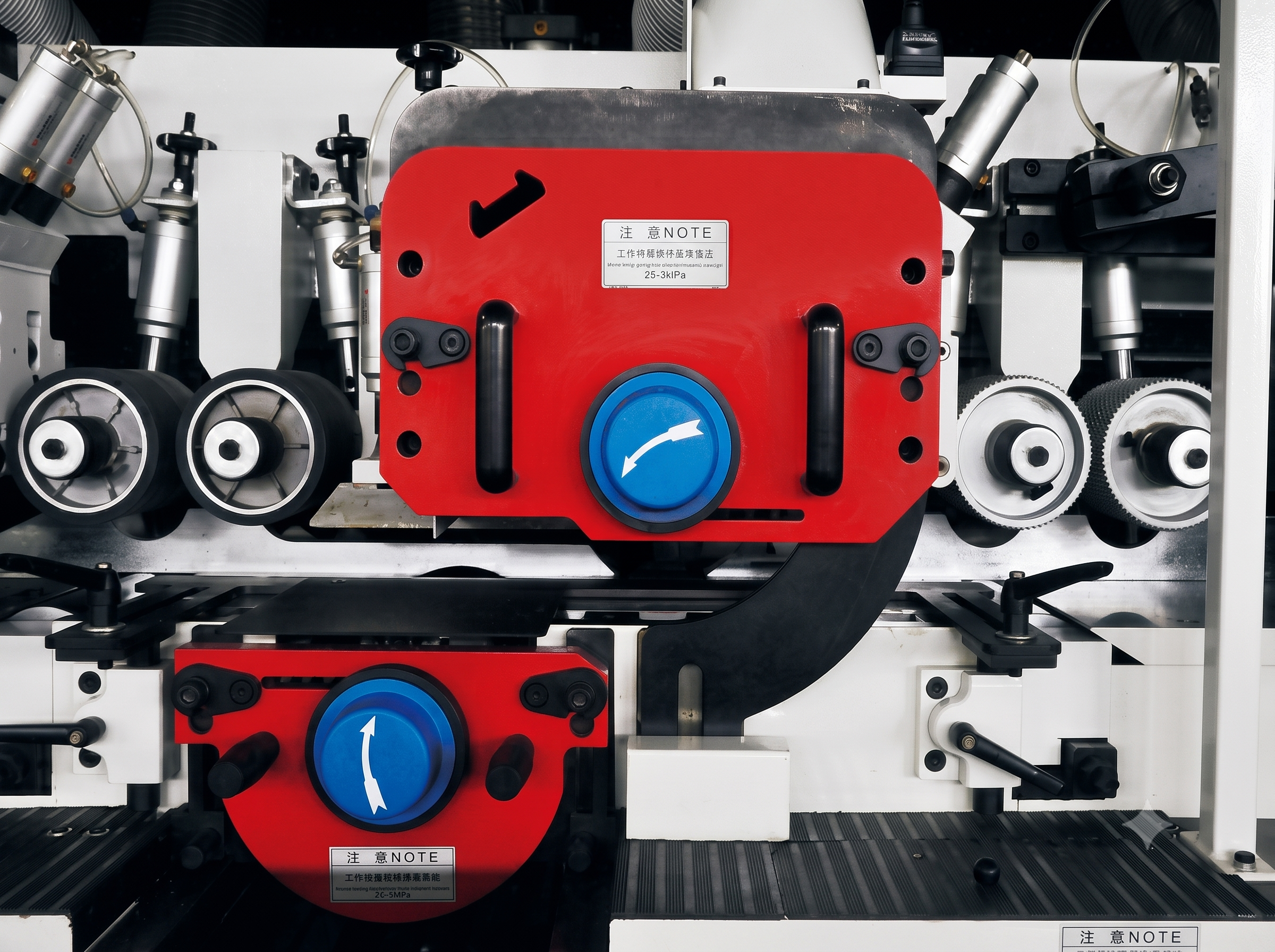

- External hydraulic supports are installed on the rear upper and lower horizontal cutters, while automatic straight-edge sharpening is available on the rear horizontal and left/right vertical cutters.

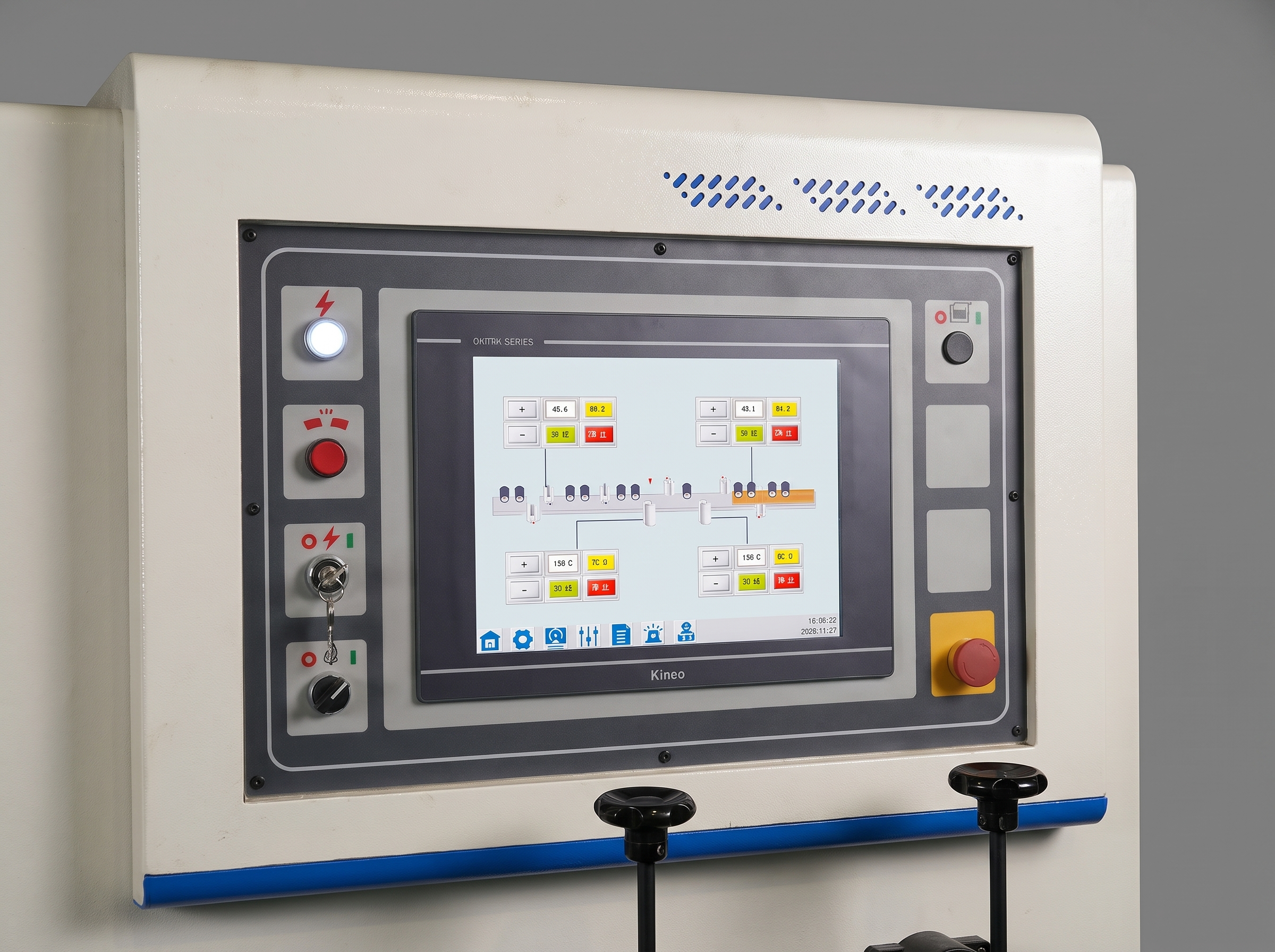

- CNC touchscreen spindle adjustment allows faster and more precise setup, reducing manual adjustment and improving production consistency.

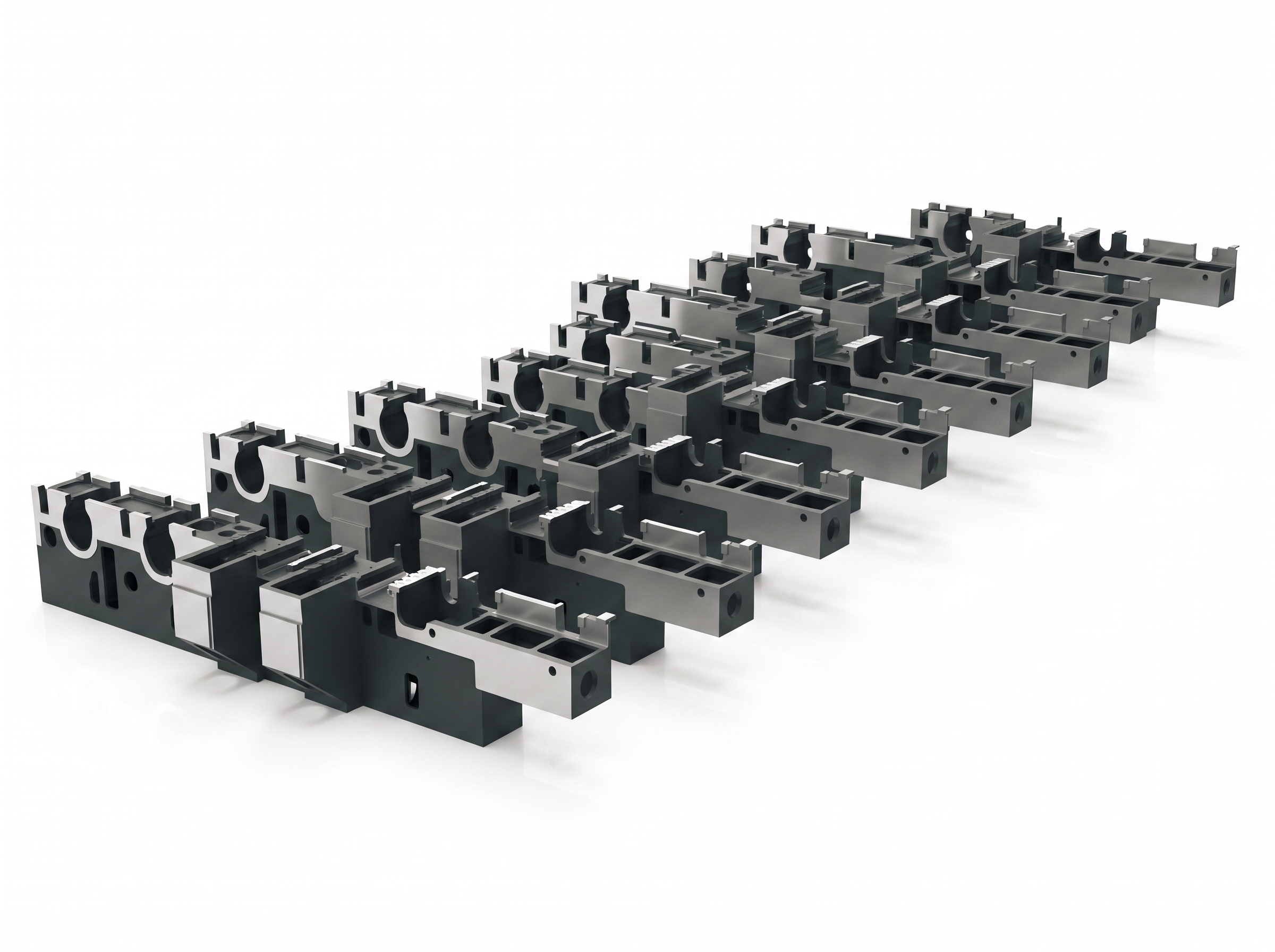

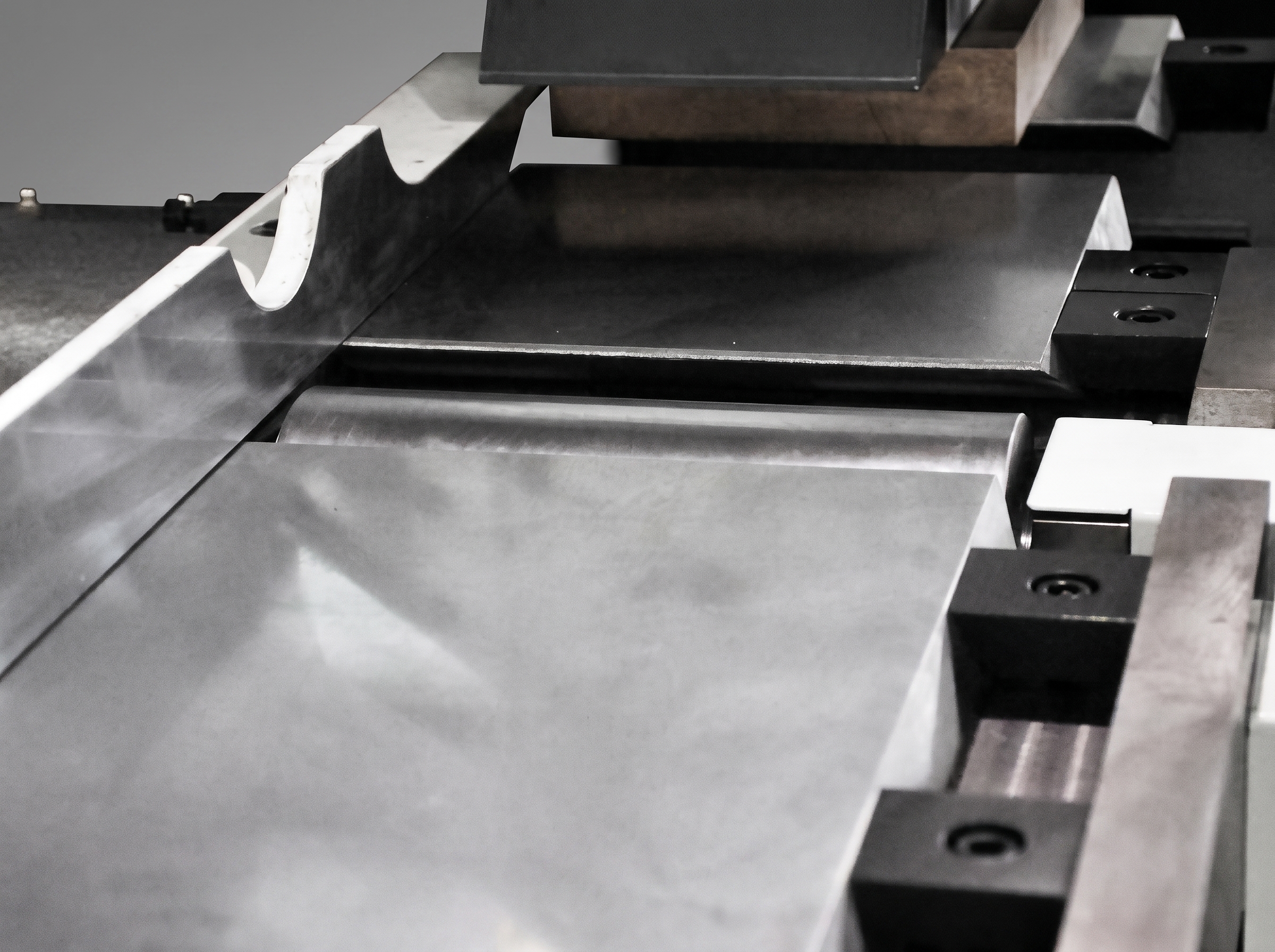

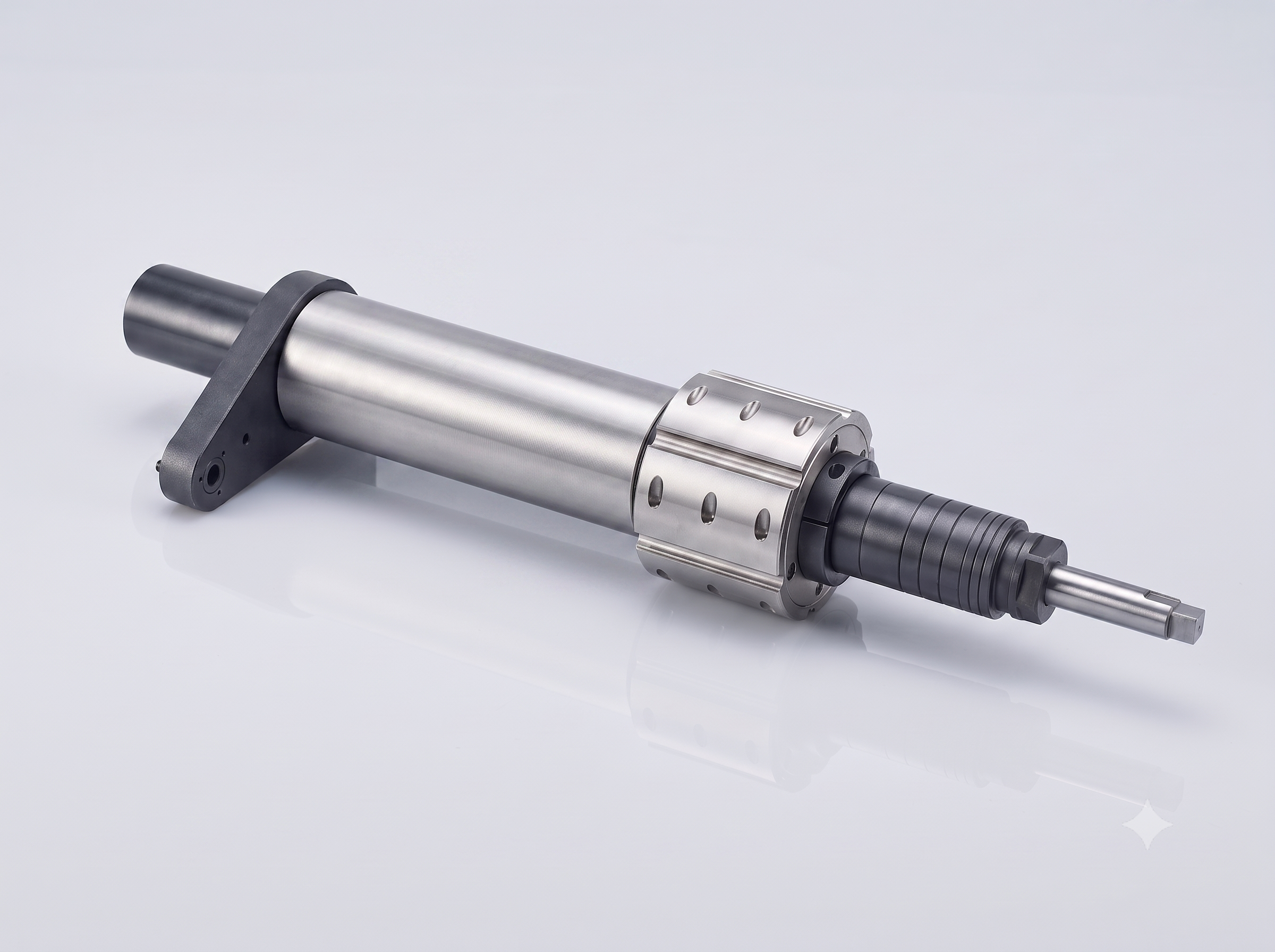

- The one-piece cast machine bed, precision spindle system and wear-resistant worktable provide high rigidity, stable machining accuracy and long service life.
Technical Data
| Specifications | Unit | QMB623GH | QMB723GH | QMB823GH | QMB923GH |
|---|---|---|---|---|---|
| Processing width | mm | 20–230 | 20–230 | 20–230 | 20–230 |
| Processing height | mm | 10–160 | 10–160 | 10–160 | 10–160 |
| Feed speed | m/min | 10–60 | 10–60 | 10–60 | 10–60 |
| Spindle diameter | mm | 50 | 50 | 50 | 50 |
| Spindle speed | r/min | 7,000 | 7,000 | 7,000 | 7,000 |
| First bottom spindle – flat cutter | mm | Ø140 | Ø140 | Ø140 | Ø140 |
| First bottom spindle – trimming cutter | mm | Ø165 | Ø165 | Ø165 | Ø165 |
| Other spindle tool diameter | mm | Ø140–Ø250 | Ø140–Ø250 | Ø140–Ø250 | Ø140–Ø250 |
| Feed motor | kW | 11 | 11 | 11 | 11 |
| First bottom spindle | kW | 7.5 | 11 | 7.5 | 7.5 |
| First right spindle | kW | 7.5 | 11 | 7.5 | 7.5 |
| First left spindle | kW | 11 | 11 | 11 | 11 |
| Second right spindle | kW | / | / | 7.5 | 7.5 |
| Second left spindle | kW | / | / | 11 | 11 |
| First upper spindle | kW | 11 | 15 | 11 | 11 |
| Second bottom spindle | kW | 11 | 15 | 11 | 11 |
| Second upper spindle | kW | 11 | 15 | 11 | 11 |
| Third bottom spindle | kW | / | 15 | / | 11 |
| Beam lifting motor | kW | 1.1 | 1.1 | 1.1 | 1.1 |
| Overall dimensions | cm | 566 × 210 × 190 | 566 × 210 × 190 | 658 × 210 × 190 | 658 × 210 × 190 |
| Weight | kg | 8,300 | 8,800 | 10,100 | 10,600 |
