Highlights

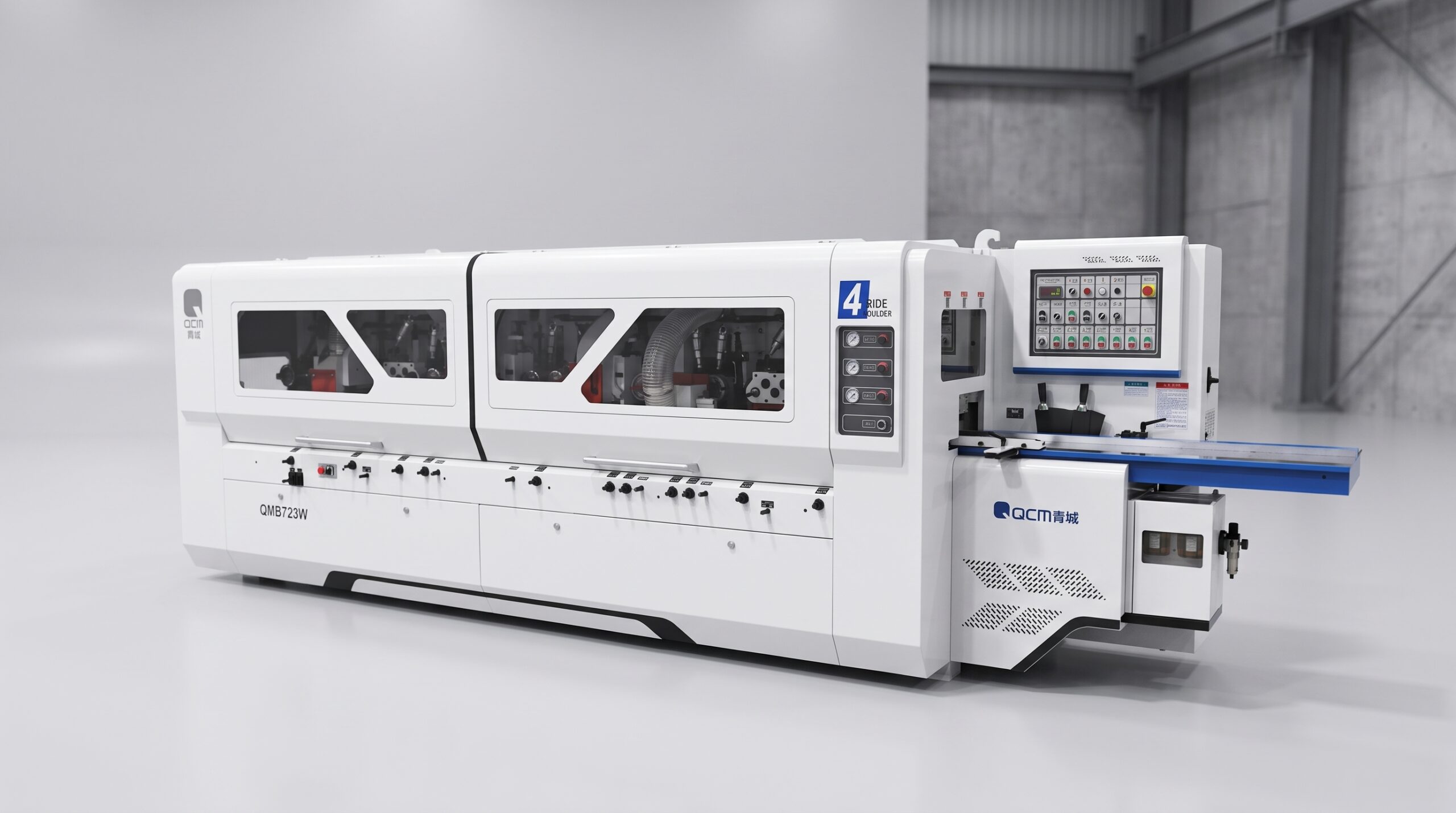

The QMB723W Universal Spindle Four-Side Moulder is a 7-spindle solid wood planer and profiling machine equipped with an independently driven 360° rotating universal spindle for flexible machining of complex wood profiles. It combines 21 driven feed rollers, variable-speed feeding, a heavy-duty cast machine body and centralized lubrication for stable and accurate continuous production.
- Processing width: 20–230 mm
- Processing height: 8–160 mm
- Feeding speed: 6–36 m/min
- Spindle configuration: 7 spindles
- Universal spindle rotation: 360°
- Spindle speed: 6,800 r/min
- Machine weight: 6,300 kg
Images
Features

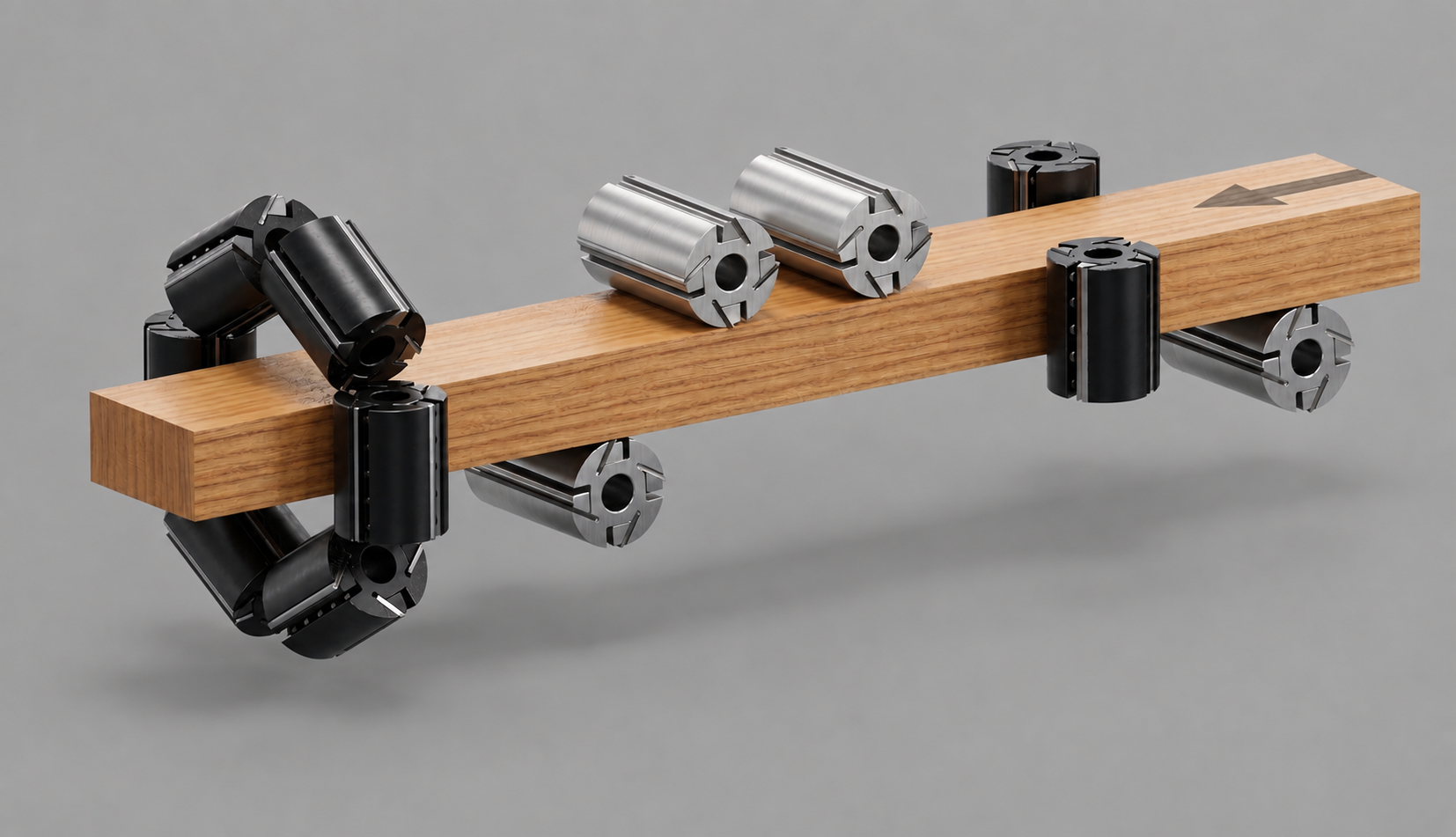

- The independently driven universal spindle rotates 360°, allowing flexible machining of angled, curved and complex solid wood profiles.

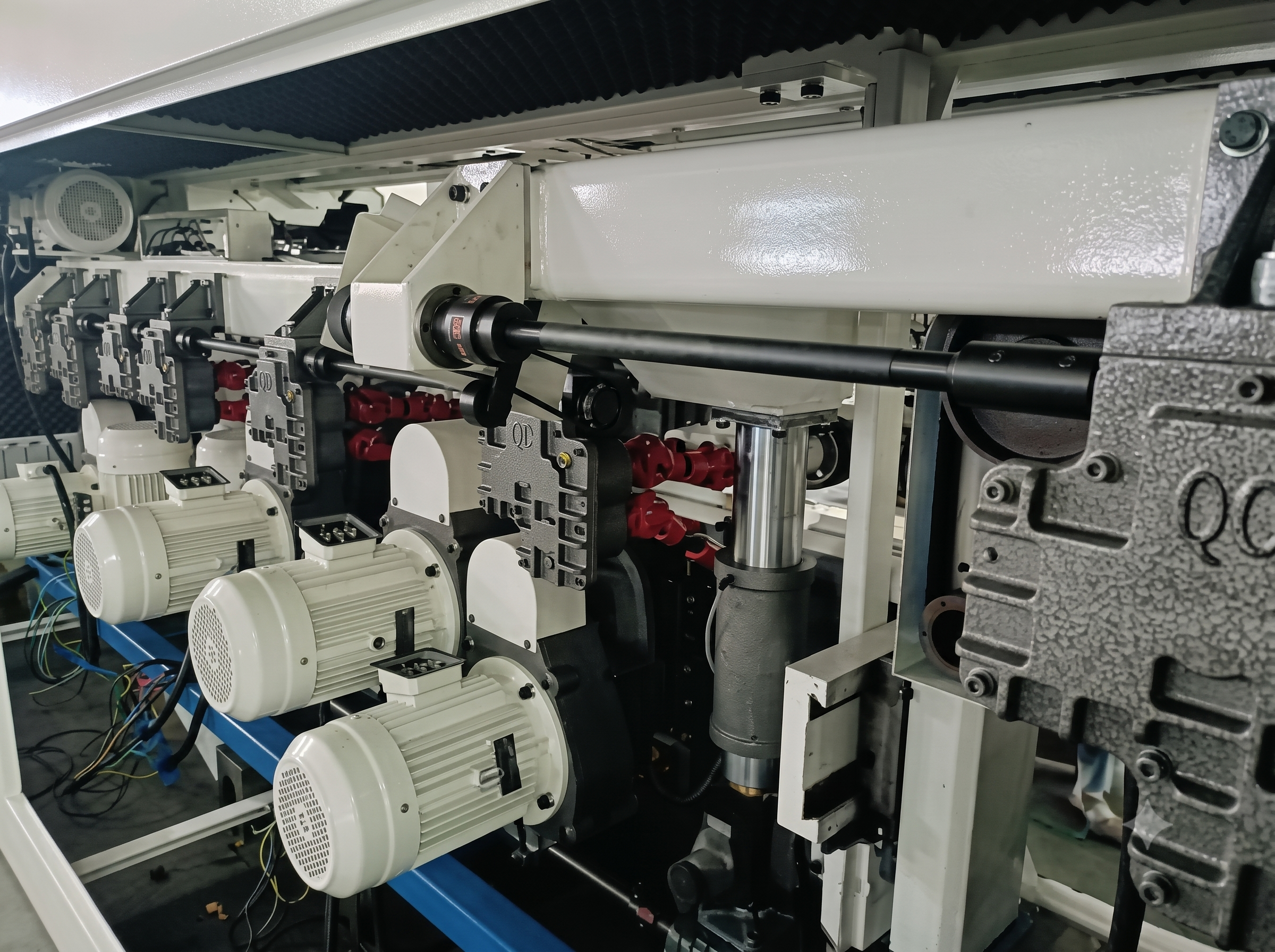

- The feeding system uses 21 active feed rollers — 15 upper and 6 lower rollers — driven through reducers and universal joints for smooth and powerful material feeding.
- Variable-frequency control provides an adjustable feeding speed of 6–36 m/min, allowing the machine to adapt to different wood species and machining requirements.
- The machine body is manufactured from high-quality castings and specially treated for structural stability, accuracy and long-term industrial operation.
- Centralized lubrication supplies oil to the worktable and sliding components, while hard-chrome-treated surfaces improve wear resistance and service life.
Technical data
| Specifications | Unit | QMB523W | QMB623W | QMB723W |
|---|---|---|---|---|
| Processing width | mm | 20–230 | 20–230 | 20–230 |
| Processing height | mm | 8–160 | 8–160 | 8–160 |
| Feed speed | m/min | 6–36 | 6–36 | 6–36 |
| Spindle diameter | mm | Ø40 | Ø40 | Ø40 |
| Spindle speed | r/min | 6,800 | 6,800 | 6,800 |
| First bottom spindle – flat cutter | mm | Ø125 | Ø125 | Ø125 |
| First bottom spindle – trimming cutter | mm | Ø152 | Ø152 | Ø152 |
| Left & right spindle tool diameter | mm | Ø108–Ø200 | Ø108–Ø200 | Ø108–Ø200 |
| Top spindle tool diameter | mm | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 |
| Second bottom spindle tool diameter | mm | / | Ø108–Ø200 | Ø108–Ø200 |
| Universal spindle tool diameter | mm | Ø108–Ø160 | Ø108–Ø160 | Ø108–Ø160 |
| Feed motor | kW | 4 | 5.5 | 5.5 |
| First bottom spindle motor | kW | 5.5 | 5.5 | 5.5 |
| First right spindle motor | kW | 5.5 | 5.5 | 5.5 |
| First left spindle motor | kW | 7.5 | 7.5 | 7.5 |
| First upper spindle motor | kW | 7.5 | 7.5 | 7.5 |
| Second upper spindle motor | kW | / | / | 7.5 |
| Second bottom spindle motor | kW | / | 7.5 | 7.5 |
| Universal spindle motor | kW | 7.5 | 7.5 | 7.5 |
| Lifting motor | kW | 0.75 | 0.75 | 0.75 |
| Overall dimensions (L × W × H) | cm | 468 × 186 × 183 | 519 × 186 × 183 | 583 × 186 × 183 |
| Machine weight | kg | 5,500 | 6,000 | 6,300 |
The manufacturer also lists CNC adjustment for the left spindle and upper spindle as an optional configuration.
