Highlights

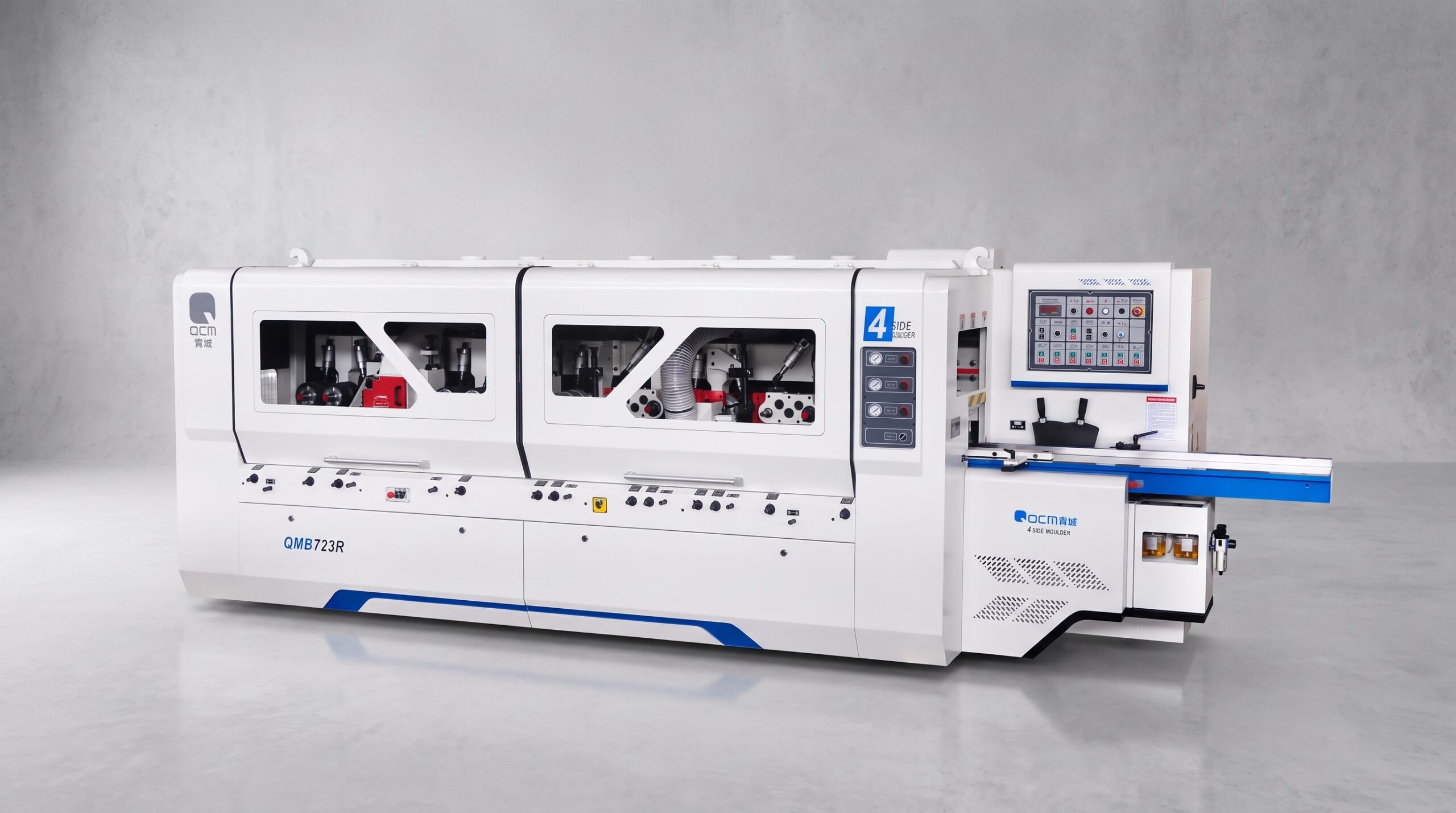

The QMB723R Universal Series Four-Side Moulder is a 7-spindle machine designed for four-sided planing and profiling of solid wood. Its twin right vertical spindles perform separate rough and finish cutting for improved right-side profiling, while 20 active feed rollers, universal-joint transmission and precision 6,800 r/min spindles provide stable feeding and consistent machining quality.
- Processing width: 20–230 mm
- Processing height: 8–160 mm
- Feeding speed: 6–36 m/min
- Spindle configuration: 7 spindles
- Spindle speed: 6,800 r/min
- Spindle diameter: Ø40 mm
- Machine weight: 6,050 kg
Images
Features

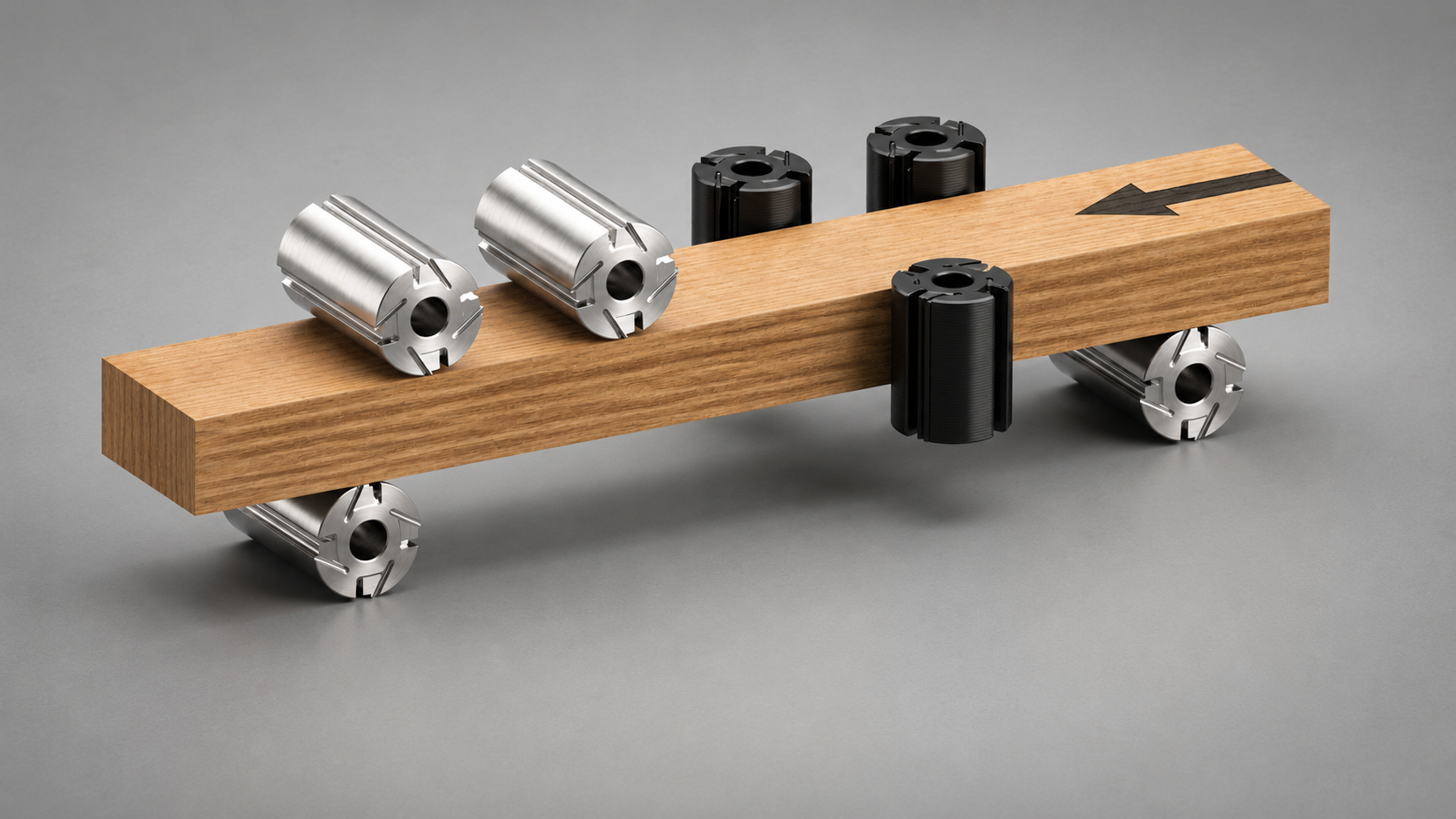

- Twin right vertical spindles separate rough and finish planing, improving efficiency and finished surface quality for right-side profiling.
- The feeding system uses 20 active rollers — 14 upper and 6 lower — driven by reducers and universal joints for smooth and powerful feeding.
- High-precision spindles operate at 6,800 r/min with high-rigidity construction and G1-level dynamic balancing for stable cutting and smooth surfaces.
- The machine body uses specially treated high-quality castings, while hard-chrome-plated working surfaces improve wear resistance and long-term accuracy.
- A short-material feeding device, centralized lubrication and fully enclosed safety guards support safer operation and reliable continuous production.
Technical data
| Specifications | Unit | QMB523A | QMB623A | QMB623A-K | QMB623R | QMB723R |
|---|---|---|---|---|---|---|
| Processing width | mm | 20–230 | 20–230 | 20–230 | 20–230 | 20–230 |
| Processing height | mm | 8–160 | 8–160 | 8–160 | 8–160 | 8–160 |
| Feeding speed | m/min | 6–36 | 6–36 | 6–36 | 6–36 | 6–36 |
| Spindle diameter | mm | Ø40 | Ø40 | Ø40 | Ø40 | Ø40 |
| Spindle speed | r/min | 6,800 | 6,800 | 6,800 | 6,800 | 6,800 |
| First bottom spindle – flat cutter | mm | Ø125 | Ø125 | Ø125 | Ø125 | Ø125 |
| First bottom spindle – trimming cutter | mm | Ø152 | Ø152 | Ø152 | Ø152 | Ø152 |
| Left & right spindle cutter | mm | Ø108–Ø200 | Ø108–Ø200 | Ø108–Ø200 | Ø108–Ø200 | Ø108–Ø200 |
| Top spindle cutter | mm | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 |
| Second bottom spindle cutter | mm | Ø108–Ø230 | Ø108–Ø230 | Ø108–Ø230 | Ø108–Ø230 | Ø108–Ø230 |
| Feed motor | kW | 4 | 5.5 | 5.5 | 5.5 | 5.5 |
| First bottom spindle | kW | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| First right spindle | kW | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| First left spindle | kW | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Second right spindle | kW | / | / | / | 7.5 | 7.5 |
| First upper spindle | kW | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Second upper spindle | kW | / | 7.5 | 7.5 | / | 7.5 |
| Second bottom spindle | kW | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Lifting motor | kW | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Overall dimensions | cm | 428 × 190 × 170 | 496 × 190 × 170 | 496 × 190 × 170 | 475 × 186 × 176 | 538 × 186 × 176 |
| Machine weight | kg | 4,600 | 5,600 | 5,600 | 5,650 | 6,050 |
The manufacturer also lists optional Ø50 mm spindles, 8,000 r/min spindle speed, and saw-blade installation on the final bottom spindle.
