Highlights

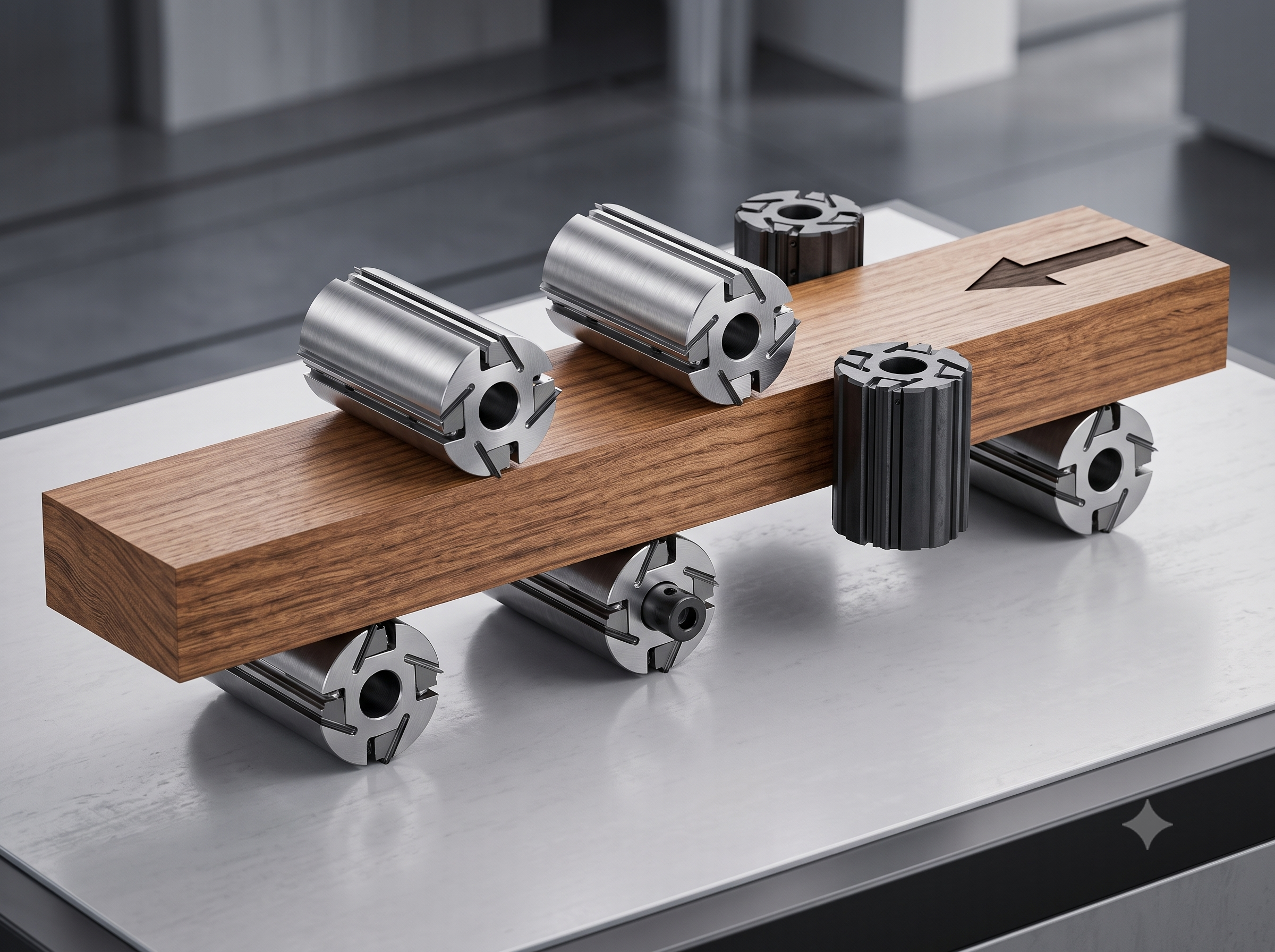

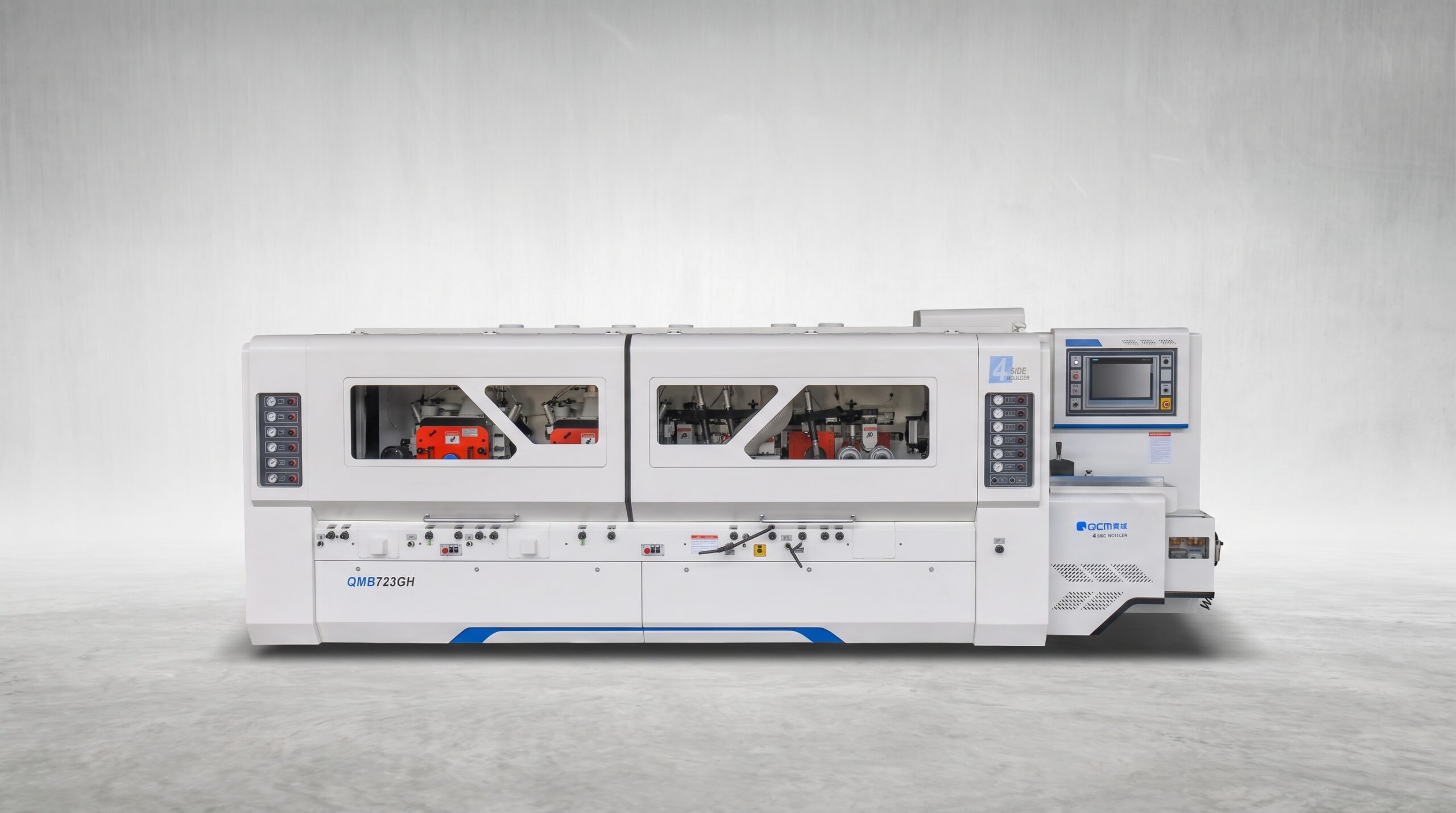

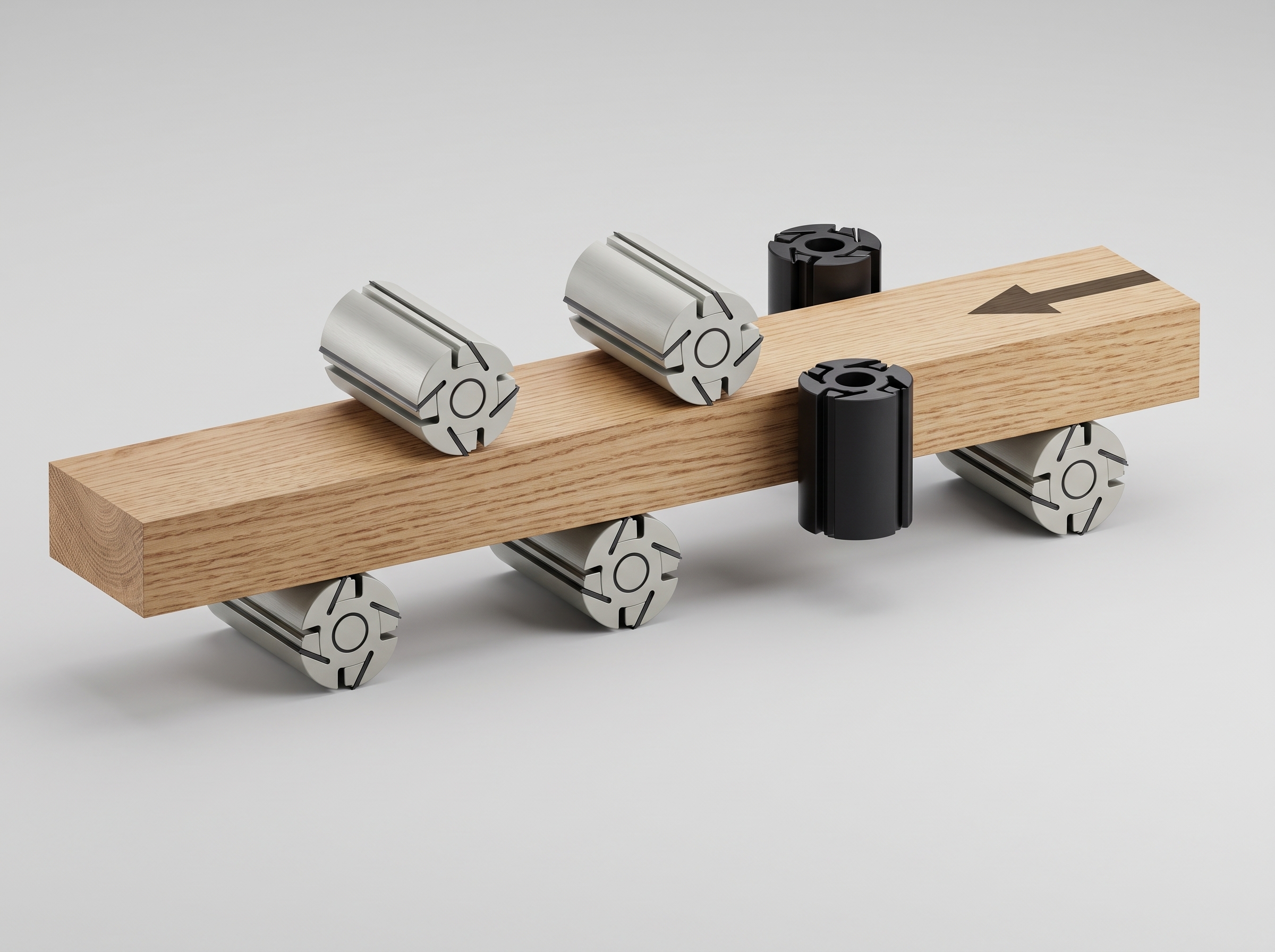

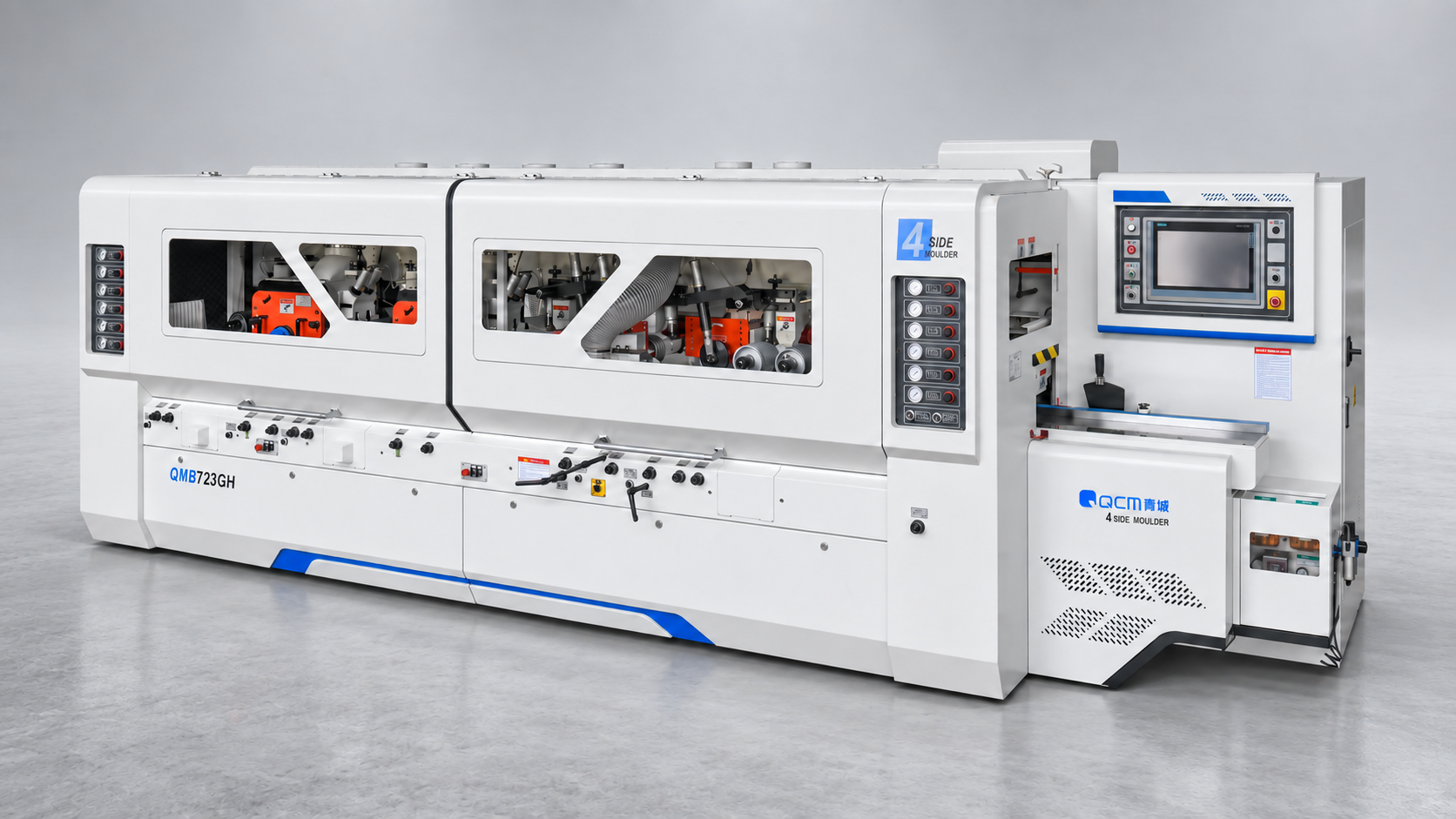

The QMB723GH Four-Side Moulder is designed for four-sided planing and profiling of solid wood with stable feeding and precise surface finishing. It combines an integral cast machine bed, precision spindles, floating drive rollers and online tool sharpening on key spindles, helping maintain consistent machining quality during continuous production.
- Processing width: 20–230 mm
- Processing height: 10–160 mm
- Feeding speed: 10–60 m/min
- Spindle speed: 7,000 r/min
- Spindle diameter: Ø50 mm
- Main tool diameter: Ø140–Ø250 mm
- Machine weight: 8,800 kg
Images
Video
Features
- The integrally cast machine bed provides excellent rigidity, reduced vibration and stable machining accuracy during continuous production.
- Online tool sharpening on the upper and second bottom spindles helps maintain consistent cutting quality and reduces production interruptions.
- Two sets of floating drive rollers provide powerful and stable workpiece feeding throughout the machining process.
- Precision-machined spindles with precision bearings improve rotational stability, machining quality and spindle service life.
- Touchscreen and PLC control provide convenient machine operation, while the specially treated worktable offers improved wear resistance.
Technical data
| Specifications | Unit | QMB623GH | QMB723GH | QMB823GH | QMB923GH |
|---|---|---|---|---|---|
| Processing width | mm | 20–230 | 20–230 | 20–230 | 20–230 |
| Processing height | mm | 10–160 | 10–160 | 10–160 | 10–160 |
| Feed speed | m/min | 10–60 | 10–60 | 10–60 | 10–60 |
| Spindle diameter | mm | 50 | 50 | 50 | 50 |
| Spindle speed | r/min | 7,000 | 7,000 | 7,000 | 7,000 |
| First bottom spindle – flat cutter | mm | Ø140 | Ø140 | Ø140 | Ø140 |
| First bottom spindle – trimming cutter | mm | Ø165 | Ø165 | Ø165 | Ø165 |
| Other spindle tool diameter | mm | Ø140–Ø250 | Ø140–Ø250 | Ø140–Ø250 | Ø140–Ø250 |
| Feed motor | kW | 11 | 11 | 11 | 11 |
| First bottom spindle | kW | 7.5 | 11 | 7.5 | 7.5 |
| First right spindle | kW | 7.5 | 11 | 7.5 | 7.5 |
| First left spindle | kW | 11 | 11 | 11 | 11 |
| Second right spindle | kW | / | / | 7.5 | 7.5 |
| Second left spindle | kW | / | / | 11 | 11 |
| First upper spindle | kW | 11 | 15 | 11 | 11 |
| Second bottom spindle | kW | 11 | 15 | 11 | 11 |
| Second upper spindle | kW | 11 | 15 | 11 | 11 |
| Third bottom spindle | kW | / | 15 | / | 11 |
| Beam lifting motor | kW | 1.1 | 1.1 | 1.1 | 1.1 |
| Overall dimensions (L × W × H) | cm | 566 × 210 × 190 | 566 × 210 × 190 | 658 × 210 × 190 | 658 × 210 × 190 |
| Weight | kg | 8,300 | 8,800 | 10,100 | 10,600 |
