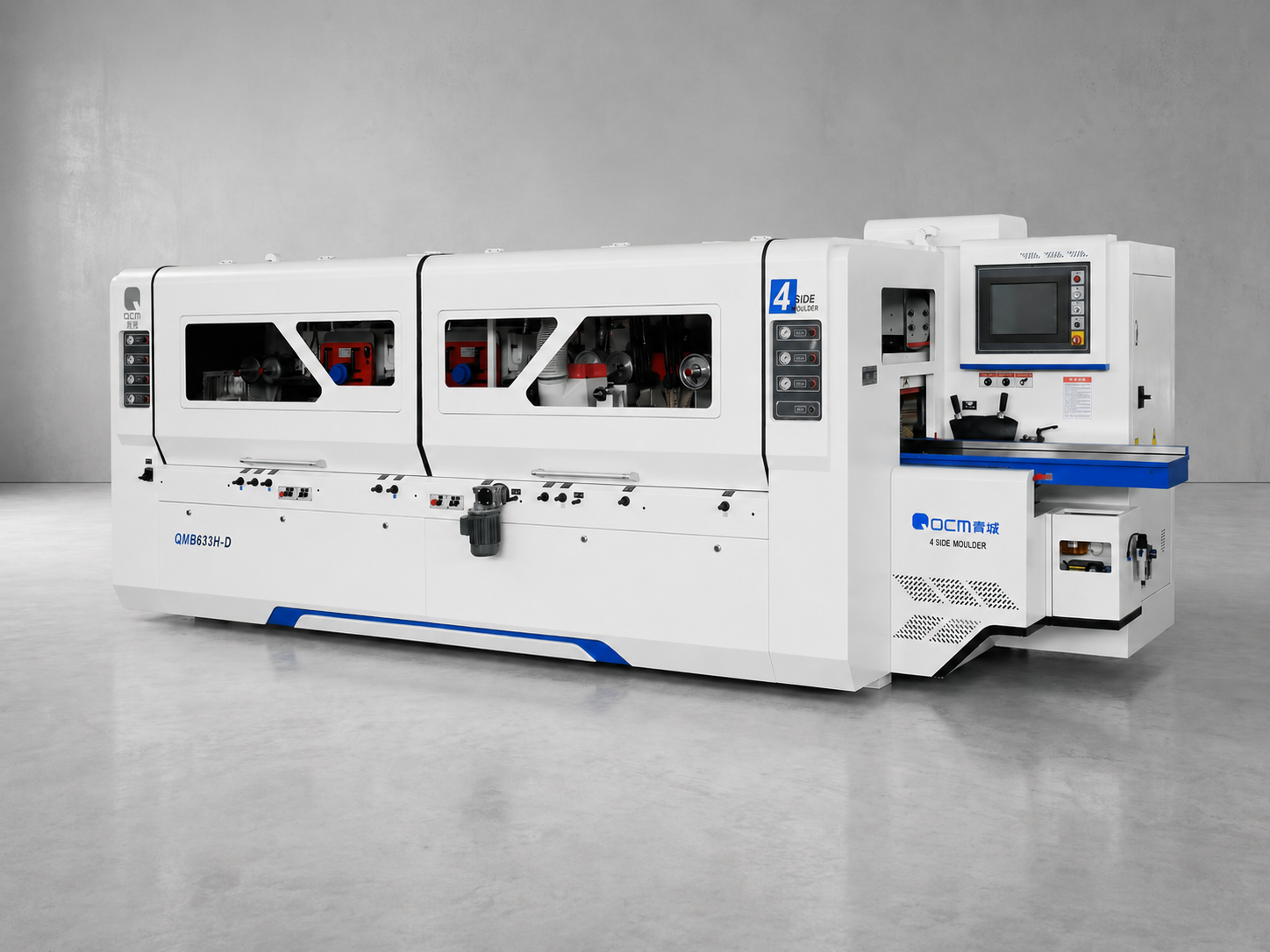

QMB633H-D Heavy-Duty Four-Side Moulder

Highlights

The QMB633H-D Heavy-Duty Four-Side Moulder is a six-spindle machine designed for heavy cutting, four-sided planing and profiling of large solid wood timber. It combines a heavy-duty cast machine body, 17 active feed rollers, CNC-controlled upper and left spindles, and hydraulic external supports for the upper and lower horizontal spindles to provide powerful feeding and stable machining of large workpieces.

• Processing width: 50–330 mm
• Processing height: 20–250 mm
• Feeding speed: 8–36 m/min
• Spindle configuration: 6 spindles
• Spindle speed: 6,500 r/min
• Spindle diameter: Ø50 mm
• Machine weight: 9,600 kg

Images

Video

Features

• The heavy-duty structure is designed for machining large solid wood sections, with a maximum working width of 330 mm and thickness of 250 mm.
• The feeding system uses 17 active feed rollers — 11 upper and 6 lower — with dual driven rollers on the movable worktable for smooth and powerful material feeding.
• CNC touchscreen control automatically adjusts the upper horizontal spindle and left vertical spindle according to required thickness and width.
• Hydraulic clamping external supports on the upper and lower horizontal spindles improve spindle rigidity and cutting stability during heavy machining.
• High-precision spindles, hard-chrome-treated working surfaces and chainless universal-shaft transmission support stable feeding, smooth surface quality and long-term industrial production.
