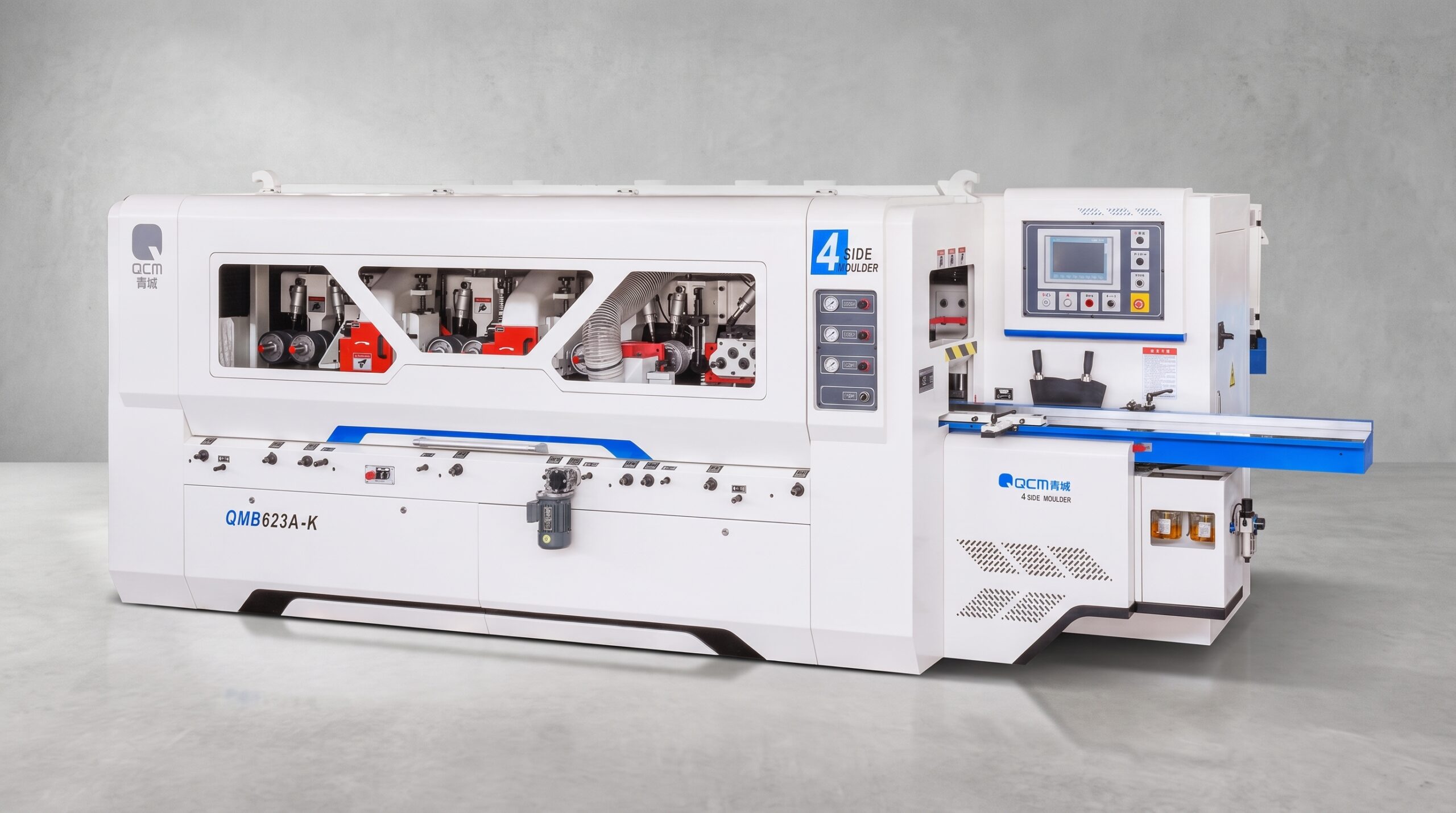

The QMB623A-K Universal Series Four-Side Moulder is a six-spindle machine designed for four-sided planing and profiling of solid wood products up to 230 mm wide. It features a double-tool structure for combined rough and finish planing, 17 active feed rollers, chainless universal-joint feeding transmission and CNC touchscreen control of the spindles, with automatic width and thickness positioning for the left and upper spindles.
- Processing width: 20–230 mm
- Processing height: 8–160 mm
- Feeding speed: 6–36 m/min
- Spindle configuration: 6 spindles
- Spindle speed: 6,800 r/min
- Spindle diameter: Ø40 mm
- Machine weight: 5,600 kg
Images
Features
- The double-tool structure combines rough planing and finish planing, helping achieve smoother and more consistent finished surfaces.
- The feeding system uses 17 active feed rollers — 12 upper and 5 lower — with universal-joint transmission for smooth and powerful material feeding.
- CNC touchscreen control manages the spindle system, while the upper and left vertical spindles support automatic thickness and width positioning for faster machine setup.
- High-precision 6,800 r/min spindles feature high-rigidity construction and G1 dynamic balancing to improve cutting stability and surface quality.
- The cast machine body, hard-chrome-treated working surfaces, centralized lubrication and fully enclosed safety cover support reliable long-term production and operator protection.
Technical data
| Specifications | Unit | QMB523A | QMB623A | QMB623A-K | QMB623R | QMB723R |
|---|---|---|---|---|---|---|
| Processing width | mm | 20–230 | 20–230 | 20–230 | 20–230 | 20–230 |
| Processing height | mm | 8–160 | 8–160 | 8–160 | 8–160 | 8–160 |
| Feeding speed | m/min | 6–36 | 6–36 | 6–36 | 6–36 | 6–36 |
| Spindle diameter | mm | Ø40 | Ø40 | Ø40 | Ø40 | Ø40 |
| Spindle speed | r/min | 6,800 | 6,800 | 6,800 | 6,800 | 6,800 |
| First bottom spindle – flat cutter | mm | Ø125 | Ø125 | Ø125 | Ø125 | Ø125 |
| First bottom spindle – trimming cutter | mm | Ø152 | Ø152 | Ø152 | Ø152 | Ø152 |
| Left & right spindle cutter | mm | Ø108–Ø200 | Ø108–Ø200 | Ø108–Ø200 | Ø108–Ø200 | Ø108–Ø200 |
| Top spindle cutter | mm | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 |
| Second bottom spindle cutter | mm | Ø108–Ø230 | Ø108–Ø230 | Ø108–Ø230 | Ø108–Ø230 | Ø108–Ø230 |
| Feed motor | kW | 4 | 5.5 | 5.5 | 5.5 | 5.5 |
| First bottom spindle motor | kW | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| First right spindle motor | kW | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| First left spindle motor | kW | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Second right spindle motor | kW | / | / | / | 7.5 | 7.5 |
| First upper spindle motor | kW | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Second upper spindle motor | kW | / | 7.5 | 7.5 | / | 7.5 |
| Second bottom spindle motor | kW | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Lifting motor | kW | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Overall dimensions | cm | 428 × 190 × 170 | 496 × 190 × 170 | 496 × 190 × 170 | 475 × 186 × 176 | 538 × 186 × 176 |
| Machine weight | kg | 4,600 | 5,600 | 5,600 | 5,650 | 6,050 |
The manufacturer also lists optional Ø50 mm spindles, 8,000 r/min spindle speed and saw-blade installation on the final bottom spindle.
