Highlights
The QMB520AT Four-Side Moulder is a standard five-spindle machine in the QMB20 Regular Series, designed for four-sided planing and profiling of solid wood products. It features 9 active feed rollers, a single upper and double lower spindle structure, variable-speed feeding and a backward chip-breaker design on the upper spindle for stable machining and reliable surface quality.
- Processing width: 20–200 mm
- Processing height: 8–125 mm
- Feeding speed: 8–33 m/min
- Spindle configuration: 5 spindles
- Spindle speed: 6,800 r/min
- Spindle diameter: Ø40 mm
- Machine weight: 3,600 kg
Images

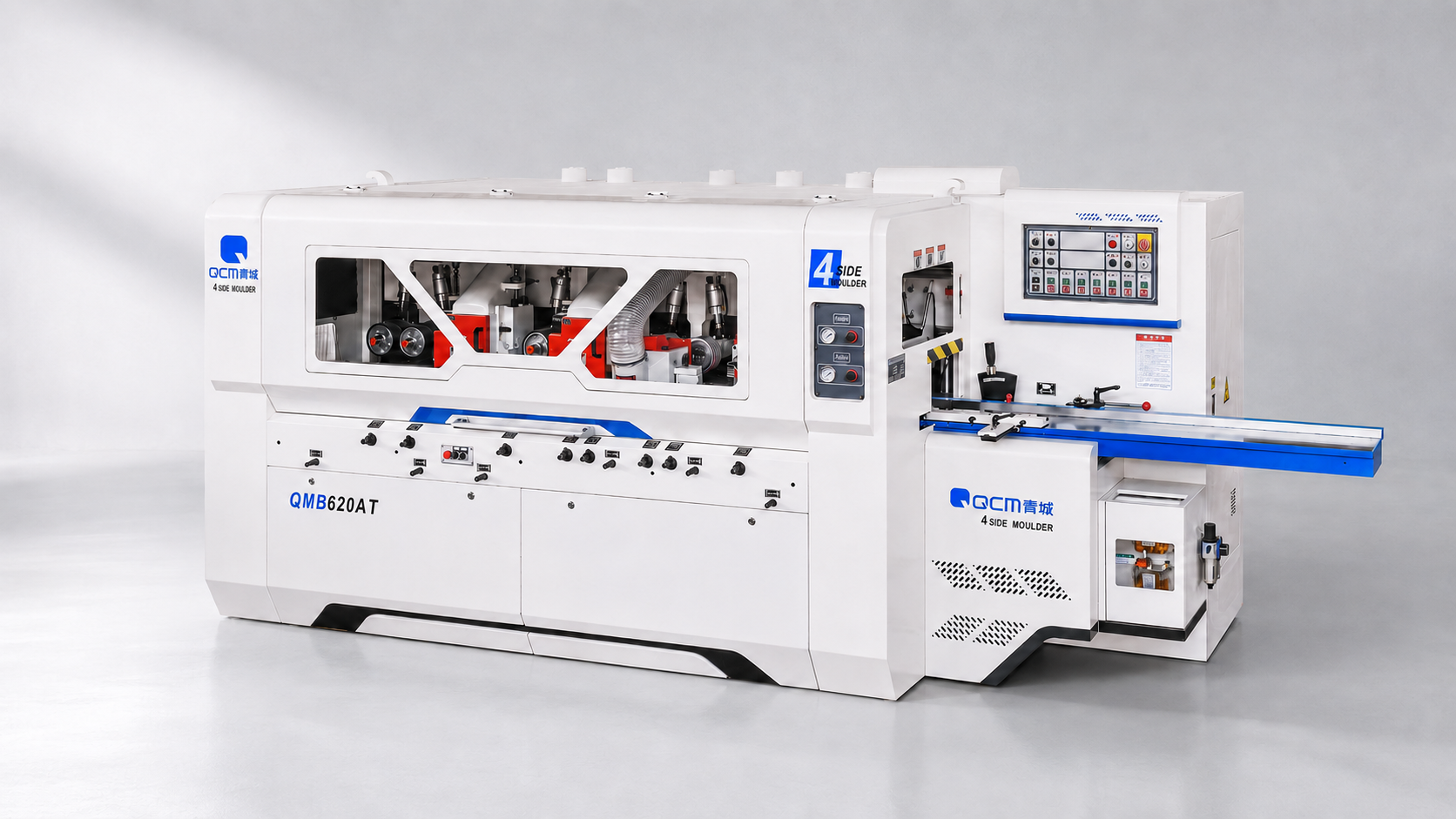

QMB620AT multi-spindle layout is designed for stable, efficient, and high-precision four-side moulding.
High-strength cast-iron machine bed provides excellent rigidity, structural stability, and long-term machining accuracy.
Fully enclosed safety guarding reduces operating noise and improves machine safety and workshop cleanliness.
Grooved positioning guides help prevent material deviation and sticking for smoother four-side machining.

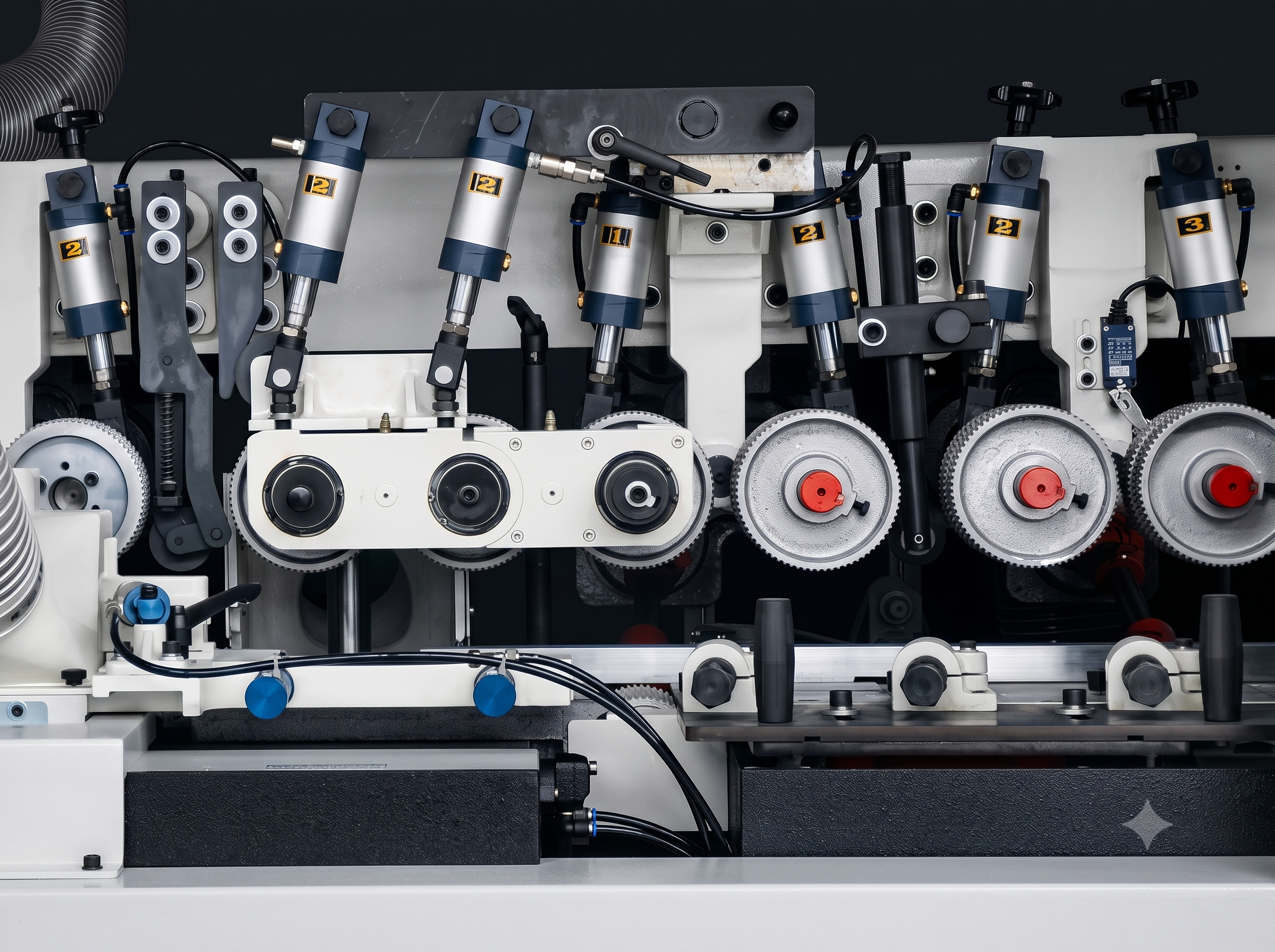

Cylinder-controlled segmented pressure units ensure stable workpiece holding and smooth high-speed feeding.
CLSJ90 side chain conveyor supports reliable material handling alongside the movable worktable.
Grooved positioning guides help prevent material deviation and sticking for smoother four-side machining.
Internationally recognized electrical components provide reliable control, stable performance, and long service life.
Specially treated hard-chrome worktable provides excellent wear resistance, smooth feeding, and long service life.
International-brand variable-frequency drive provides stable performance and convenient feed-speed adjustment.
Features
- The feeding system uses 9 active feed rollers — 7 upper and 2 lower — for smooth and stable material feeding during continuous production.
- A single upper spindle and double lower spindle configuration enables efficient four-sided planing and profiling of solid wood products.
- The upper spindle uses a backward chip-breaker structure designed to reduce the risk of cutter collision during machining.
- High-precision spindles operate at 6,800 r/min, while the chainless universal transmission shaft provides smooth and powerful feeding.
- The high-strength cast-iron machine bed, hard-chrome-treated working surfaces, centralized lubrication and enclosed safety cover support long-term industrial operation.
Technical data
| Specifications | Unit | QMB420G | QMB520AT | QMB620AT | QMB620RL |
|---|---|---|---|---|---|
| Processing width | mm | 20–200 | 20–200 | 20–200 | 20–200 |
| Processing height | mm | 20–200 | 8–125 | 8–125 | 8–125 |
| Feeding speed | m/min | 8–36 | 8–33 | 8–33 | 8–33 |
| Spindle diameter | mm | Ø40 | Ø40 | Ø40 | Ø40 |
| Spindle speed | r/min | 6,800 | 6,800 | 6,800 | 6,800 |
| First bottom spindle – flat cutter | mm | Ø125 | Ø125 | Ø125 | Ø125 |
| First bottom spindle – trimming cutter | mm | Ø152 | Ø152 | Ø152 | Ø152 |
| Rear bottom spindle cutter | mm | / | Ø108–Ø200 | Ø108–Ø200 | / |
| Other spindle cutter diameter | mm | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 |
| Feed motor | kW | 5.5 | 4 | 4 | 7.5 |
| First bottom spindle motor | kW | 7.5 | 5.5 | 5.5 | 5.5 |
| First right spindle motor | kW | 7.5 | 5.5 | 5.5 | 7.5 |
| First left spindle motor | kW | 7.5 | 5.5 | 5.5 | 7.5 |
| Second right spindle motor | kW | / | / | / | 5.5 |
| First upper spindle motor | kW | 11 | 7.5 | 7.5 | 7.5 |
| Second upper spindle motor | kW | / | / | 5.5 | / |
| Second bottom spindle motor | kW | / | 5.5 | 5.5 | / |
| Lifting motor | kW | 0.75 | 0.75 | 0.75 | 0.75 |
| Overall dimensions | cm | 340 × 186 × 180 | 350 × 180 × 175 | 400 × 10 × 175* | 410 × 180 × 175 |
| Machine weight | kg | 3,650 | 3,600 | 4,400 | 4,650 |
Optional configurations include 5.5–11 kW spindle motors, Ø50 mm spindles, 8,000 r/min spindle speed and saw-blade installation on the final bottom spindle.
