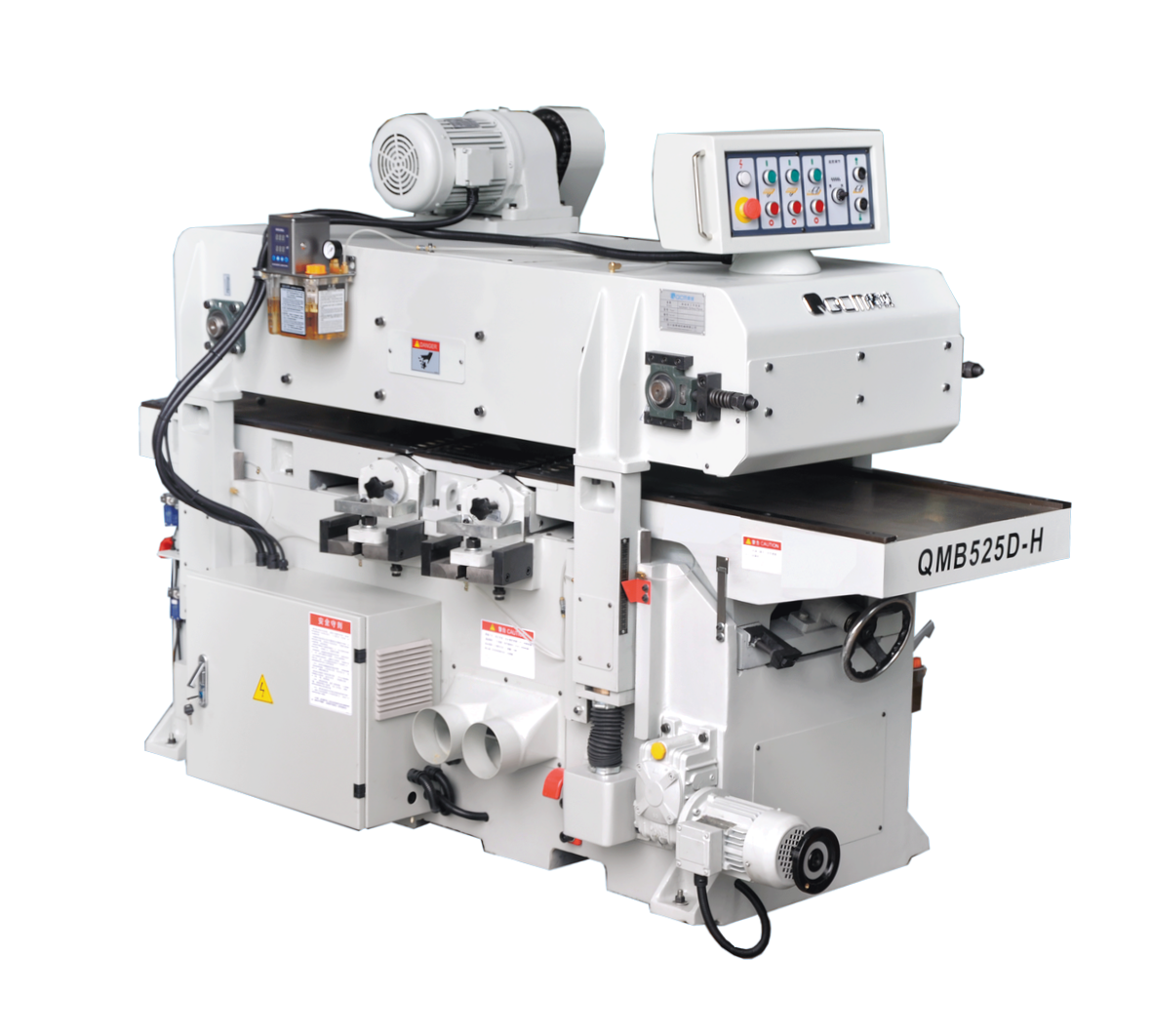

QMB525DH Automatic Surface Planer (Dual-Angle Type)
Product Overview
The QMB525DH Automatic Surface Planer is designed for precision single-surface planing of solid wood materials.
It adopts a dual-angle cutterhead design, allowing efficient cutting with excellent smoothness and surface quality.
The machine integrates automatic feeding and adjustable cutting depth, ensuring stable performance and consistent thickness for each workpiece.
Key Features
-
Single-Surface Planing Design — Ideal for accurate surface flattening and calibration.
-
Dual-Angle Cutterhead — Two inclined cutter knives improve chip removal and produce a cleaner, smoother surface.
-
Automatic Feed System — Adjustable feed speed (6–30 m/min) for different processing requirements.
-
Heavy-Duty Structure — High-rigidity body design ensures vibration-free operation and excellent machining precision.
-
Easy Operation — Centralized control panel for safe and convenient operation.
| Specification | QMB525DH |
|---|---|
| Max. Working Width | 500 mm |
| Min. Working Width | 400 mm |
| Max. Working Thickness | 170 mm |
| Min. Working Thickness | 10 mm |
| Min. Working Length | 245 mm |
| Max. Cutting Depth (Front Cutter) | 5 mm |
| Rear Cutter | 0.8 mm |
| Cutter Shaft Speed | 5800 r/min |
| Feeding Speed | 6–30 m/min |
| Cutter Shaft Diameter | Φ101 mm |
| Total Motor Power | 12.5 kW |
| Front Cutter Motor | 5.5 kW |
| Rear Cutter Motor | 4.0 kW |
| Feeding Motor | 2.2 kW |
| Lifting Motor | 0.75 kW |
| Machine Dimension (L×W×H) | 2260 × 1030 × 1600 mm |
| Machine Weight | 2250 kg |
