Highlights

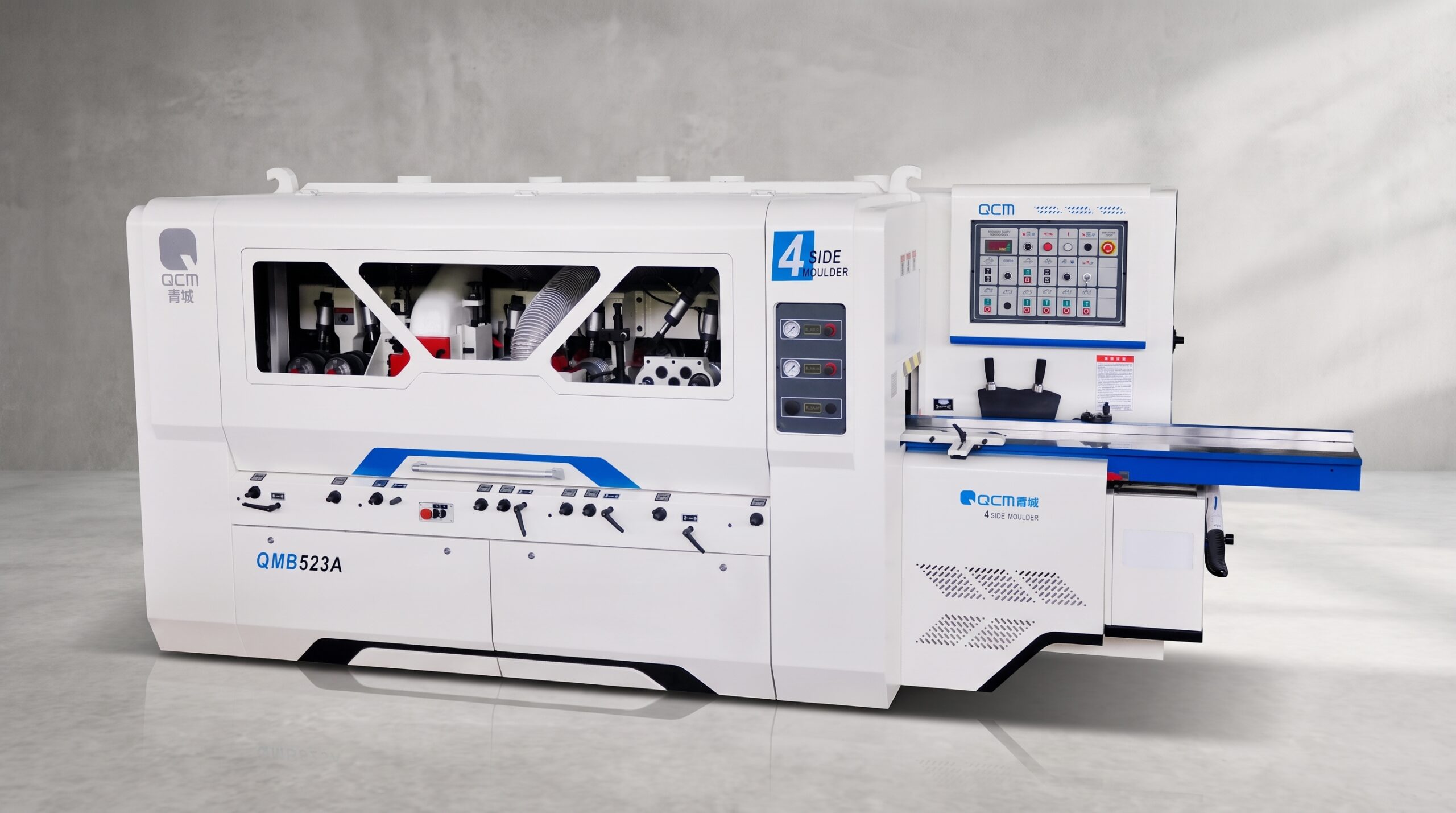

The QMB523A Universal Series Four-Side Moulder is a standard five-spindle machine designed for four-sided planing and profiling of solid wood. It features 14 active feed rollers, a single upper and double lower cutter structure, chainless universal-shaft feeding transmission and 6,800 r/min precision spindles for stable feeding, reliable machining and consistent surface quality.
- Processing width: 20–230 mm
- Processing height: 8–160 mm
- Feeding speed: 6–36 m/min
- Spindle configuration: 5 spindles
- Spindle speed: 6,800 r/min
- Spindle diameter: Ø40 mm
- Machine weight: 4,600 kg
Images

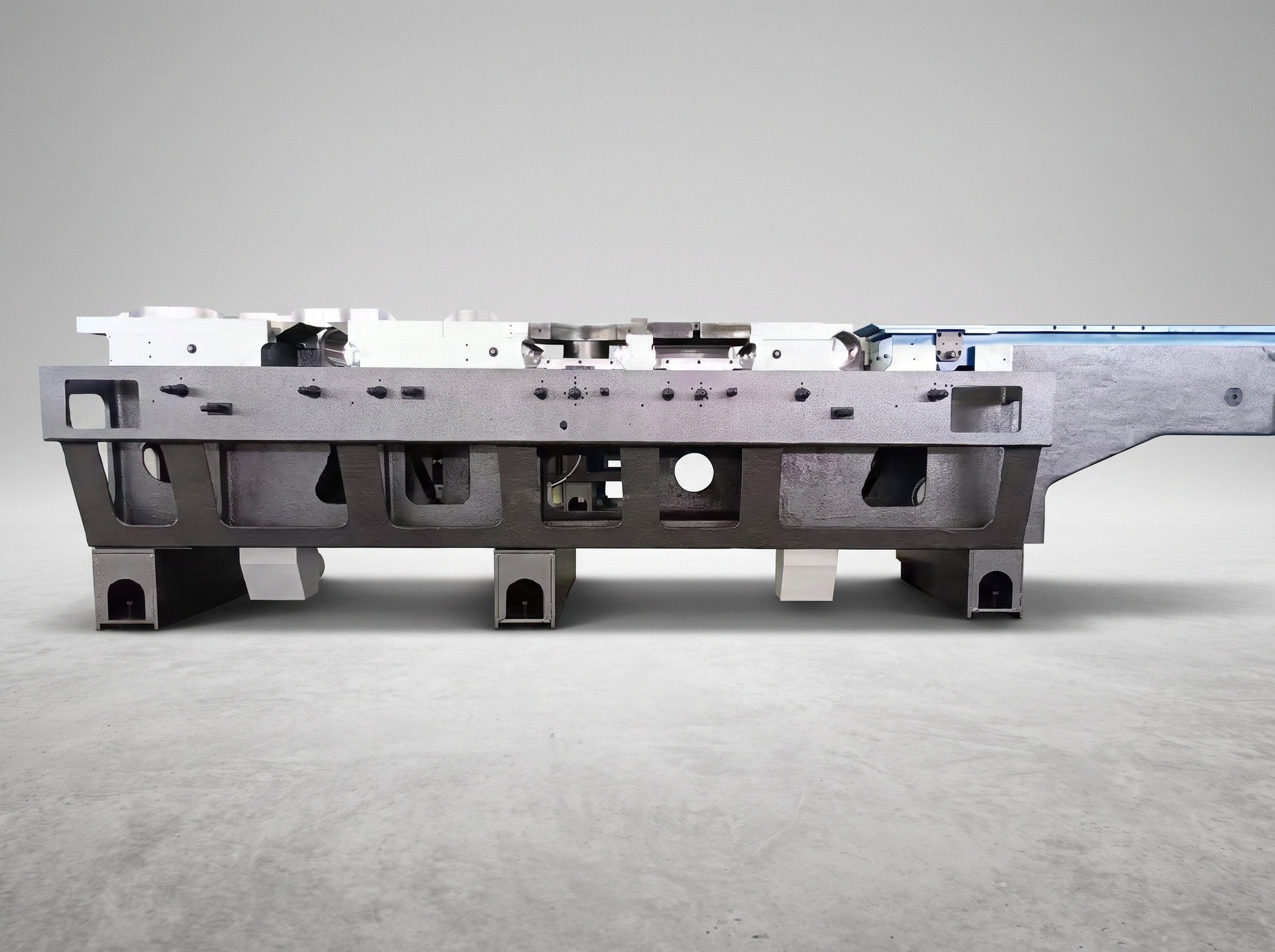

Features

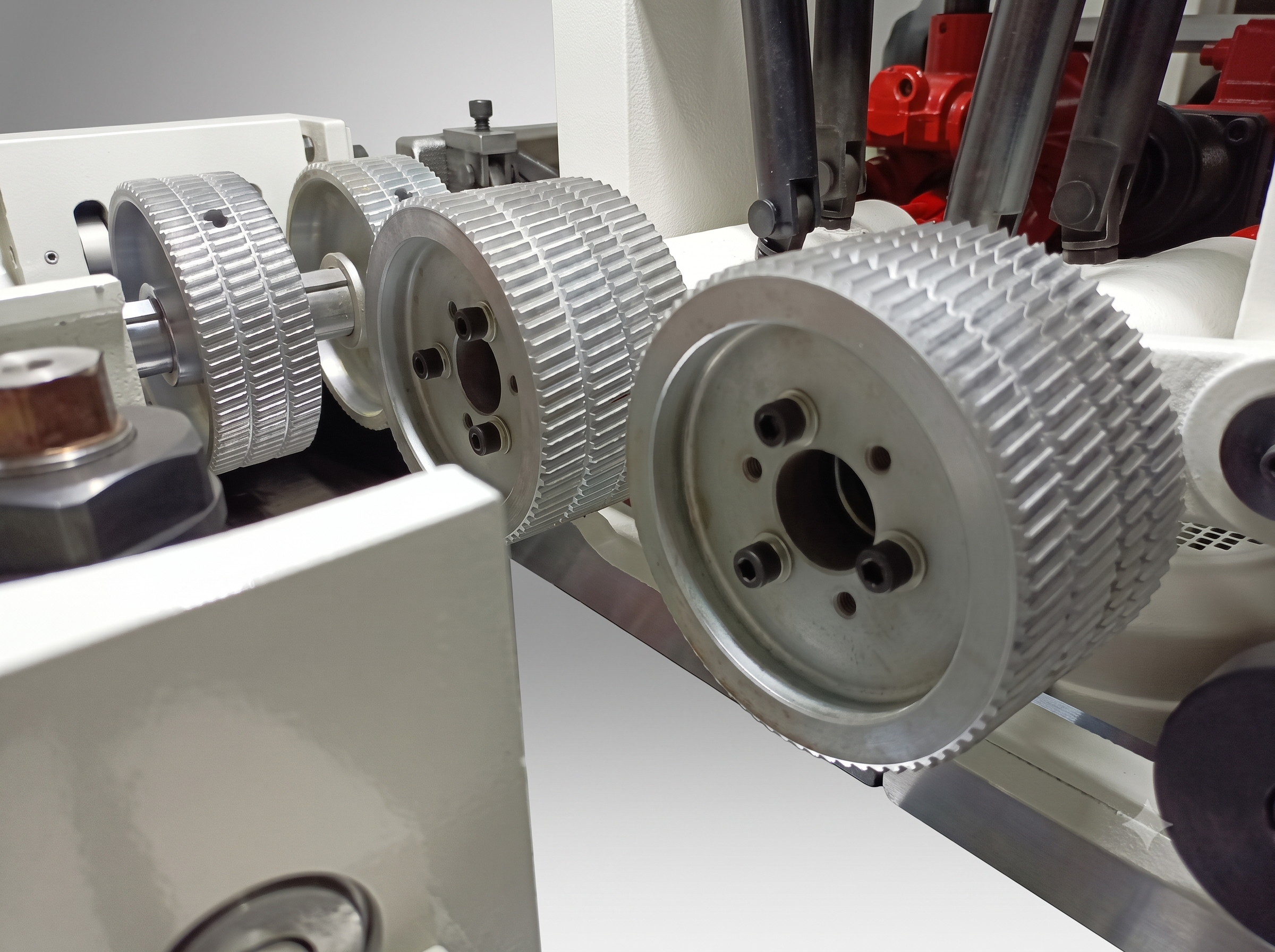

- The machine uses 14 active feed rollers — 10 upper and 4 lower — to provide smooth and stable material feeding during continuous production.

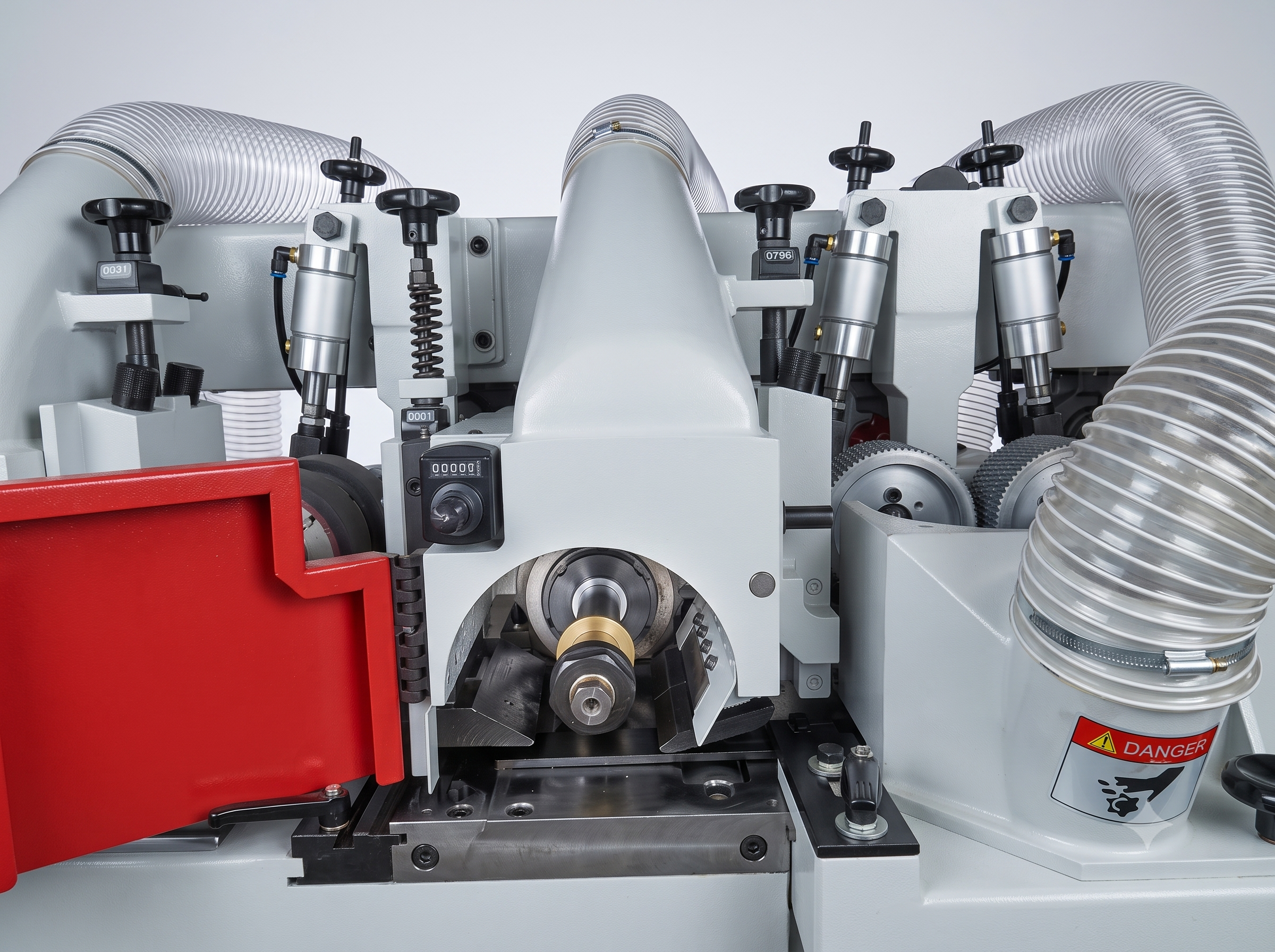

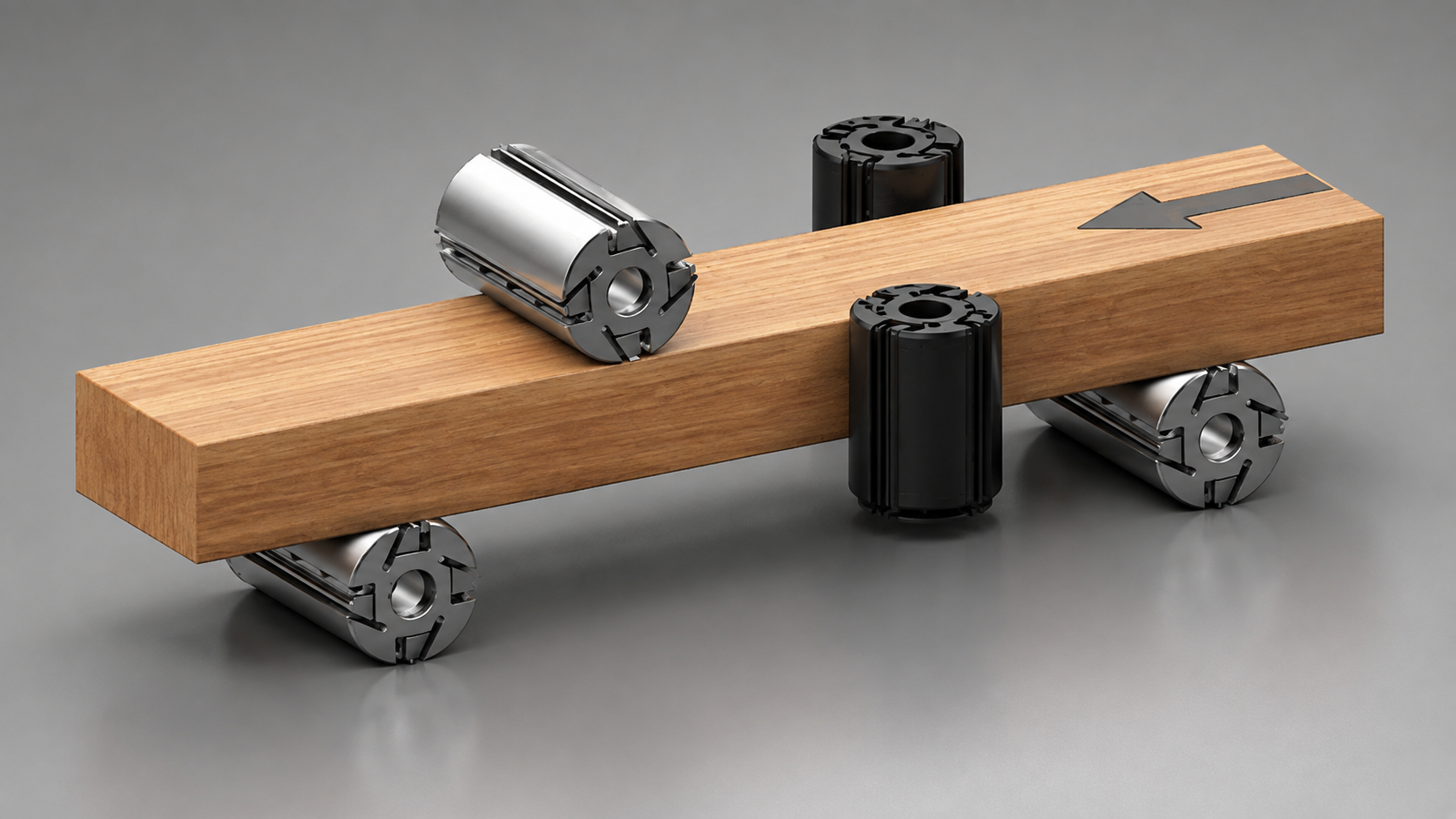

- A single upper cutter and double lower cutter structure supports efficient four-sided profiling and solid wood machining.
- High-precision spindles operate at 6,800 r/min with high-rigidity construction and G1-level dynamic balancing for stable cutting and improved surface quality.

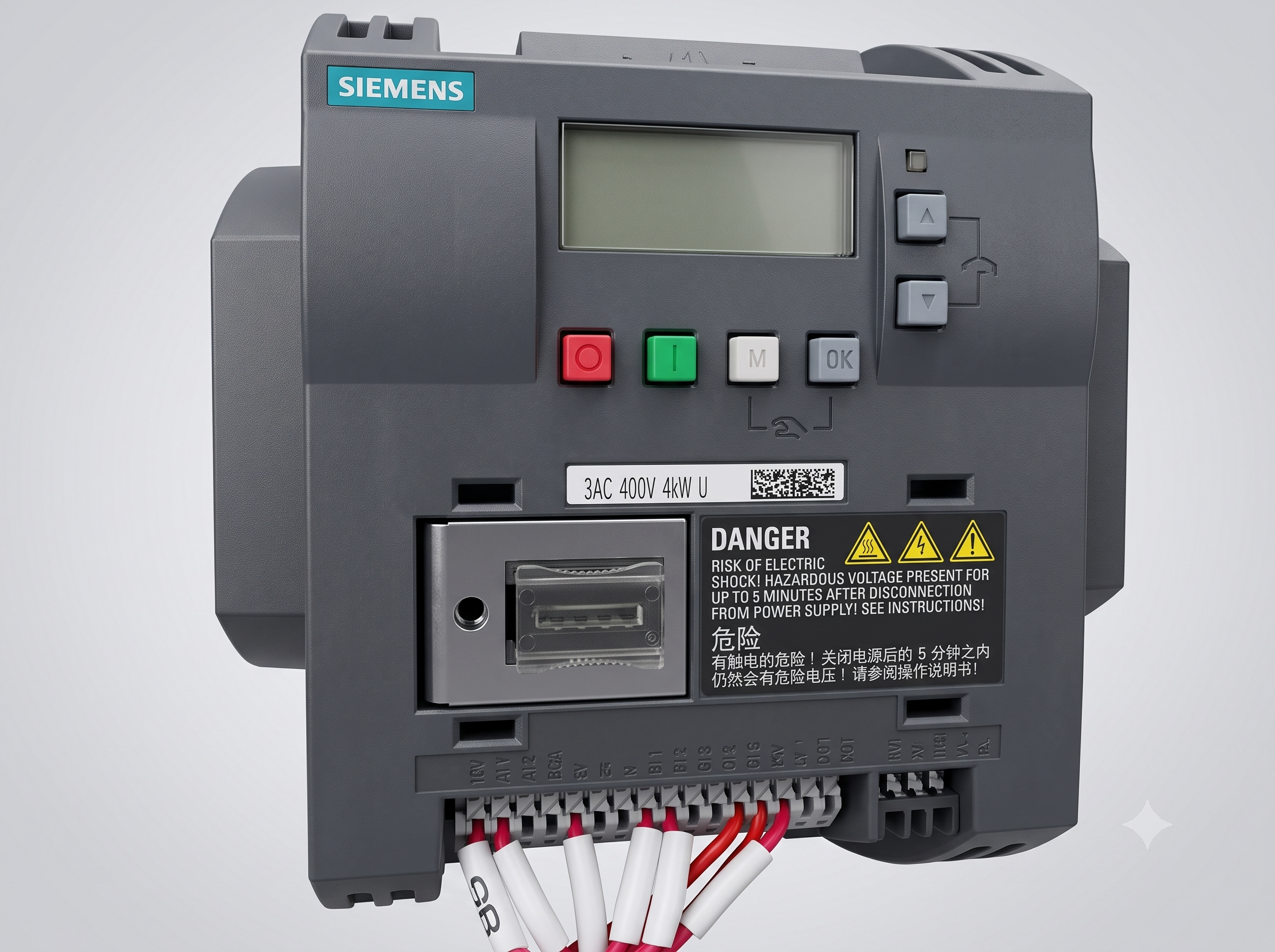

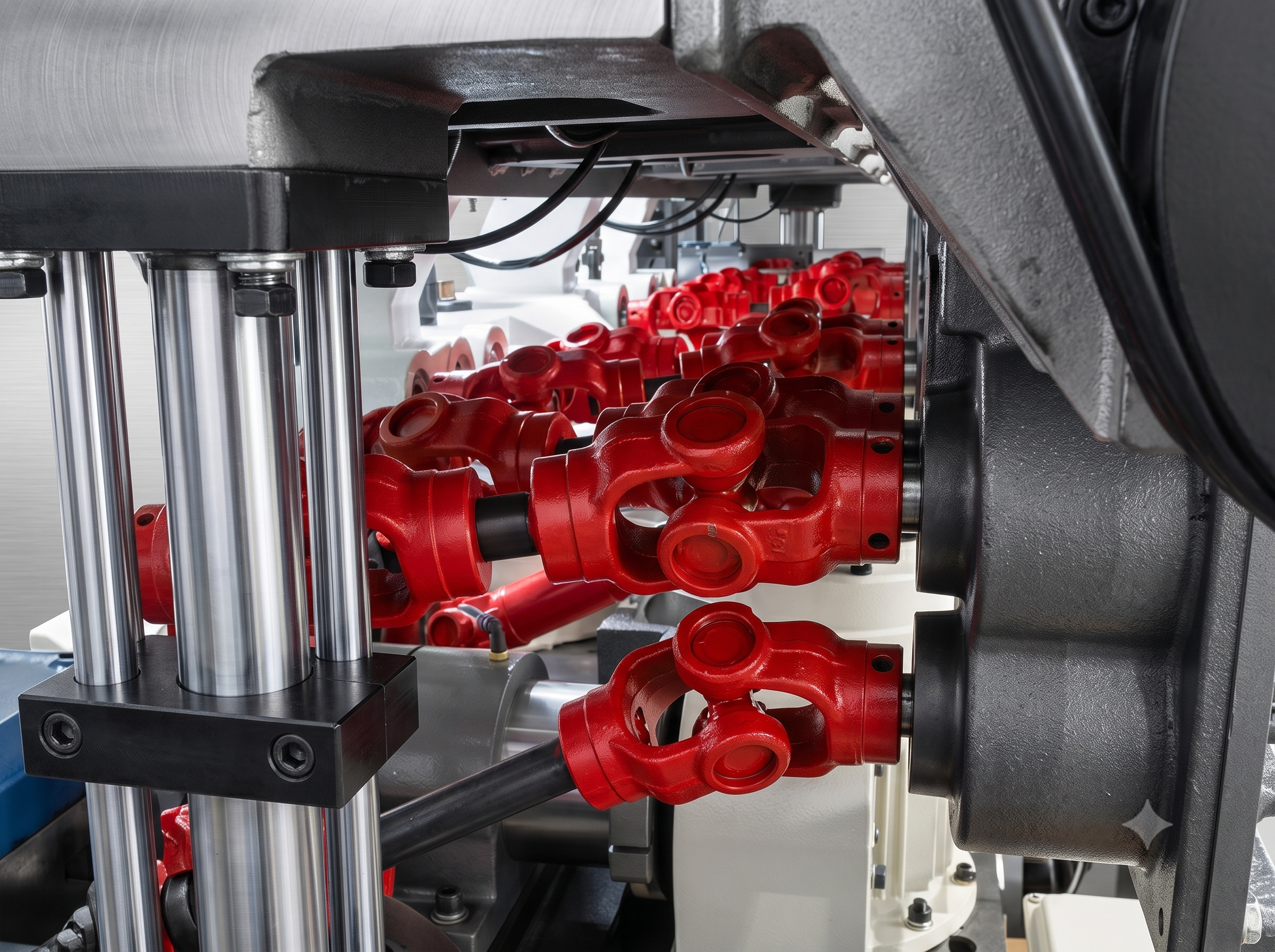

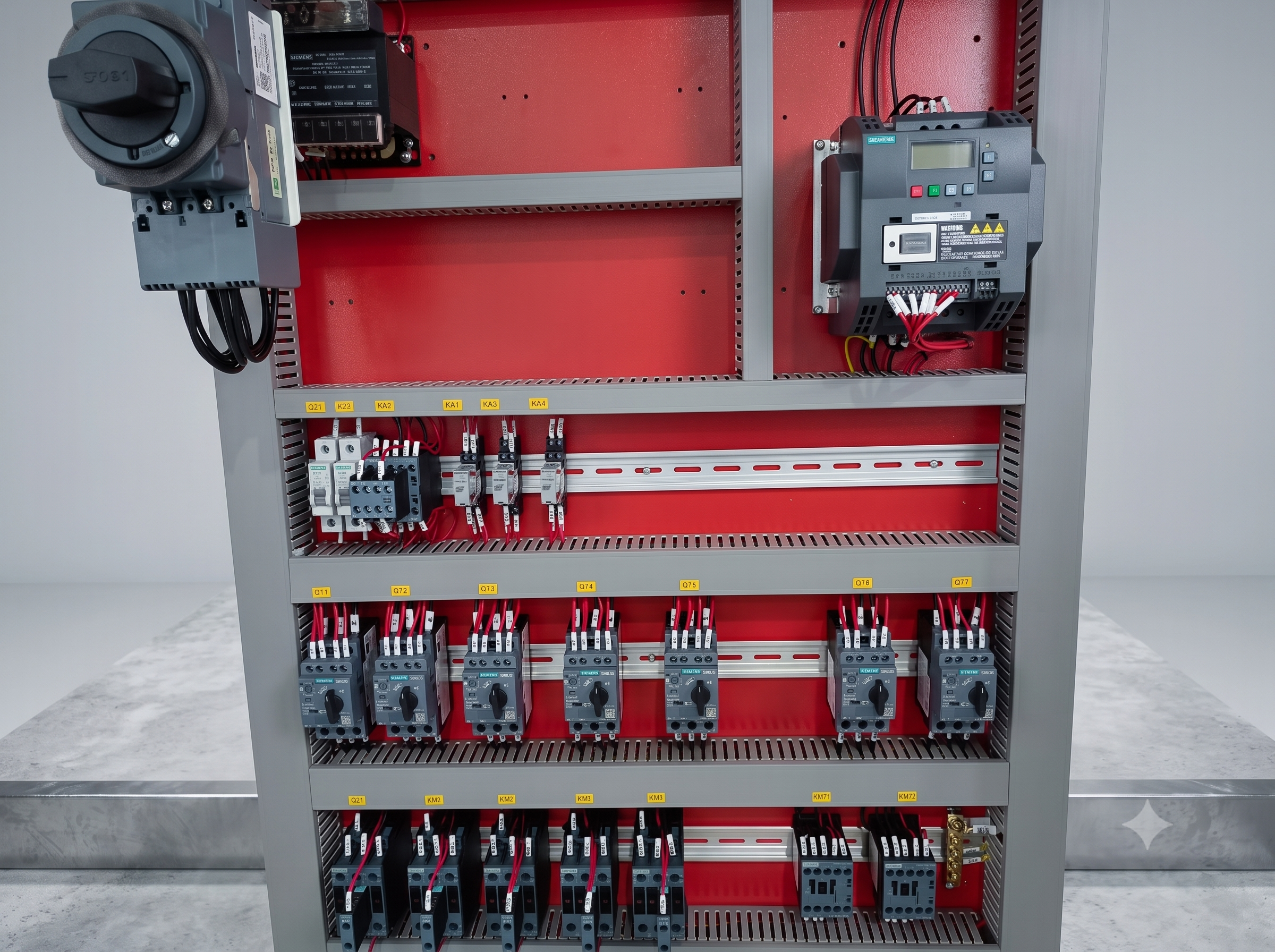

- The chainless universal transmission shaft provides powerful feeding, while variable-frequency control allows feeding speeds from 6–36 m/min for different wood materials.

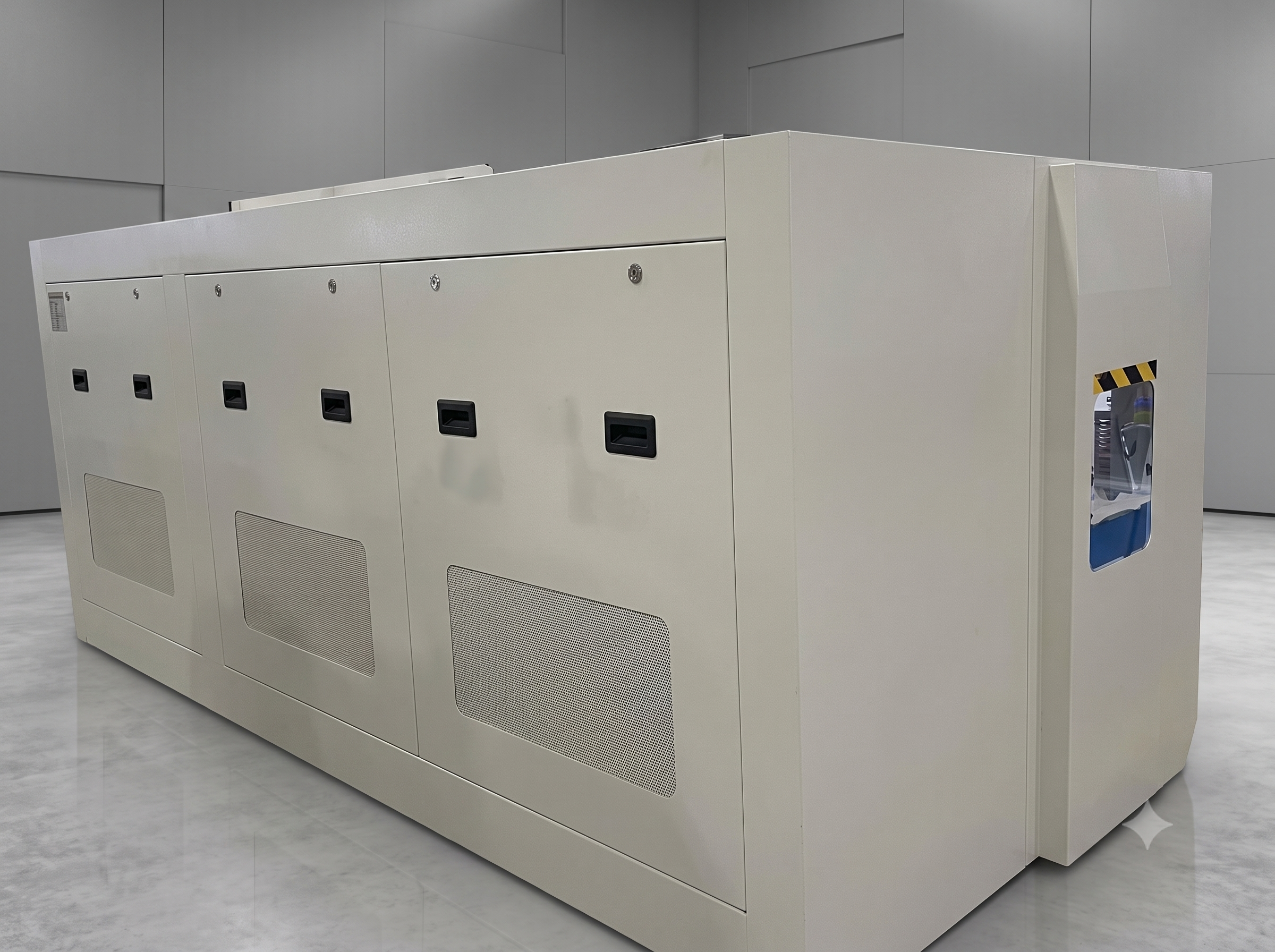

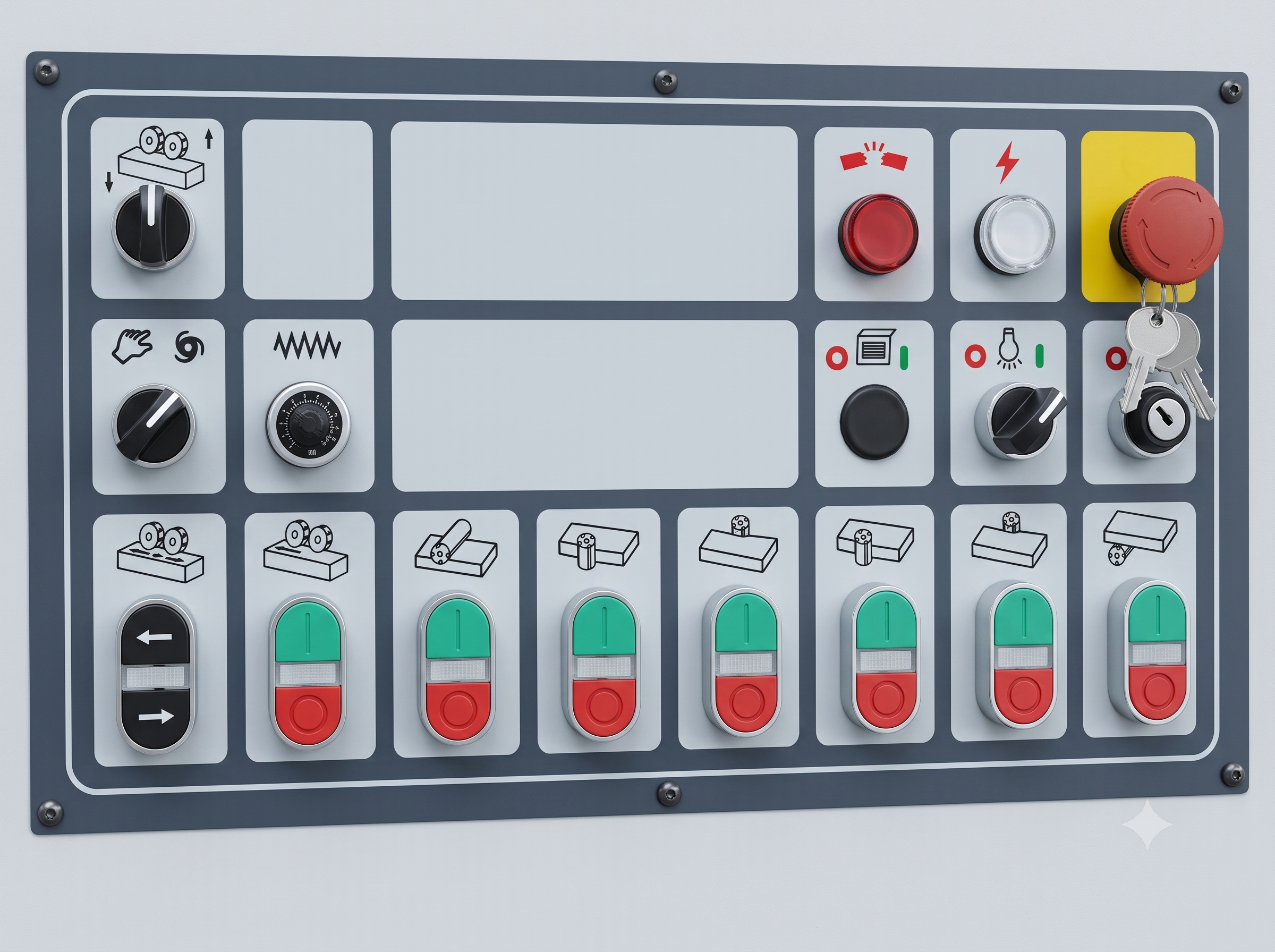

- A short-material feeding device, centralized lubrication, hard-chrome-treated working surfaces and a fully enclosed safety cover improve operation, durability and production reliability.
Technical data
| Specifications | Unit | QMB523A | QMB623A | QMB623A-K | QMB623R | QMB723R |
|---|---|---|---|---|---|---|
| Processing width | mm | 20–230 | 20–230 | 20–230 | 20–230 | 20–230 |
| Processing height | mm | 8–160 | 8–160 | 8–160 | 8–160 | 8–160 |
| Feeding speed | m/min | 6–36 | 6–36 | 6–36 | 6–36 | 6–36 |
| Spindle diameter | mm | Ø40 | Ø40 | Ø40 | Ø40 | Ø40 |
| Spindle speed | r/min | 6,800 | 6,800 | 6,800 | 6,800 | 6,800 |
| First bottom spindle – flat cutter | mm | Ø125 | Ø125 | Ø125 | Ø125 | Ø125 |
| First bottom spindle – trimming cutter | mm | Ø152 | Ø152 | Ø152 | Ø152 | Ø152 |
| Left & right spindle cutter | mm | Ø108–Ø200 | Ø108–Ø200 | Ø108–Ø200 | Ø108–Ø200 | Ø108–Ø200 |
| Top spindle cutter | mm | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 | Ø108–Ø180 |
| Second bottom spindle cutter | mm | Ø108–Ø230 | Ø108–Ø230 | Ø108–Ø230 | Ø108–Ø230 | Ø108–Ø230 |

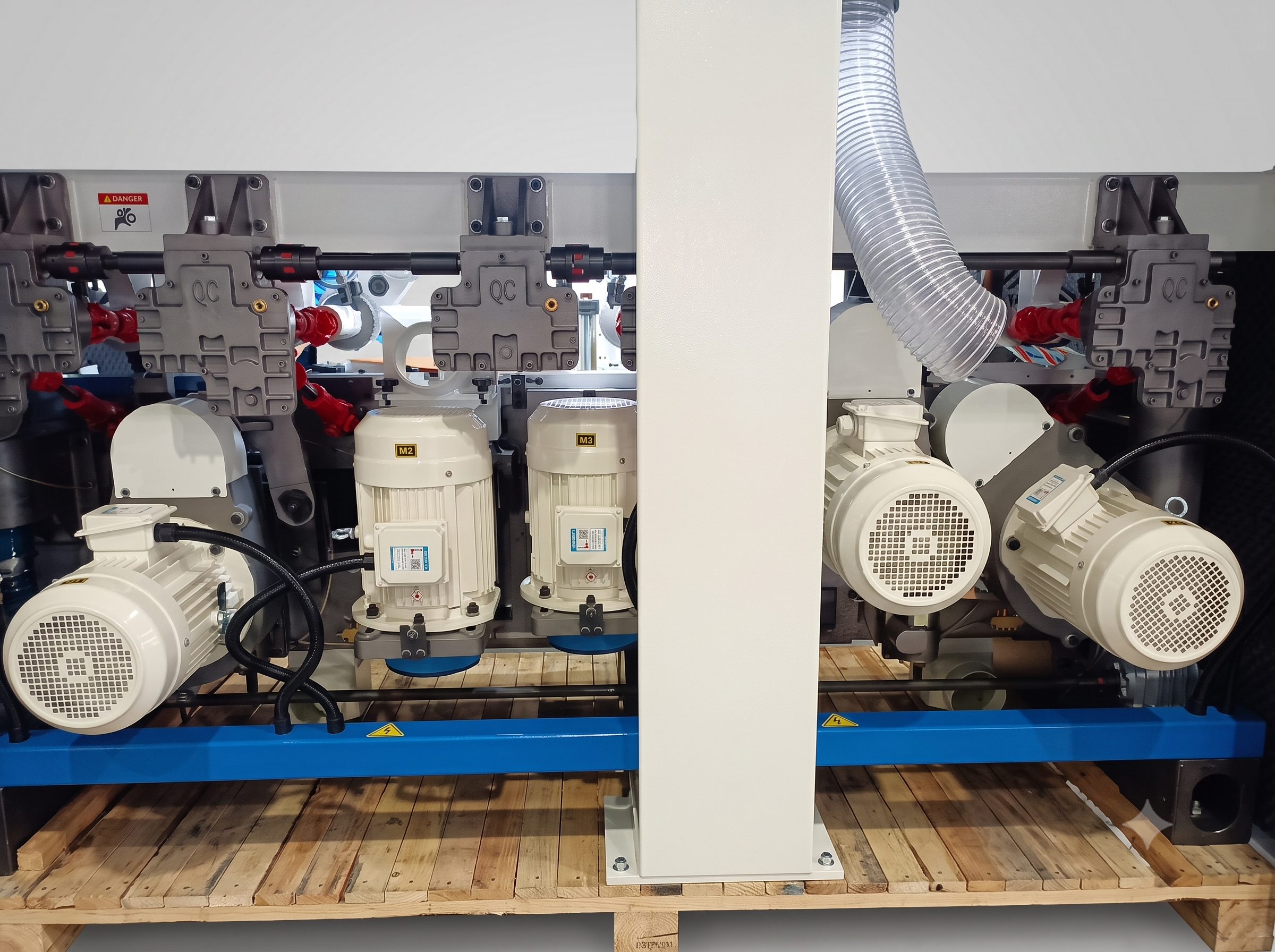

| Feed motor | kW | 4 | 5.5 | 5.5 | 5.5 | 5.5 |
| First bottom spindle | kW | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| First right spindle | kW | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| First left spindle | kW | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Second right spindle | kW | / | / | / | 7.5 | 7.5 |
| First upper spindle | kW | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Second upper spindle | kW | / | 7.5 | 7.5 | / | 7.5 |
| Second bottom spindle | kW | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Lifting motor | kW | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Overall dimensions | cm | 428 × 190 × 170 | 496 × 190 × 170 | 496 × 190 × 170 | 475 × 186 × 176 | 538 × 186 × 176 |
| Machine weight | kg | 4,600 | 5,600 | 5,600 | 5,650 | 6,050 |
Optional configurations include Ø50 mm spindles, 8,000 r/min spindle speed and saw-blade installation on the final bottom spindle.
