Highlights
The QMB206GZ Double-Side Planer is a heavy-duty machine designed for simultaneous upper and lower planing of thick solid wood workpieces. It combines an integrally cast machine bed, automatic digital thickness adjustment, hard-chrome-plated worktable and stable pressure feeding system for efficient mass production with consistent machining accuracy.
- Maximum working width: 630 mm
- Working thickness: 8–200 mm
- Minimum working length: 315 mm
- Feeding speed: 8–24 m/min
- Cutter shaft speed: 5,000 r/min
- Cutter shaft diameter: Ø130 mm
- Total motor power: 29.4 kW

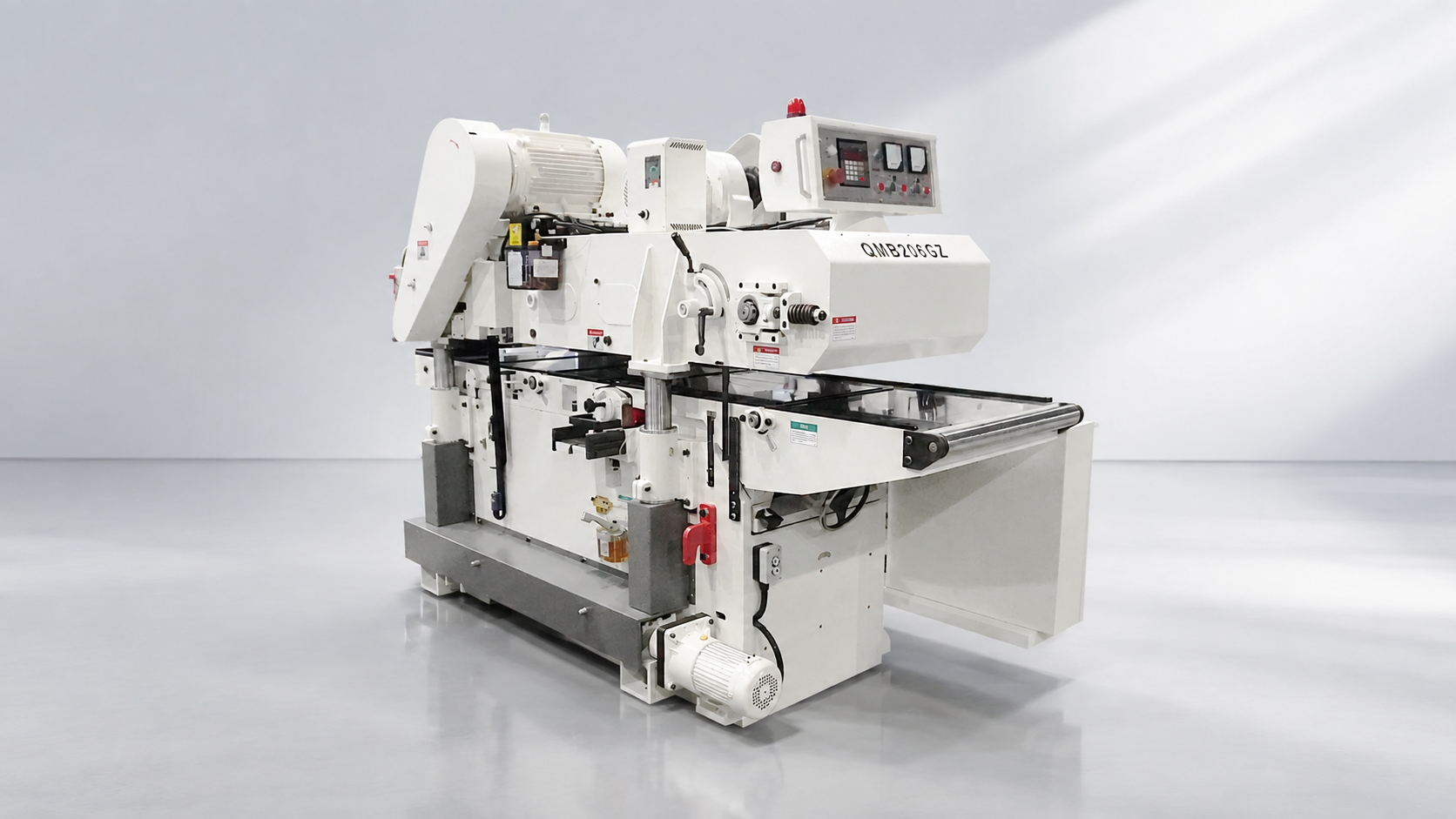

Images
Features
- Simultaneous upper and lower planing allows both surfaces of the workpiece to be machined in one pass, improving production efficiency.
- The integrally cast and precision-machined bed frame provides high rigidity, stable performance and long-term machining accuracy.
- Digital thickness control allows the operator to enter the required processing thickness for convenient automatic adjustment.
- The precision-ground, hard-chrome-plated cast-iron worktable provides excellent wear resistance, smooth feeding and low friction.
- The staggered feeding and pressing mechanism applies stable, uniform pressure to the workpiece throughout the planing process.
Technical data
| Specifications | QMB206GX | QMB206GZ | QMB206GH |
|---|---|---|---|
| Max. Working Width | 630 mm | 630 mm | 630 mm |
| Working Thickness | 8–200 mm | 8–200 mm | 10–200 mm |
| Min. Working Length | 315 mm | 315 mm | 380 mm |
| Max. Cutting Depth – Upper Cutterhead | 5 mm | 5 mm | 5 mm |
| Max. Cutting Depth – Lower Cutterhead | 3 mm | 3 mm | 3 mm |
| Feed Speed | 8–24 m/min | 8–30 m/min | 10–45 m/min |
| Cutterhead Speed | 5000 rpm | 5000 rpm | 5000 rpm |
| Cutterhead Diameter | Ø130 mm | Ø130 mm | Ø150 mm |
| Cutting Speed | 34 m/s | 34 m/s | 39 m/s |
| Upper Cutterhead Motor | 15 kW | 15 kW | 22 kW |
| Lower Cutterhead Motor | 11 kW | 11 kW | 18.5 kW |
| Feed Motor | Approx. 3–4 kW | Approx. 4 kW | 5.5 kW |
| Total Power | 29.4 kW | 30.4 kW | 47 kW |
| Dust Extraction Ports | 2 × Ø150 mm | 2 × Ø150 mm | 4 × Ø150 mm |
| Overall Dimensions | 2800 × 1500 × 1820 mm | 2800 × 1500 × 1820 mm | 2900 × 1900 × 2100 mm |
| Machine Weight | Approx. 3000 kg | Approx. 3000 kg | Approx. 4500 kg |
