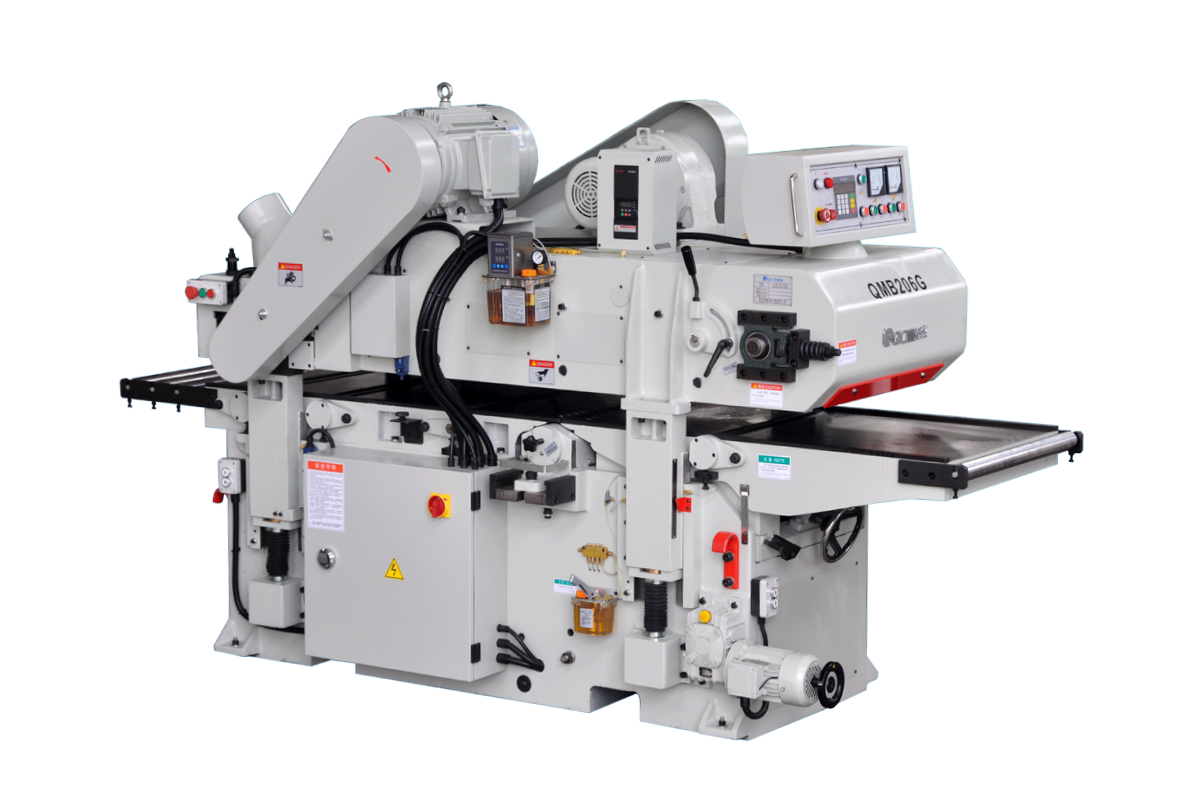

The QMB206G is an automatic double-side planer designed to plane both the top and bottom surfaces in one pass. It supports large-size lumber and panel stock up to 630 mm wide and 200 mm thick, with adjustable feeding speed for stable, continuous production. This model is commonly used for thickness calibration and surface finishing before further machining.
Key points
-
Planes two sides simultaneously (top & bottom)
-
Capacity: 630 mm width, 200 mm thickness
-
Feed speed: 5–25 m/min
-
Spindle speed: 4800 r/min
-
Total power: 23 kW
| Specification | Unit | QMB206G |
|---|---|---|
| Model | — | QMB206G |
| Max. working width | mm | 630 |
| Max. working thickness | mm | 200 |
| Min. working thickness | mm | 10 |
| Min. working length | mm | 310 |
| Max. planing depth – Top spindle | mm | 5 |
| Max. planing depth – Bottom spindle | mm | 3 |
| Spindle speed | r/min | 4800 |
| Feed speed | m/min | 5–25 |
| Cutter diameter | mm | Ø125 |
| Total power | kW | 23 |
| Motor power – Top cutter motor | kW | 11 |
| Motor power – Bottom cutter motor | kW | 7.5 |
| Motor power – Feed motor | kW | 3.7 |
| Motor power – Lifting motor | kW | 0.75 |
| Knife size | mm | 30 × 12 × 1.5 |
| Dust outlet diameter | mm | Ø150 |
| Overall dimensions (L × W × H) | cm | 290 × 118 × 183 |
| Machine weight | kg | 3200 |
