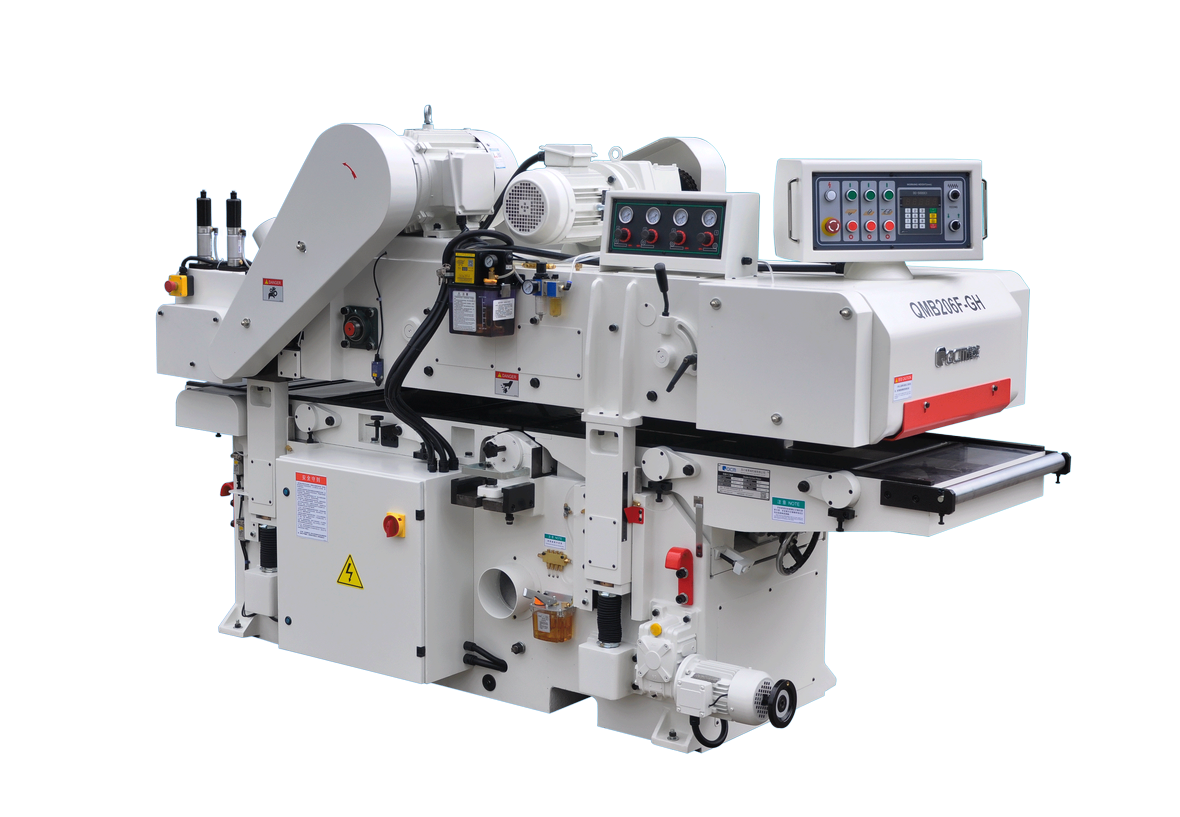

The QMB206GH is a high-speed double-side planer designed to plane top and bottom surfaces in one pass for fast thickness calibration and surface finishing. It supports large workpieces up to 630 mm width and runs at a 10–40 m/min feed speed, making it suitable for continuous production where output and consistency matter.
Key points
-
Planes two sides simultaneously (top & bottom)
-
Max. working width: 630 mm
-
Max. working thickness: 170 mm (min. 10 mm)
-
Feed speed: 10–40 m/min
-
Cutterhead speed: 5800 r/min
-
Total power: 30.8 kW
| Specification | Unit | QMB206F-GH |
|---|---|---|
| Model | — | QMB206GH |
| Max. planing width | mm | 630 |
| Min. planing width | mm | 50 |
| Max. planing thickness | mm | 170 |
| Min. planing thickness | mm | 10 |
| Min. workpiece length | mm | 310 |
| Max. planing depth per pass – Top cutterhead | mm | 5 |
| Max. planing depth per pass – Bottom cutterhead | mm | 3 |
| Feed speed | m/min | 10–40 |
| Top & bottom cutterhead speed | r/min | 5800 |
| Cutting speed | m/s | 31 |
| Cutter diameter | mm | Ø125 |
| Total power | kW | 30.8 |
| Motor power – Top cutter motor | kW | 15 |
| Motor power – Bottom cutter motor | kW | 11 |
| Motor power – Feed motor | kW | 4.0 |
| Motor power – Feed roller lift / pressing lift motor | kW | 0.75 |
| Overall dimensions (L × W × H) | cm | 312 × 118 × 183 |
| Machine weight | kg | 3600 |
