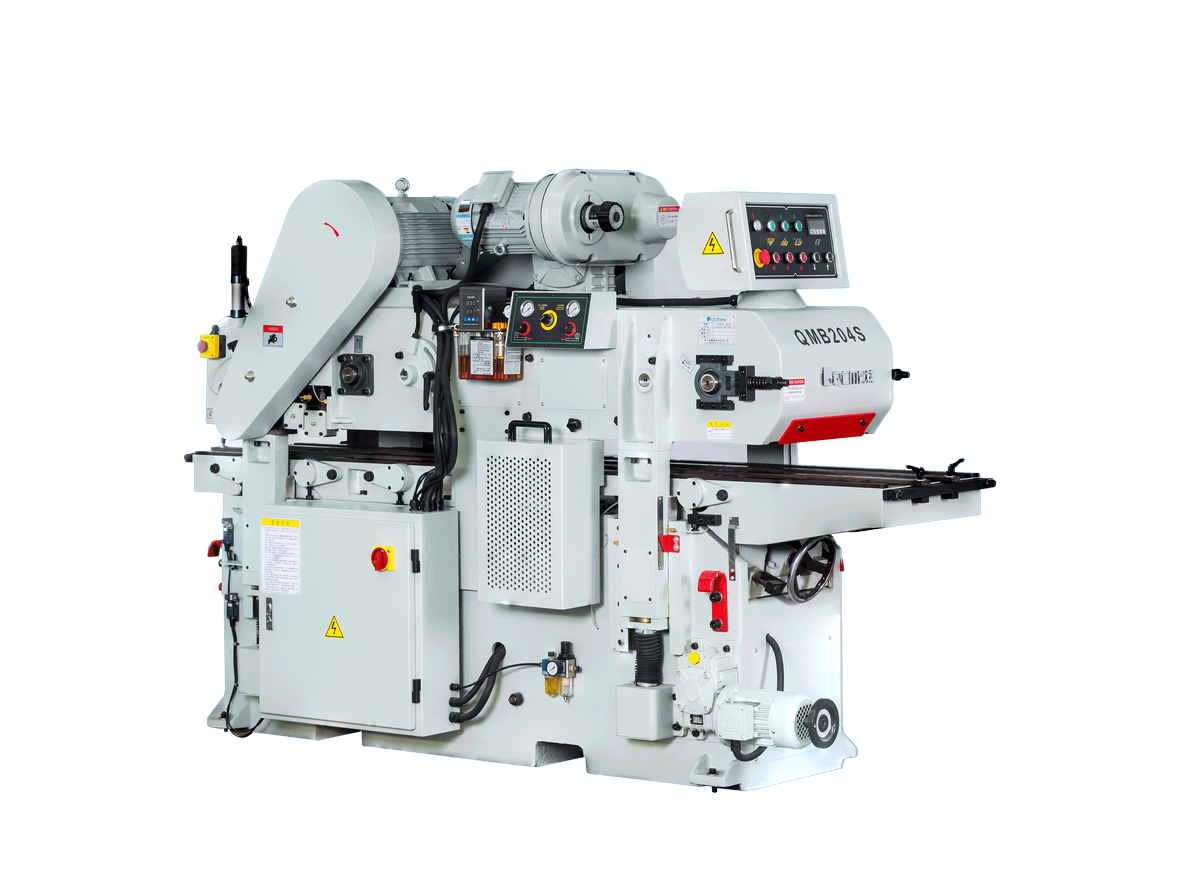

The QMB204S is a compact double-side planer designed to plane top and bottom surfaces in one pass for fast thickness sizing and surface finishing. It supports workpieces up to 405 mm wide and 170 mm thick, with adjustable feed speed for stable continuous operation.
Key Features (QMB204S)
-
Double-side planing in one pass: planes top & bottom surfaces at the same time.
-
Working capacity: 405 mm max width, 170 mm max thickness (min 10 mm).
-
Short workpiece support: min length 100 mm; short-piece min thickness 13 mm.
-
Adjustable feed speed: 5.3–20 m/min for stable continuous production.
-
High cutterhead speed: 5800 r/min with Ø90 mm cutting diameter.
-
Dust extraction ready: 2 × Ø150 mm ports; air volume 3800 m³/h; air velocity 25–35 m/s.
-
Installed power: 14.5 kW; machine weight 2500 kg.
| Specification | Unit | QMB204S |
|---|---|---|
| Model | — | QMB204S |
| Max. planing width | mm | 405 |
| Min. planing width | mm | 40 |
| Max. planing thickness | mm | 170 |
| Min. planing thickness | mm | 10 |
| Min. planing thickness (short workpiece) | mm | 13 |
| Min. workpiece length | mm | 100 |
| Max. planing depth per pass – Top cutterhead | mm | 5 |
| Max. planing depth per pass – Bottom cutterhead | mm | 3 |
| Feed speed | m/min | 5.3–20 |
| Top & bottom cutterhead speed | r/min | 5800 |
| Cutter cutting diameter | mm | Ø90 |
| Dust outlet diameter | mm | 2 × Ø150 |
| Dust extraction air volume requirement | m³/h | 3800 |
| Dust extraction air velocity | m/s | 25–35 |
| Total power | kW | 14.5 |
| Motor power – Top cutter motor | kW | 7.5 |
| Motor power – Bottom cutter motor | kW | 4.0 |
| Motor power – Feed motor | kW | 2.2 |
| Motor power – Feed lift motor | kW | 0.75 |
| Overall dimensions (L × W × H) | cm | 252 × 92 × 178 |
| Machine weight | kg | 2500 |
