Highlights

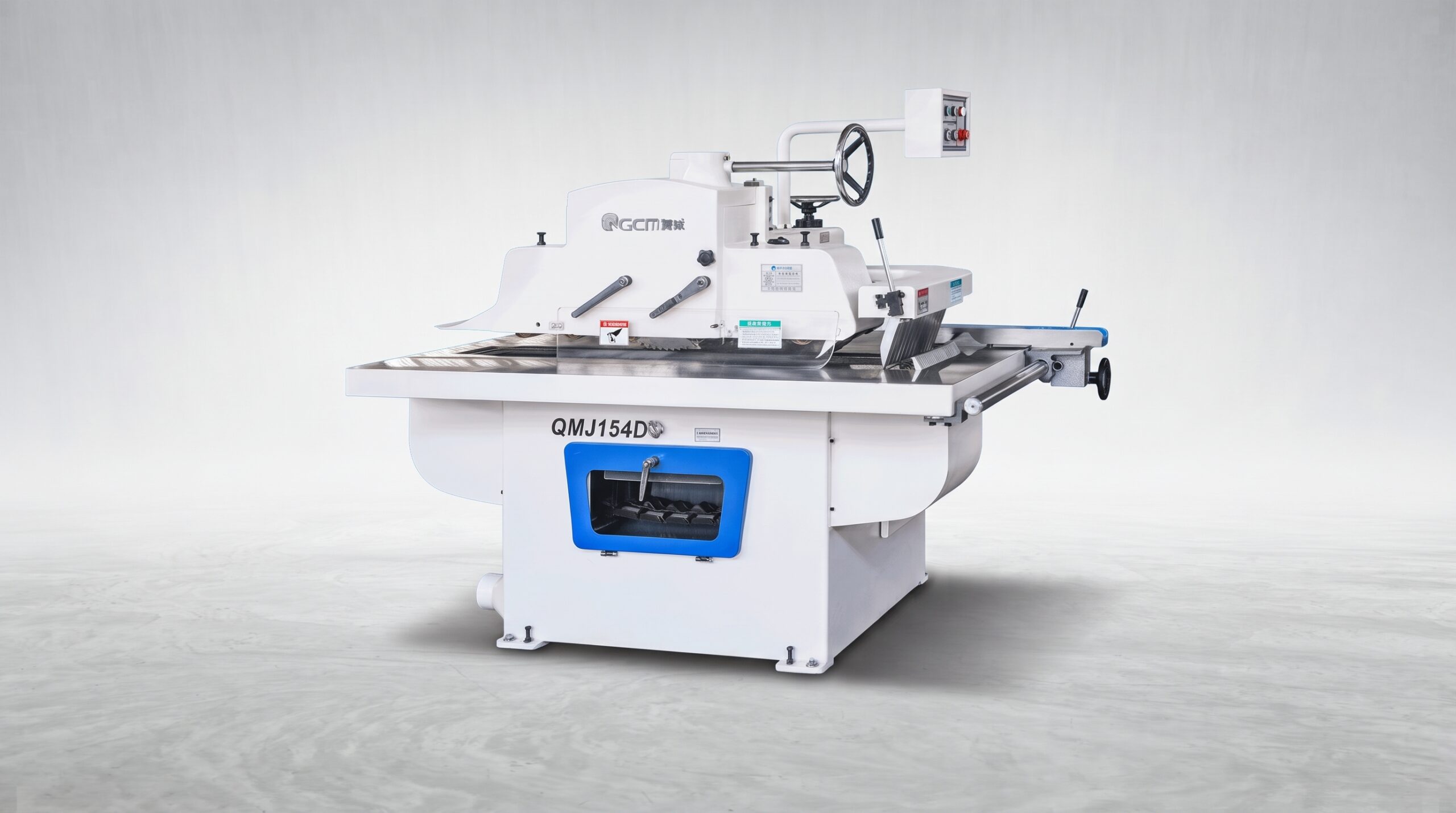

The QCM QMJ154D combines a rigid machine structure with stable chain-track feeding and a powerful top-mounted saw spindle. It is designed for accurate straight-line ripping and edging of wide or thick solid wood workpieces.
- Maximum Cutting Thickness: 125 mm
- Minimum Workpiece Length: 300 mm
- Throat Capacity: 510 mm
- Feed Speeds: 8 / 13 / 20 / 32 m/min
- Saw Blade Diameter: Ø300–400 mm
- Saw Spindle Motor: 11 kW
Images
Features
- Heavy-duty welded steel frame provides excellent rigidity and structural stability.
- Vibration-aging treatment helps reduce deformation and maintain long-term cutting accuracy.
- Precision-balanced top-mounted saw spindle provides smooth and reliable cutting.
- Wear-resistant cast-iron chain plates and guide rails support stable material feeding.
- Five groups of upper pressure rollers hold workpieces securely during cutting.
- Three groups of anti-kickback fingers improve infeed safety.
- Manually adjustable saw spindle height accommodates different material thicknesses.
- Adjustable infeed fence allows fast cutting-width positioning.
- Four selectable feed speeds suit different wood species and processing requirements.
- Automatic lubrication reduces daily maintenance requirements.
- Dual cleaning brushes help protect the chain-track feeding system from dust accumulation.
- Branded electrical components provide reliable control and long service life.
Technical Data
| Specification | Unit | MJ153D / MJ153D-T Optional | MJ153F / MJ153F-T Optional | MJ153S Short-Stock Version | MJ154D / MJ154D-T Optional | MJ154F / MJ154F-T Optional |
|---|---|---|---|---|---|---|
| Maximum Cutting Thickness | mm | 85 | 85 | 70 | 125 | 125 |
| Minimum Workpiece Length | mm | 330 | 330 | 150 | 300 | 300 |
| Throat Capacity | mm | 460 | 460 | 460 | 510 | 510 |
| Saw Arbor Diameter | mm | Ø25.4 | Ø25.4 | Ø25.4 | Ø30 | Ø30 |
| Saw Spindle Speed | rpm | 4,000 | 4,000 | 4,000 | 3,450 | 3,450 |
| Saw Blade Diameter | mm | Ø205–305 | Ø205–305 | Ø205–305 | Ø300–400 | Ø300–400 |
| Feed Speed | m/min | 12 / 17 / 23 / 32 | 8–32 | 12 / 17 / 23 / 32 | 8 / 13 / 20 / 32 | 8–32 |
| Total Installed Power | kW | 8.3 | 8.3 | 8.3 | 12.5 | 12.5 |
| Feed Motor Power | kW | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Saw Spindle Motor Power | kW | 7.5 | 7.5 | 7.5 | 11 | 11 |
| Pressure Roller Lifting Motor | kW | 0.37, Optional | 0.37, Optional | — | 0.37, Optional | 0.37, Optional |
| Dust Extraction Port Diameter | mm | 2 × Ø100 | 2 × Ø100 | 2 × Ø100 | 2 × Ø100 | 2 × Ø100 |
| Overall Dimensions, L × W × H | mm | 1,700 × 1,100 × 1,580 | 1,700 × 1,100 × 1,580 | 1,630 × 1,060 × 1,580 | 1,960 × 1,180 × 1,600 | 1,960 × 1,180 × 1,600 |
| Machine Weight | kg | 950 / 1,050 | 950 / 1,050 | 920 | 1,150 / 1,450 | 1,150 / 1,450 |
