Highlights
The QMJ153S is developed specifically for the safe and stable ripping of short solid wood workpieces. Its compact feeding arrangement and multi-group pressure roller system help maintain reliable workpiece control during straight-line ripping and edge preparation.
- Minimum Workpiece Length: 150 mm
- Maximum Cutting Thickness: 70 mm
- Throat Capacity: 460 mm
- Four Feed Speeds: 12 / 17 / 23 / 32 m/min
- Saw Blade Diameter: Ø205–305 mm
- Saw Spindle Motor: 7.5 kW
Images
Features

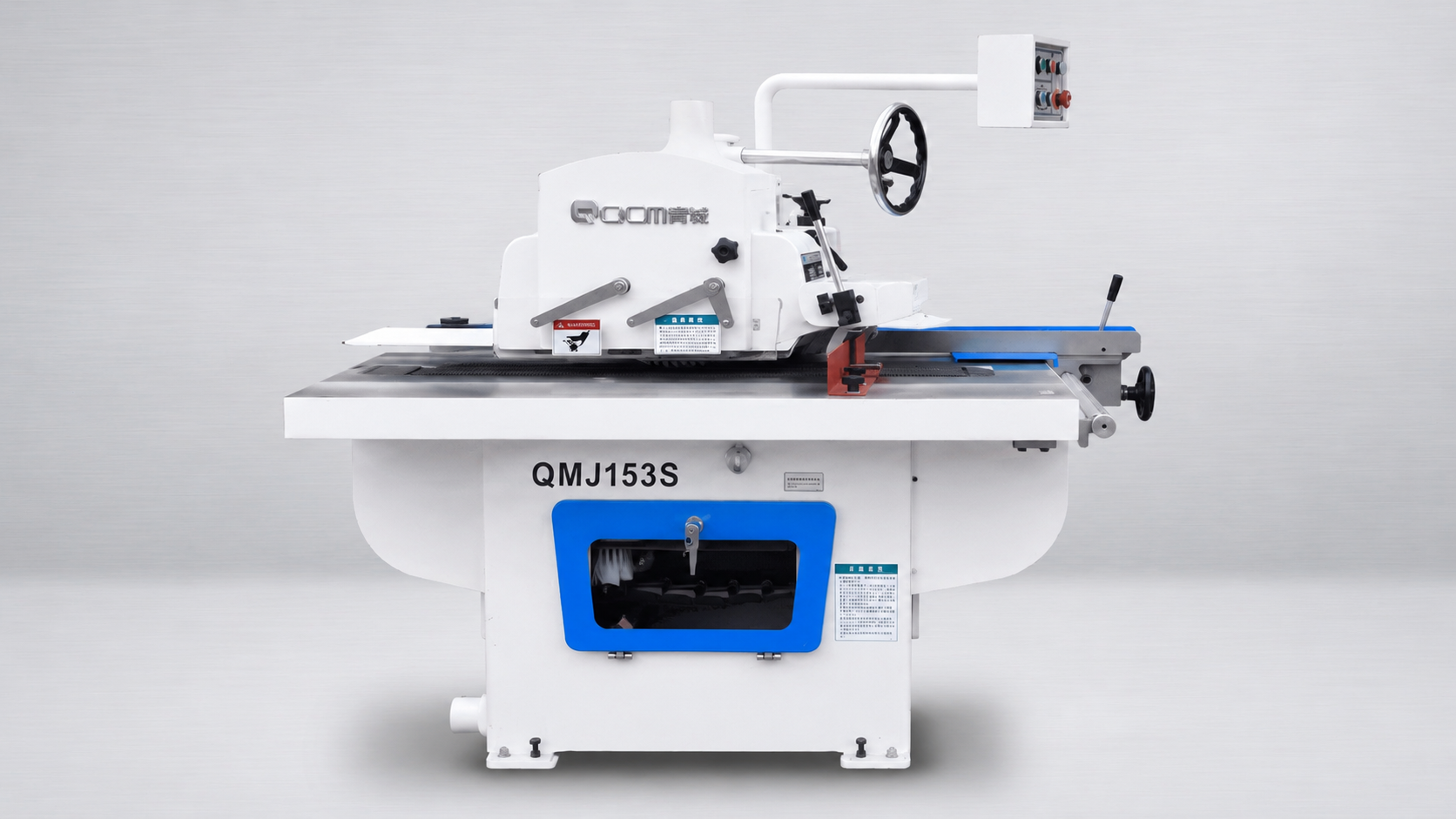

- The QMJ153S Short-Stock Single Rip Saw is designed for the longitudinal cutting, straight-line edging and width sizing of short solid wood components.
- The machine consists of three main structural sections: a heavy-duty welded machine bed, a chain-track feeding assembly and a precision top-mounted saw spindle.
- The machine frame is manufactured from high-strength welded steel and undergoes vibration-aging treatment and precision machining to improve structural rigidity and long-term accuracy retention.
- The saw spindle is manufactured from specially selected materials and undergoes specialized treatment, precision machining and dynamic balancing. High-quality bearings provide smooth rotation, dependable cutting performance and extended service life.
Technical Data
| Specification | Unit | MJ153D / MJ153D-T Optional | MJ153F / MJ153F-T Optional | MJ153S Short-Stock Version | MJ154D / MJ154D-T Optional | MJ154F / MJ154F-T Optional |
|---|---|---|---|---|---|---|
| Maximum Cutting Thickness | mm | 85 | 85 | 70 | 125 | 125 |
| Minimum Workpiece Length | mm | 330 | 330 | 150 | 300 | 300 |
| Throat Capacity | mm | 460 | 460 | 460 | 510 | 510 |
| Saw Arbor Diameter | mm | Ø25.4 | Ø25.4 | Ø25.4 | Ø30 | Ø30 |
| Saw Spindle Speed | rpm | 4,000 | 4,000 | 4,000 | 3,450 | 3,450 |
| Saw Blade Diameter | mm | Ø205–305 | Ø205–305 | Ø205–305 | Ø300–400 | Ø300–400 |
| Feed Speed | m/min | 12 / 17 / 23 / 32 | 8–32 | 12 / 17 / 23 / 32 | 8 / 13 / 20 / 32 | 8–32 |
| Total Installed Power | kW | 8.3 | 8.3 | 8.3 | 12.5 | 12.5 |
| Feed Motor Power | kW | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Saw Spindle Motor Power | kW | 7.5 | 7.5 | 7.5 | 11 | 11 |
| Pressure Roller Lifting Motor | kW | 0.37, Optional | 0.37, Optional | — | 0.37, Optional | 0.37, Optional |
| Dust Extraction Port Diameter | mm | 2 × Ø100 | 2 × Ø100 | 2 × Ø100 | 2 × Ø100 | 2 × Ø100 |
| Overall Dimensions, L × W × H | mm | 1,700 × 1,100 × 1,580 | 1,700 × 1,100 × 1,580 | 1,630 × 1,060 × 1,580 | 1,960 × 1,180 × 1,600 | 1,960 × 1,180 × 1,600 |
| Machine Weight | kg | 950 / 1,050 | 950 / 1,050 | 920 | 1,150 / 1,450 | 1,150 / 1,450 |
