Highlights

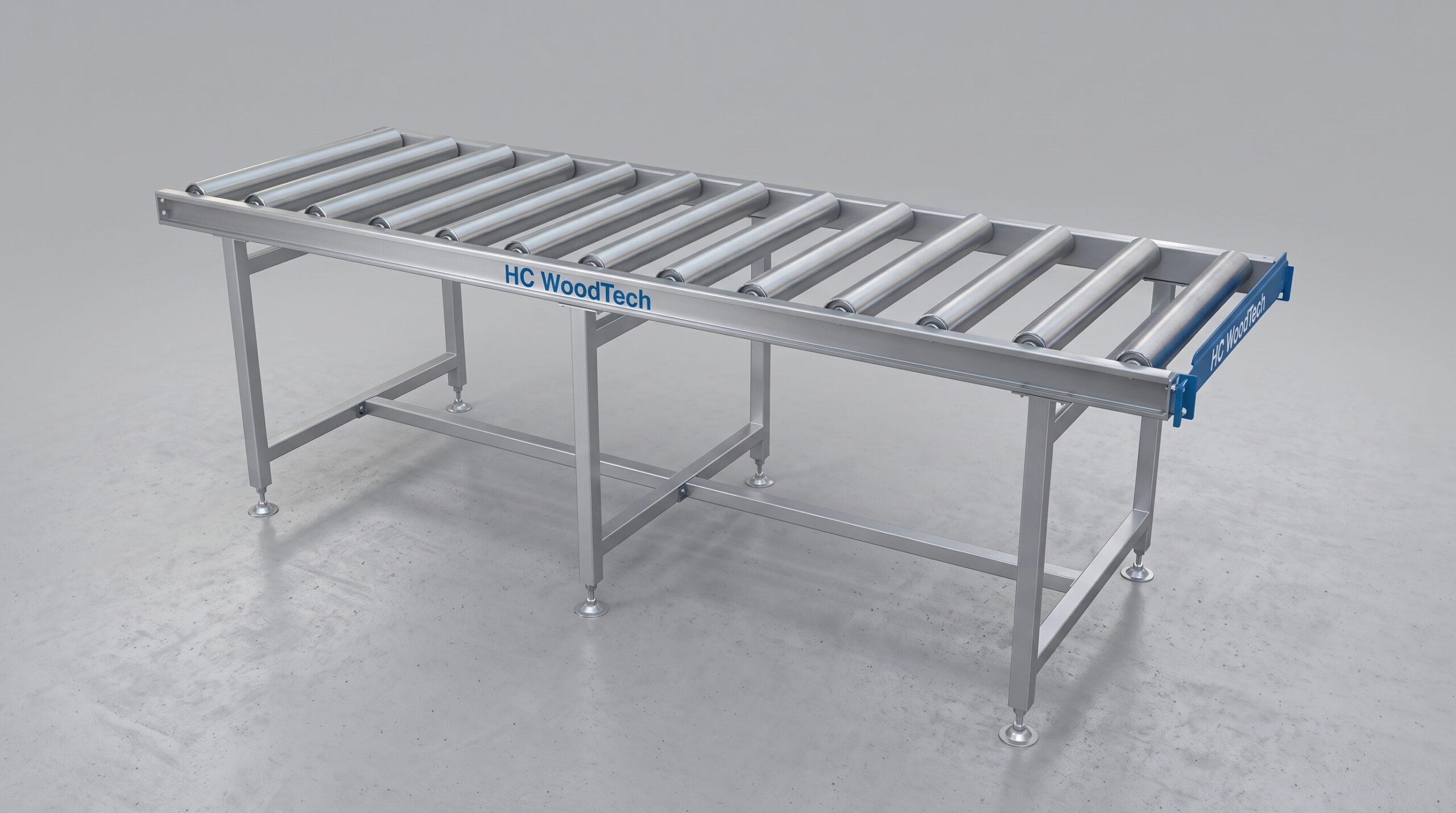

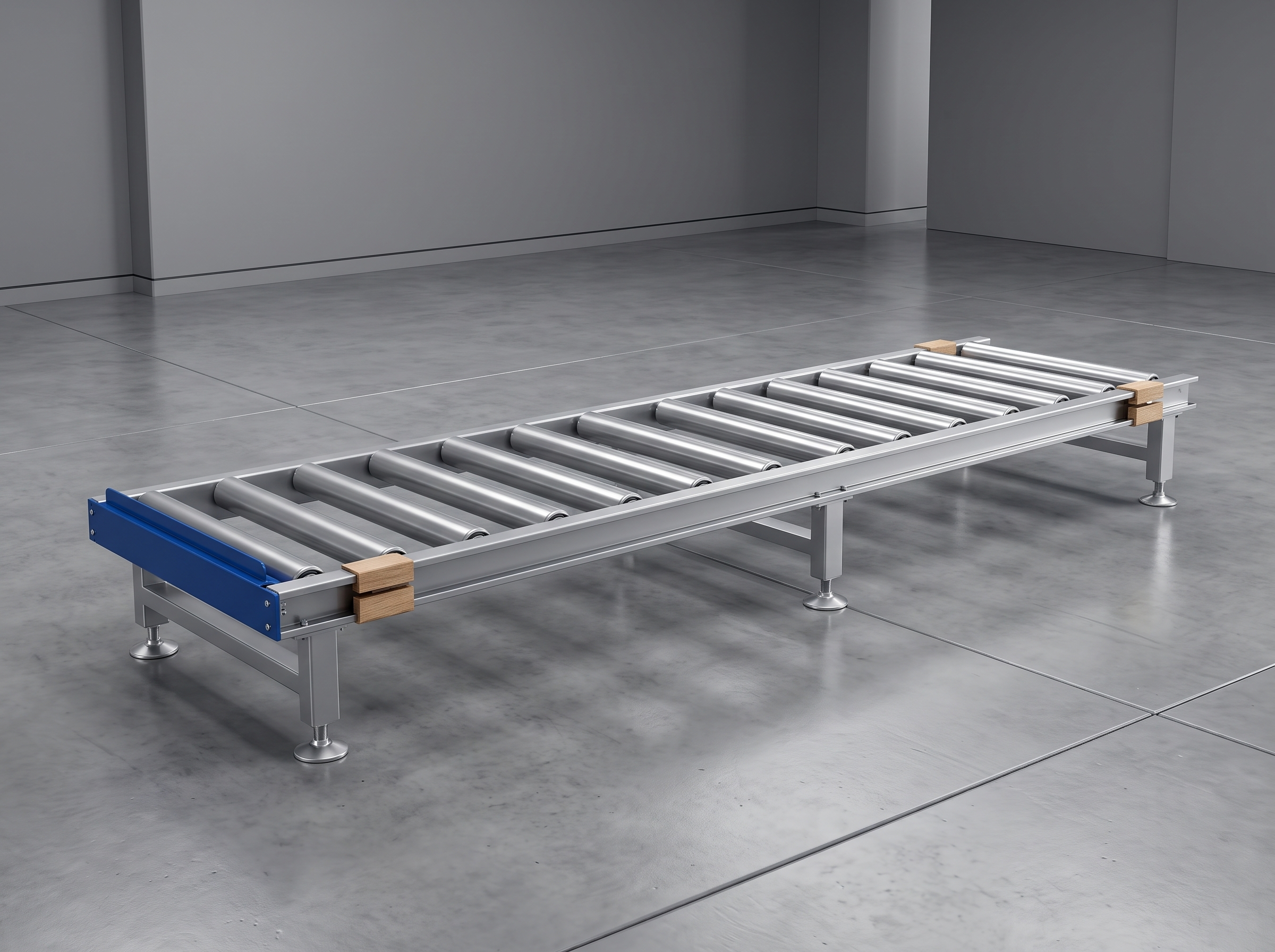

The Packing Section Roller Conveyor is designed for manual packaging, inspection and material transfer of panels, boards and other flat workpieces. With a 750 mm working height, the conveyor creates a more convenient operating position for packing tasks while supporting smooth workpiece movement between production and packaging stations. Its heavy-duty steel frame, hot-dip galvanized rollers and adjustable supports provide stable operation in woodworking and panel-processing lines.
- Overall dimensions: 2500 × 600 × 750 mm
- Roller length: 500 mm
- Roller center distance: 167 mm
- Roller diameter: Ø60 mm
- Loading capacity: 600 kg/m
- Working height: 750 mm
- Drive type: Unpowered
Images
Features
- 750 mm working height provides a practical platform for manual packing, inspection and workpiece preparation.
- Hot-dip galvanized rollers offer good corrosion resistance and durability for industrial material handling.
- Heavy-duty frame supports a rated load capacity of 600 kg/m.

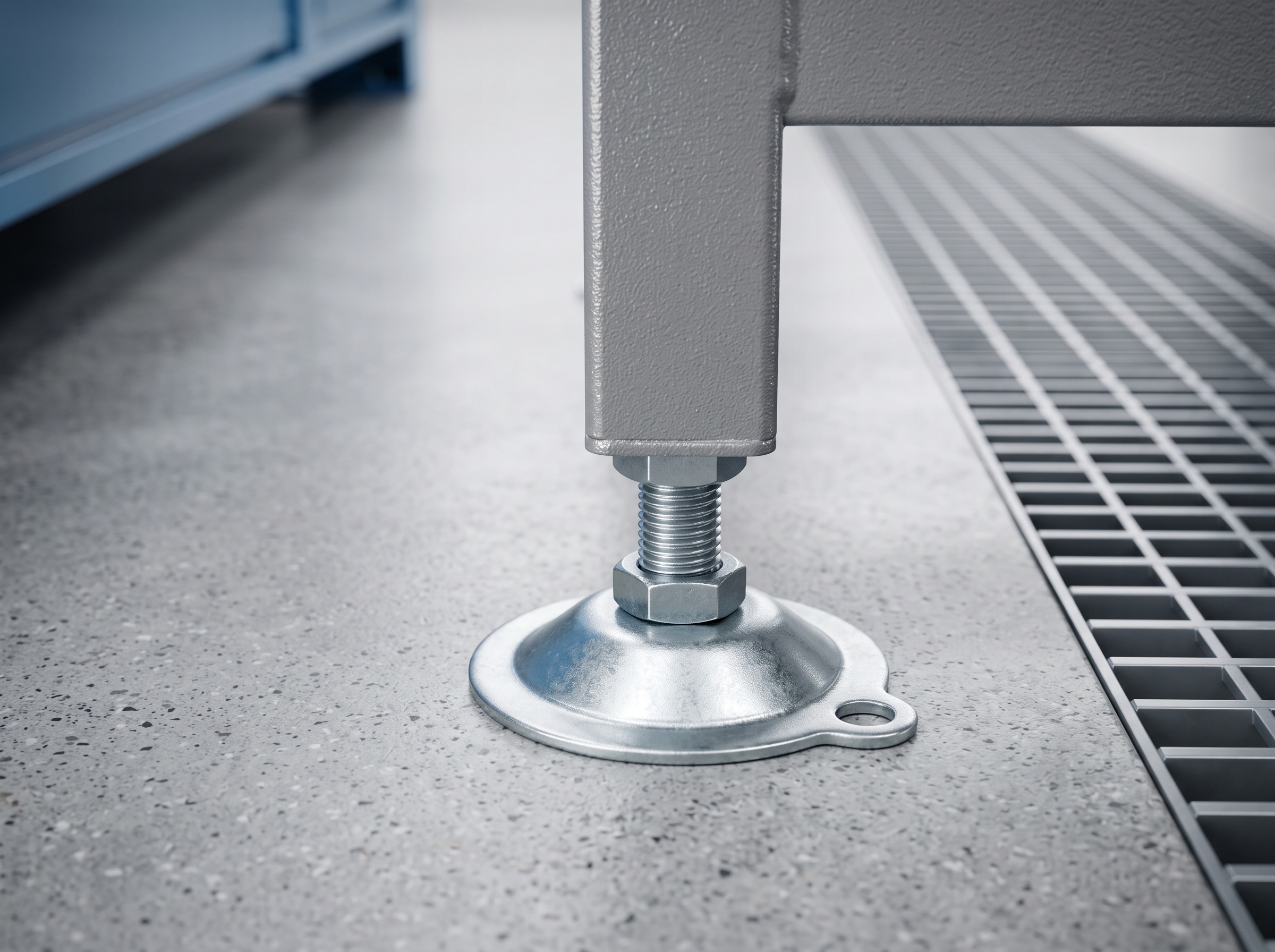

- Adjustable support structure helps compensate for uneven floors and different production-line installation conditions.

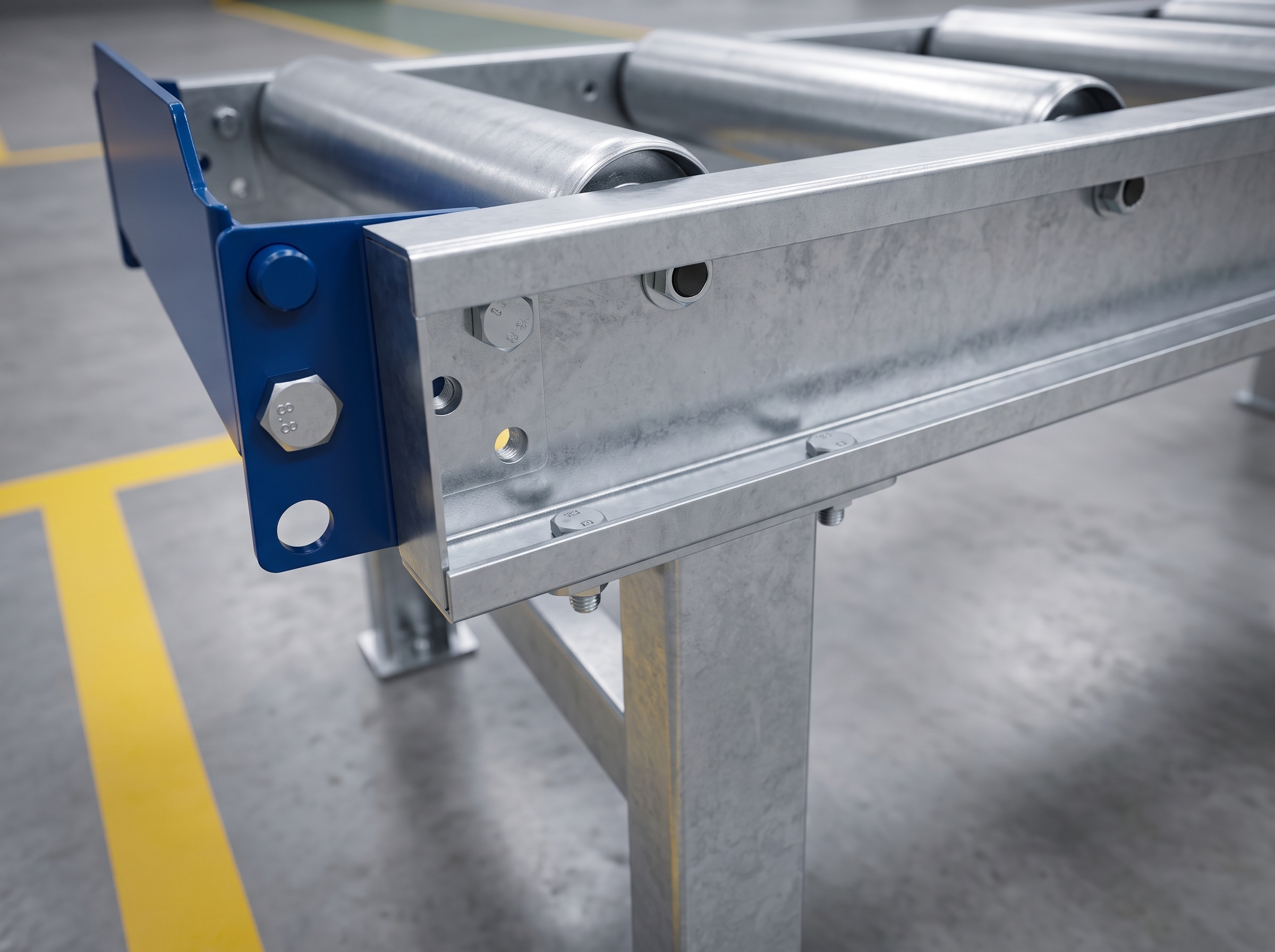

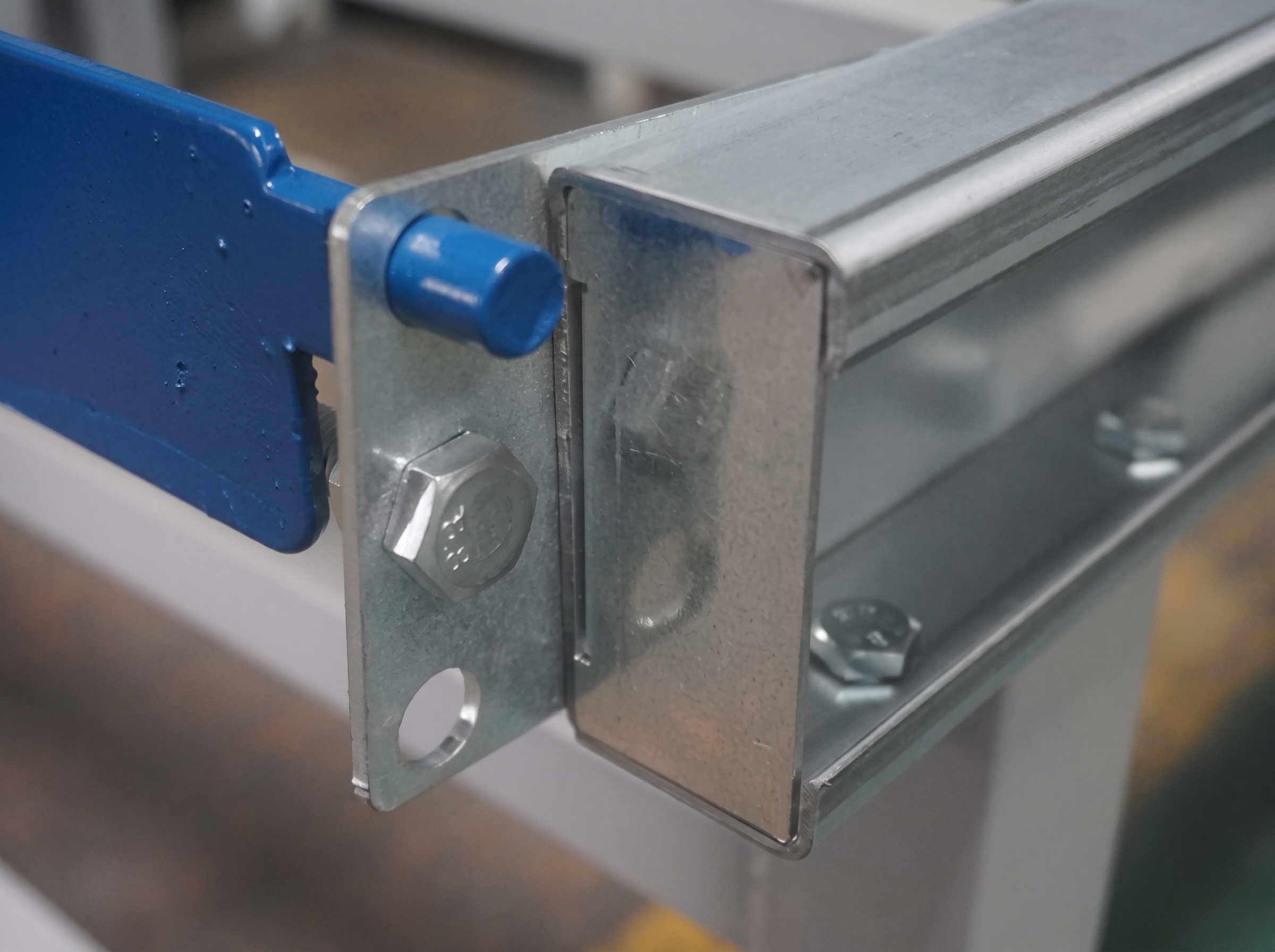

- Optional end stops can be added to help prevent panels or workpieces from moving beyond the conveyor area.
Technical data
| Specifications | Unit | FQ-WC-TYPE |
|---|---|---|
| Machine type | — | Unpowered Packing Roller Conveyor |
| Overall length | mm | 2500 |
| Overall width | mm | 600 |
| Overall height | mm | 750 |
| Roller length | mm | 500 |
| Roller center distance | mm | 167 |
| Roller size | mm | Ø60 × 1.5 |

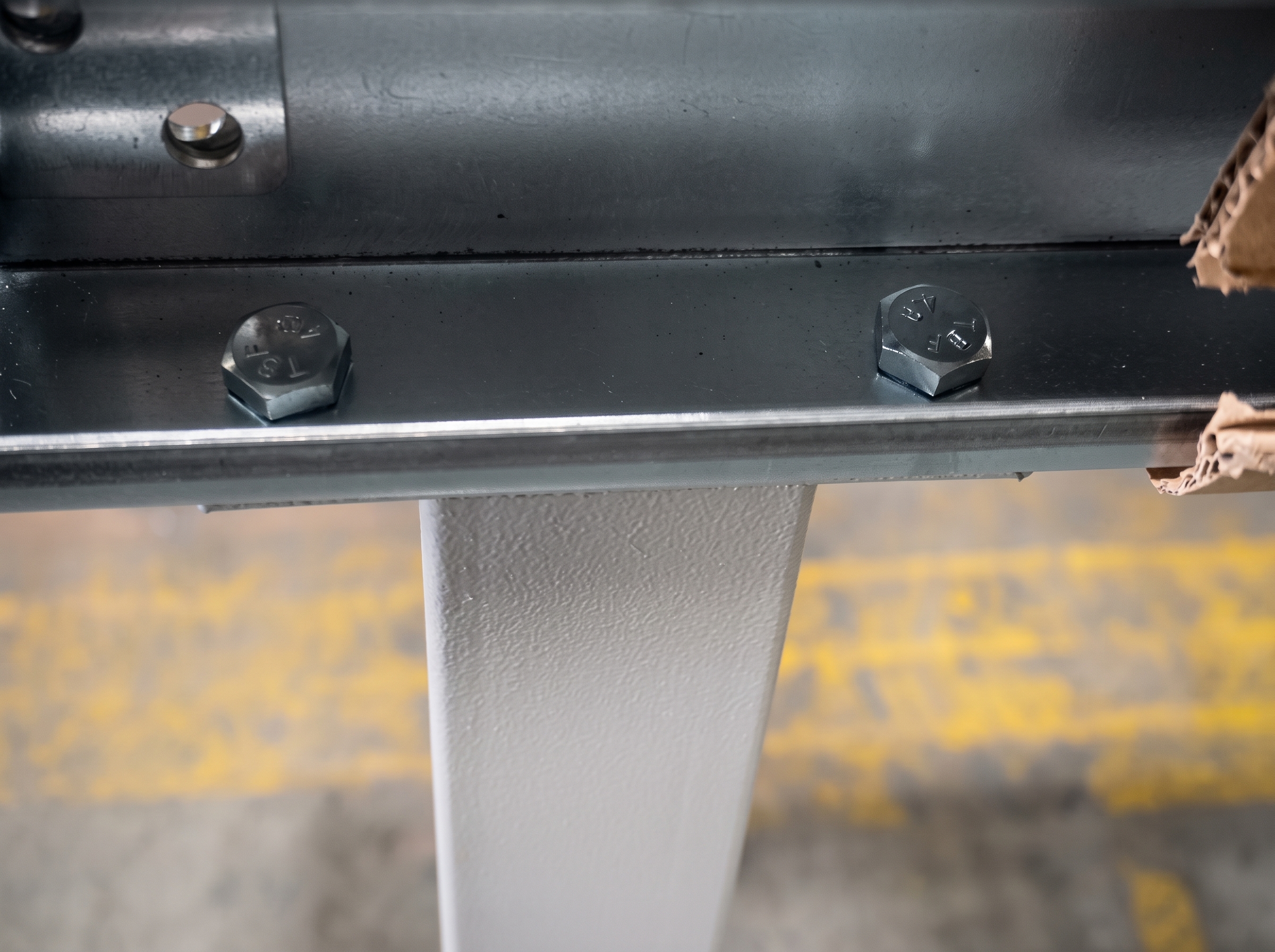

| Main beam | mm | 80 × 40 × 2.0 |
| Leg section | mm | 50 × 30 × 1.2 |
| Loading capacity | kg/m | 600 |
| Roller material | — | Hot-Dip Galvanized Steel |
| Drive system | — | Unpowered |
