Highlights

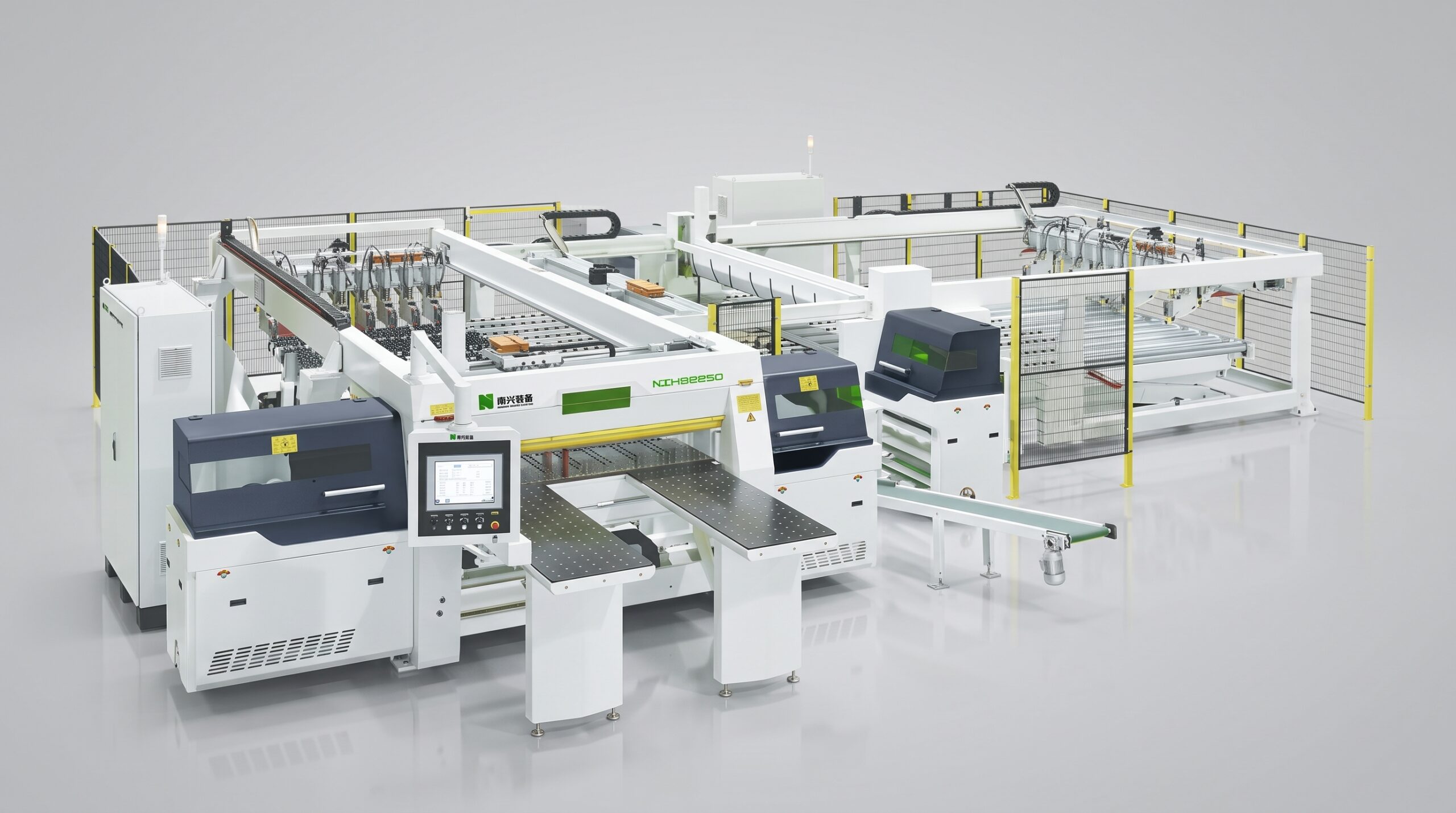

The NZH3318 Angular Panel Dividing Saw is designed for high-volume panel sizing where longitudinal and crosswise cutting are completed automatically in sequence within one integrated system. It provides 3300 mm longitudinal cutting length, 1800 mm crosswise cutting length and up to 120 mm cutting thickness. The machine uses two 18 kW main saw motors, a heavy-duty rear hydraulic lifting table and an IPC control center with Nanxing operation and optimization software for automated batch panel production.
- Longitudinal cutting length: 3300 mm
- Crosswise cutting length: 1800 mm
- Maximum cutting thickness: 120 mm
- Main saw motors: 18 kW × 2
- Automatic feeding speed: 85 m/min
- Saw carriage speed: 85 m/min forward / 100 m/min return
- Total power: 73.5 kW
Video
Features
- Automatically completes lengthwise and crosswise cutting in sequence within one production process.
- 120 mm cutting thickness supports high-capacity stacked-panel processing.
- Twin 18 kW main saw motors provide heavy-duty cutting performance.
- Heavy-duty rear hydraulic lifting table supports automated panel feeding.
- IPC control with Nanxing operation and optimization software supports digital production management.
Technical data
| Specifications | Unit | NZH3318 |
|---|---|---|
| Maximum longitudinal cutting length | mm | 3300 |
| Maximum crosswise cutting length | mm | 1800 |
| Maximum cutting thickness | mm | 120 |
| Main saw motor power | kW | 18 × 2 |
| Main saw speed | rpm | 3910 |
| Scoring saw speed | rpm | 4150 |
| Automatic feeding speed | m/min | 85 |
| Saw carriage forward speed | m/min | 85 |
| Saw carriage return speed | m/min | 100 |
| Rear feeding speed | m/min | 60 |
| Dust extraction | mm | Ø150 × 6 |
| Air blower | kW | 3 × 2.2 |
| Clamp quantity | pcs | Lengthwise saw: 6 / Crosswise saw: 8 |
| Total power | kW | 73.5 |
| Overall dimensions | mm | 9200 × 11600 × 2020 |
| Net weight | kg | 19,000 |
