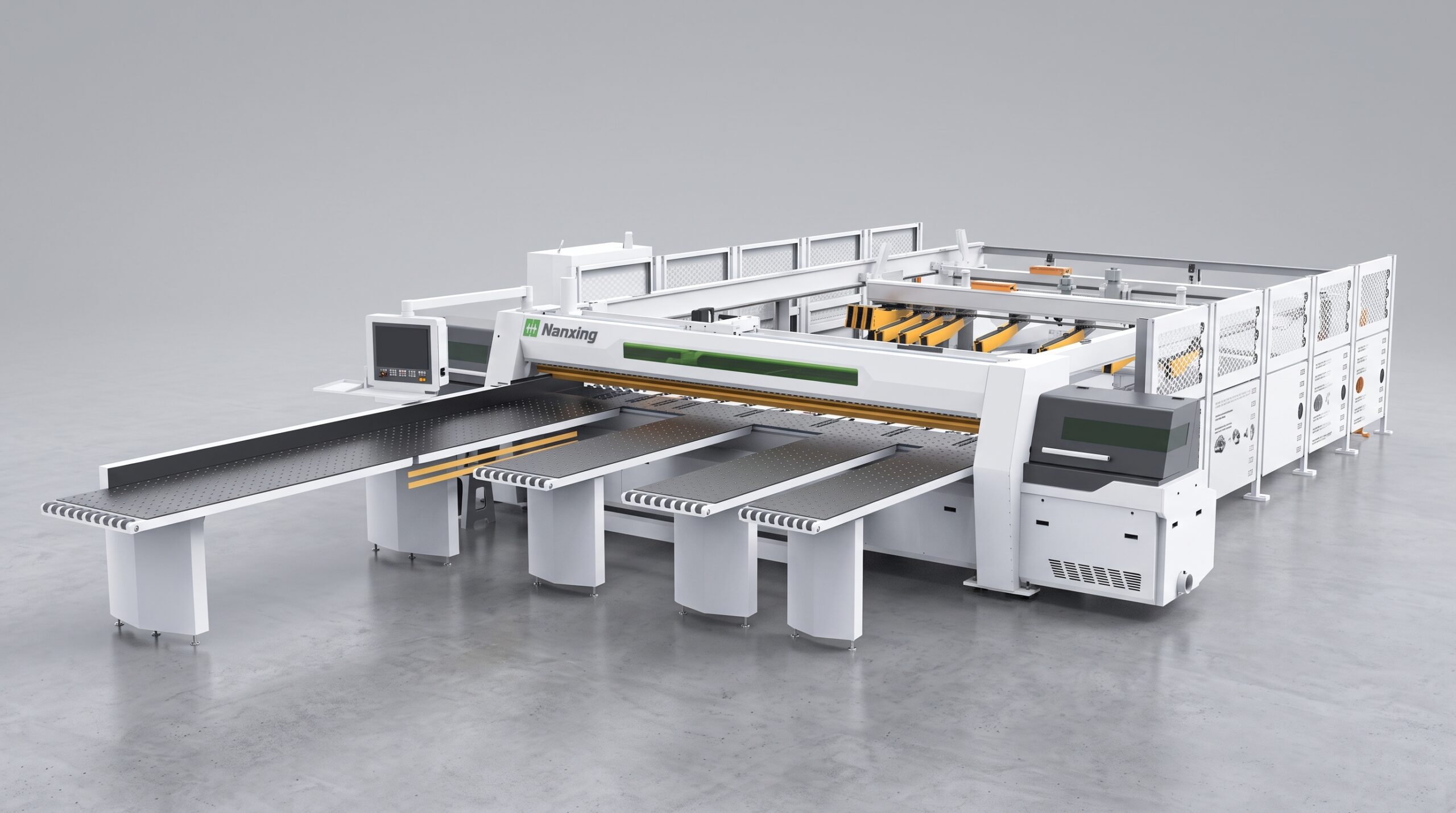

NPL440D Pit-Free Twin-Pusher Panel Dividing Saw

Highlights

The NPL440D Pit-Free Twin-Pusher Panel Dividing Saw is designed for high-output batch cutting with a pit-free rear feeding system. Two independently controlled clamp and pusher systems can process different panel sizes simultaneously, including crosswise and combined crosswise/lengthwise cutting; Nanxing states this can increase cutting capacity by up to 30%. A 5-ton hydraulic rear lifting table works with powered and gravity conveyors for flexible left-, right- or rear-side panel feeding, while the steel-rope lifting structure eliminates the need to excavate a floor pit.

• Maximum cutting length: 4400 mm
• Maximum cutting thickness: 120 mm
• Main saw motor: 18.5 kW
• Saw carriage speed: 120 m/min forward / return
• Rear lifting table capacity: Up to 5 tons
• Grippers: 13 pcs (2 + 11)
• Total power: 41 kW

Video

Features

• Pit-free rear feeding system uses a steel-rope lifting structure without floor excavation.
• Twin independent pusher/clamp systems allow different panel sizes to be cut simultaneously.
• Main and scoring saws move vertically independently, while the main saw automatically minimizes lifting travel.
• Automatic pressure-beam height adjustment reduces unnecessary movement between cutting cycles.
• Hydraulic rear lift table supports up to 5 tons and can be combined with powered or unpowered conveyors.
