Highlights

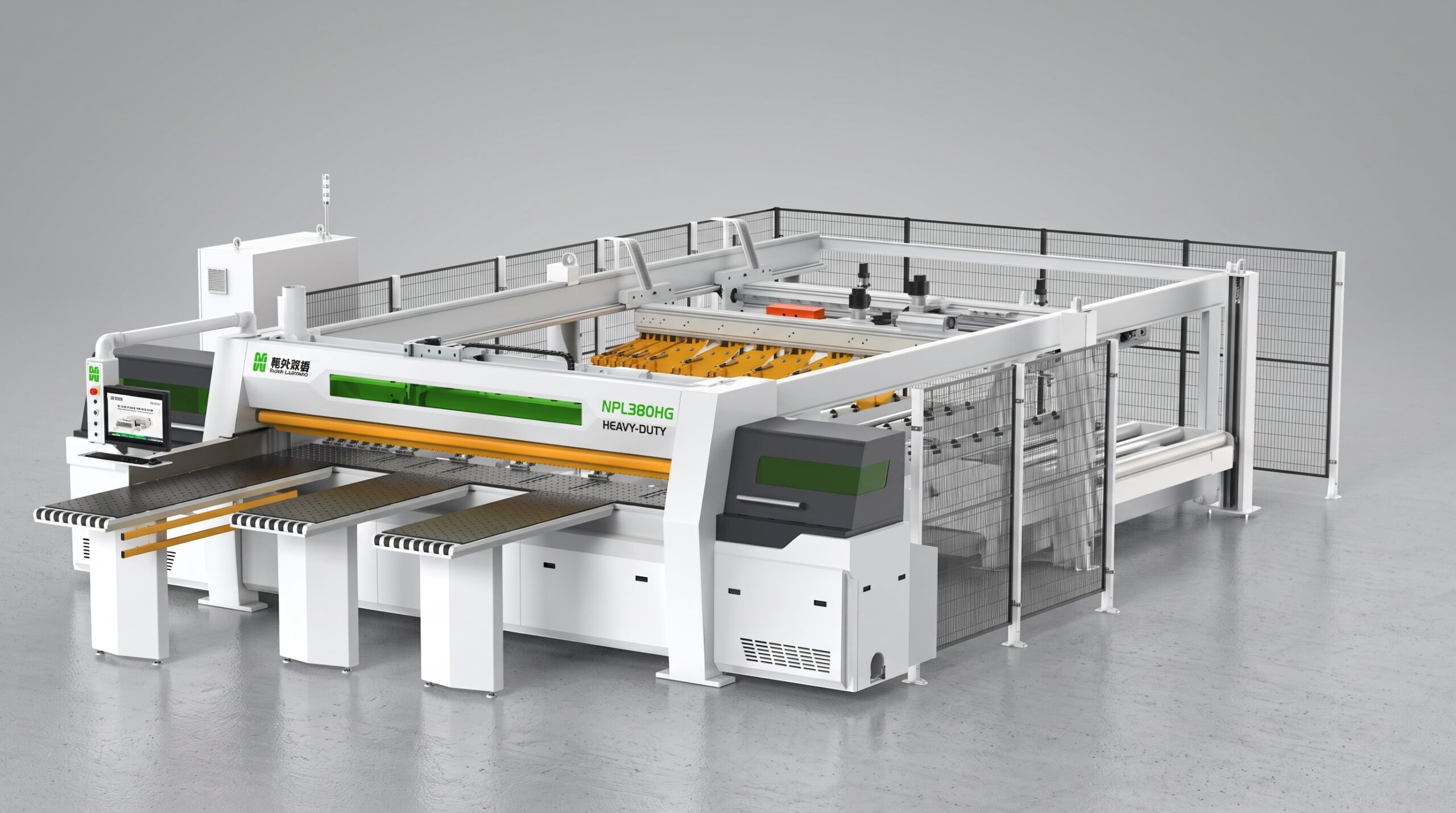

The NPL380HG Panel Dividing Saw with Lifting Table is designed for high-capacity batch panel cutting with automatic rear feeding. A hydraulic rear lift table with up to 5-ton loading capacity can be combined with powered or gravity conveyors, allowing panels to be fed from the left, right or rear depending on the production layout. The machine provides 3800 mm cutting length, 120 mm cutting thickness and an 18 kW main saw for industrial furniture and panel-processing production.
- Maximum cutting length: 3800 mm
- Maximum cutting thickness: 120 mm
- Main saw motor: 18 kW
- Rear lift table capacity: Up to 5000 kg
- Saw carriage speed: 90 m/min forward / 120 m/min return
- Main saw blade: Ø450 mm
- Total power: 40 kW
Features
- 5-ton hydraulic rear lift table supports high-volume stacked panel feeding.
- Compatible with powered and unpowered conveyors for flexible line integration.
- Left-, right- or rear-side feeding configurations can be specified according to factory layout.
- 120 mm cutting thickness supports large batch cutting applications.
- 18 kW main saw with Ø450 mm blade provides heavy-duty panel sizing capability.
Technical data
| Specifications | Unit | NPL380HG |
|---|---|---|
| Maximum cutting length | mm | 3800 |
| Maximum cutting thickness | mm | 120 |
| Main saw motor power | kW | 18 |
| Main saw speed | r/min | 3910 |
| Main saw blade diameter | mm | Ø450 |
| Main saw shaft diameter | mm | Ø60 |
| Scoring saw motor | kW | 2.2 |
| Scoring saw speed | r/min | 4150 |
| Scoring saw blade diameter | mm | Ø180 |
| Scoring saw shaft diameter | mm | Ø45 |
| Saw carriage motor | kW | 1.5 |
| Saw carriage forward speed | m/min | 90 |
| Saw carriage return speed | m/min | 120 |
| Automatic feeding motor | kW | 2 AC Servo |
| Power supply | — | AC 3P 380 V / 50 Hz |
| Total power | kW | 40 |
| Overall dimensions | mm | 9400 × 9200 × 2020 |
| Net weight | kg | 12,300 |
| Rear lift table capacity | kg | Up to 5000 |
