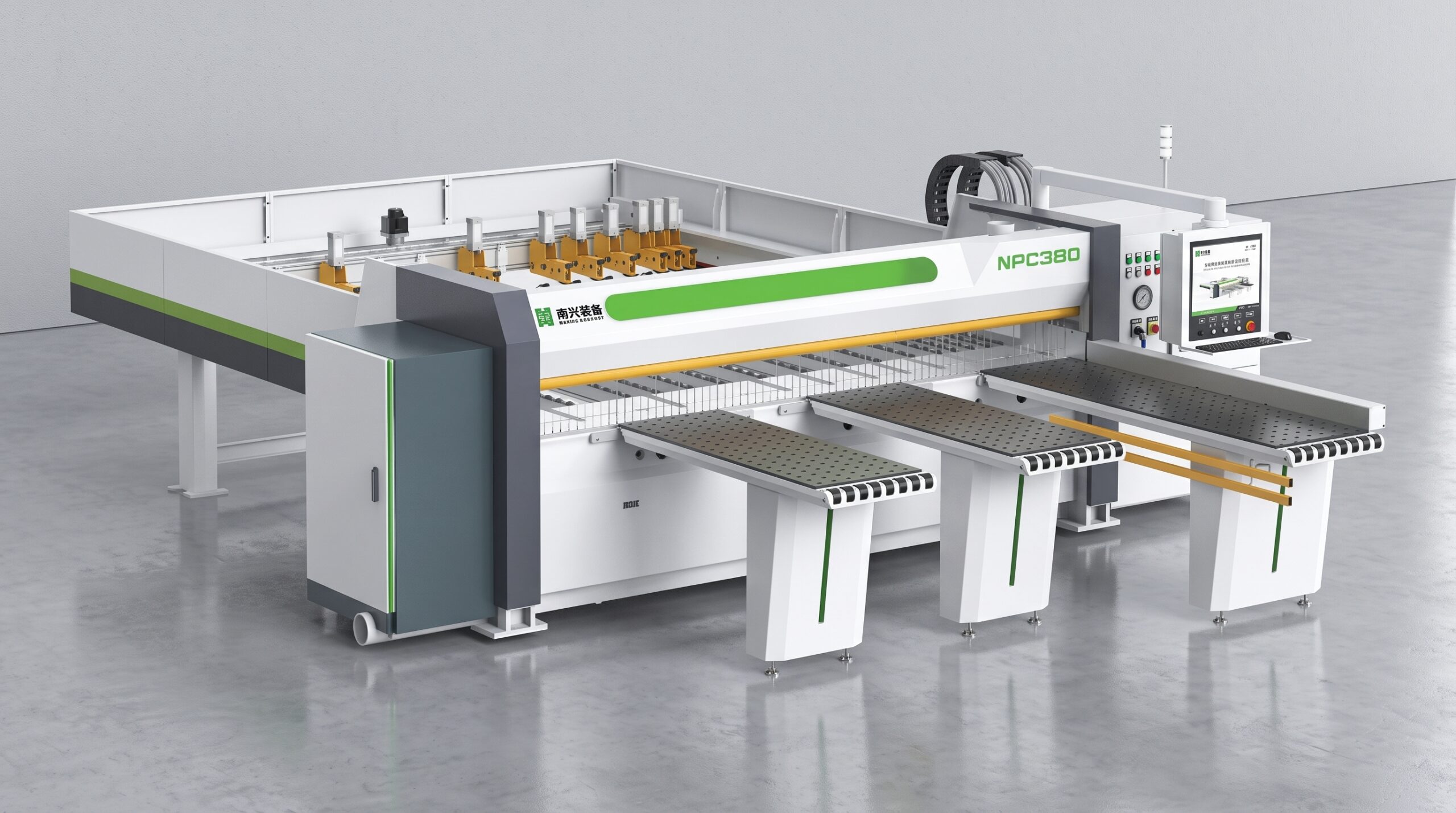

NPC380 Panel Dividing Saw

Highlights

The NPC380 Panel Dividing Saw is designed for high-efficiency sizing and batch cutting of furniture panels and wood-based boards. A 2 kW servo-driven saw carriage uses rack-and-pinion transmission and automatically optimizes its travel according to panel width, reaching up to 90 m/min forward and 120 m/min return speed. The pressure beam automatically adjusts according to the total panel stack height to reduce unnecessary travel, while the integrated software supports cutting-pattern simulation, production reporting, error display and barcode printing for organized panel processing.

• Maximum cutting length: 3800 mm
• Maximum cutting thickness: 90 mm
• Main saw motor: 15 kW
• Main saw speed: 4500 r/min
• Saw carriage speed: 90 m/min forward / 120 m/min return
• Automatic feeding speed: Up to 85 m/min
• Total power: 24.2 kW

Images

Features

• Servo-controlled saw carriage automatically adjusts travel according to panel width to reduce idle movement.
• Automatic pressure beam height adjustment shortens the clamping stroke for improved cutting efficiency.
• 15 kW main saw with up to Ø400 mm blade capacity handles panel stacks up to 90 mm thick.
• Eleven grippers support stable automatic panel positioning and feeding.
• Production software provides cutting-pattern simulation, process reports, fault messages and barcode printing.
