Highlights

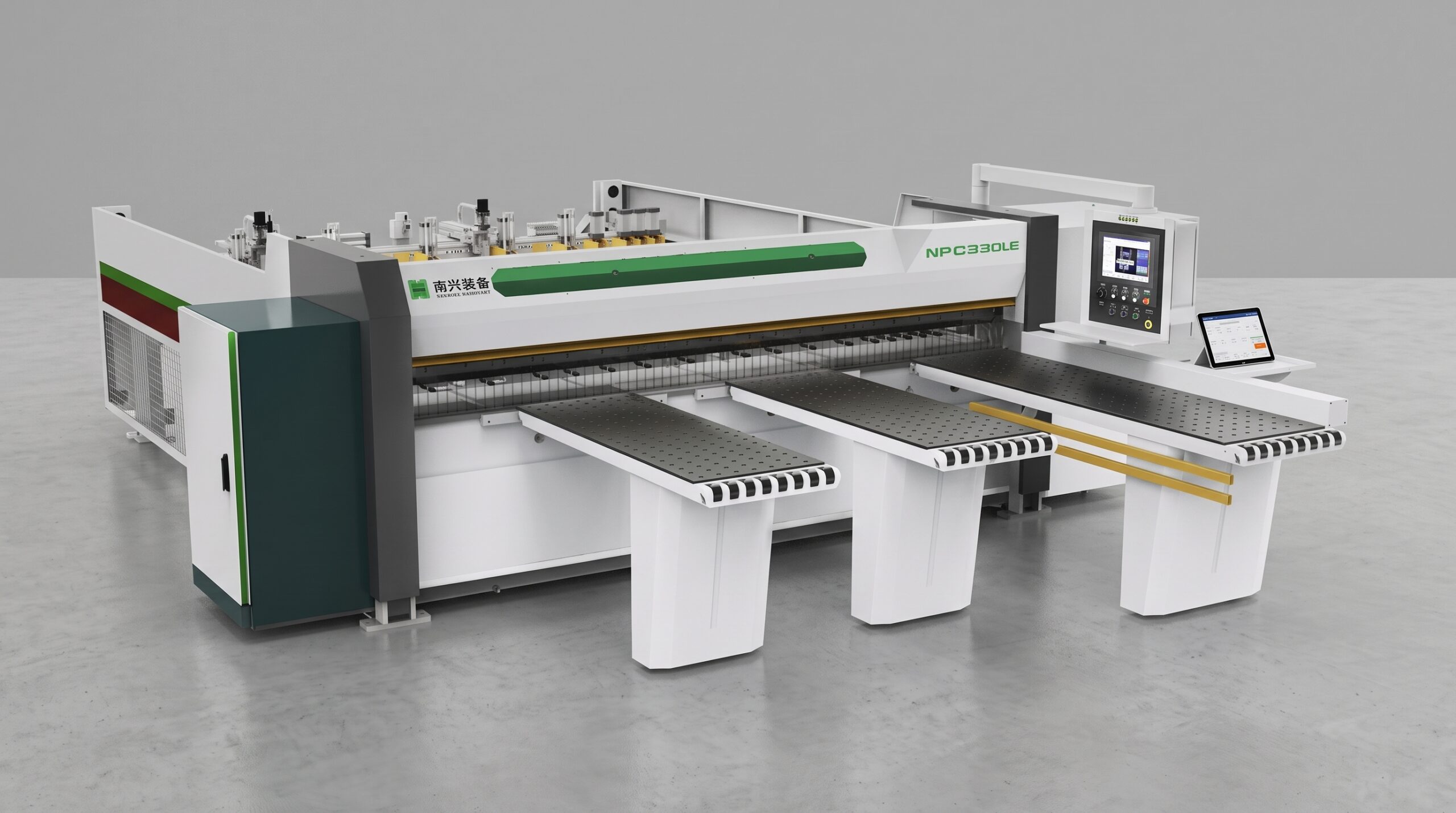

The NPC330LE Rear Feed Panel Dividing Saw is designed for automated batch cutting of furniture panels and wood-based boards. Its rear lifting-table feeding system reduces manual loading, while the servo-driven saw carriage with rack-and-pinion transmission provides smooth, high-speed cutting. The machine uses 9 clamps for accurate panel positioning and includes a side alignment device to improve positioning of narrow and long workpieces. Automatic positioning of the saw blade and pressure beam adjusts the working stroke according to panel thickness.
- Cutting length: 3200 mm
- Cutting thickness: 90 mm
- Main saw motor: 15 kW
- Saw carriage speed: 90 m/min forward / 120 m/min return
- Automatic feeding speed: 85 m/min
- Rear feeding speed: 60 m/min
- Total power: 26 kW
Images
Features

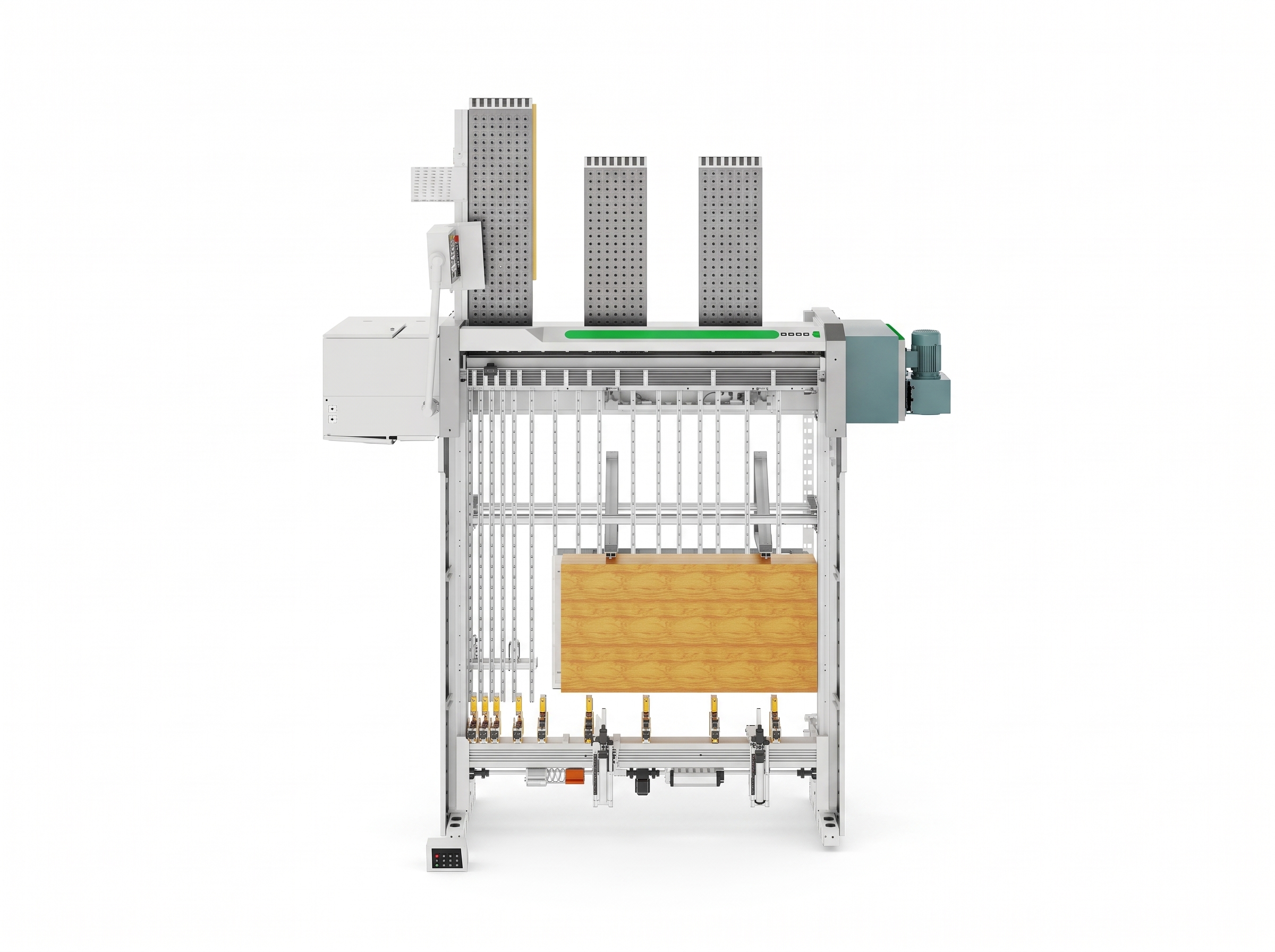

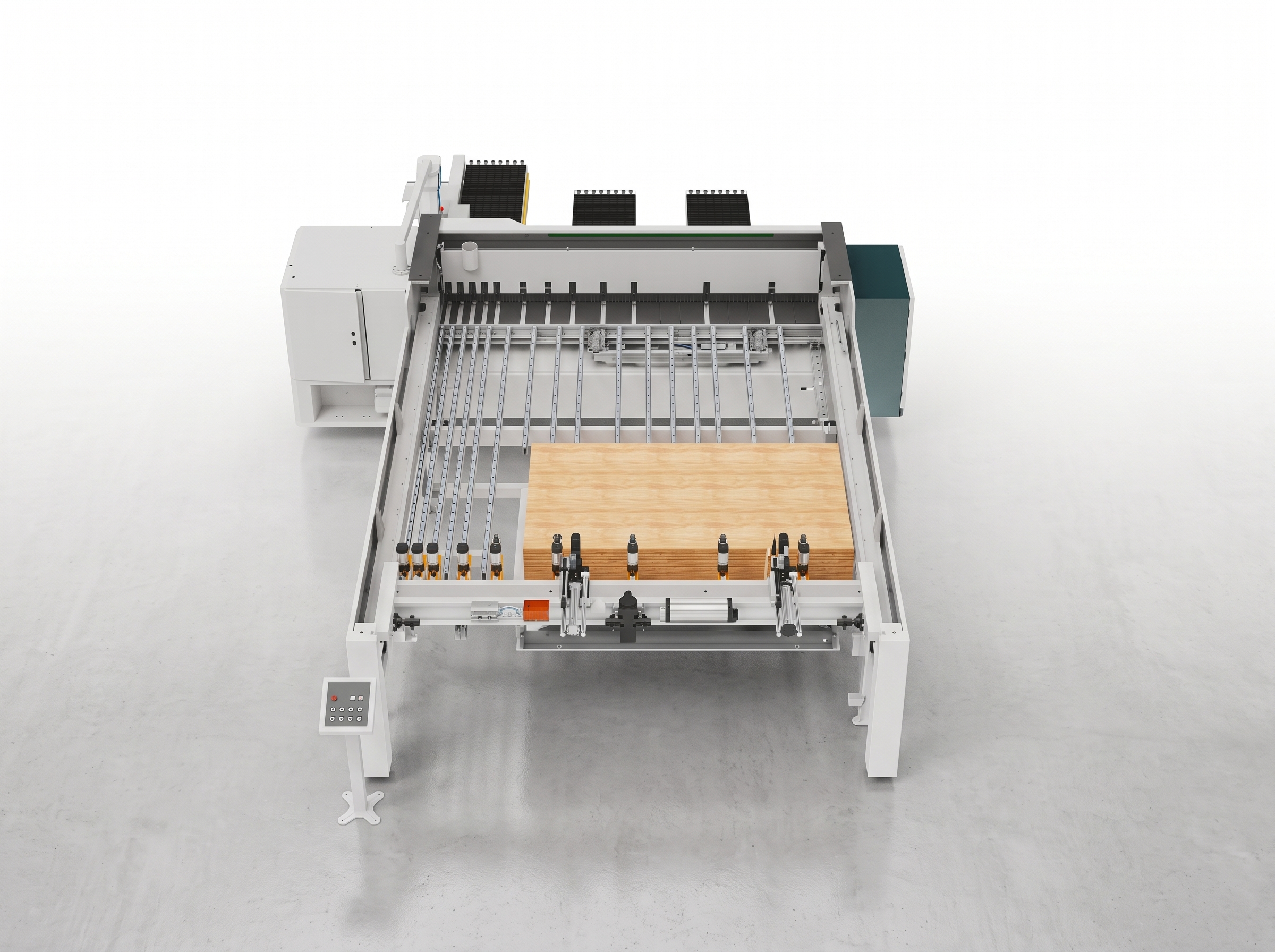

- Rear lifting-table feeding reduces manual panel handling.

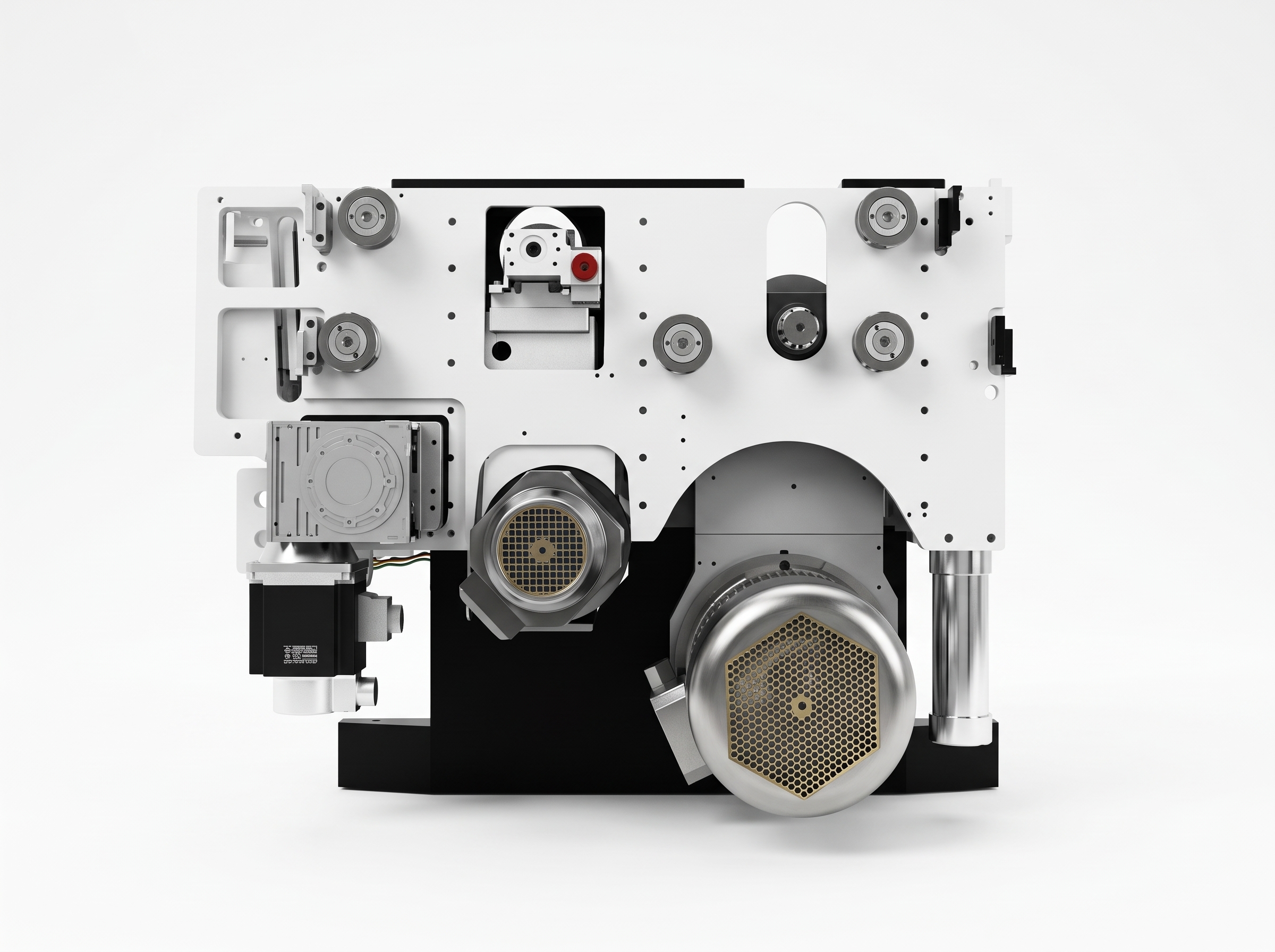

- Servo-driven saw carriage uses rack-and-pinion transmission for smooth movement.

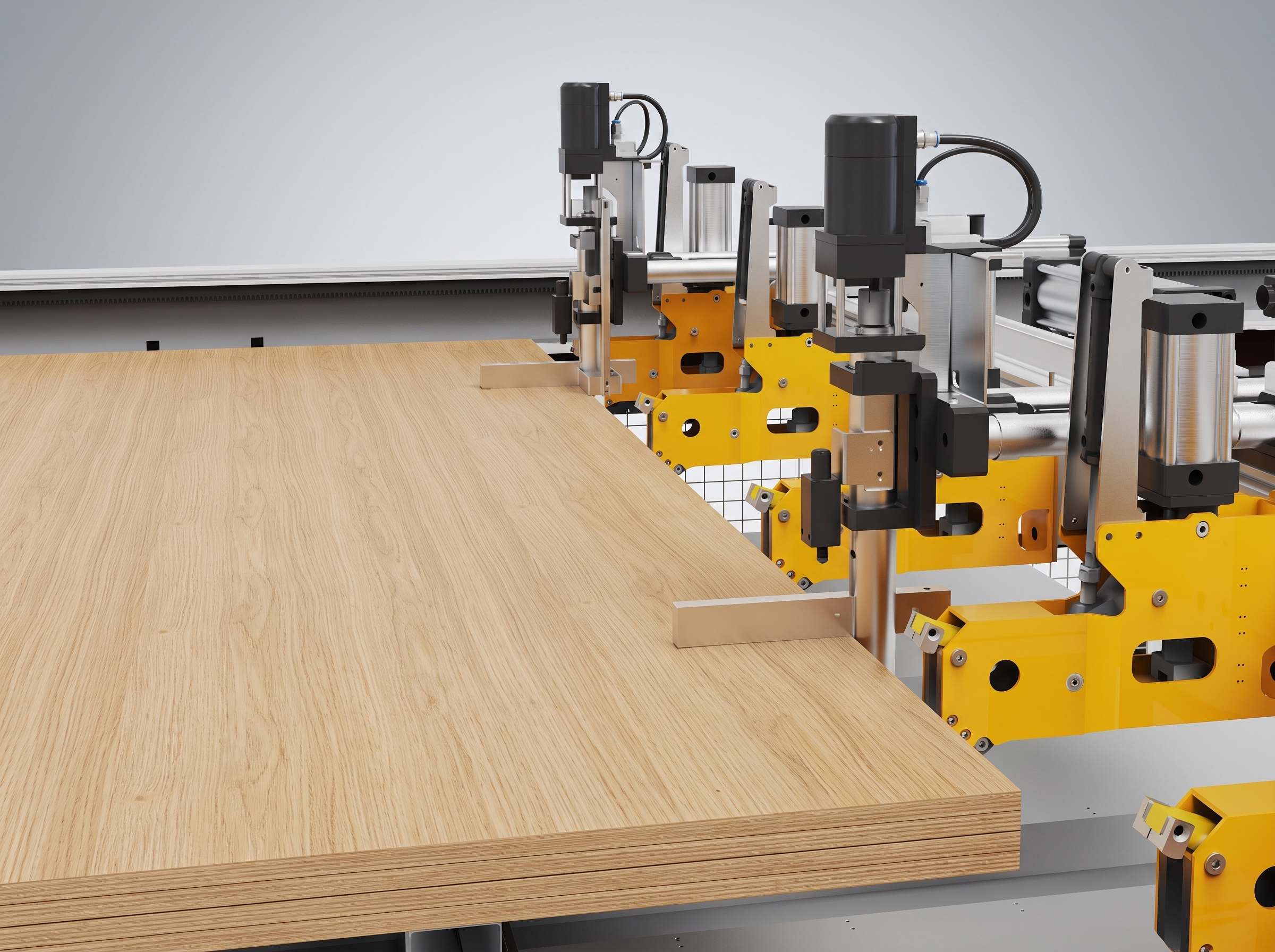

- 9 clamps provide stable gripping and accurate panel positioning.
- Side alignment device improves positioning accuracy for narrow and long panels.

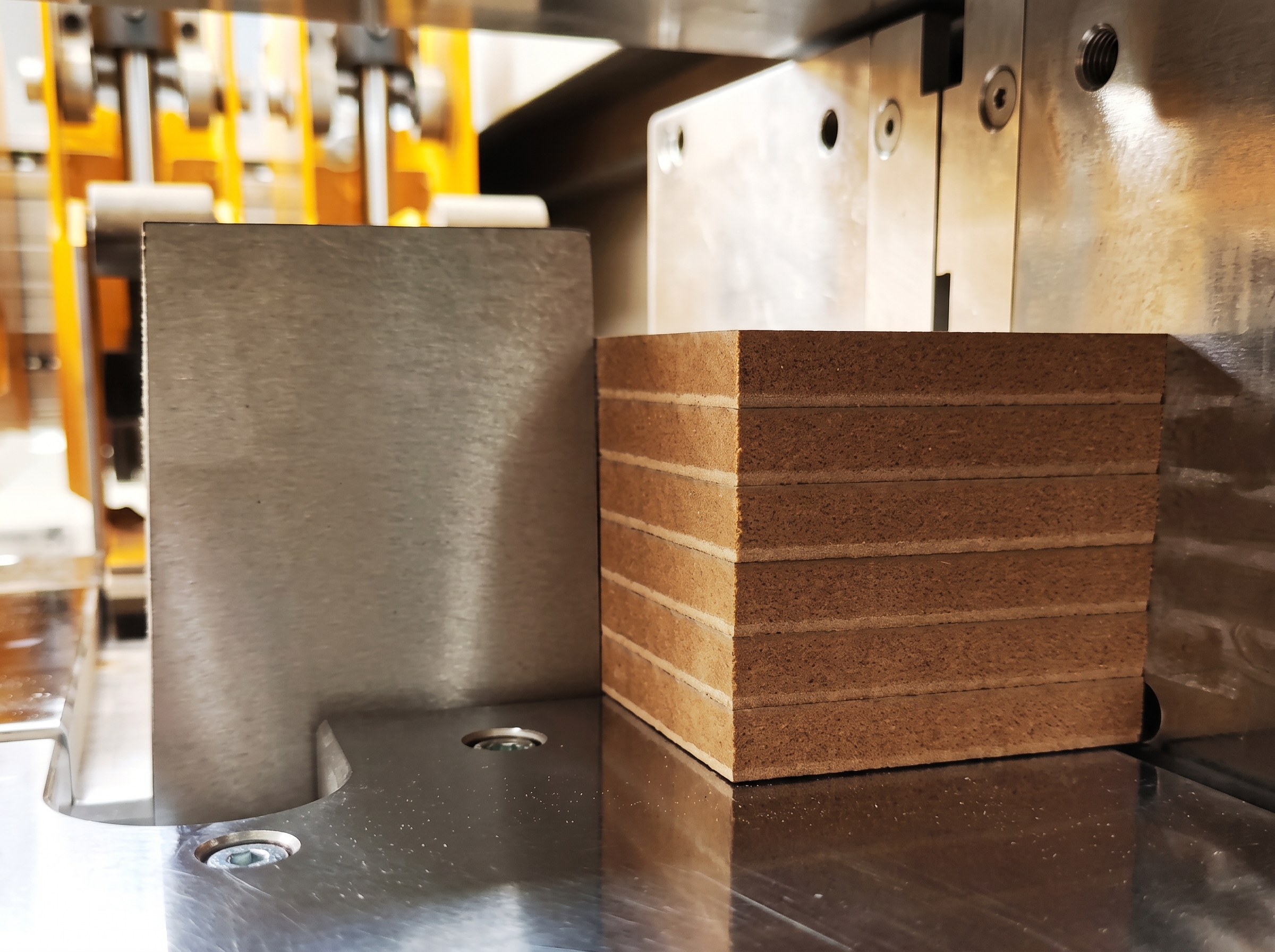

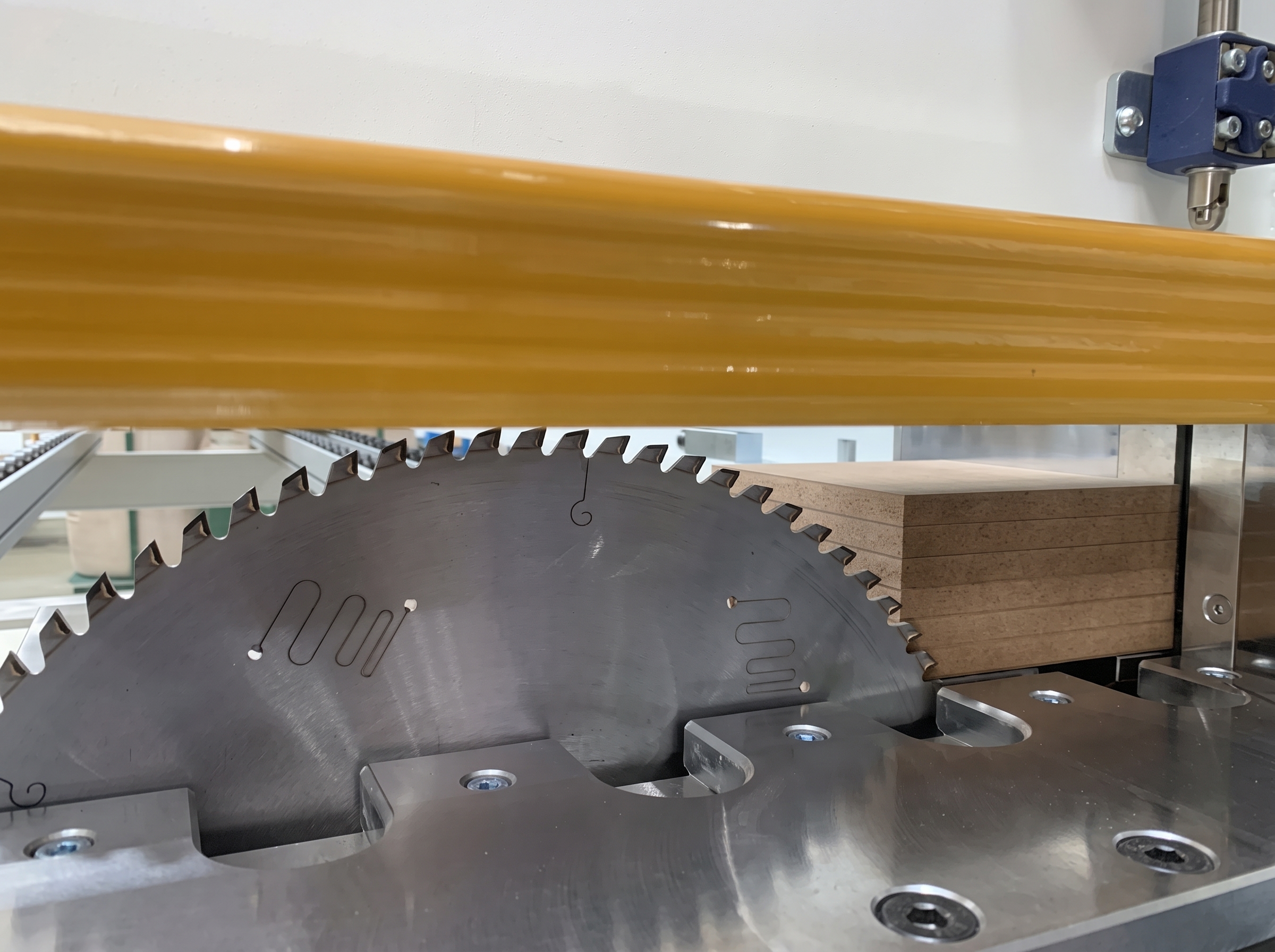

- Saw blade and pressure beam strokes adjust automatically according to workpiece thickness.
Technical data
| Specifications | Unit | NPC330LE |
|---|---|---|
| Cutting length | mm | 3200 |
| Cutting thickness | mm | 90 |
| Main saw speed | rpm | 3910 |

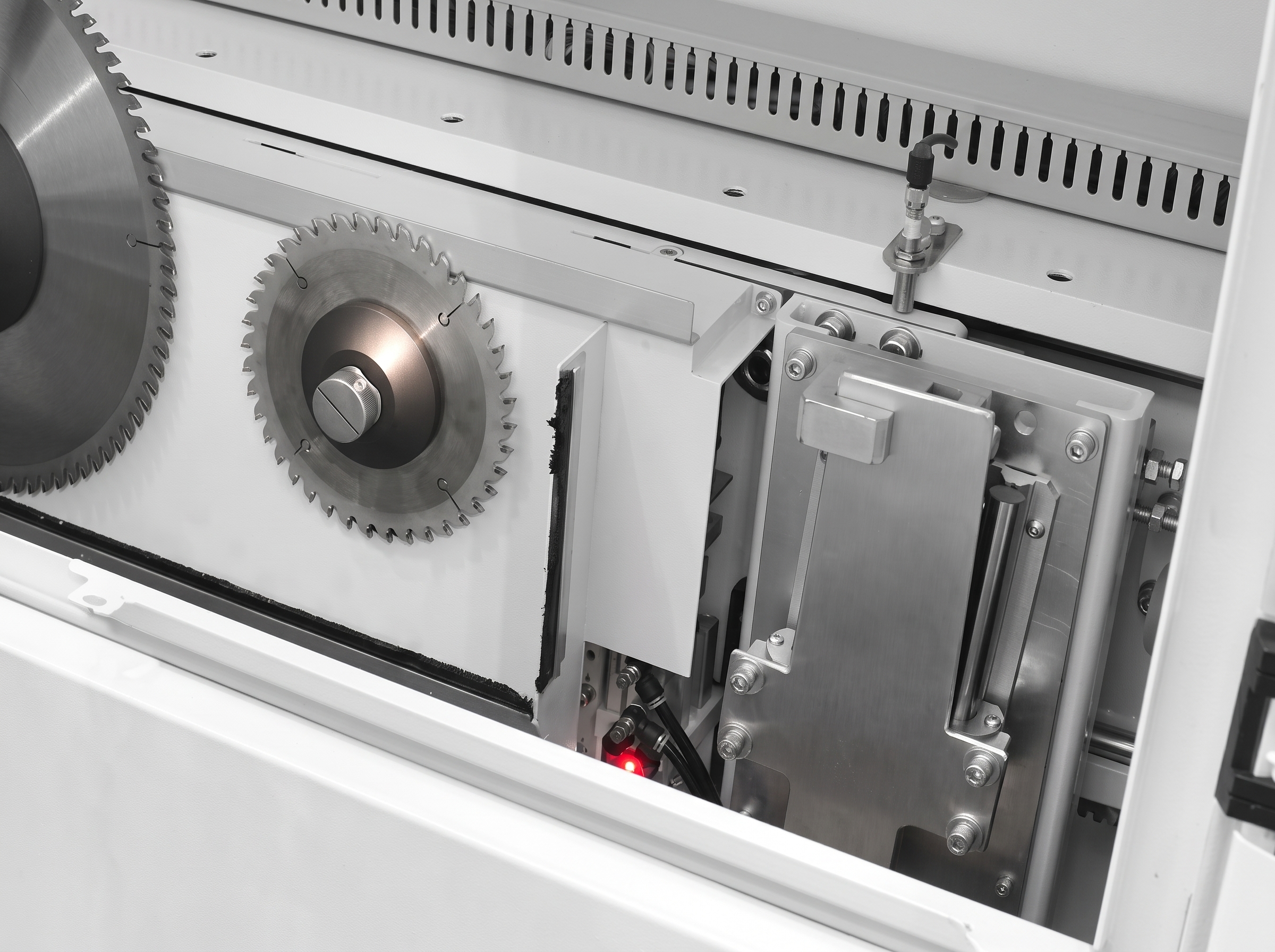

| Scoring saw speed | rpm | 4300 |
| Saw carriage forward speed | m/min | 90 |
| Saw carriage backward speed | m/min | 120 |
| Main saw motor | kW | 15 |
| Automatic feeding speed | m/min | 85 |
| Rear feeding speed | m/min | 60 |
| Dust extraction | mm | Ø150 × 3 |
| Total power | kW | 26 |
| Overall dimensions | mm | 7500 × 5400 × 1810 |
| Net weight | kg | 6500 |
