Highlights

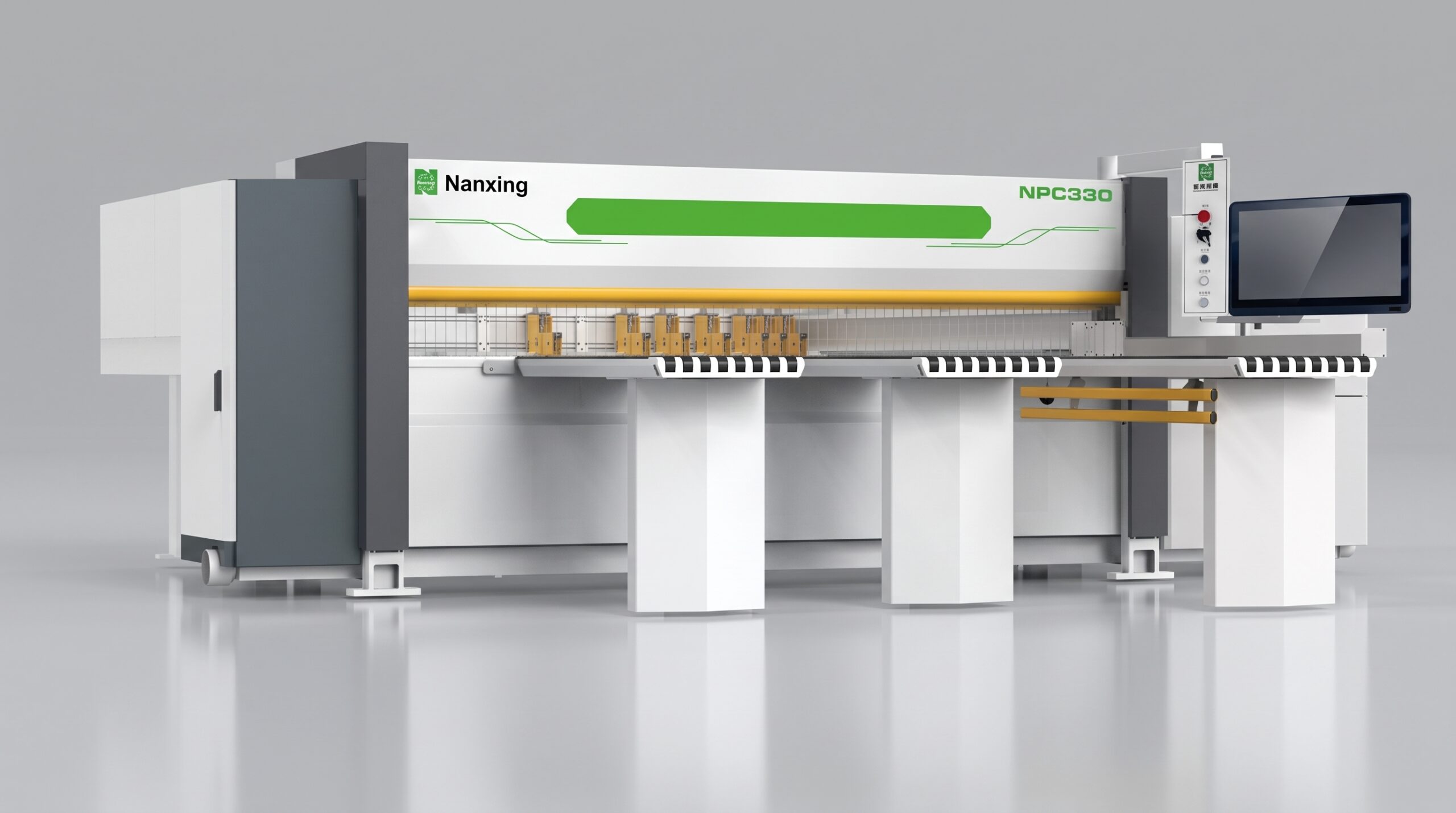

The NPC330 Panel Dividing Saw is designed for efficient batch cutting and sizing of furniture panels and wood-based boards. The pressure beam automatically adjusts according to the total panel stack height to reduce unnecessary travel, while the saw carriage adapts its movement to the panel width for faster cutting cycles. Independent lifting of the main and scoring saws, software-controlled scoring adjustment and an automatic side-pushing device help improve cutting accuracy and edge quality. Integrated production software supports cutting-pattern simulation, process reporting, error display and barcode printing.
- Cutting length: 3300 mm
- Cutting thickness: 90 mm
- Main saw motor: 15 kW
- Main saw speed: 3910 r/min
- Saw carriage speed: 90 m/min forward / 120 m/min return
- Automatic feeding speed: 85 m/min
- Total power: 23.5 kW
Video
3D Images
NPC330 – 3D model by nanxing_ru (@nanxing_ru) [c8cc68a]
Features
- Automatic pressure-beam height adjustment shortens clamping travel for higher efficiency.
- Saw carriage automatically adapts travel distance according to panel width.
- Main and scoring saws feature independent vertical movement, with software-controlled scoring adjustment.
- Side-pushing alignment device helps maintain square cutting, including on thin and soft panels.
- Production software supports cutting simulation, reports, fault messages and barcode printing.
Technical data
| Specifications | Unit | NPC330 |
|---|---|---|
| Cutting length | mm | 3300 |
| Cutting thickness | mm | 90 |
| Main saw speed | r/min | 3910 |
| Scoring saw speed | r/min | 4300 |
| Saw carriage forward speed | m/min | 90 |
| Saw carriage return speed | m/min | 120 |
| Main saw motor | kW | 15 |
| Automatic feeding speed | m/min | 85 |
| Dust extraction | mm | Ø150 × 3 |
| Total power | kW | 23.5 |
| Overall dimensions | mm | 6900 × 5400 × 1820 |
| Net weight | kg | 5300 |
