Highlights

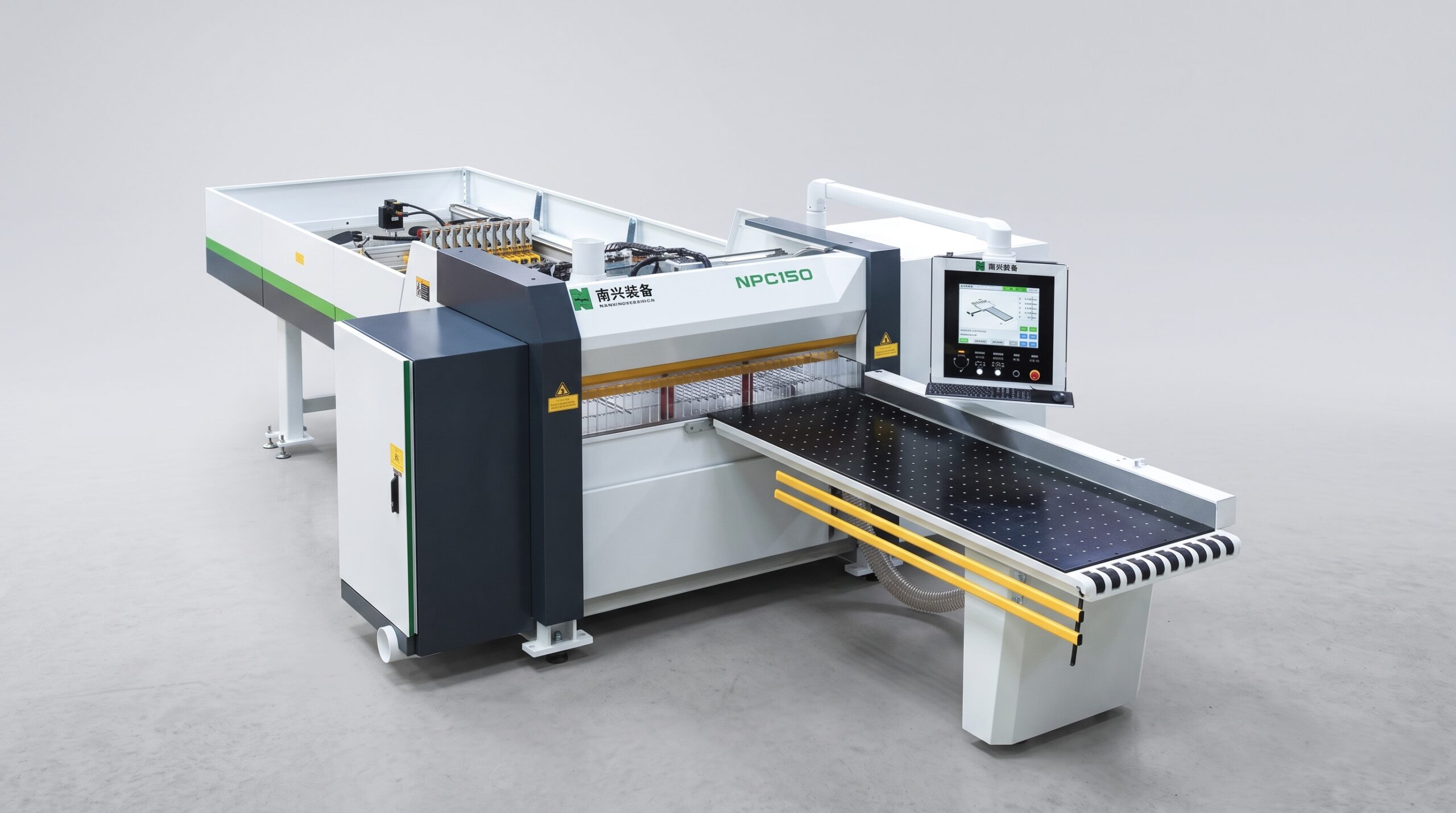

The NPC150 Panel Dividing Saw is designed for efficient sizing and batch cutting of furniture panels and wood-based boards. Its low workbench height helps reduce operator effort, while the separated front and rear worktable structure improves rigidity and processing stability. A 17 mm chrome-plated steel table surface provides wear resistance and smooth material support, and the heavy saw carriage body is built from 22 mm high-strength steel plate to reduce vibration and operating noise.
- Cutting length: 3250 mm
- Cutting thickness: 90 mm
- Main saw motor: 15 kW
- Saw carriage speed: 100 m/min forward / 120 m/min return
- Automatic feeding speed: 85 m/min
- Rear feeding speed: 60 m/min
- Total power: 23.5 kW
Features
- Low workbench height helps reduce operator loading and unloading effort.
- Separated front and rear worktables improve bending and compression resistance.
- 17 mm chrome-plated steel table provides a durable, smooth support surface.
- 22 mm high-strength steel saw-seat body helps reduce vibration and noise.
- Targeted dust extraction at each clamp opening helps control dust leakage.
Technical data
| Specifications | Unit | NPC150 |
|---|---|---|
| Cutting length | mm | 3250 |
| Cutting thickness | mm | 90 |
| Main saw speed | r/min | 3910 |
| Scoring saw speed | r/min | 4300 |
| Saw carriage forward speed | m/min | 100 |
| Saw carriage return speed | m/min | 120 |
| Main saw motor | kW | 15 |
| Automatic feeding speed | m/min | 85 |
| Rear feeding speed | m/min | 60 |
| Dust extraction | mm | Ø150 × 2 |
| Total power | kW | 23.5 |
| Overall dimensions | mm | 6864 × 3550 × 1810 |
| Net weight | kg | 5300 |
