Highlights

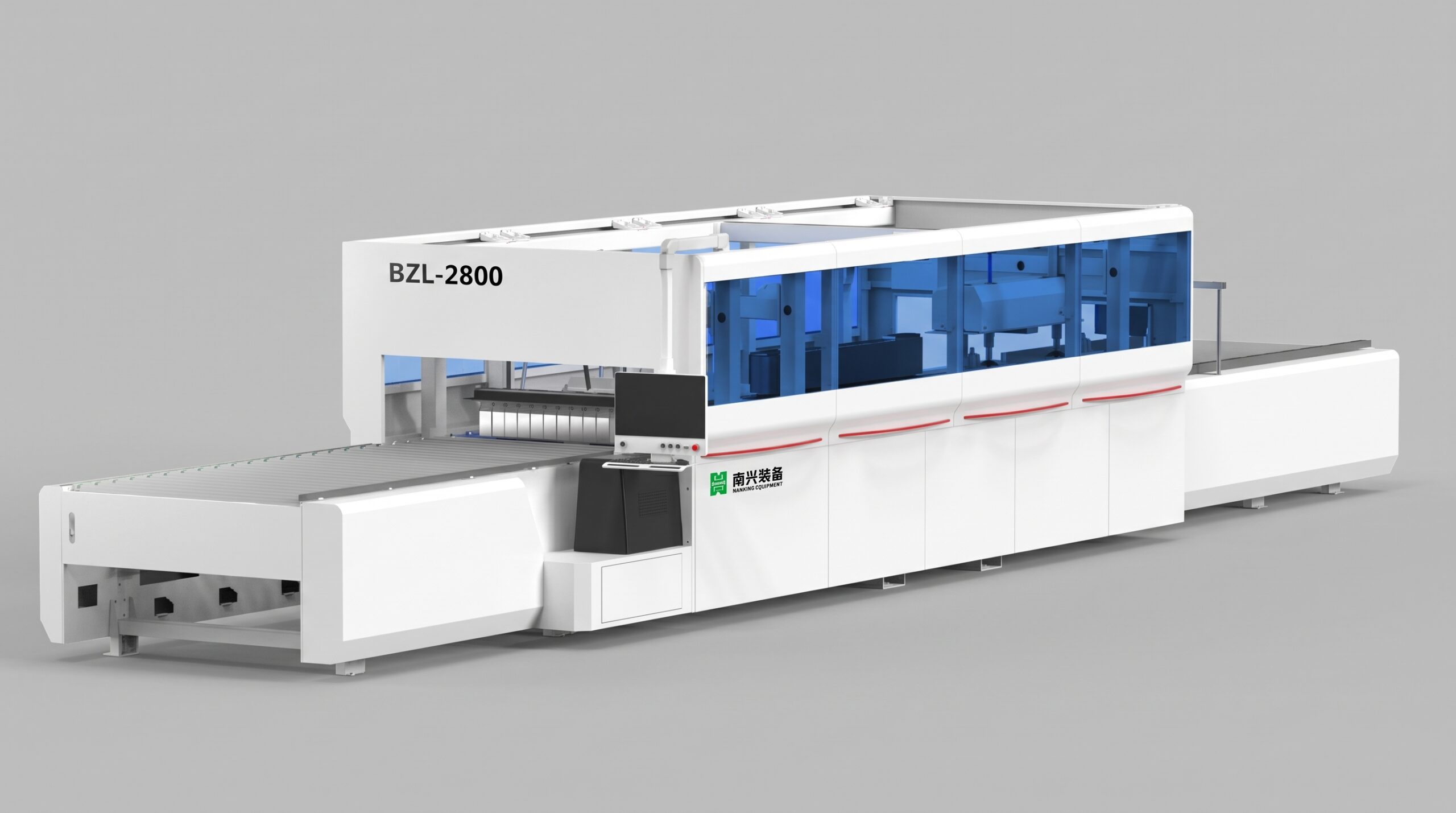

The NKP2812 (BZL2800) Cardboard Packing Machine is designed for automatic corrugated cardboard packaging of furniture panels and other finished products with varying dimensions. A fully servo-controlled adjustment system automatically adapts the machine to different product sizes, reducing manual setup between orders. The conveying rollers use a non-stick treatment, while an ultra-high-speed electric spray gun applies adhesive during carton forming and sealing. An all-steel beam structure provides stable support for continuous packaging production.
- Processing speed: 4–8 packs/min
- Paper box length: 300–2900 mm
- Paper box width: 120–1200 mm
- Corrugated paper height: 30–150 mm
- Machine power: 6 kW
- Total weight: 5 tons
- Control system: Fully servo-controlled automatic adjustment
Features
- Fully servo-controlled adjustment automatically adapts to products with different dimensions.
- Non-stick roller treatment helps maintain smooth cardboard conveying during packaging.
- Ultra-high-speed electric glue spray gun supports consistent adhesive application during carton sealing.
- All-steel beam construction provides stable and reliable machine operation.
- Suitable for flexible packaging production with box lengths from 300 to 2900 mm.
Technical data
| Specifications | Unit | BZL2800 |
|---|---|---|
| Cutting speed | packs/min | 4–8 |
| Paper box length | mm | 300–2900 |
| Paper box width | mm | 120–1200 |
| Corrugated paper height | mm | 30–150 |
| Power | kW | 6 |
| Total weight | t | 5 |
