Highlights

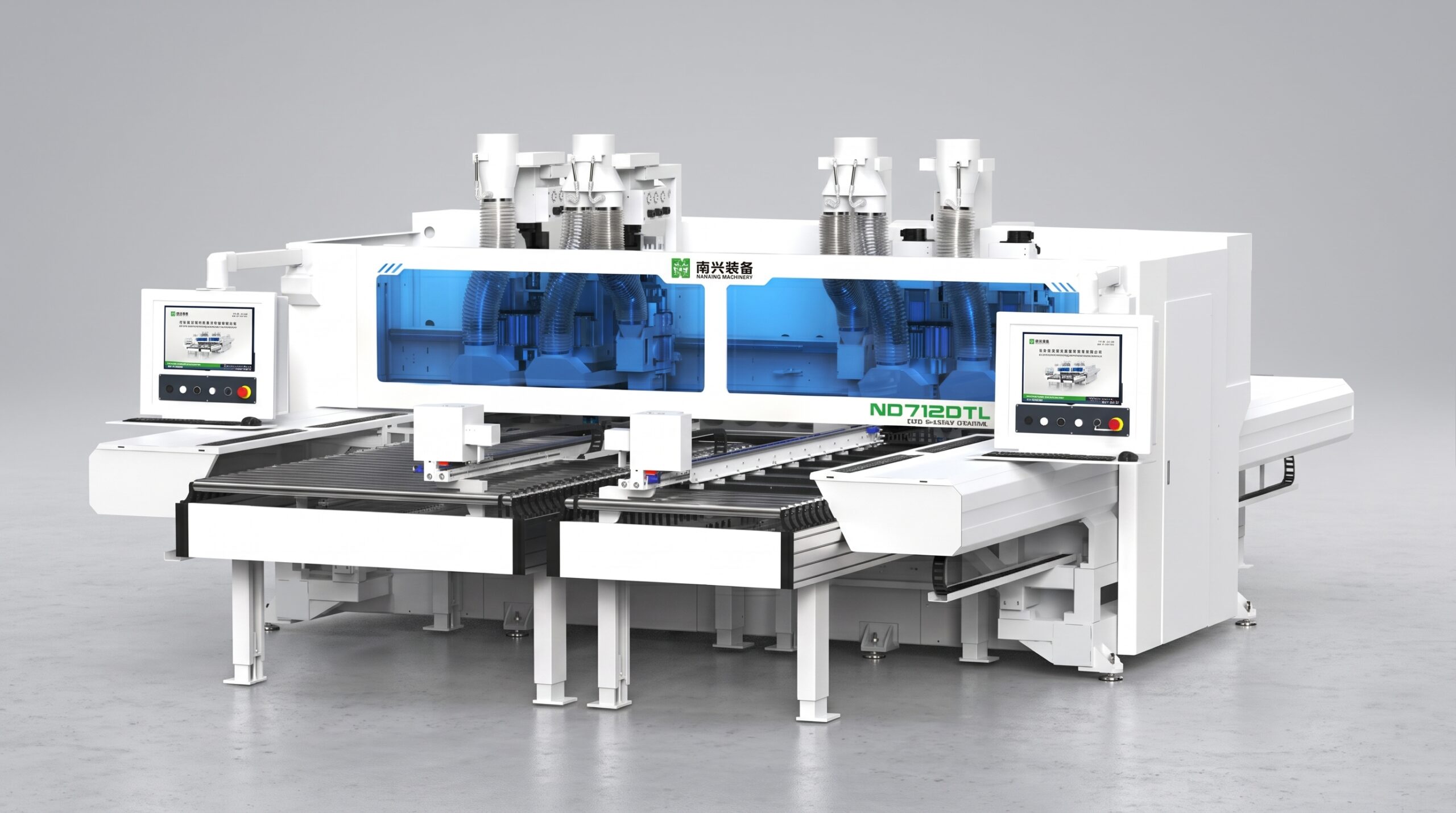

The ND712DTL CNC 6-Sided Drilling Machine is a dual-station CNC drilling and machining center designed for high-volume cabinet and panel furniture production. It integrates two independent workstations within a rigid machine structure, enabling simultaneous panel processing while reducing workshop space requirements. The machine features four routing spindles, upper and lower drilling assemblies, and automatic tool-changing capability for flexible drilling, grooving and routing operations. With maximum X/U-axis speeds of 135 m/min, it supports efficient machining of customized furniture components and continuous industrial panel production.
-
Panel length: 250–2800 mm
-
Panel width: 30–1220 mm; right station 50–650 mm
-
Panel thickness: 10–60 mm
-
Maximum X/U-axis speed: 135 m/min
-
Vertical drilling: 19 × 4 upper / 9 × 2 lower
-
Spindle power: 5.5 kW × 2 + 3.5 kW × 2
-
Total power: 52.36 kW
Video
Features
-
Dual independent workstations support simultaneous panel processing and improve production efficiency within one integrated machine.
-
76 upper and 18 lower vertical drills provide extensive drilling capacity for furniture panels.
-
Four routing spindles, including two 5.5 kW upper spindles with automatic tool changing, support drilling, grooving and routing applications.
-
High-speed servo-controlled movement reaches 135 / 135 / 75 / 30 m/min across the X/U/Y/Z axes.
-
High-rigidity integrated machine construction and SYNTECH CNC control support stable, continuous production.
Technical data
| Specifications | Unit | ND712DTL |
|---|---|---|
| Panel length | mm | 250–2800 |
| Panel width | mm | 30–1220 |
| Right station panel width | mm | 50–650 |
| Panel thickness | mm | 10–60 |
| Maximum X-axis speed | m/min | 135 |
| Maximum U-axis speed | m/min | 135 |
| Maximum Y-axis speed | m/min | 75 |
| Maximum Z-axis speed | m/min | 30 |
| Rotation speed | rpm | 5000 |
| Upper vertical drills | pcs | 19 × 4 |
| Upper horizontal drills – X direction | pcs | 3 × 8 |
| Upper horizontal drills – Y direction | pcs | 2 × 8 |
| Lower vertical drills | pcs | 9 × 2 |
| Upper spindle power | kW | 5.5 × 2 |
| Lower spindle power | kW | 3.5 × 2 |
| Control system | — | SYNTECH |
| Total power | kW | 52.36 |
| Overall dimensions (L × W × H) | mm | 7440 × 4620 × 2620 |
