Highlights

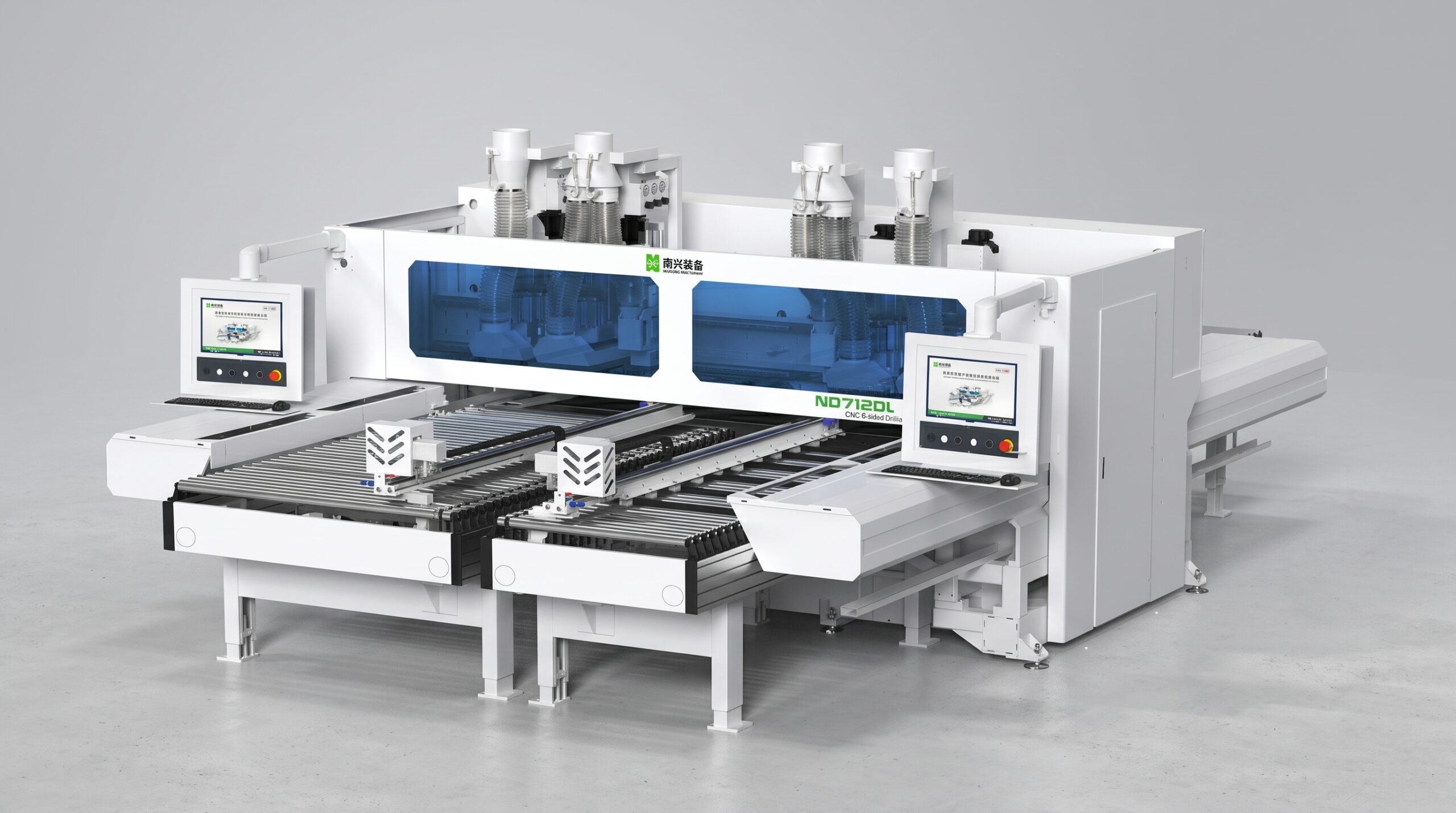

The ND712DL CNC 6-Sided Drilling Machine is designed for high-efficiency drilling and machining of cabinet and panel furniture components. By integrating two independent workstations into one rigid machine structure, it enables parallel processing while reducing the floor space required compared with two separate machines. The machine combines upper and lower drilling assemblies, horizontal drilling units and four 3.5 kW spindles with maximum speeds of 18,000 rpm. Its high-rigidity integrated frame supports stable operation during continuous panel processing, while the SYNTECH control system manages CNC machining operations. The dual-station configuration is intended for furniture manufacturers seeking higher productivity and more efficient workshop space utilization.
-
Workstations: 2 independent stations
-
Standard panel size: 200–3000 × 30–650 × 10–60 mm (L × W × T)
-
Routing panel size: 250–2400 × 65–1200 × 12–50 mm (L × W × T)
-
Top vertical drills: 19 × 4 = 76
-
Bottom vertical drills: 9 × 2 = 18
-
Spindle power: 3.5 kW × 4, maximum 18,000 rpm
- Total power: 48.36 kW
Images
Video
Features
-
Two independent CNC workstations are integrated into one machine body, supporting parallel panel processing and improved floor-space utilization.
-
High-rigidity integrated machine structure provides stable support for fast and continuous drilling operations.
-
Upper and lower drilling assemblies, including 76 upper vertical drills, 18 lower vertical drills and dedicated horizontal drilling units, support complex panel-hole machining.
-
Four 3.5 kW high-speed spindles, each rated up to 18,000 rpm, provide additional machining capability.
-
SYNTECH CNC control system coordinates the machine’s processing functions for furniture and panel manufacturing applications.
Technical data
| Specifications | Unit | ND712DL |
|---|---|---|
| Number of independent workstations | pcs | 2 |
| Standard panel thickness | mm | 10–60 |
| Standard panel width | mm | 30–650 |
| Standard panel length | mm | 200–3000 |
| Routing panel thickness | mm | 12–50 |
| Routing panel width | mm | 65–1200 |
| Routing panel length | mm | 250–2400 |
| Control system | — | SYNTECH |
| Maximum speed (X / U / Y / Z)* | m/min | 135 / 75 / 30 |
| Rotation speed | rpm | 5000 |
| Top vertical drills | pcs | 19 × 4 |
| Top horizontal drills – X direction | pcs | 3 × 8 |
| Top horizontal drills – Y direction | pcs | 2 × 4 |
| Bottom vertical drills | pcs | 9 × 2 |
| Spindle quantity | pcs | 4 |
| Spindle power | kW | 3.5 × 4 |
| Maximum spindle speed | rpm | 18,000 |
| Total power | kW | 48.36 |
| Overall dimensions (L × W × H) | mm | 7400 × 4470 × 2380 |
