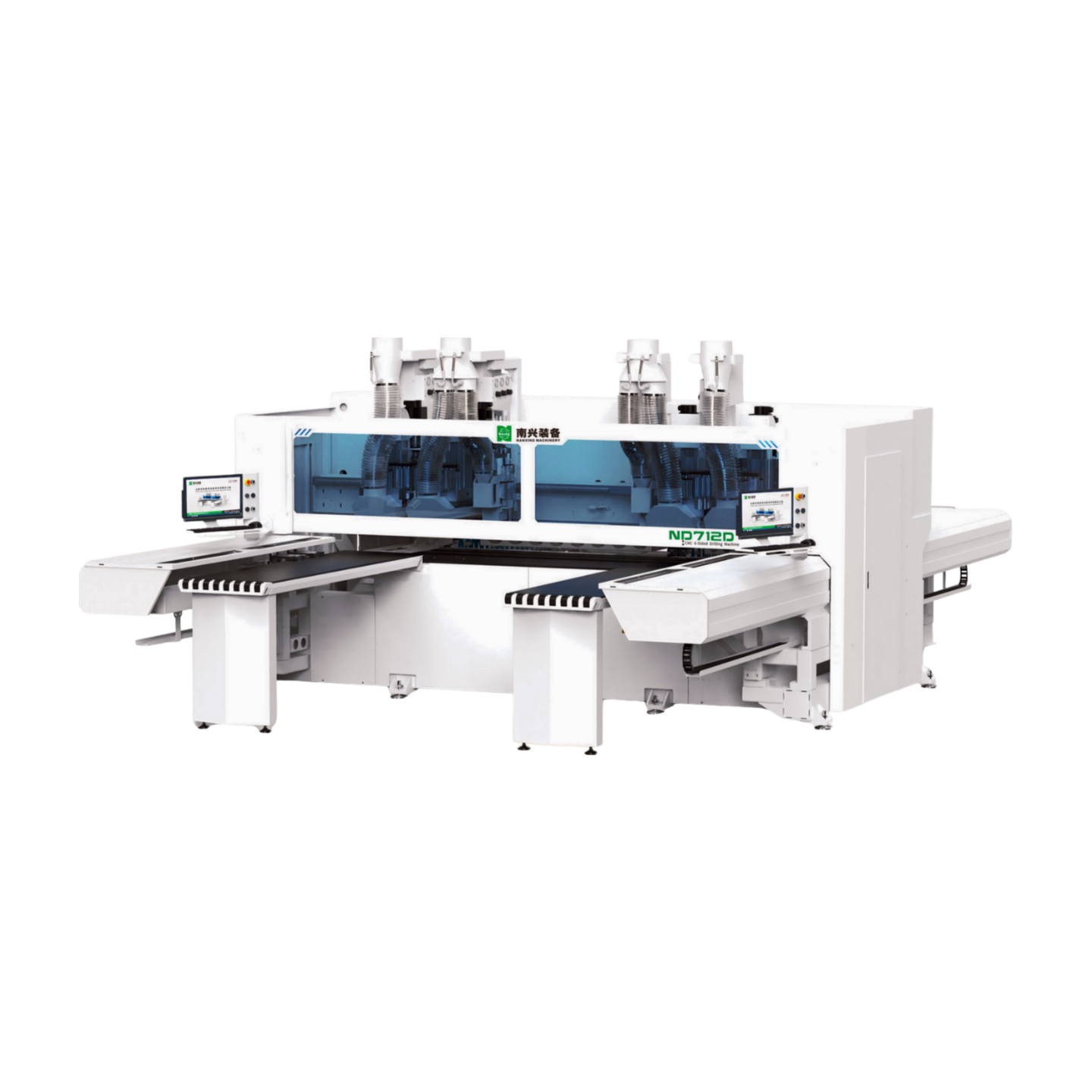

ND712DL CNC 6-Sided Drilling Machine
Product Overview
The ND712DL is a high-precision CNC six-sided drilling machine designed for batch panel furniture manufacturing. It supports dual-position synchronous processing for high efficiency and is equipped with independent top and bottom drilling units. This machine ensures accurate positioning, smooth operation, and is suitable for six-sided drilling with vertical and horizontal holes. It is ideal for streamlining production lines and reducing labor intensity.
Key Features
-

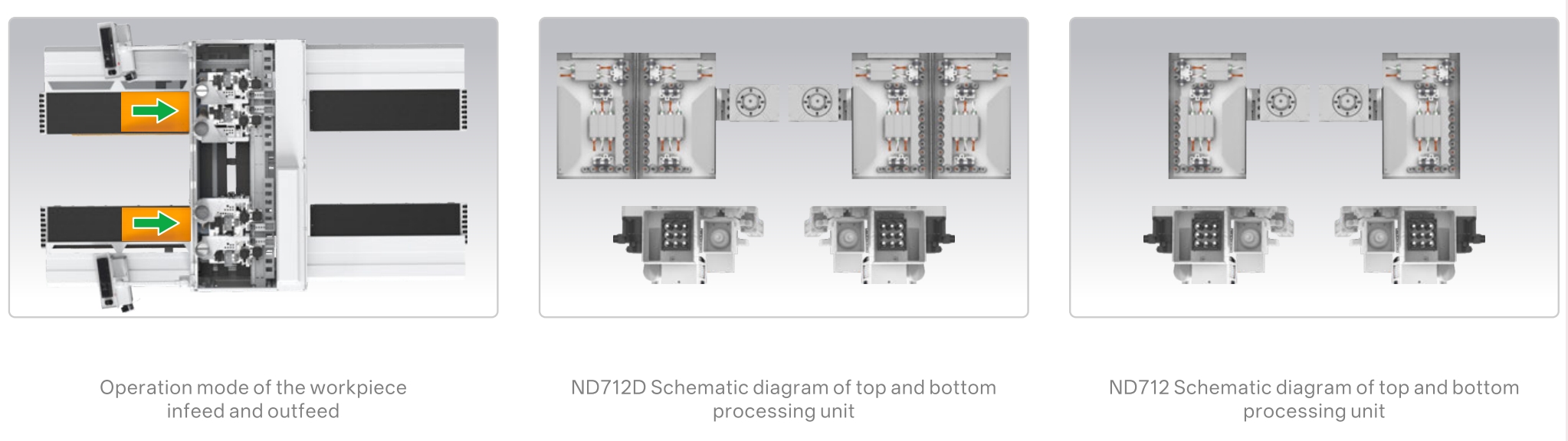

Dual working stations with simultaneous processing
-
Independent top and bottom spindle structure
-
High-speed spindle rotation up to 18,000 rpm
-
Equipped with 38 drilling tools (top and bottom)
-
Compact design with automatic panel transfer system
-
Perfect for batch production of cabinets, wardrobes, and more

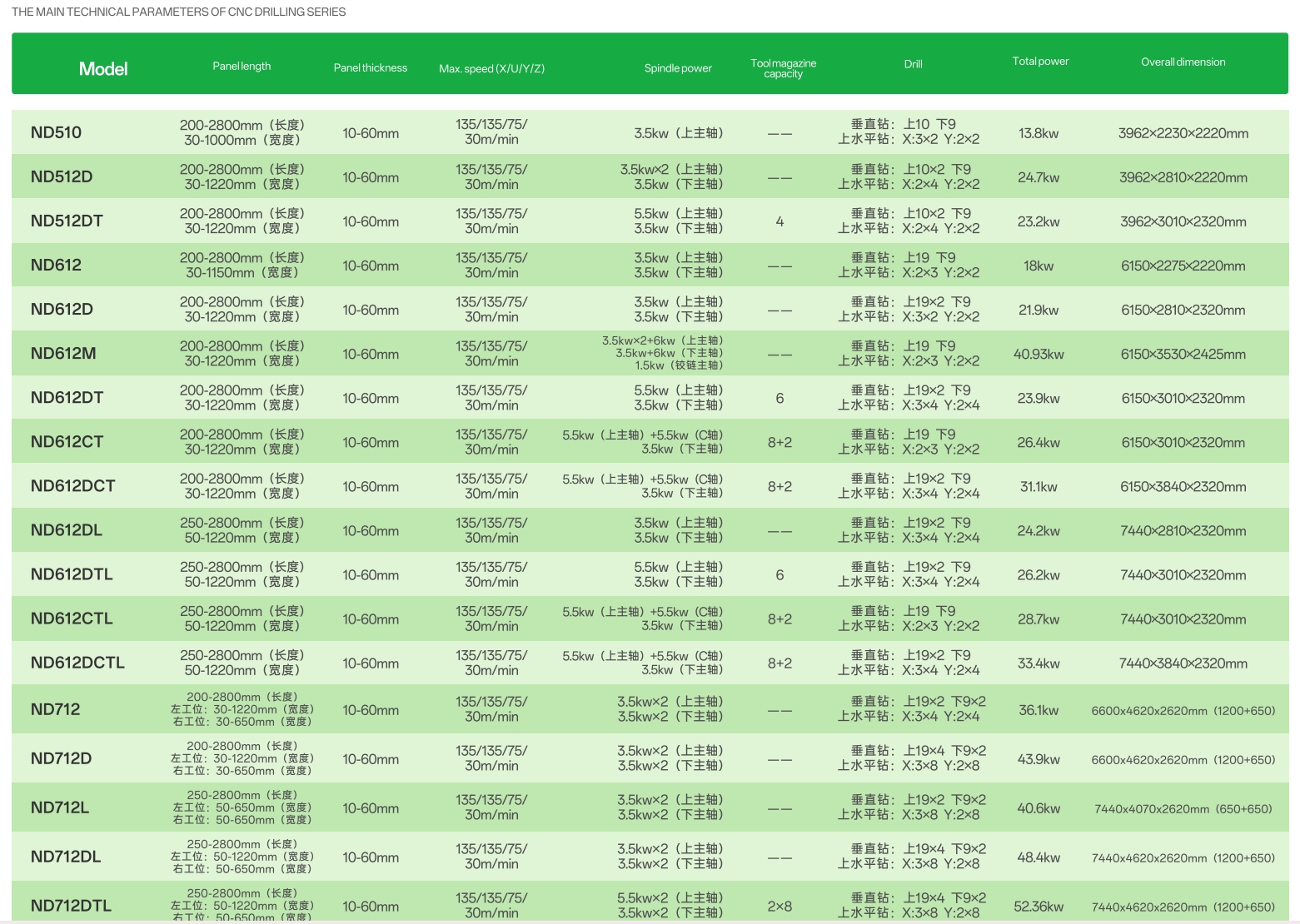

Technical Specifications
| Parameter | Specification |
|---|---|
| Panel Length | 250 – 2800 mm |
| Panel Width | Left station: 50 – 1200 mm Right station: 50 – 650 mm |
| Panel Thickness | 10 – 60 mm |
| Max Speed (X/Y/Z) | 135 / 135 / 75 m/min |
| Vertical Drills | Top: 19 × 4 Bottom: 9 × 2 |
| Horizontal Drills | X-axis: 6 × 4 Y-axis: 2 × 4 |
| Main Spindle Power | Top: 3.5 kW × 2 Bottom: 3.5 kW × 2 |
| Total Power | 48.36 kW |
| Max Spindle Speed | 18,000 rpm |
| Vacuum Ports | Top: Ø200 mm × 4 Bottom: Ø125 mm × 2 |
| Machine Dimensions | 7400 × 4620 × 2620 mm |
| Net Weight | 5000 kg |
Applications
The ND712DL is ideal for six-sided drilling of flat-pack furniture components. It can be integrated into intelligent production lines for automatic panel loading/unloading, edge banding, and sorting. Suitable for medium to large panel furniture manufacturers aiming for digitalization and automation.
ND712DL vs ND712DTL – Key Differences
| Feature | ND712DL | ND712DTL |
|---|---|---|
| Tool Changer | Not included (fixed tools) | Dual 8-position automatic tool changers |
| Top Spindle | 3.5 kW × 2 (fixed) | 5.5 kW × 2 (auto tool change) |
| Bottom Spindle | 3.5 kW × 2 (fixed) | 3.5 kW × 2 (fixed) |
| Tool Count | Fixed drilling units (38 bits) | Flexible cutting with additional cutters |
| Functions | Standard 6-side drilling | 6-side drilling + grooving + slotting |
| Power Consumption | 48.36 kW | 52.36 kW |
| Weight | 5000 kg | 7850 kg |
| Suitability | Standard production needs | Advanced smart factory integration |
